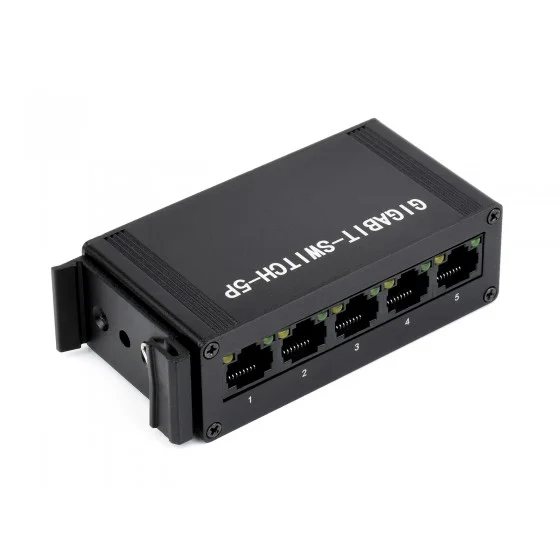

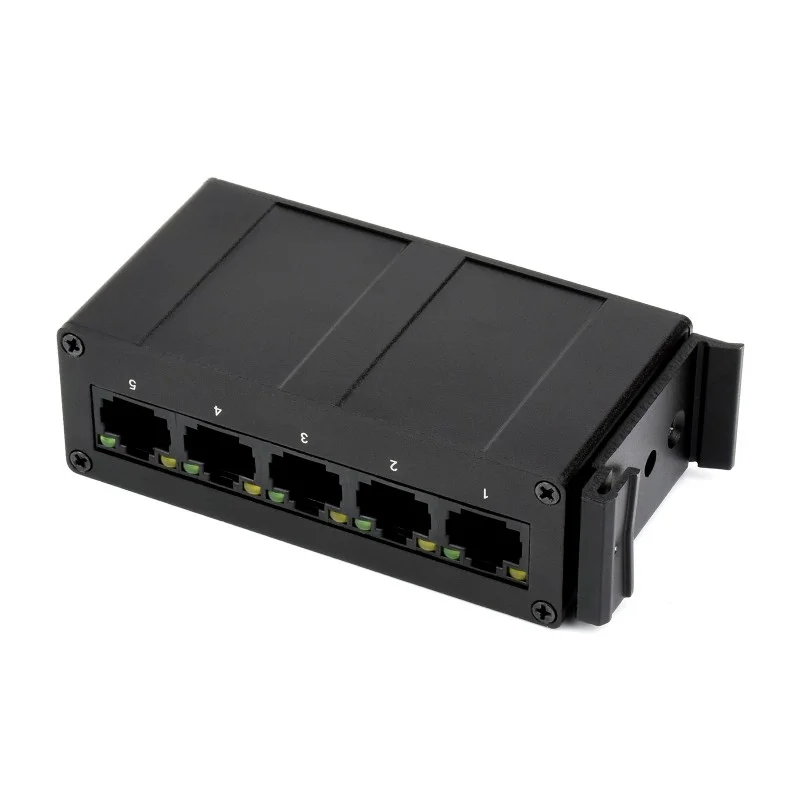

Waveshare Industrial 5-Port Gigabit Ethernet Switch DIN Rail Mount

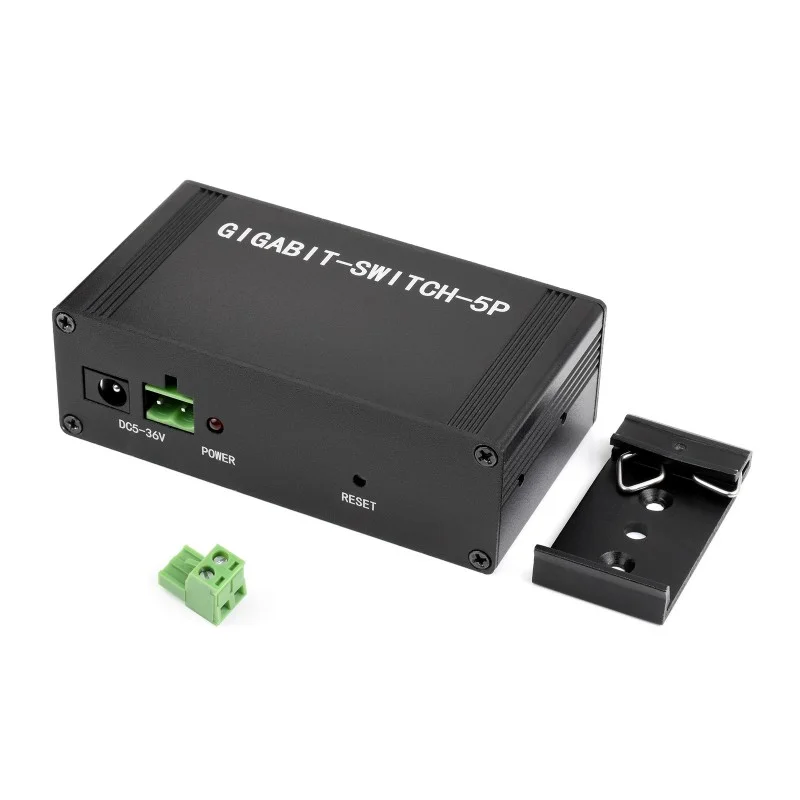

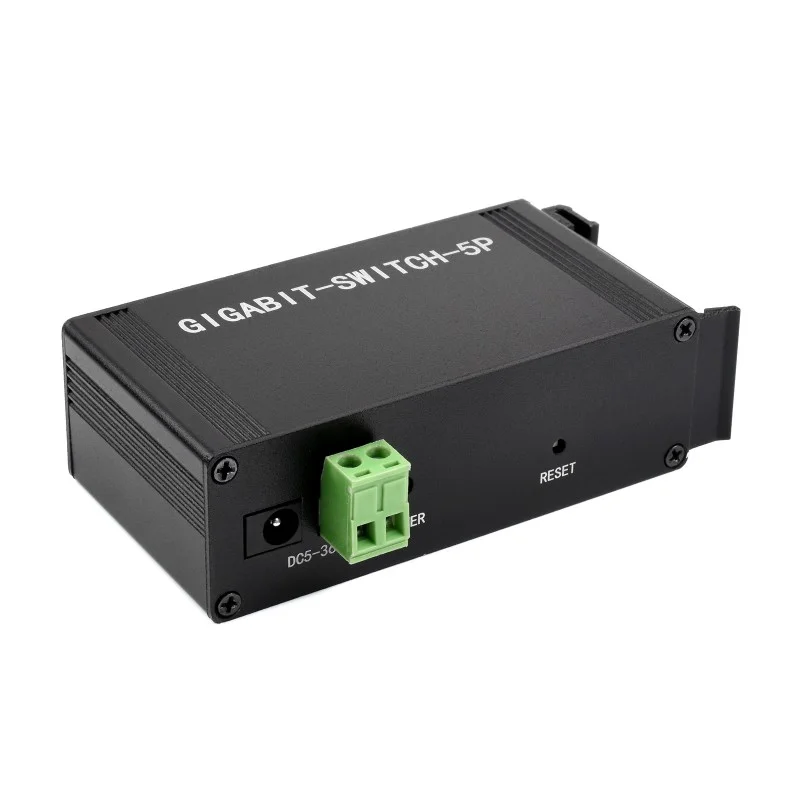

The switch accepts a wide-range DC input from 5V to 36V, providing flexibility for various industrial power sources. You can connect power via either the included DC jack or the screw terminal block. It does not include a power adapter, so you must supply a compatible DC power supply within this voltage range, ensuring it can deliver sufficient current for all connected devices.

Yes, its industrial-grade design with an operating temperature range of -40°C to 75°C and a robust alloy enclosure makes it suitable for harsh environments subject to extreme temperatures, vibration, and shock. For outdoor use, it should be installed within a protective enclosure or cabinet with proper IP rating to shield the connectors from direct moisture and dust ingress.

No, this is a standard unmanaged Gigabit Ethernet switch and does not provide Power over Ethernet (PoE) functionality. It requires its own 5-36V DC power input. To power PoE devices like IP cameras or wireless access points, you would need to connect a separate PoE injector or use a PoE midspan between this switch and the end device.

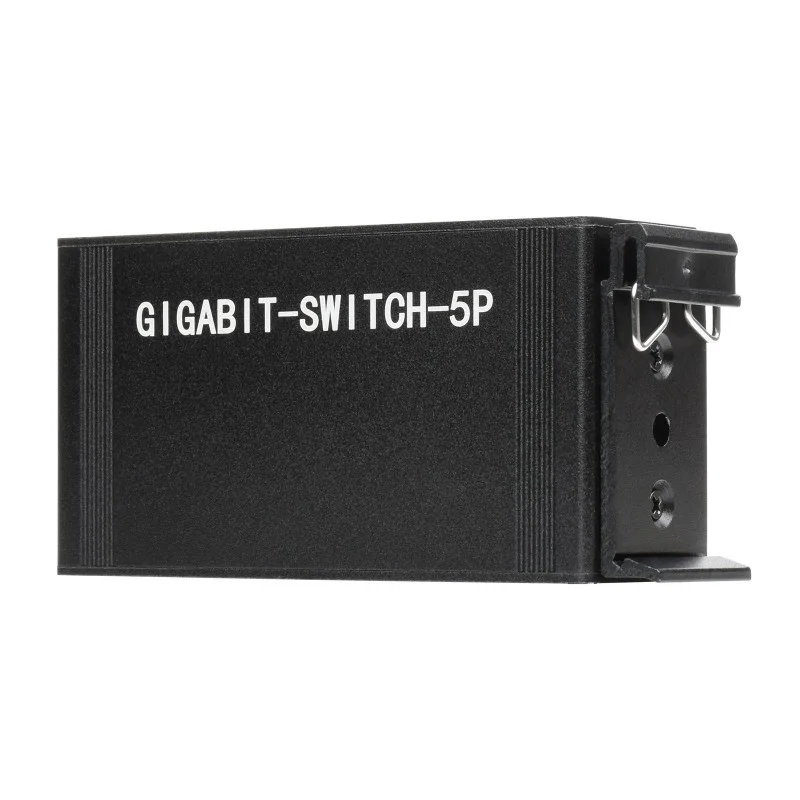

The switch features a built-in DIN rail clip on its rear side for quick mounting on standard 35mm DIN rails commonly found in control panels. Simply hook the top of the switch onto the rail and press the bottom until it clicks into place. Ensure you have adequate space for cable management and ventilation, and connect the DC power and Ethernet cables to their respective ports.
