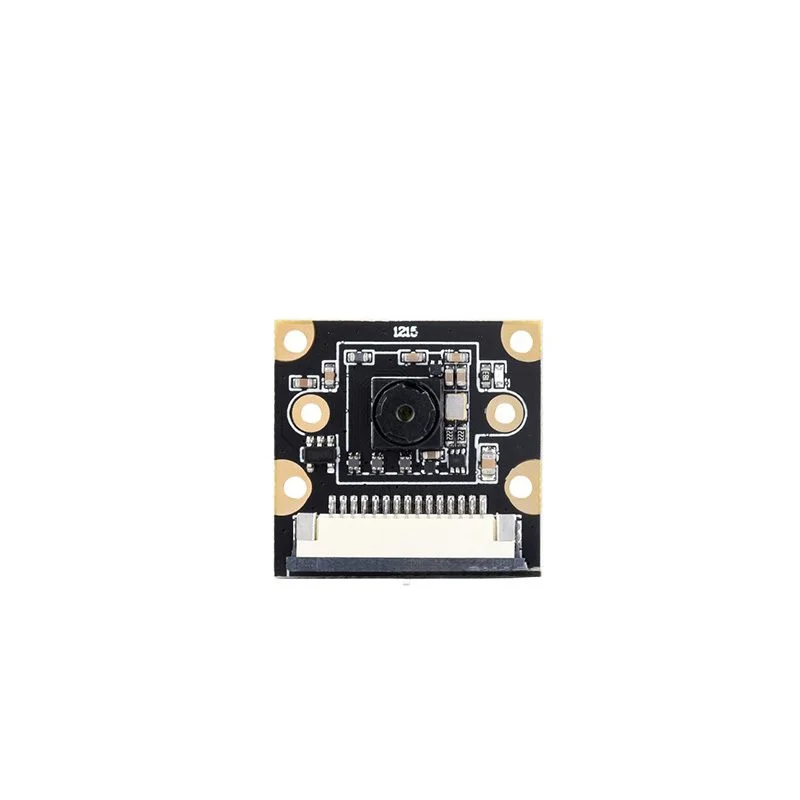

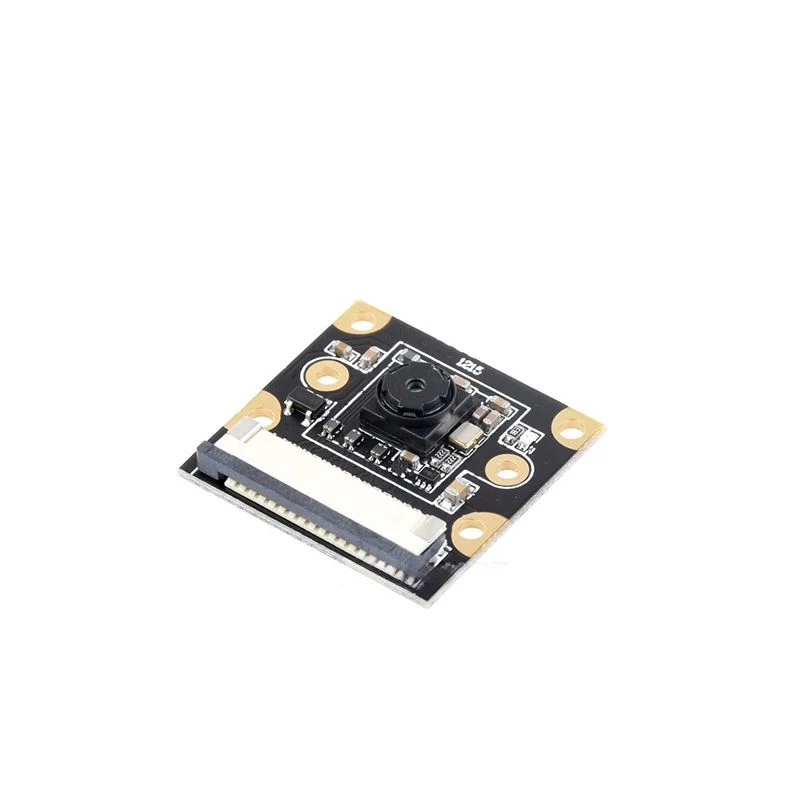

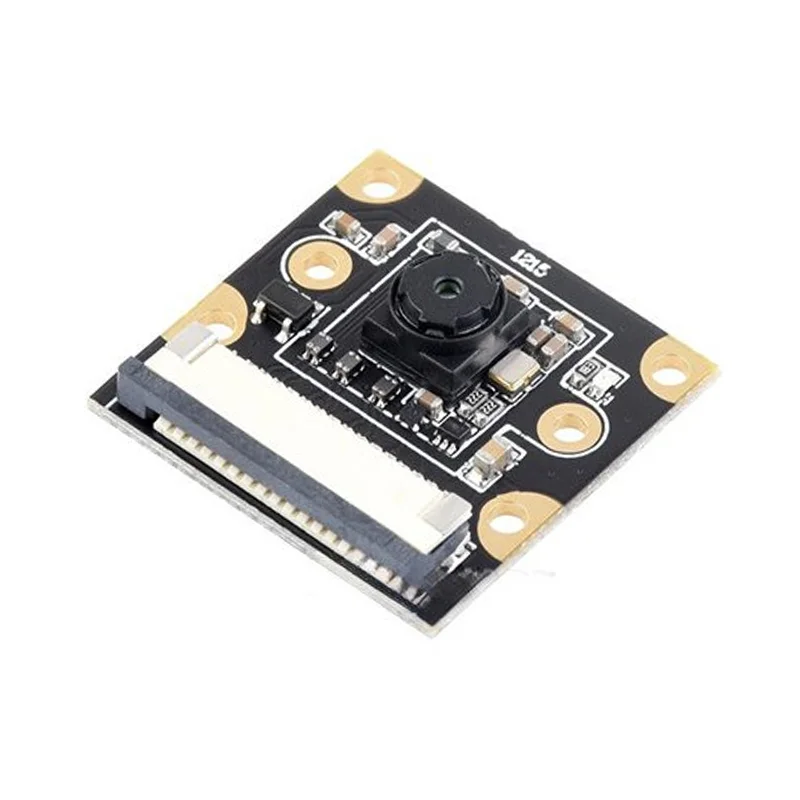

Waveshare IMX219 Camera Module for Raspberry Pi 5, 8MP, MIPI-CSI, 79.3° FOV
The Waveshare IMX219 Camera Module is an 8MP MIPI-CSI imaging sensor designed for direct integration with the Raspberry Pi 5, delivering high-resolution stills and video for computer vision and IoT monitoring applications.
Features
- 8MP IMX219 Sensor: Captures sharp, detailed images at 3280×2464 resolution for advanced computer vision and surveillance projects.
- Raspberry Pi 5 Compatible: Designed specifically for the Pi 5’s MIPI-CSI interface, ensuring plug-and-play connectivity and driver support.
- 79.3° Field of View: Wide-angle lens provides flexibility for capturing broader scenes in robotics, security, or environmental monitoring.
- Compact Form Factor: Small 25x24mm footprint allows for easy integration into space-constrained prototypes and enclosures.
- MIPI-CSI High-Speed Interface: Enables efficient, low-latency data transfer for real-time image processing and video streaming.
Out of stock

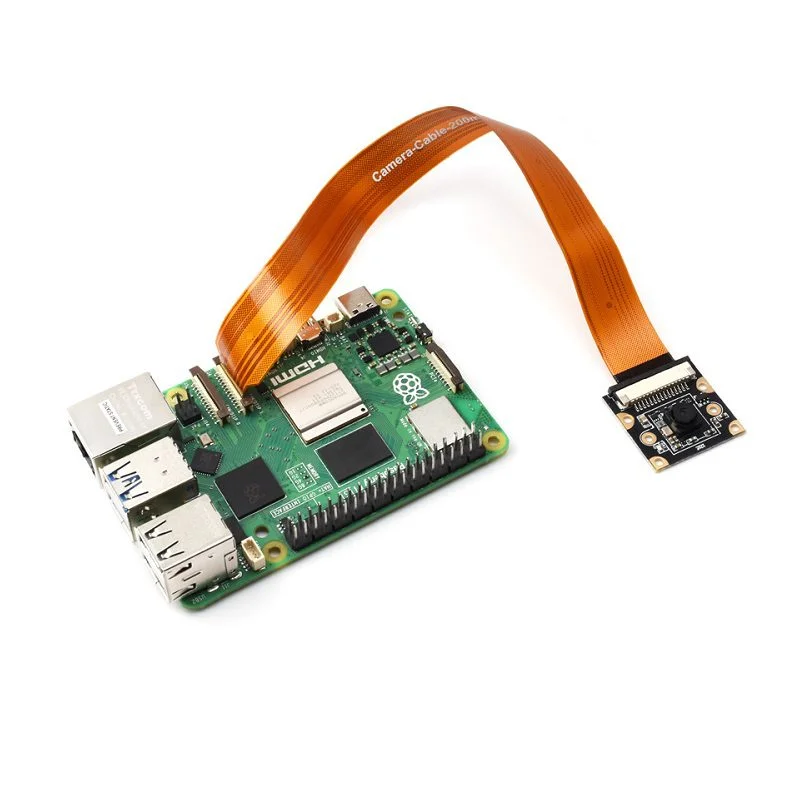

The Waveshare IMX219 Camera Module is a dedicated imaging peripheral engineered for the Raspberry Pi 5 platform. It leverages the Sony IMX219 CMOS sensor, a proven component known for its balance of resolution and performance, delivering 8-megapixel stills and video through a native MIPI-CSI-2 serial interface. This direct hardware connection ensures maximum bandwidth and compatibility, bypassing the need for USB conversion and reducing CPU overhead.
With a fixed-focus lens offering a 79.3° diagonal field of view and an F2.0 aperture, the module is optimized for general-purpose computer vision tasks, from object detection and facial recognition to time-lapse photography. Its compact, rigid-flex PCB design simplifies physical mounting while the standardized connector guarantees reliable electrical contact. This module is an essential upgrade for developers building Raspberry Pi 5-based IoT devices that require reliable, high-quality visual input.
Additional Information
| Weight | 0.013 kg |
|---|---|
| Dimensions | 2.4 × 2.5 cm |
