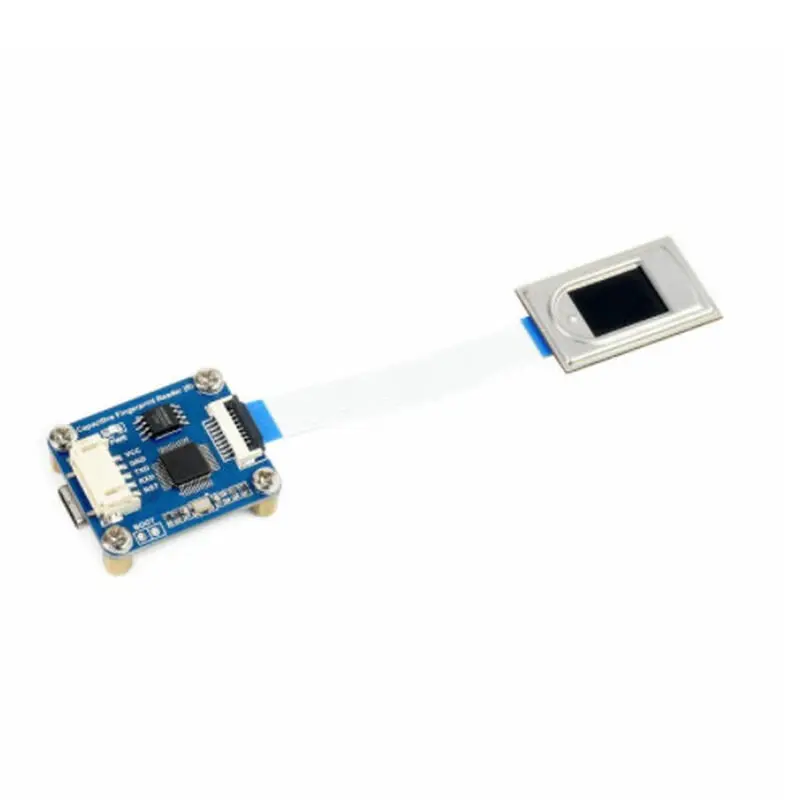

Waveshare High Precision Capacitive Fingerprint Reader (B) - UART/USB Dual Ports
The Waveshare Capacitive Fingerprint Reader (B) is a high-performance biometric module featuring a 208×288 pixel capacitive sensor, supporting UART and USB communication for seamless integration with Raspberry Pi, Arduino, STM32, and other embedded systems. It operates on a 3.3V to 5V supply and provides fast fingerprint enrollment, matching, and secure storage for up to 3000 templates.
Features
- High-precision 208×288 pixel capacitive fingerprint sensor with 256-level greyscale.

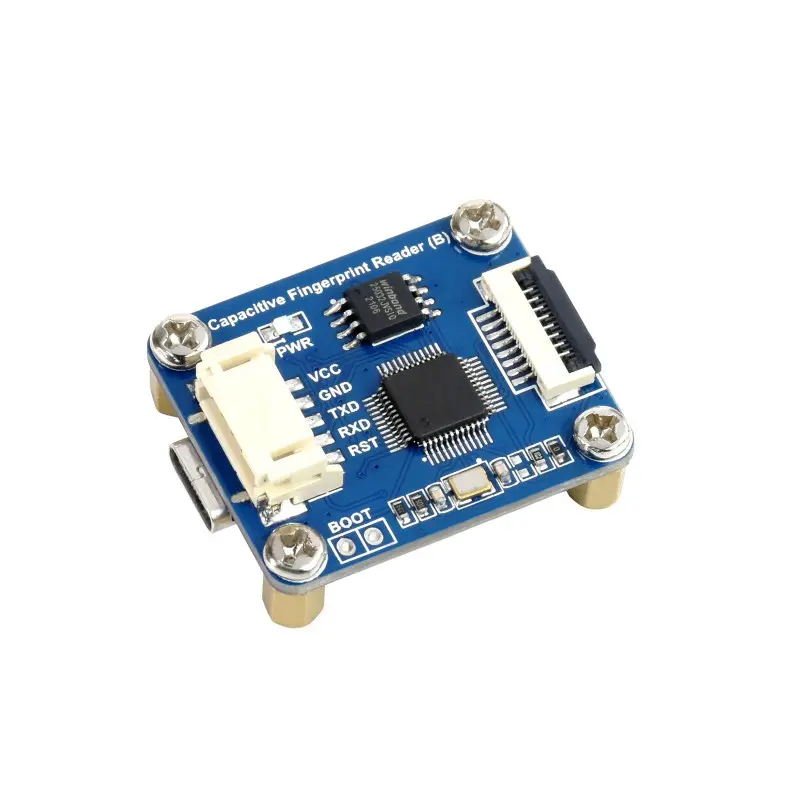

- Dual communication interfaces: UART serial and USB for flexible system integration.
- High-performance Cortex processor with commercial-grade fingerprint algorithm for 0.5s matching time.
- Secure 64-bit encryption and storage for up to 3000 fingerprint templates.
- Low-power operation with dynamic current under 40mA and a 3.3-5V supply range.
Out of stock

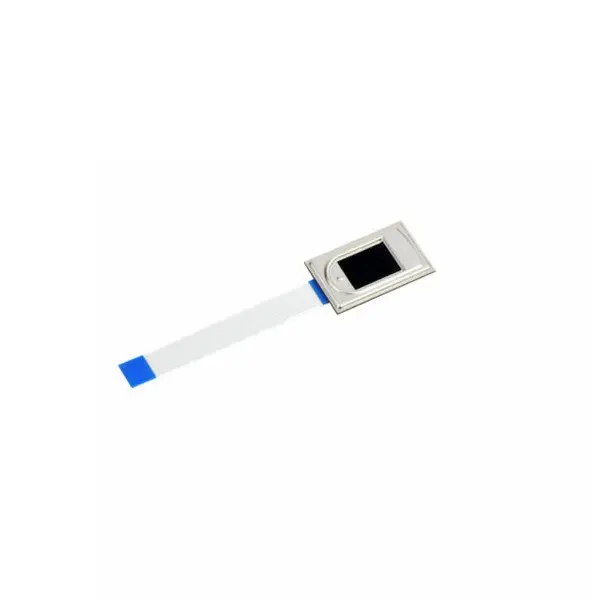

The Waveshare Capacitive Fingerprint Reader (B) utilizes an advanced semiconductor capacitive sensing array to capture high-resolution fingerprint images. The module integrates a dedicated Cortex-M core processor that handles all complex biometric processing, including image acquisition at 20fps, feature extraction, template generation, and secure matching, offloading this computational burden from the host microcontroller.
Designed for secondary development and system integration, the module communicates via simple command sets over either UART serial or USB, making it compatible with a wide range of development platforms and industrial controllers. Its sensitive capacitive touch detection requires only a light touch on the collection window, ensuring user convenience and long-term sensor durability.
Additional Information
| Weight | 0.022 kg |
|---|---|
| Dimensions | 3.4 × 2.85 cm |
