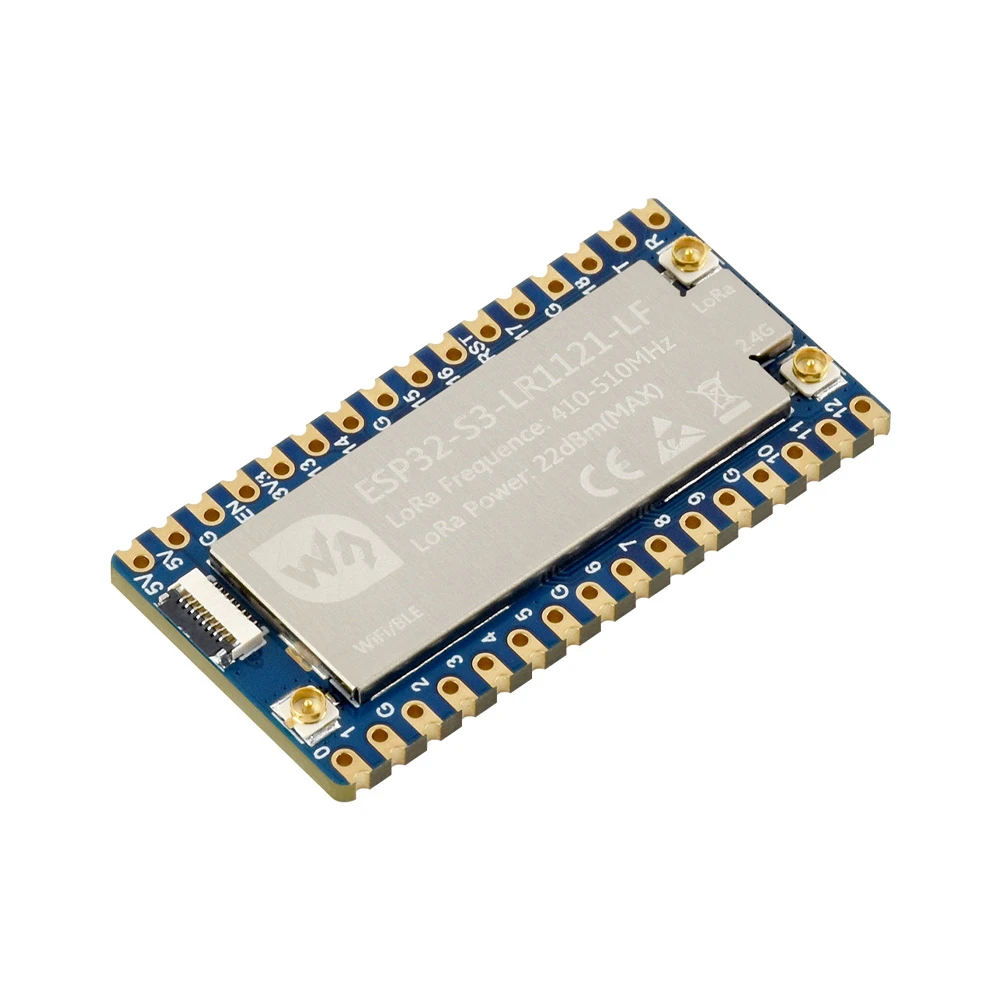

Waveshare ESP32-S3 LoRa Development Board w/ LR1121 RF Chip LF Version

You can program the board using the Arduino IDE with the ESP32-S3 board package, Espressif's ESP-IDF framework, or PlatformIO. Connect via the board's UART pins (TX/RX) to a USB-to-serial adapter. Ensure you select the correct ESP32-S3 target in your development environment. The castellated pads provide all necessary GPIOs, including the boot and enable pins for flashing. Example projects for the LR1121 driver are typically provided by Waveshare or the Semtech LoRa Basics Modem library.

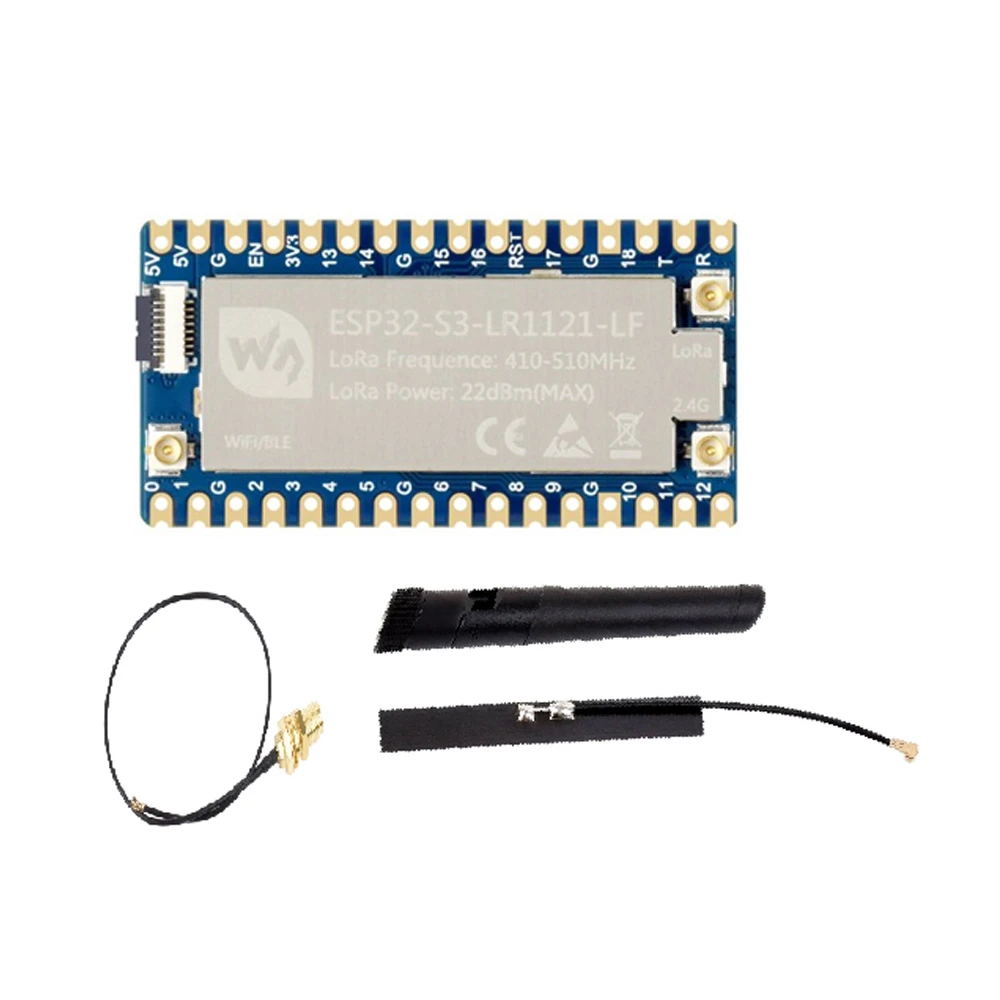

For optimal performance in the 410-510MHz LF band, use a monopole or dipole antenna tuned to the center of your target frequency (e.g., 433MHz or 470MHz). The board includes an IPEX-1 to SMA adapter cable; connect an SMA-type antenna with appropriate gain (e.g., 3dBi). Ensure the antenna impedance is 50 ohms. For custom integrations, you can solder a wire antenna or use an external IPEX-1 connector. Always match the antenna's frequency range to your configured LoRa channel to maximize range and sensitivity.

The module requires a stable 3.3V power supply connected to its VCC and GND pins. The typical transmitting current can reach ~87.7mA at maximum 22dBm output power. For battery-powered designs, leverage the ESP32-S3's deep sleep modes, which can reduce the MCU's current consumption to microamps. The LR1121 RF chip also supports low-power standby states. Accurate sleep current measurement requires disabling peripherals and putting both the ESP32-S3 and LR1121 into their respective sleep modes via firmware commands.

Yes, this board can function as a LoRaWAN end-device. Using the Semtech LoRa Basics Modem software stack or open-source libraries like MCCI's LMIC, you can implement Class A (bi-directional, battery-optimized) or Class C (continuously listening) operation. The ESP32-S3 handles the LoRaWAN protocol stack and application logic, while the LR1121 manages the physical layer. You must configure the correct frequency plan (e.g., EU868, US915, AS923) matching your region and LoRaWAN network server. The board's multi-band capability supports multiple regional plans.

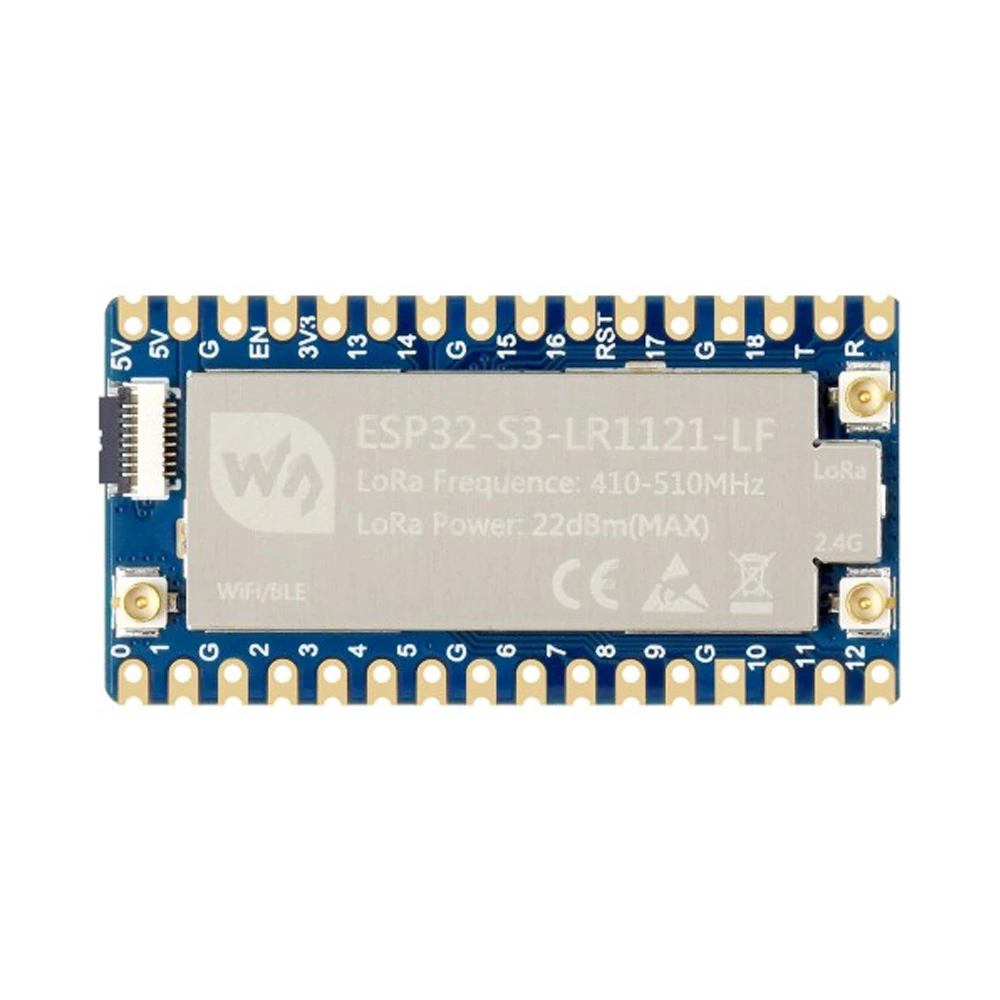

The board's castellated edge has 2.54mm pitch pads labeled with their functions (e.g., GPIO#, 3V3, GND, SPI, I2C). You can solder the module directly onto a custom carrier PCB or use spring-loaded pogo pins for development. Refer to the Waveshare pinout diagram to identify the SPI (for LR1121), I2C, UART, and ADC pins. For example, connect I2C sensors to the designated SDA/SCL pins and add pull-up resistors on your carrier board. Ensure shared buses like I2C do not conflict with other devices.
