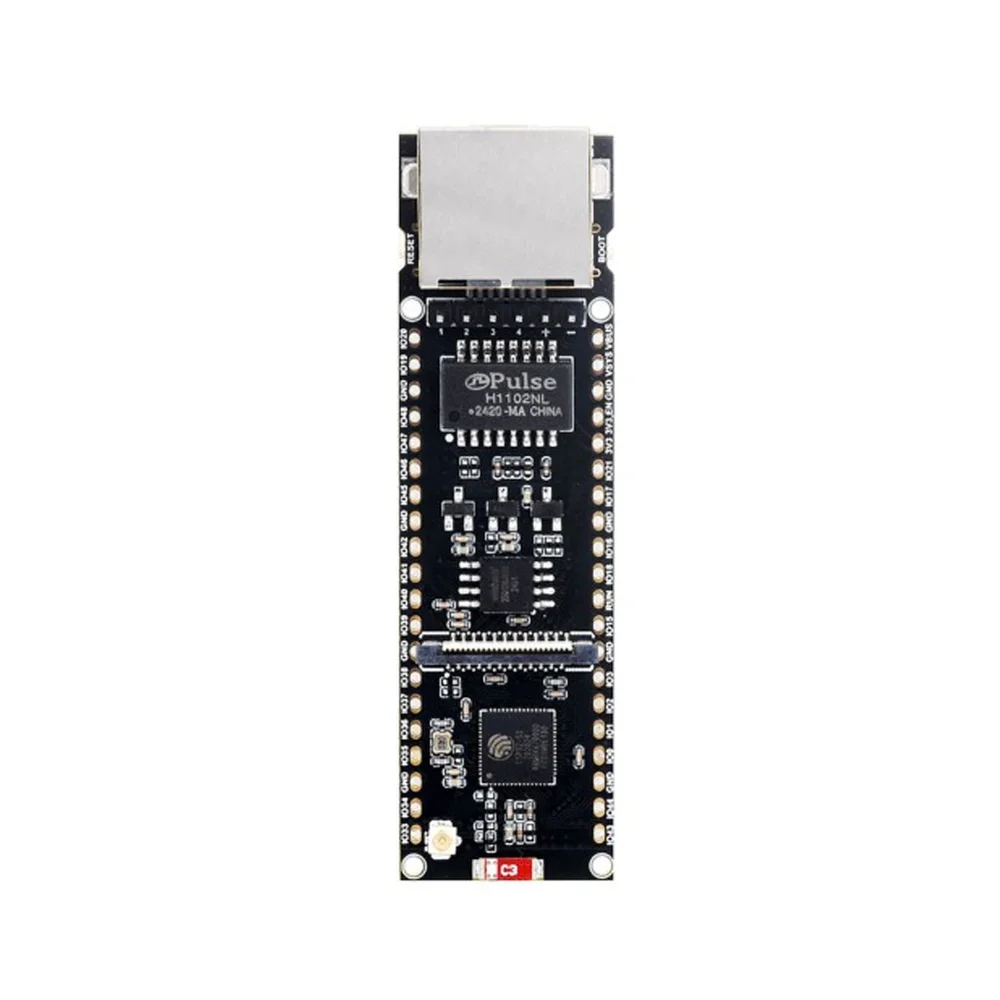

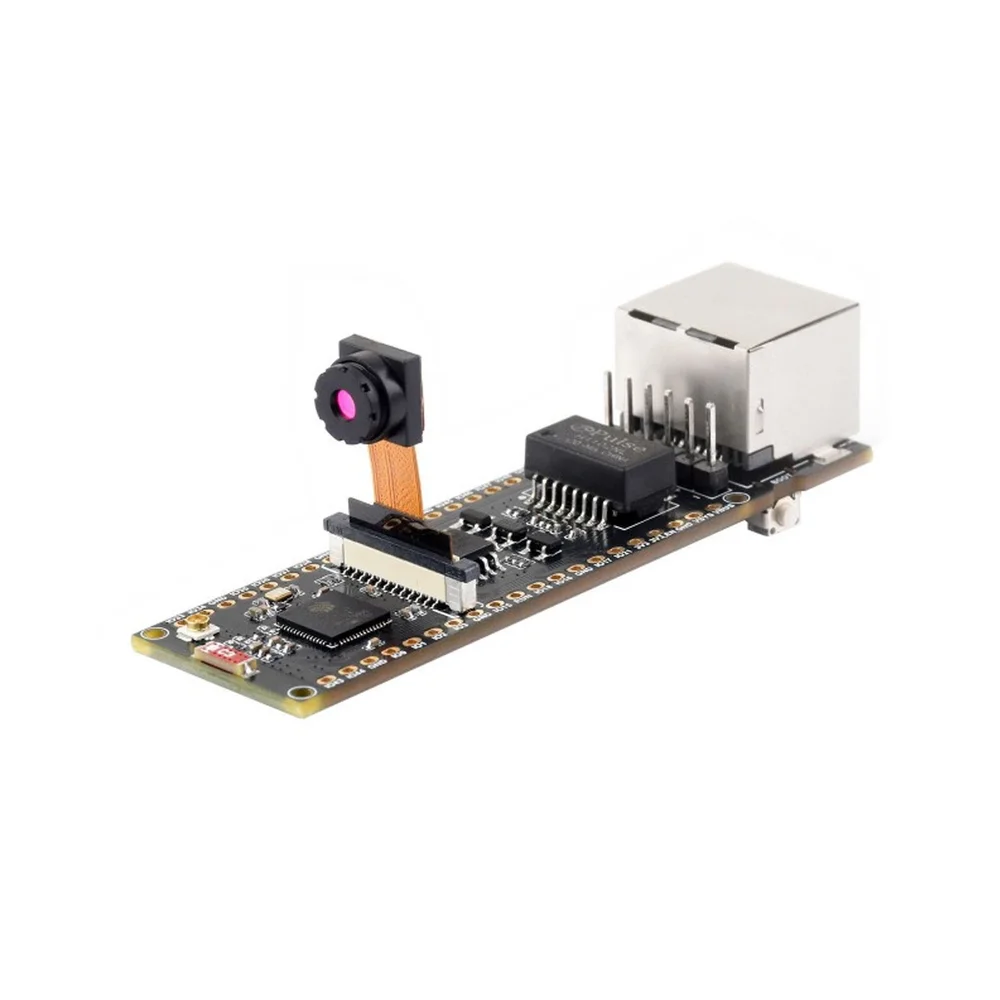

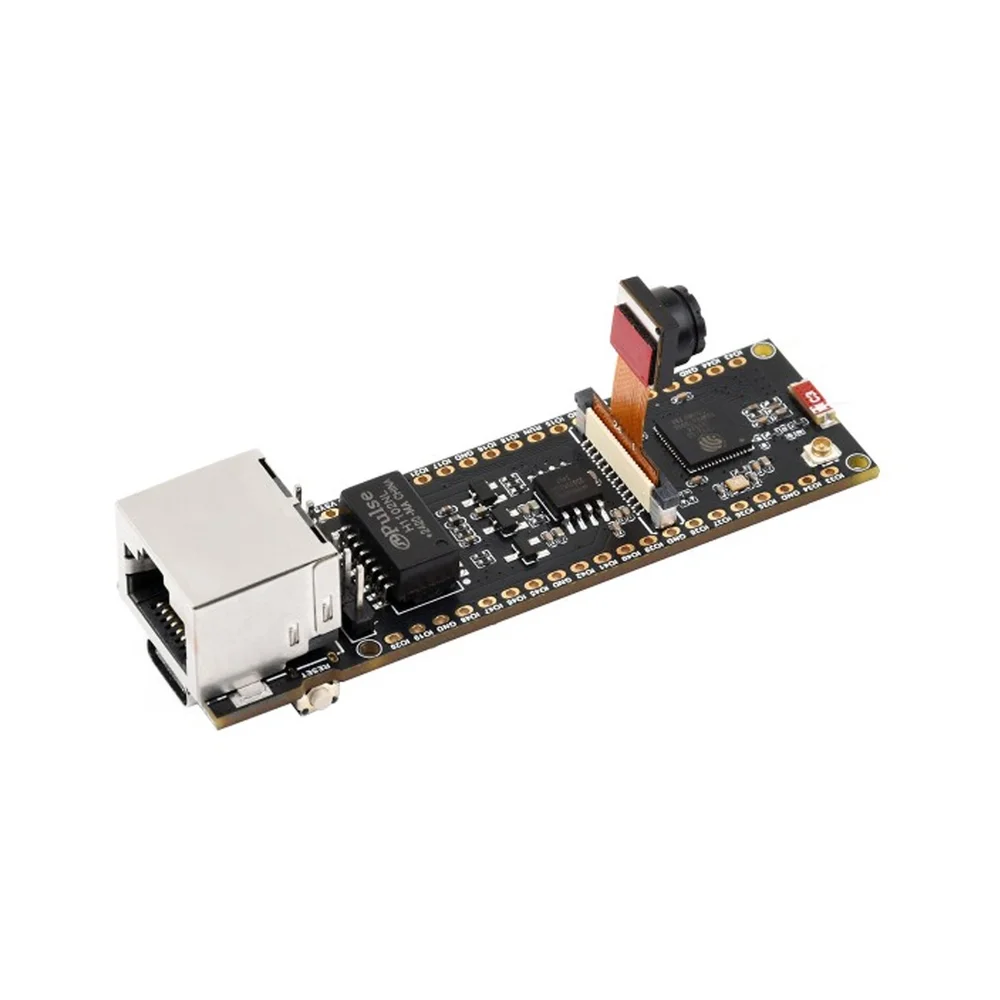

Waveshare ESP32-S3-ETH-CAM-KIT Ethernet Dev Board w/ OV5640 Camera

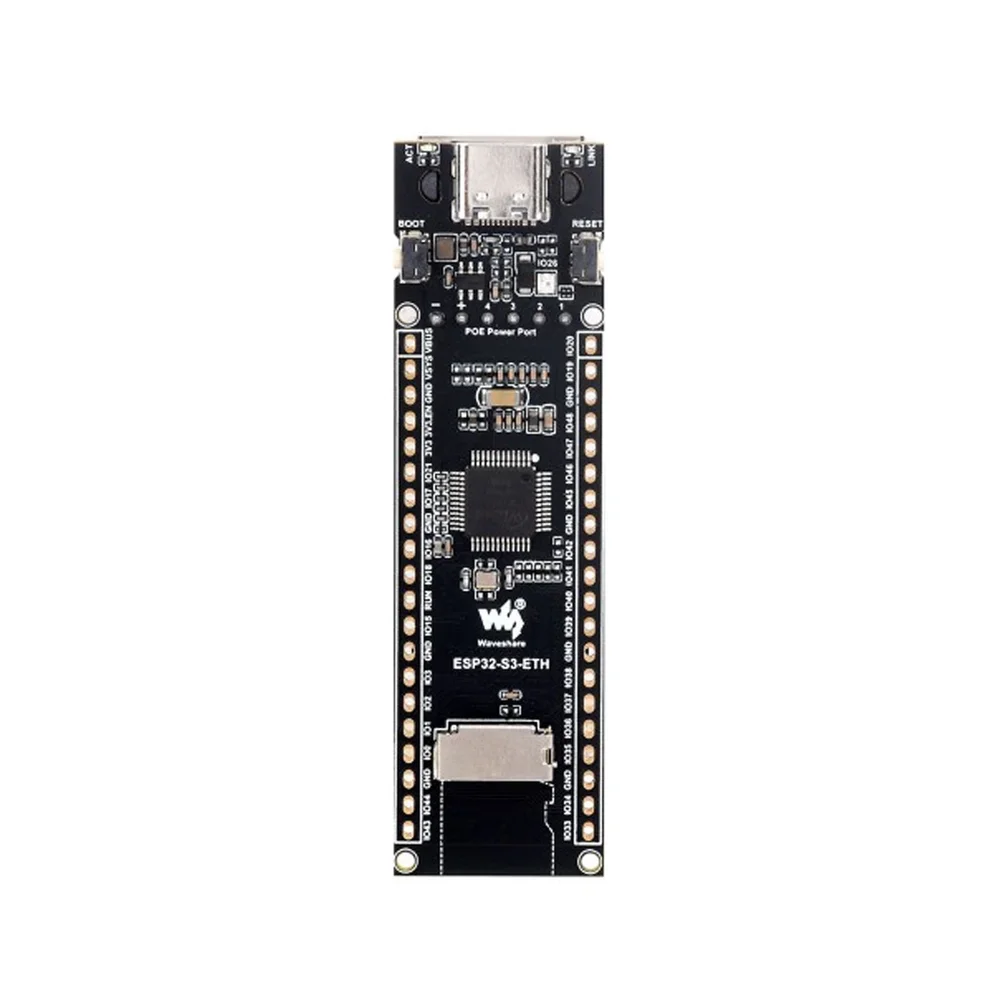

The board can be powered via the onboard USB Type-C port with a standard 5V supply. For Power over Ethernet (PoE), you must purchase and install a compatible IEEE 802.3af PoE module separately onto the designated header. Once installed, connecting a PoE-enabled Ethernet cable from a PoE switch or injector will deliver both power and network data through the single RJ45 port, eliminating the need for a separate power adapter in deployed installations.

This board is fully supported by Espressif's official ESP-IDF framework, which provides the most comprehensive access to all peripherals and features. It is also compatible with the Arduino Core for ESP32 via the Arduino IDE or PlatformIO, offering a simpler development experience. For rapid prototyping, you can flash MicroPython firmware. The USB Type-C port is used for both programming and serial communication, requiring appropriate USB drivers (CDC) to be installed on your host computer.

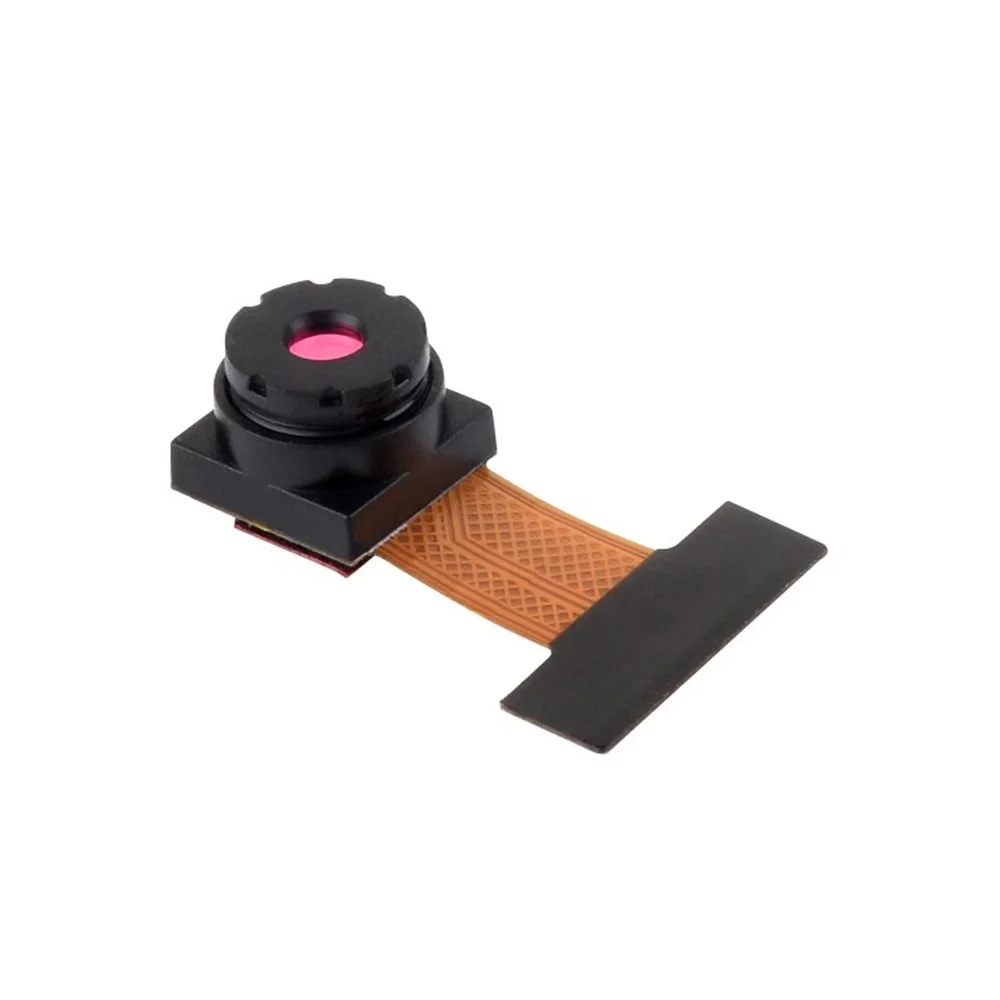

To access the OV5640 camera, use the ESP32 camera driver libraries available in ESP-IDF or the popular 'esp32-cam' Arduino library. Configure the DVP pin definitions in your code to match the board's schematic. To save images, initialize the microSD card slot (TF slot) using the SD_MMC or SDSPI libraries. You can capture image frames in buffers and then write them as JPEG files directly to the inserted microSD card, enabling standalone operation without a constant PC connection for data logging.

Yes, you can significantly improve Wi-Fi and Bluetooth range by using an external antenna. The board includes an IPEX (u.FL) connector for this purpose. You will need to carefully detach the onboard ceramic antenna by desoldering it or ensuring it is disconnected (consult the board's documentation). Then, attach a compatible 2.4GHz antenna with an IPEX plug, such as a 3dBi or 5dBi dipole antenna. Proper impedance matching (50 Ohm) is crucial for optimal RF performance and minimizing signal loss.
