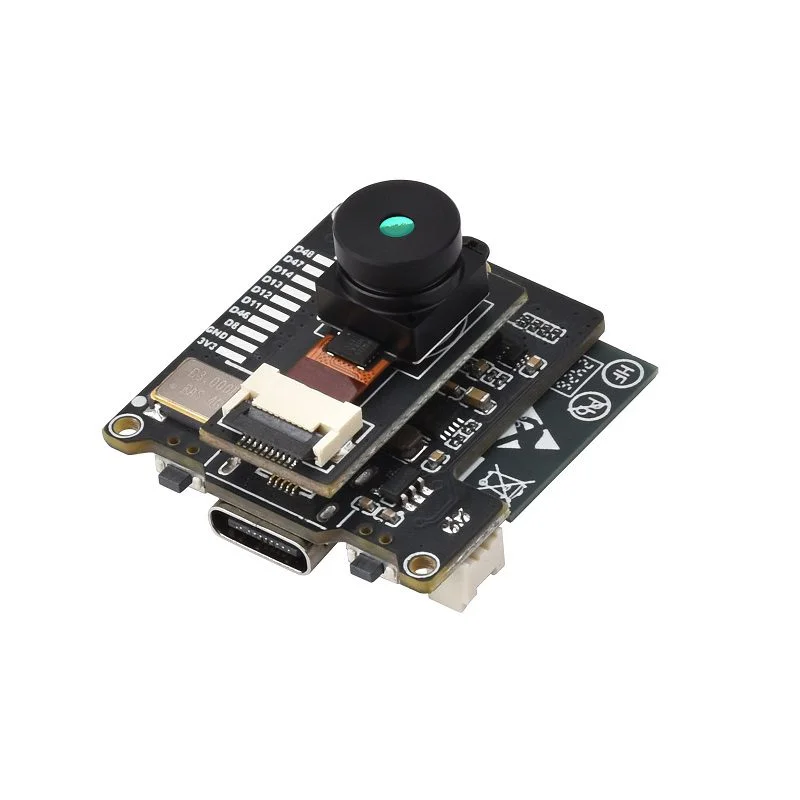

Waveshare ESP32-S3 IR Thermal Imaging Camera Module, 80×62 Pixels, 45° FOV
The Waveshare ESP32-S3 IR Thermal Imaging Camera Module integrates an 80×62 pixel microbolometer sensor with a dual-core ESP32-S3-WROOM-1 SoC for wireless thermal data capture and processing. It supports 2.4GHz Wi-Fi and Bluetooth 5.0 for IoT connectivity and includes a USB Type-C port and onboard battery management for flexible powering in portable thermal sensing applications.
Features

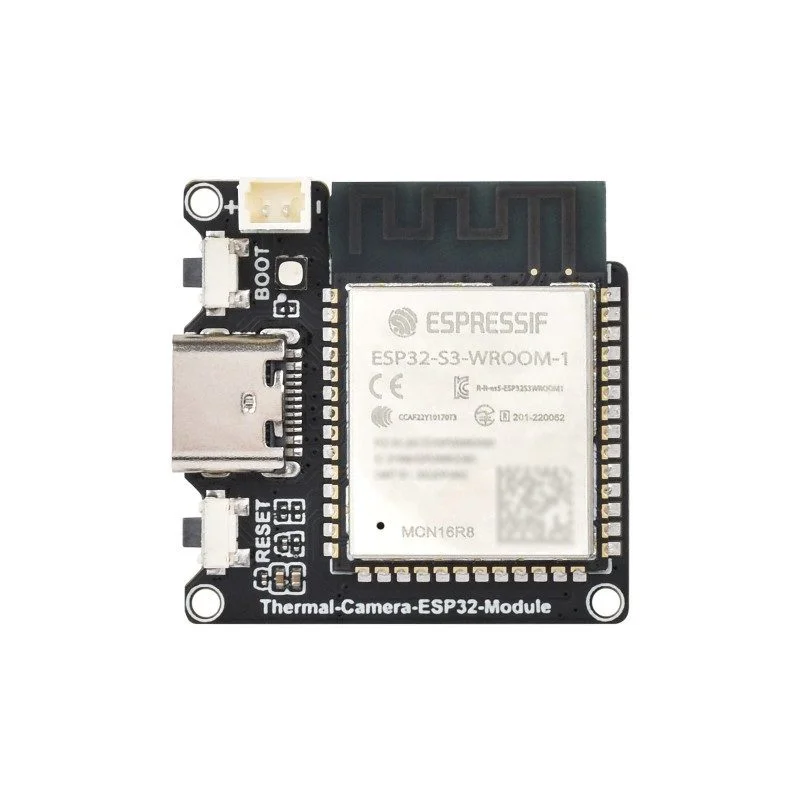

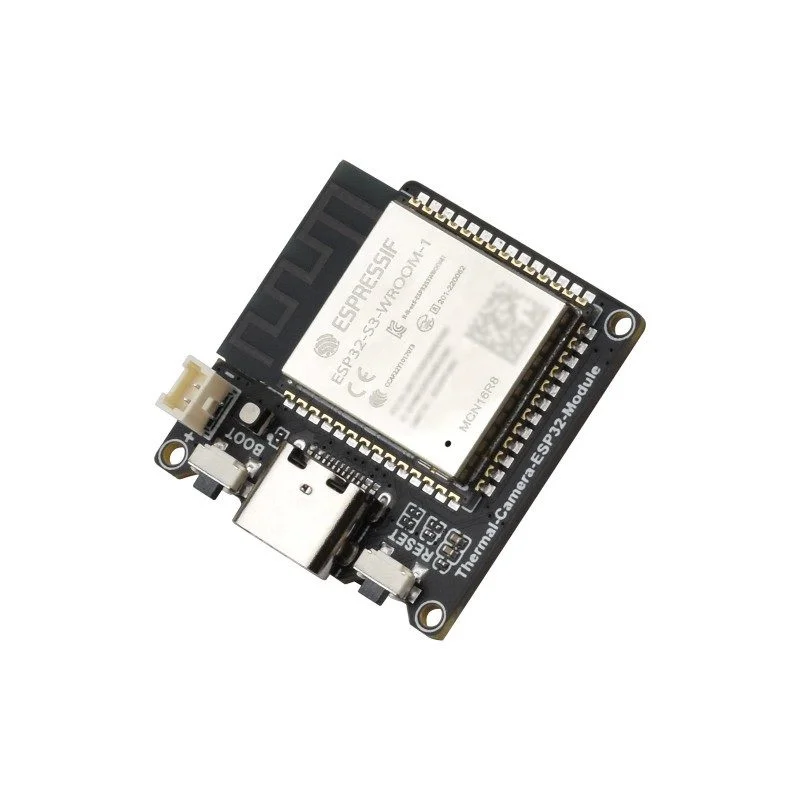

- ESP32-S3-WROOM-1 dual-core processor (240MHz) with 8MB PSRAM & 16MB Flash for onboard thermal image processing.
- 80×62 pixel IR thermal sensor array with ±2℃ accuracy and 25 FPS refresh rate for real-time temperature mapping.
- Integrated 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5.0 (LE) with onboard antenna for wireless IoT data streaming.
- USB Type-C connector and onboard 3.7V Li-Po battery charge/discharge circuit for flexible portable or wired power.
- Compact form factor with 14 GPIO, I2C, and UART breakout pads for expanding with external sensors or actuators.
Out of stock
The Waveshare ESP32-S3 IR Thermal Imaging Camera Module is a compact, self-contained wireless vision system designed for embedded thermal analysis. It combines a hybrid microbolometer and thermopile pixel array with the processing power of Espressif’s ESP32-S3, enabling standalone capture, quantization, and wireless transmission of temperature distribution maps and thermal imagery.
Engineered for low-power IoT deployment, the module features an integrated power management circuit supporting a 3.7V lithium battery header, extending operational life in field applications. Its 45° horizontal field of view (56° diagonal) and -40°C to 85°C operating temperature range make it suitable for industrial monitoring, building diagnostics, and environmental sensing where real-time, non-contact temperature profiling is critical.
Additional Information
| Weight | 0.047 kg |
|---|---|
| Dimensions | 8 × 10 × 3 cm |
