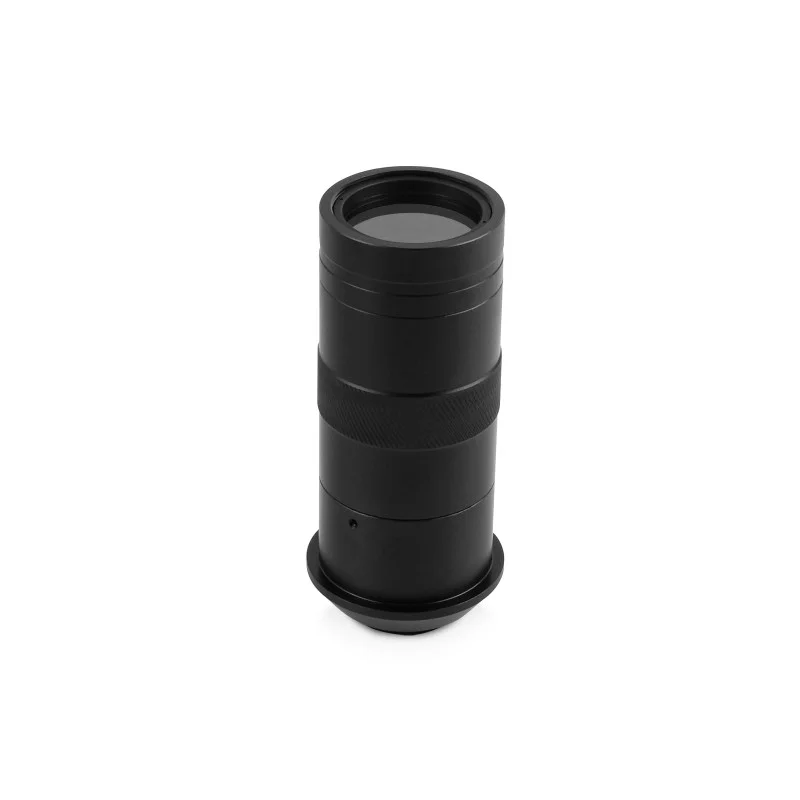

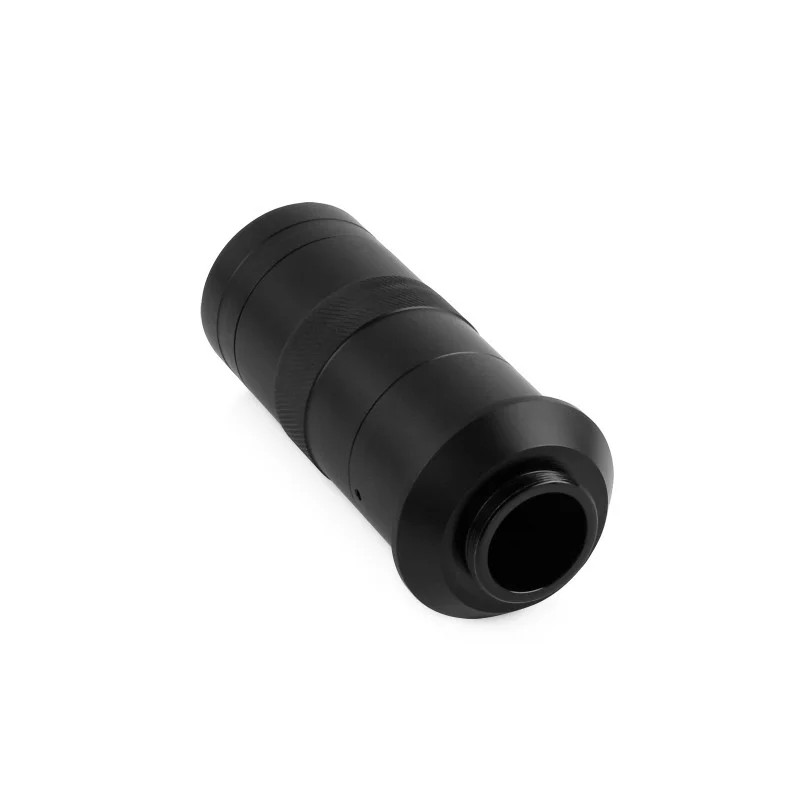

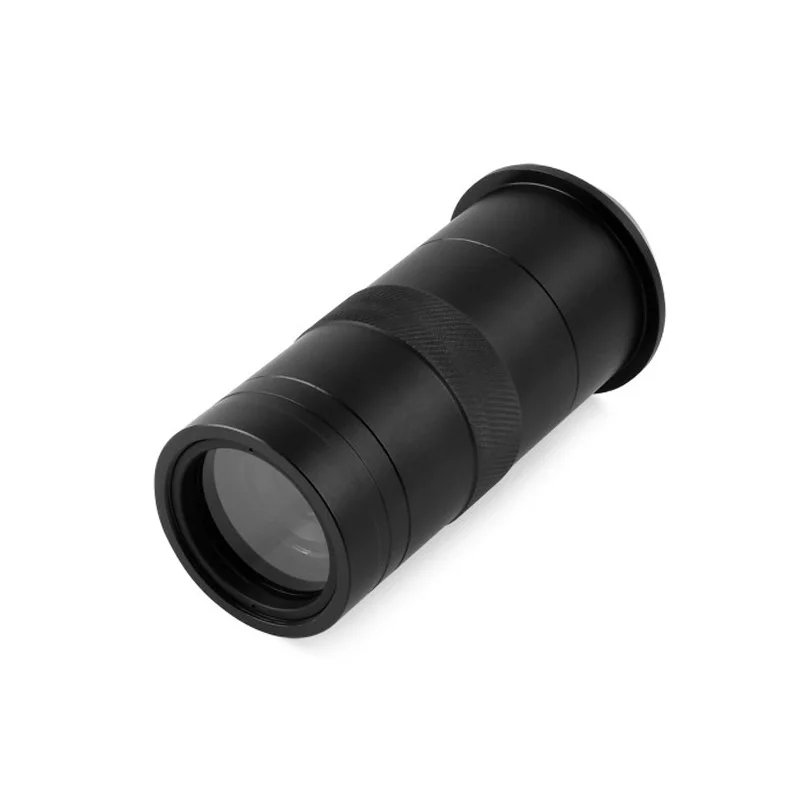

Waveshare 24229 100X Industrial Microscope Lens C/CS-Mount
The Waveshare 24229 is a high-magnification industrial microscope lens with C/CS-mount compatibility, designed for precision imaging with the Raspberry Pi HQ Camera and other industrial vision systems.
Features
- Provides 100X optical magnification (0.12X ~ 1.8X range) for detailed inspection of tiny components and surfaces.
- Standard C/CS-mount with included adapter ensures compatibility with Raspberry Pi HQ Camera and industrial cameras.
- High-quality aluminum alloy construction with 4 groups, 5-element lens structure for minimal distortion (< -0.1%).
- Wide operating distance from 55mm to 285mm and a detection range of 2.4mm to 36mm for flexible setup.
- Supports 1/2″ image format and operates in temperatures from -20°C to +80°C for industrial environments.
Out of stock

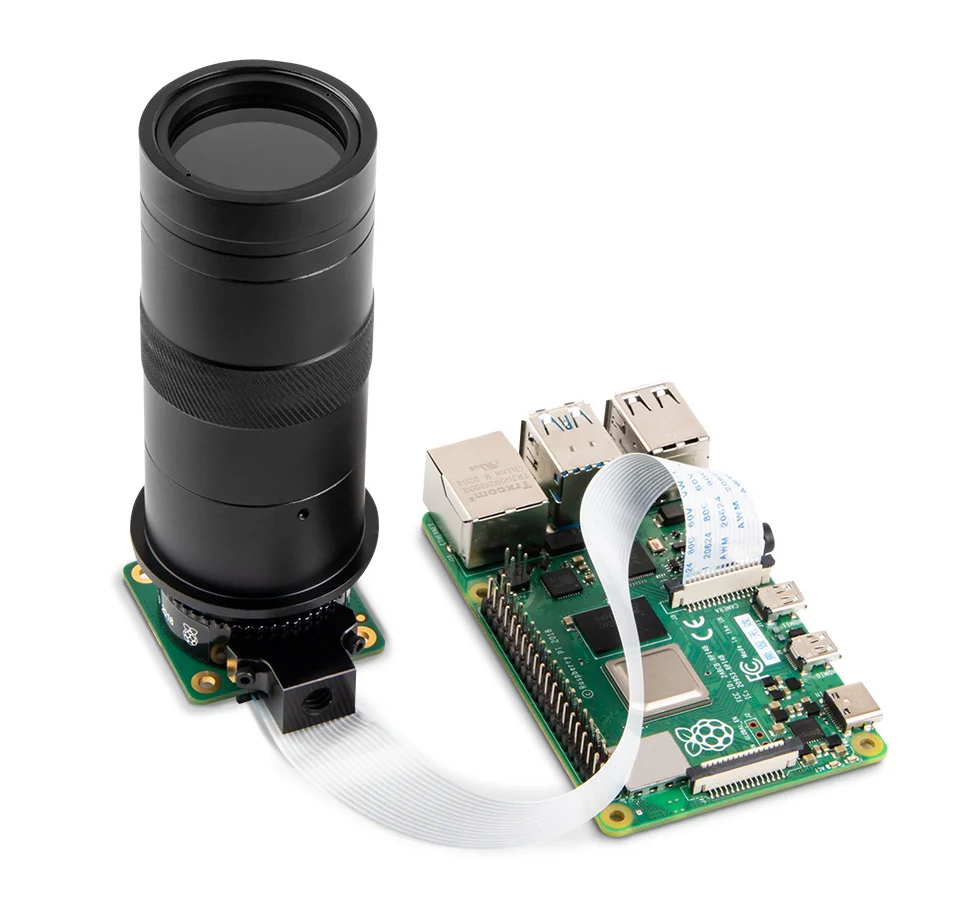

The Waveshare 24229 Industrial Microscope Lens is engineered for machine vision, PCB inspection, and scientific microscopy applications requiring high-resolution imaging. Its C/CS-mount interface, coupled with a supplied adapter, allows for direct attachment to the Raspberry Pi HQ Camera module, enabling makers and engineers to build powerful inspection systems. The lens assembly utilizes a precision 4-group, 5-element optical design housed in a durable aluminum alloy barrel to maintain focus stability and image clarity across its variable magnification range.
With a substantial working distance and a compact form factor (Φ39 × 112mm), this lens is suitable for integration into automated production lines, laboratory setups, or educational projects. Its wide temperature tolerance ensures reliable performance in challenging conditions, from factory floors to research environments, making it a versatile tool for detailed visual analysis and quality control.
Additional Information
| Weight | 0.257 kg |
|---|---|
| Dimensions | 16 × 11 × 5 cm |
