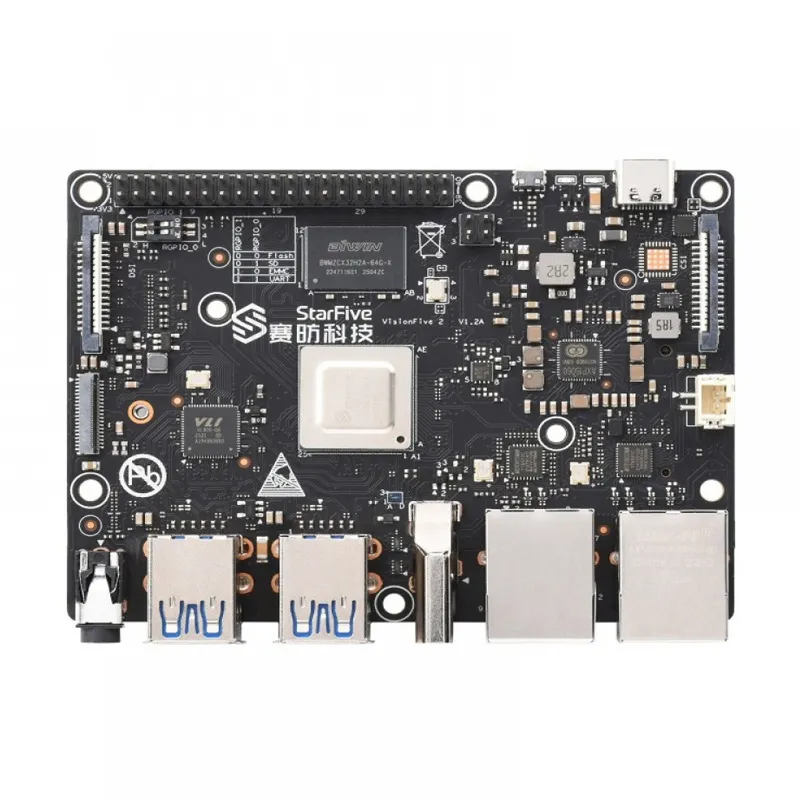

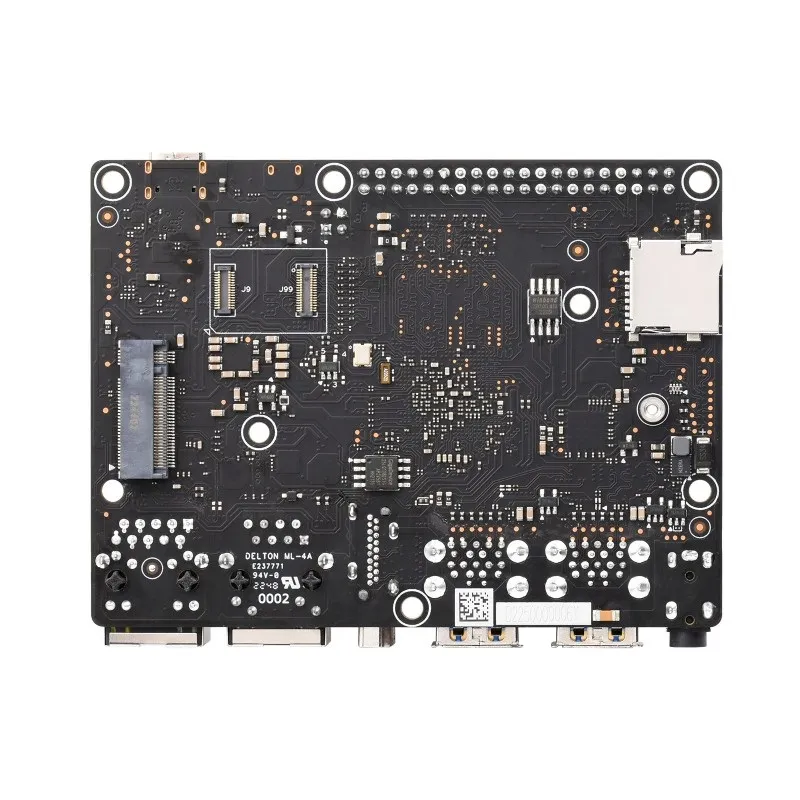

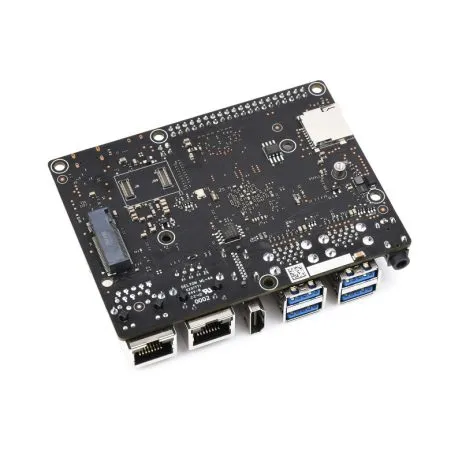

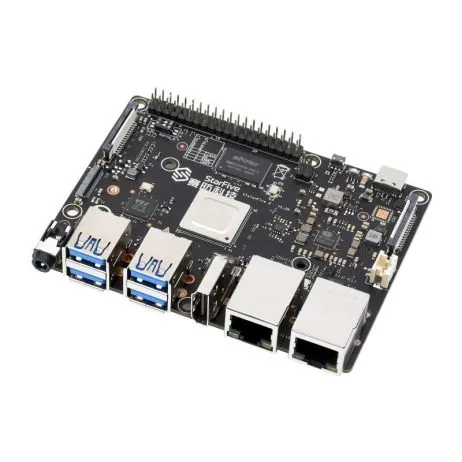

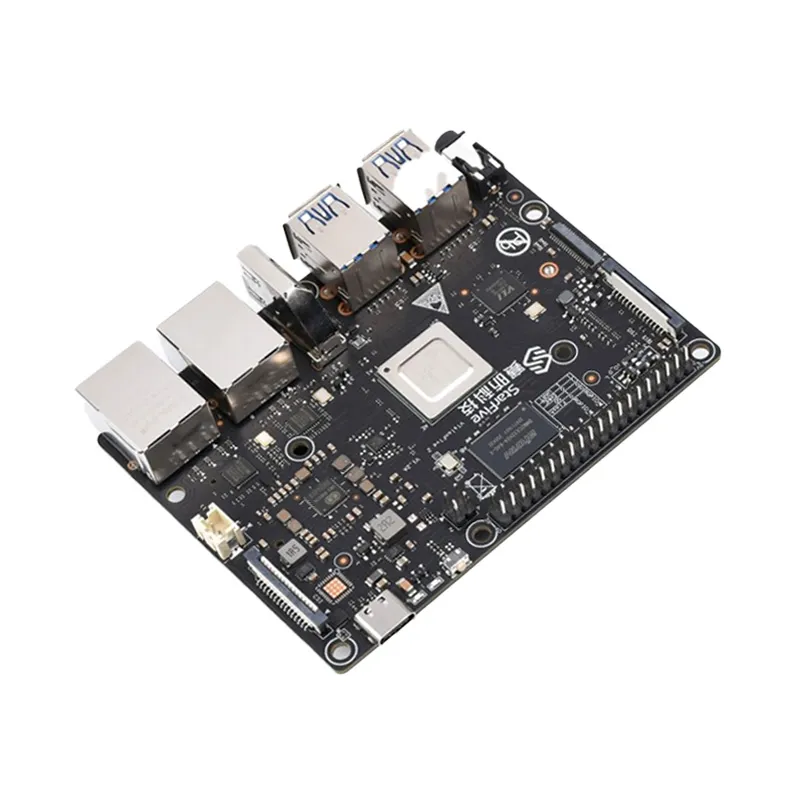

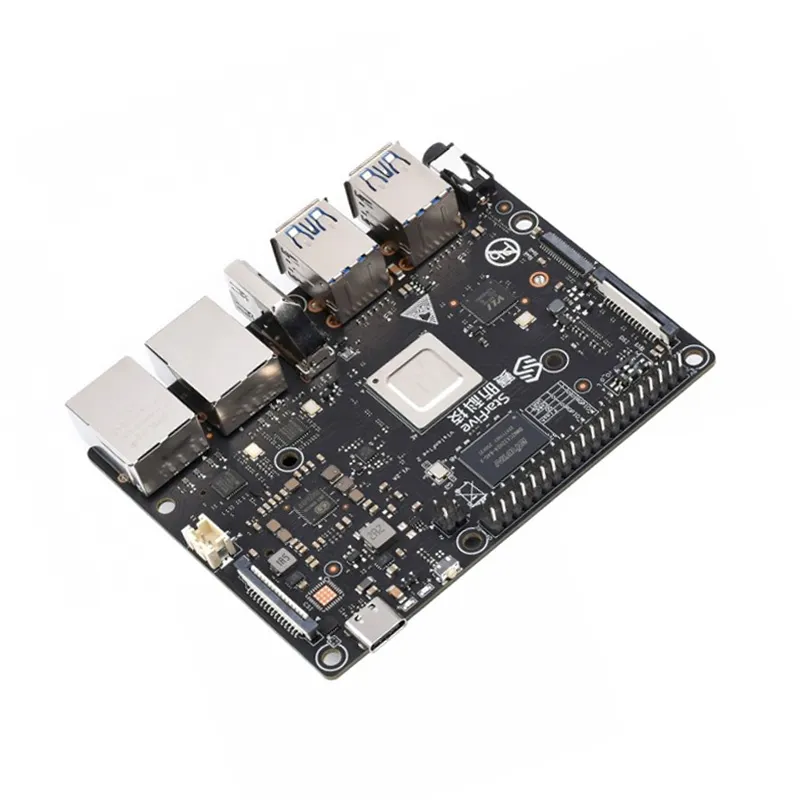

VisionFive2 RISC-V SBC 8GB, StarFive JH7110 with 3D GPU
The VisionFive2 is an 8GB LPDDR4 RISC-V single board computer powered by the StarFive JH7110 processor with an integrated 3D GPU. It delivers high-performance computing up to 1.5GHz and advanced multimedia capabilities for diverse embedded Linux applications.
Features
- Onboard RV64GC ISA Quad-core 64-bit SoC, operating up to 1.5GHz.
- Integrated 3D GPU with support for OpenCL 3.0, OpenGL ES 3.2, and Vulkan 1.2.
- Equipped with 8GB LPDDR4 RAM for demanding operating systems and applications.
- Versatile I/O including M.2, HDMI, USB 3.0, Gigabit Ethernet, and 40-pin GPIO.
- Supports 4K@60fps video decoding and 1080p@30fps multi-stream video encoding.
Out of stock
The VisionFive2 is a robust RISC-V single board computer, powered by the StarFive JH7110 processor. This board integrates an RV64GC ISA Quad-core 64-bit SoC, operating at up to 1.5GHz, and includes a sophisticated 3D GPU with support for modern graphics APIs like OpenCL 3.0, OpenGL ES 3.2, and Vulkan 1.2. Available with 8GB of LPDDR4 RAM, it provides ample memory for complex operating systems and demanding applications.
Designed for versatility, the VisionFive2 offers a comprehensive array of interfaces including M.2, CSI, DSI, HDMI, eMMC, USB 3.0, and a 40-pin GPIO header compatible with Raspberry Pi pinouts. Its multimedia capabilities extend to 4K@60fps video decoding and 1080p@30fps video encoding. With broad software compatibility, including Debian Linux, this board serves as a powerful and flexible platform for a wide range of embedded development and edge computing projects.
Additional Information
| Weight | 0.153 kg |
|---|---|
| Dimensions | 14 × 10 × 5 cm |
