VEML7700 Ambient Light Sensor Module Green Standing Type - I2C Interface
The VEML7700 Ambient Light Sensor Module is a high-precision digital lux sensor with an I2C interface, compatible with 3.3V/5V logic systems including Arduino, Raspberry Pi, and ESP32. It provides accurate ambient light intensity measurement from 0 to 120,000 lux for automation and IoT applications.
Features
- High-precision VEML7700 sensor with 0.0036 lux/ct resolution
- Wide measurement range from 0 to 120,000 lux
- I2C communication interface with fixed address 0x10
- Dual 3.3V / 5V DC operation with onboard voltage regulator

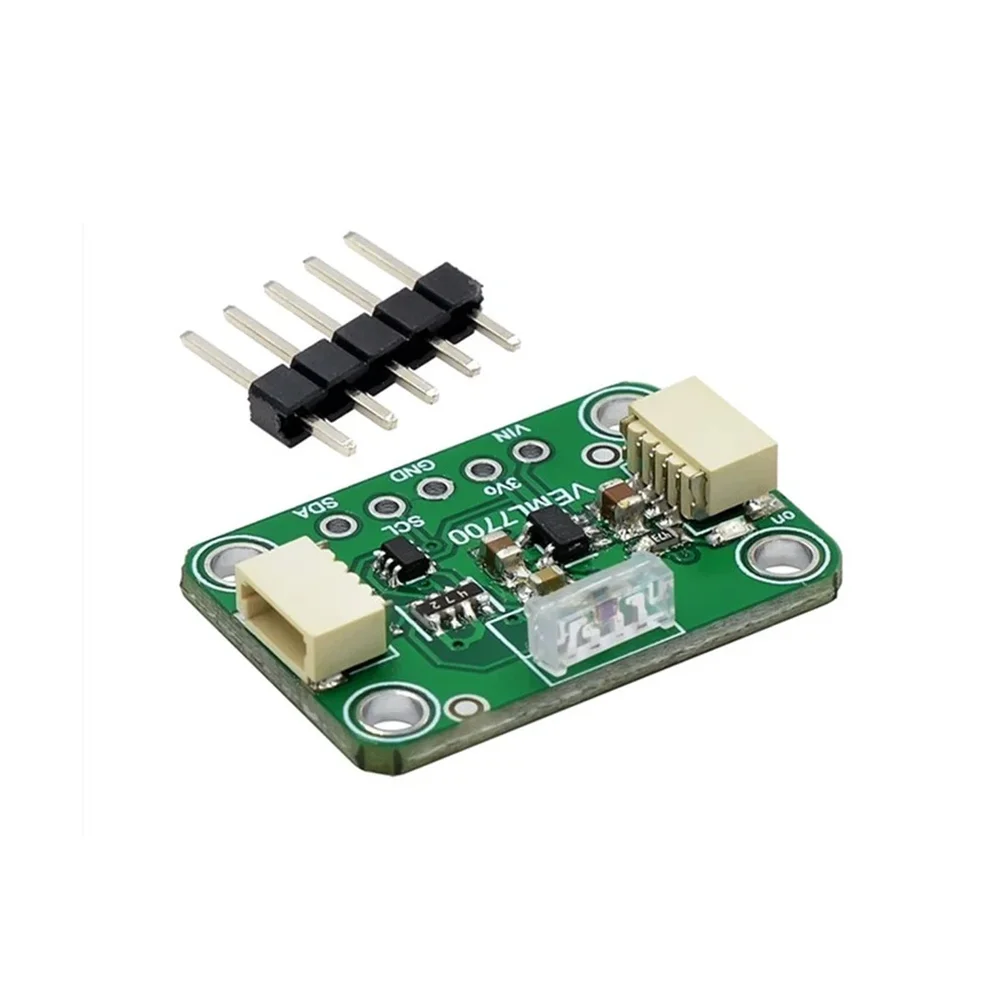

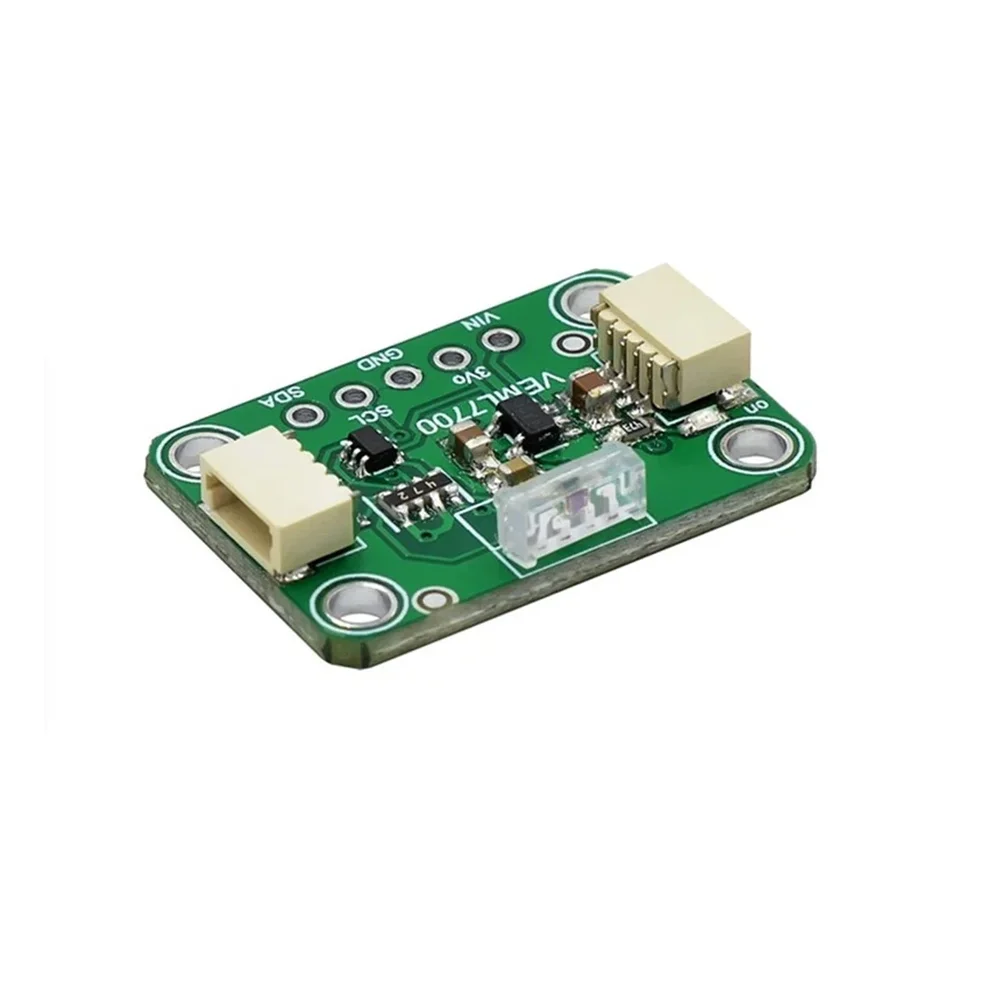

- Compact green standing-type module design for easy PCB mounting
Out of stock
The VEML7700 Ambient Light Sensor Module integrates the VEML7700 IC, a digital ambient light sensor with a built-in photodiode and signal conditioning ASIC. It provides calibrated lux output over a standard I2C bus, offering high sensitivity across a broad dynamic range, from dim indoor lighting to direct sunlight.
The module features onboard voltage regulation and level shifting, ensuring stable 3.3V or 5V operation with microcontrollers. Its compact, vertical “standing type” form factor minimizes the PCB footprint while optimizing the sensor’s field of view for accurate ambient light assessment in embedded systems.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 1.7 × 1.7 × 0.4 cm |
