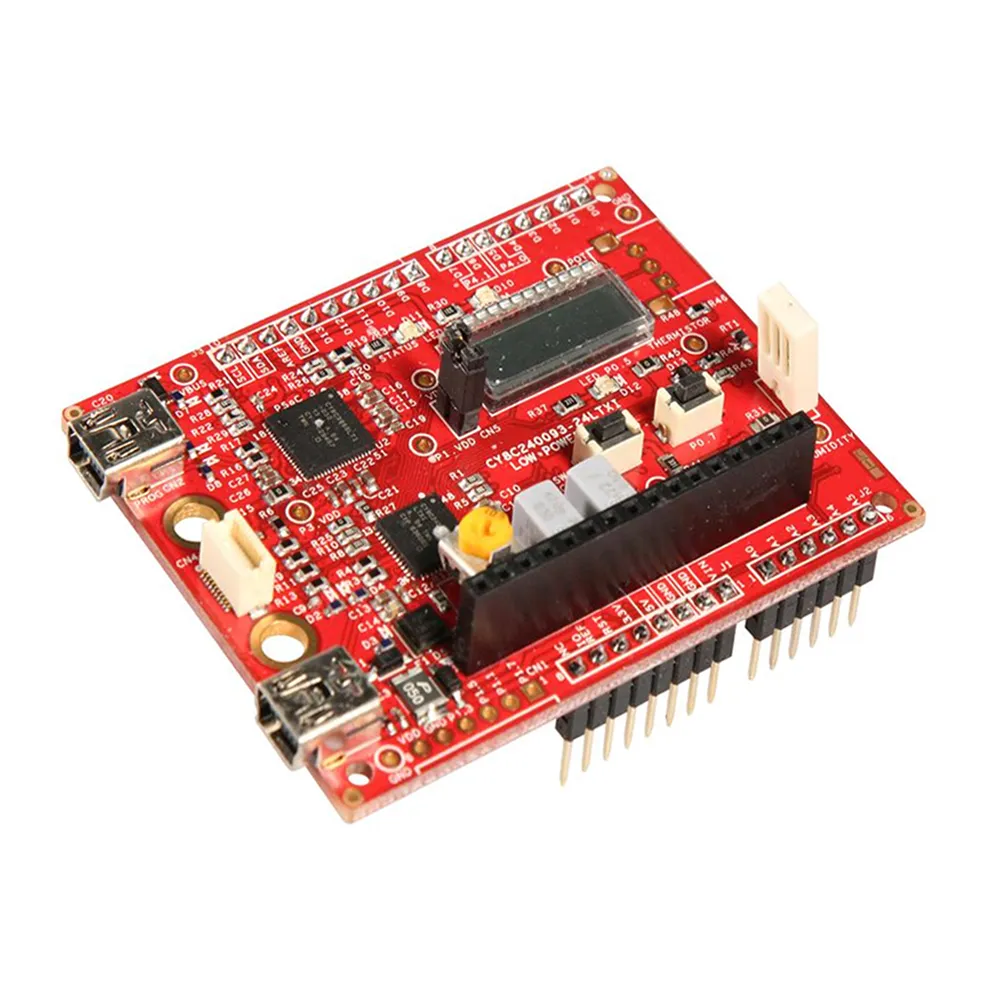

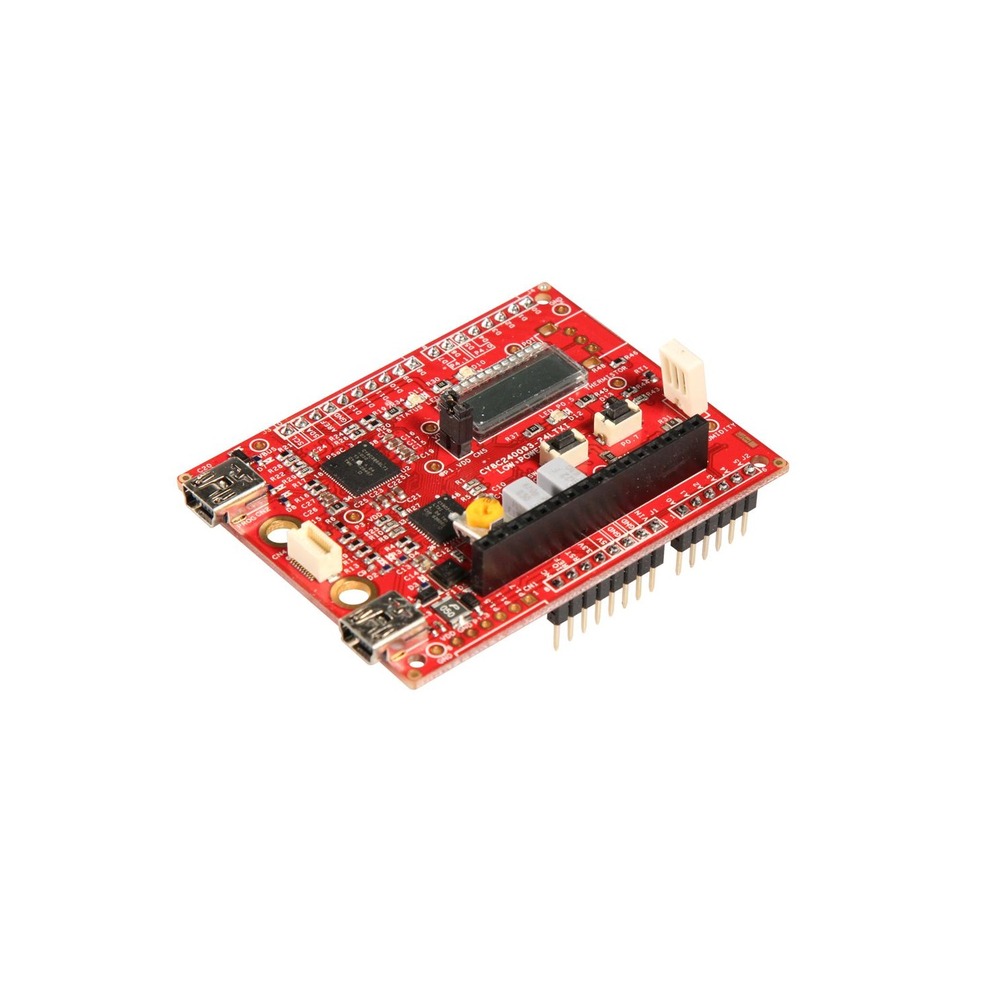

CY8CKIT-PSOC-024LP PSoC 1 Dev Kit with LCD
The CY8CKIT-PSOC-024LP is a low-power 8-bit PSoC 1 development kit featuring the CY8C24x93 IC, designed for battery-powered applications with advanced peripherals and a low-pin count package. It can function as a standalone development platform or integrate seamlessly with compatible Arduino boards.
Features
- Features the 8-bit M8C CY8C24x93 PSoC 1 microcontroller.
- Integrated 4-segment LCD display for user interface and feedback.
- Optimized for ultra-low power operation in battery-powered devices.
- Offers Arduino platform compatibility for versatile prototyping.
- Includes thermistor, humidity sensors, potentiometer, and IR LED.
Out of stock
The CY8CKIT-PSOC-024LP is a comprehensive low-power PSoC 1 development kit, centered around the CY8C24x93 IC. This 8-bit M8C core device provides a rich set of advanced peripheral options within a cost-effective, low-pin count package, making it an ideal choice for embedded designs requiring efficiency and flexibility. Developers can leverage the PSoC Designer IDE platform to create applications, taking full advantage of the chip’s configurable analog and digital blocks.
Designed with energy efficiency in mind, the CY8C24x93 device is particularly well-suited for battery-operated or handheld applications. It exhibits exceptionally low current draws: 1.1mA in active mode, a mere 1.07 µA in standby mode, and an impressive 100nA in deep sleep mode, coupled with the ability to wake up from an interrupt. Furthermore, the development kit offers versatility by functioning as a standalone unit or by plugging directly into compatible Arduino development platforms, such as the Uno, Due, and Mega boards, enhancing its integration capabilities for diverse projects.
Additional Information
| Weight | 0.086 kg |
|---|---|
| Dimensions | 11 × 10 × 3 cm |
