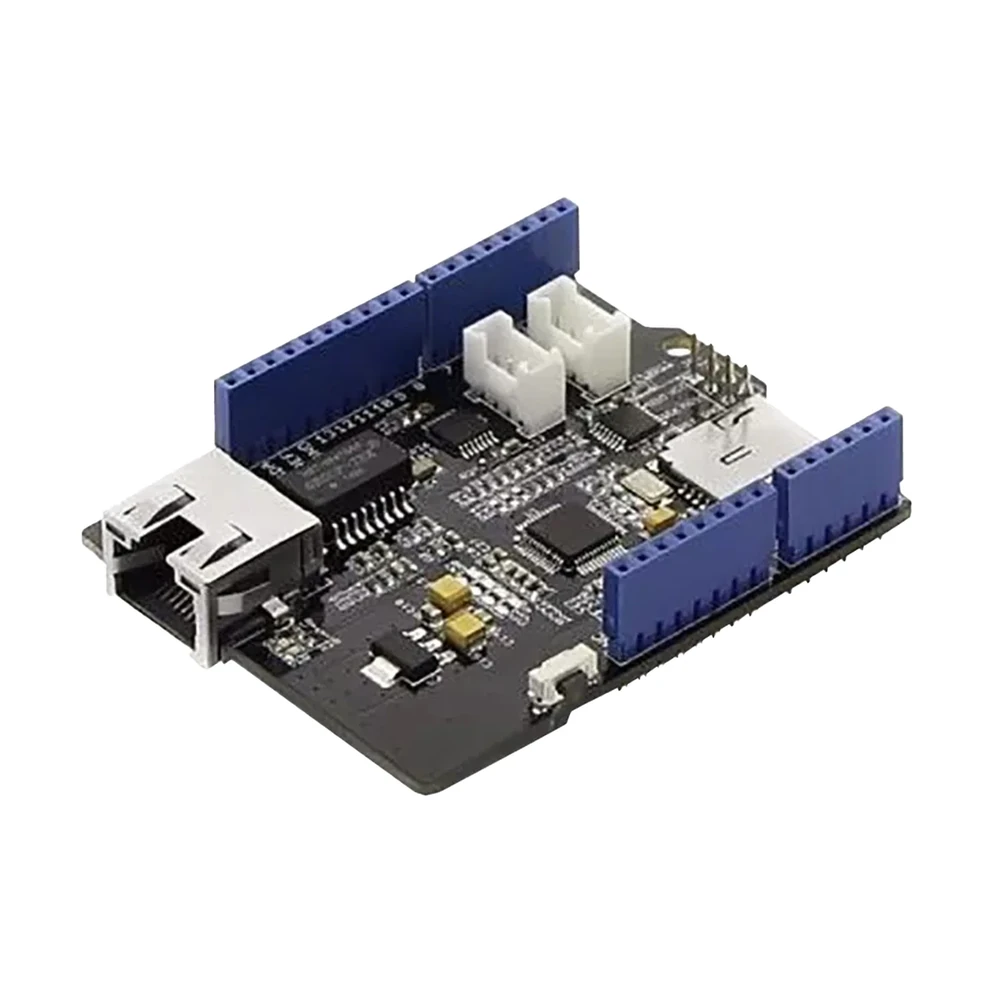

W5500 Ethernet Shield for Arduino
SKU: SBCD-0251
📋 GST Invoice Available

W5500 Ethernet Shield for Arduino

₹4,559.00 (Inclusive of all taxes)
Out of Stock

The W5500 Ethernet Shield provides robust wired network connectivity for Arduino and compatible development boards, integrating a hardwired TCP/IP stack to offload processing from the host MCU for efficient 10/100 Mbps Ethernet communication.

Features

  • W5500 Hardwired TCP/IP Chip for robust networking capabilities.
  • Supports 10/100 Mbps Ethernet speed with 8 simultaneous sockets.
  • Integrated 32KB TX/RX buffer for efficient data handling and reduced host workload.
  • High-speed SPI interface (Mode 0 & 3) ensures easy integration with microcontrollers.
  • Operates at 3.3V with 5V tolerant I/O for broad compatibility.

Out of stock

Description

The W5500 Ethernet Shield is a high-performance network interface module designed to add reliable wired Ethernet connectivity to microcontroller development boards such as Arduino. Powered by the W5500 Ethernet controller, this shield integrates a complete TCP/IP stack and Ethernet PHY, enabling seamless network communication without burdening the host MCU.

Supporting multiple networking protocols including TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE, the shield is ideal for IoT projects, industrial automation, data logging systems, remote monitoring, smart home applications, and embedded networking solutions. With support for 8 simultaneous sockets and a built-in 32KB buffer memory, the W5500 Ethernet Shield ensures stable and efficient data transmission over 10/100 Mbps Ethernet networks.

Key Features

  • Supports Hardwired TCP/IP protocols including TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE.
  • Provides 8 independent sockets for simultaneous network connections.
  • Integrated 10BaseT/100BaseTX Ethernet PHY for reliable wired communication.
  • High-speed SPI interface compatible with SPI Mode 0 and Mode 3.
  • Built-in 32KB memory for dedicated TX/RX buffering.
  • Supports Auto-Negotiation for 10/100 Mbps full and half-duplex modes.
  • Wake-on-LAN (WoL) support over UDP.
  • Low-power Power Down mode for energy-efficient applications.
  • 3.3V operating voltage with 5V I/O signal tolerance.
  • Status LED outputs for Link, Speed, Activity, and Duplex indication.

Applications

  • IoT gateways and devices
  • Industrial automation and control systems
  • Data logging and remote monitoring
  • Smart home network integration
  • General embedded networking solutions

Technical Specifications

Product TypeEthernet Shield
Controller ICW5500
Communication InterfaceSPI (Serial Peripheral Interface)
SPI ModesMode 0, Mode 3
Ethernet Standard10BaseT / 100BaseTX
Network ProtocolsTCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
Socket Support8 Independent Sockets
Buffer Memory32KB Internal TX/RX Memory
Operating Voltage3.3V
I/O Voltage Tolerance5V Compatible
Ethernet PHYIntegrated 10/100 Mbps PHY
Auto NegotiationSupported (10/100 Mbps, Full/Half Duplex)
Wake-on-LANSupported (UDP based)
Power ModePower Down Mode Supported
LED IndicatorsLink, Speed, Activity, Duplex
IP FragmentationNot Supported
Package Type48-Pin LQFP
Dimensions68 x 52 mm
Weight25 g

Frequently Asked Questions

What is the main advantage of the W5500 Ethernet Shield?

The W5500 integrates a full hardwired TCP/IP stack, offloading network processing from the host microcontroller. This significantly reduces MCU overhead, frees up resources, and simplifies network application development, ensuring efficient and reliable Ethernet communication for your projects.

Which Arduino boards are compatible with this shield?

This Ethernet Shield is designed to be compatible with standard Arduino boards that follow the Uno R3 pinout, such as Arduino Uno, Mega 2560, and Leonardo. Ensure your board provides 3.3V or 5V power and SPI communication pins for proper operation.

What network speeds does the W5500 Ethernet Shield support?

The W5500 Ethernet Shield supports 10BaseT and 100BaseTX Ethernet standards, capable of operating at 10 Mbps or 100 Mbps. It features auto-negotiation for seamless integration into various network environments, supporting both full and half-duplex modes.

How does the W5500 handle multiple network connections?

The W5500 controller offers robust support for up to 8 independent hardware sockets simultaneously. This allows the shield to manage multiple TCP, UDP, or other protocol connections concurrently, making it ideal for complex IoT and multi-client server applications.

What is the operating voltage and I/O tolerance of the W5500 Ethernet Shield?

The W5500 Ethernet Shield operates at a 3.3V supply voltage. Critically, its I/O pins are 5V tolerant, making it safe and compatible for direct interfacing with both 3.3V and 5V microcontrollers, simplifying design without external level shifters.

Package Includes

  • 1 x W5500 Ethernet Shield

Additional Information

Weight 0.043 kg
Dimensions 11 × 7 × 4 cm
