Upside Down Labs Muscle BioAmp Candy EMG Sensor Module - 3.5x1.5cm, 3.3-30V, x2420 Gain
The Muscle BioAmp Candy is a compact, single-channel EMG sensor module designed for high-fidelity muscle signal acquisition. It interfaces directly with any development board featuring an ADC, such as Arduino, Raspberry Pi Pico, or STM32, making it ideal for biopotential research and human-computer interface projects.
Features
- Ultra-high input impedance (10^11 Ω) for minimal signal loading
- Fixed high gain of x2420 for clear muscle signal amplification
- Integrated 72-720 Hz bandpass filter optimizes for EMG frequency range
- Wide operating voltage range from 3.3V to 30V for versatile power supply compatibility
- Compact SMD form factor (3.5 x 1.5 cm) for integration into wearable or embedded projects
Out of stock

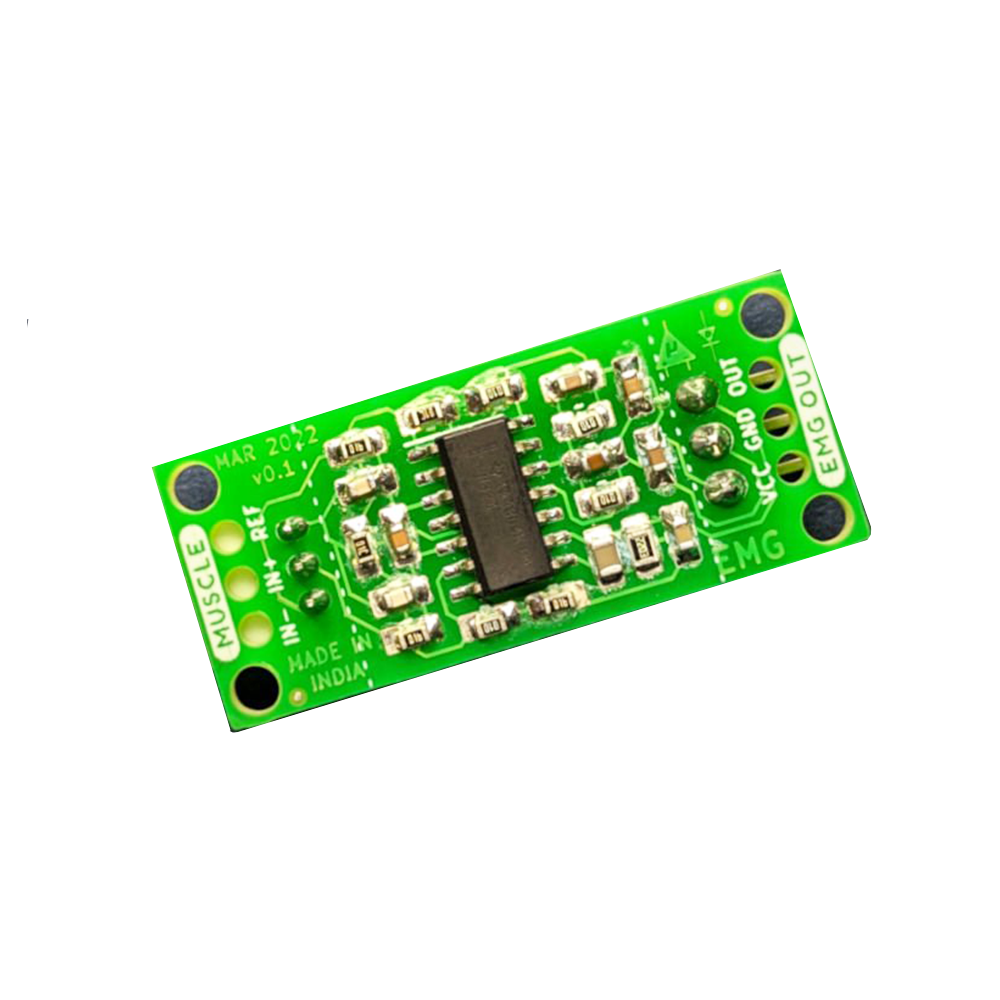

The Muscle BioAmp Candy is a surface-mount version of the popular Biscute module, engineered for precise electromyography (EMG) signal capture. It utilizes a high-performance instrumentation amplifier and a dedicated bandpass filter to isolate and amplify the microvolt-level electrical activity produced by muscle contractions, providing a clean, conditioned analog output ready for ADC conversion.

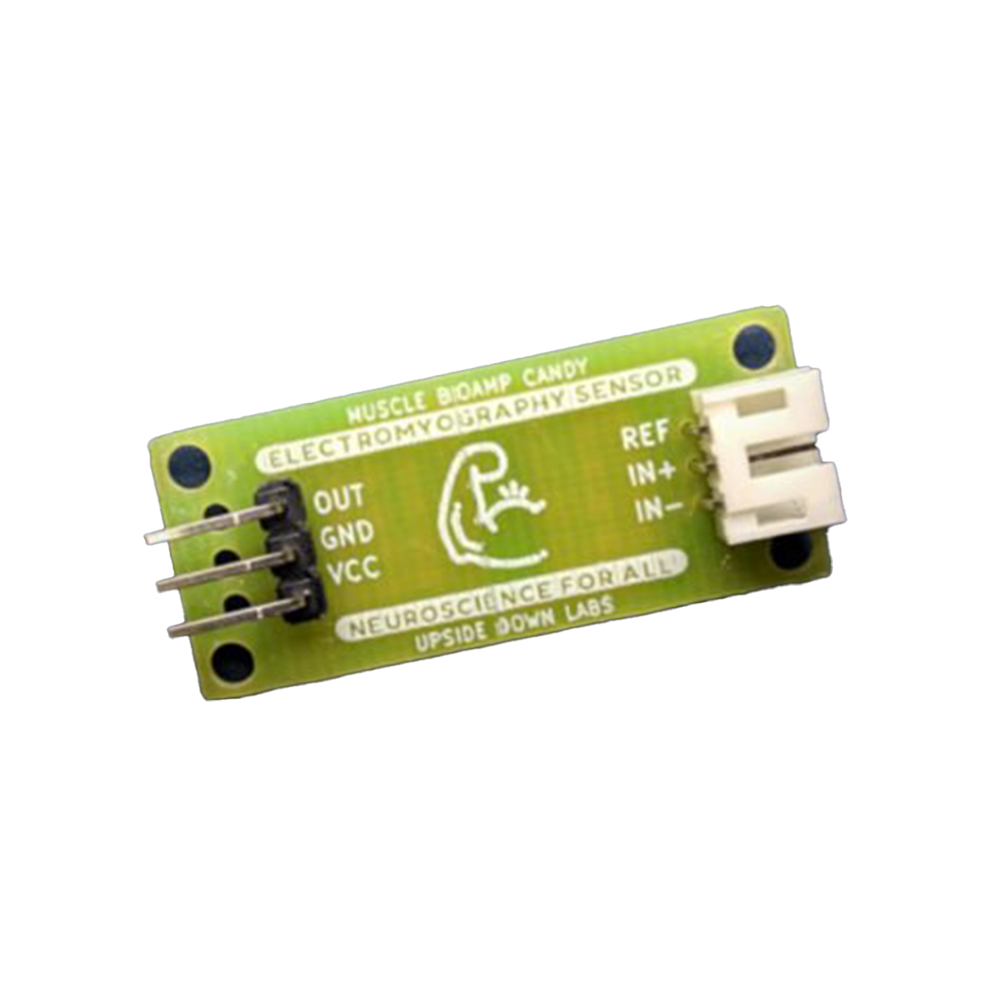

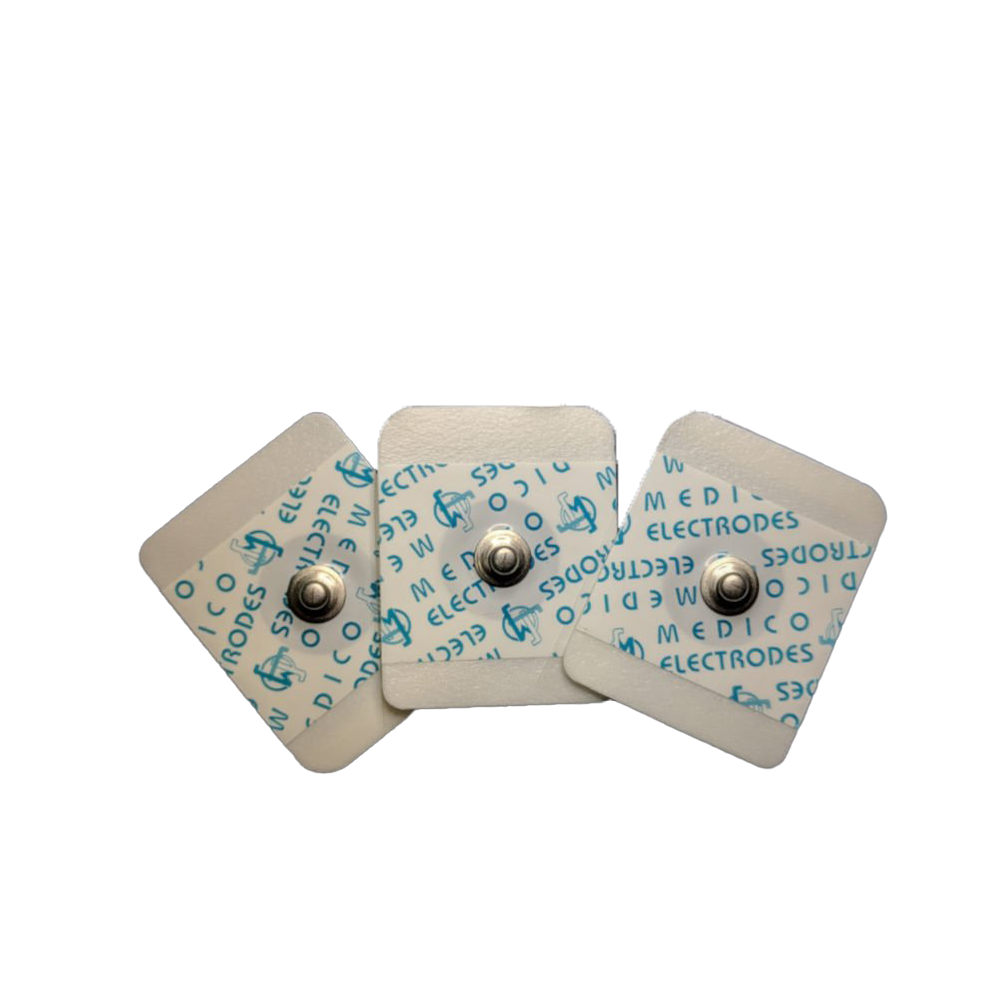

Designed for robustness and ease of use, the module features a standard 3-electrode connection system (positive, negative, reference) and is fully open-source, with hardware and software documentation available for custom application development. Its wide supply voltage compatibility ensures stable operation across a broad spectrum of microcontroller and single-board computer platforms.
Additional Information
| Weight | 0.065 kg |
|---|---|
| Dimensions | 1.5 × 3.5 cm |
