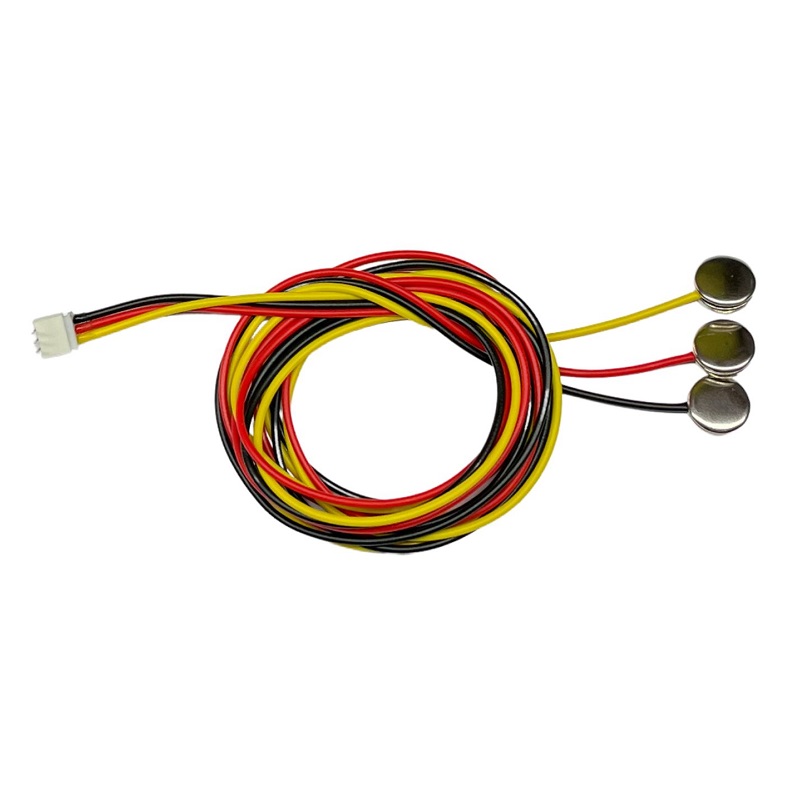

Upside Down Labs BioAmp Cable v3 (100 cm) - JST PH 2.0mm to Snappable Electrode Connectors

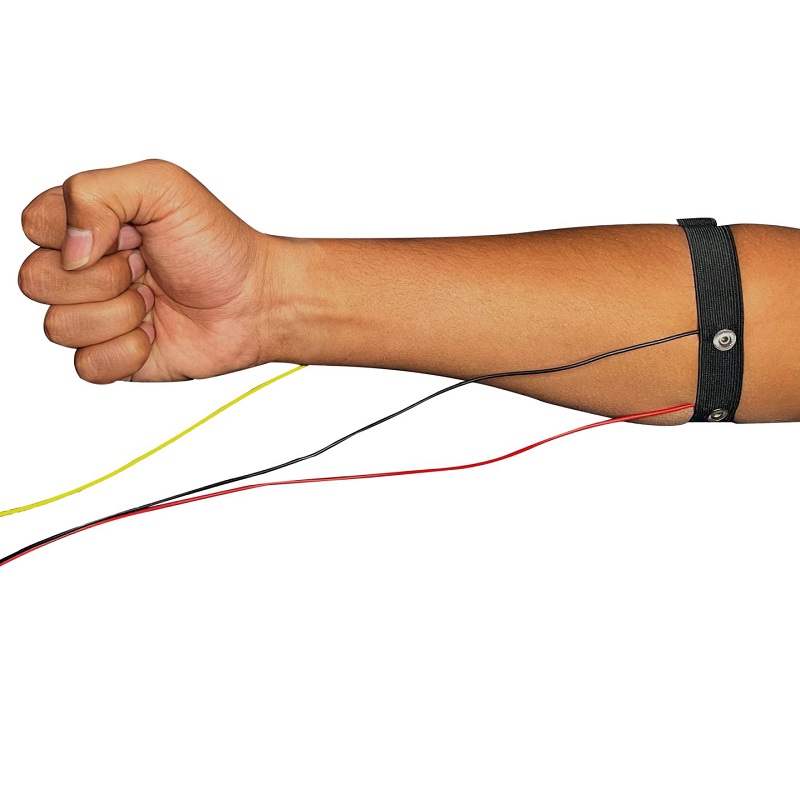

The BioAmp Cable v3 is a 100 cm, 3-pin electrode cable designed to interface Upside Down Labs’ BioAmp EXG boards with standard gel electrodes or BioAmp Bands, enabling precise biopotential signal acquisition for ECG, EMG, and EDA projects with Arduino, Raspberry Pi, and other microcontroller platforms.
Features
- 100 cm flexible cable for versatile project setups and ergonomic placement.

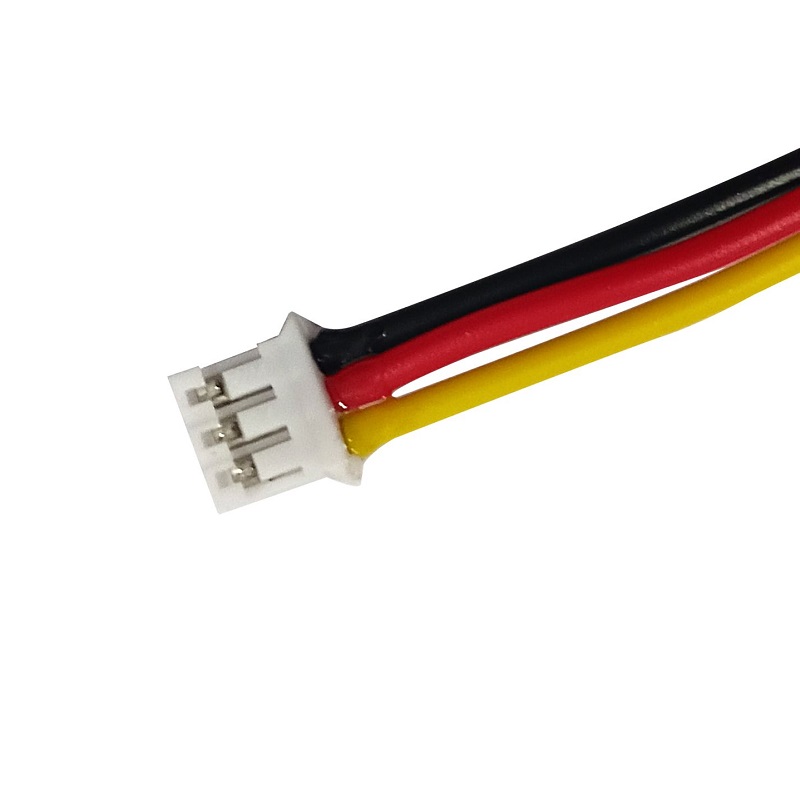

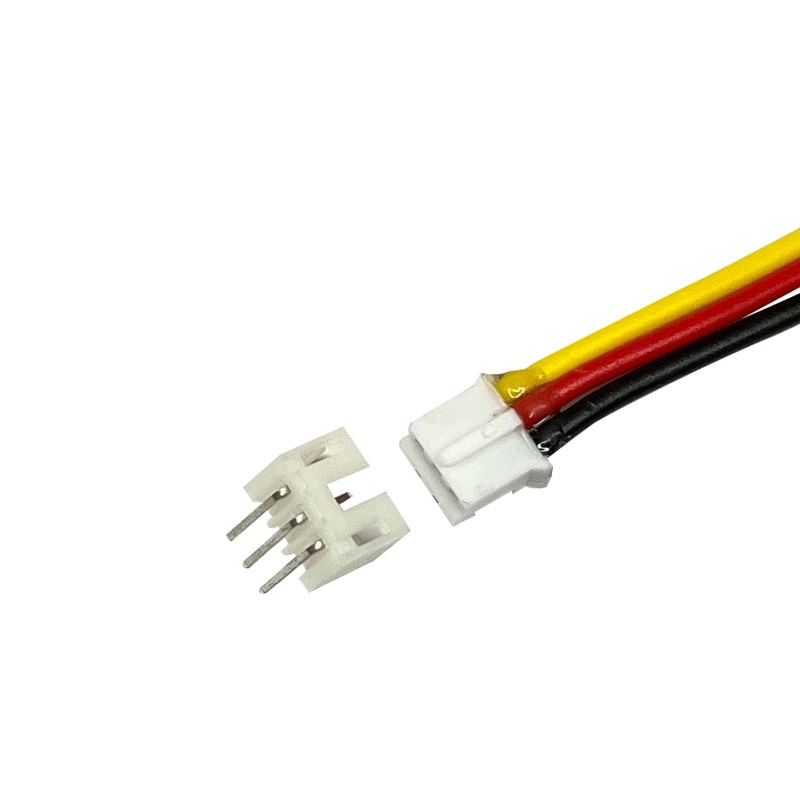

- JST PH 2.0mm connector ensures a secure, polarized connection to BioAmp boards.

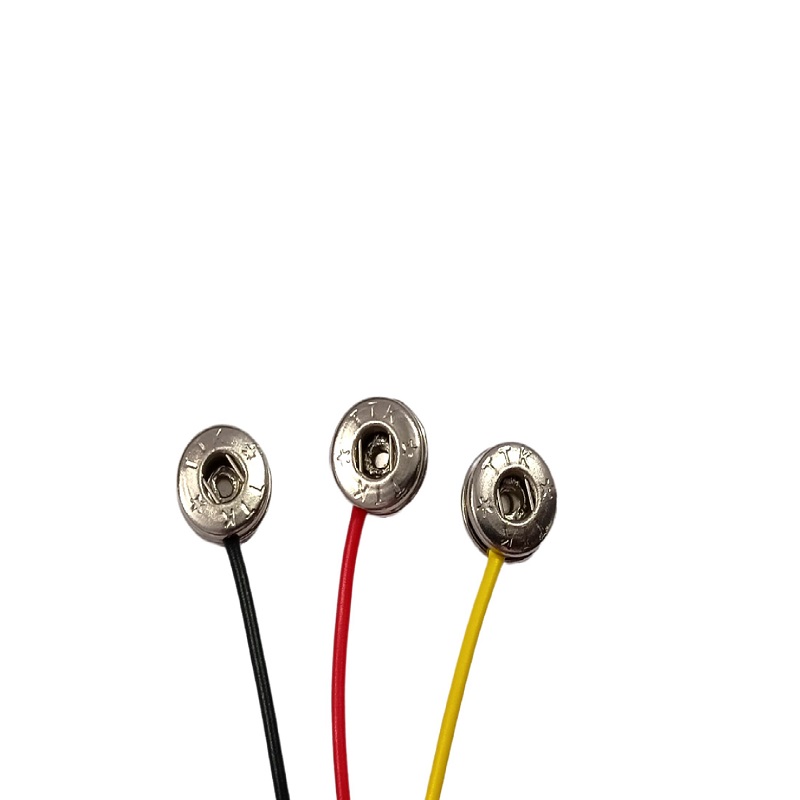

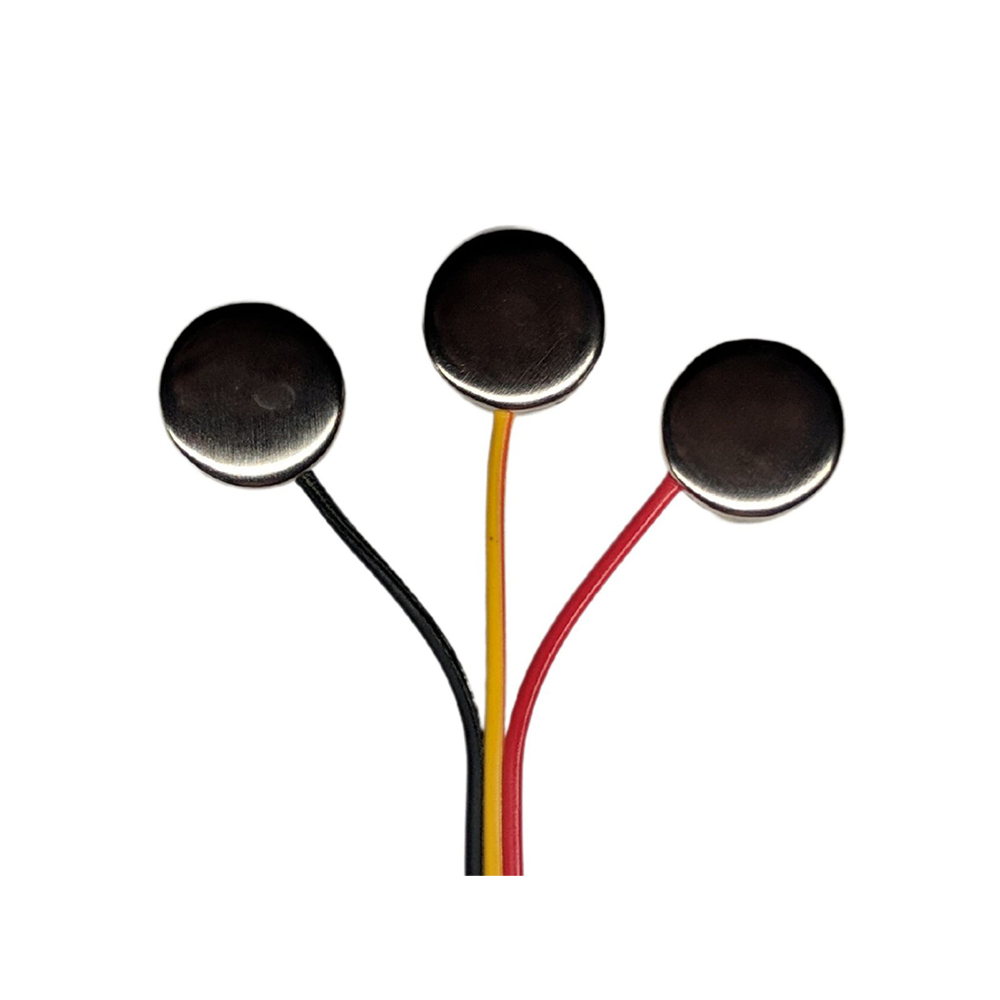

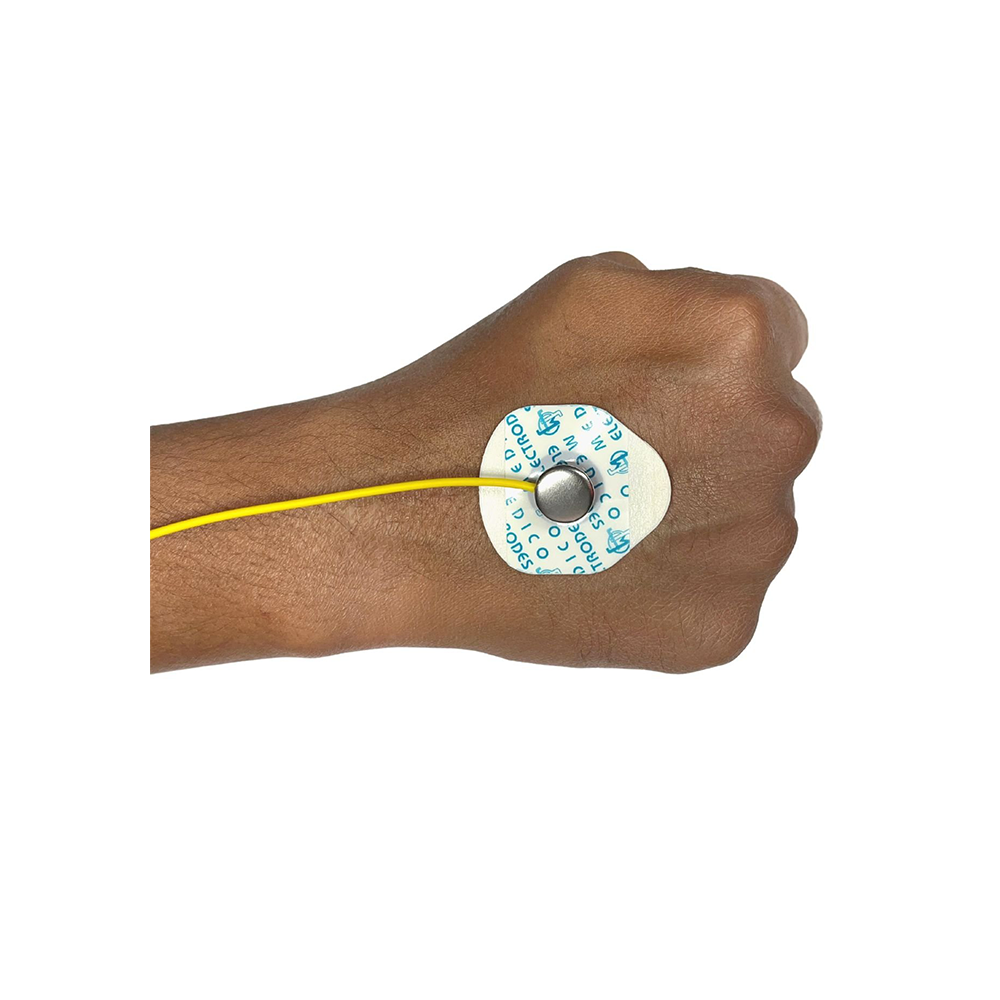

- Snappable electrode connectors provide quick, tool-free attachment to disposable gel electrodes.
- Color-coded (Red, Black, White) wiring simplifies correct signal (IN+, IN-, GND) hookup.
- Compatible with BioAmp EXG Pill, v1.5, Muscle Shield, Muscle Candy, and future boards.
Out of stock
The BioAmp Cable v3 serves as a critical interface cable for professional-grade biopotential measurement systems. It transmits low-amplitude microvolt signals from surface electrodes to the high-input-impedance, low-noise instrumentation amplifiers on BioAmp boards with minimal interference and signal degradation.
Constructed with flexible, stranded wire and robust connectors, this cable is designed for repeated use in laboratory, educational, and prototyping environments. The 3-pin configuration supports standard bipolar or monopolar electrode setups for capturing electrocardiogram (ECG), electromyogram (EMG), and electrodermal activity (EDA) signals.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 12 × 6 × 3 cm |
