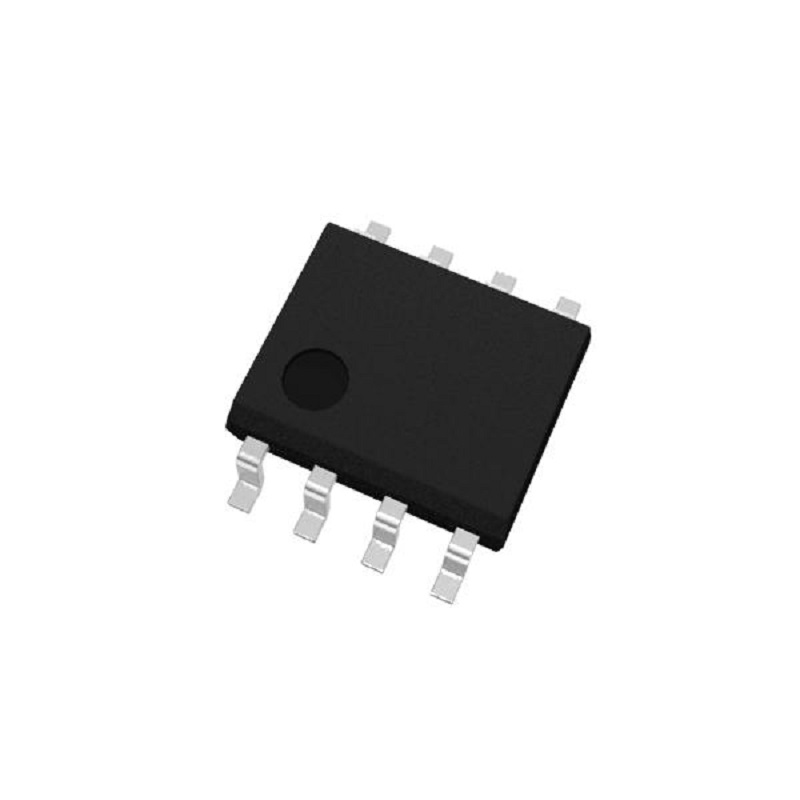

EG Micro EG4002A SOP-8 Human Body Sensing Sensor ROHS
The EG Micro EG4002A is a SOP-8 packaged human body sensing sensor IC designed for integration into wearable and portable health monitoring devices. It operates from a 3V to 6V supply, making it compatible with a wide range of microcontroller systems including Arduino, Raspberry Pi, and ESP32 platforms for biopotential signal acquisition.
Features
- SOP-8 surface-mount package for compact PCB integration.
- Wide operating voltage range of 3V to 6V DC.
- Designed for human body sensing and biopotential signal detection.
- Extended operating temperature range from -25°C to +60°C.
- ROHS compliant for environmentally conscious manufacturing.
Out of stock
The EG4002A sensor IC from EG Micro is engineered to detect physiological signals from the human body, such as those used in ECG or EMG monitoring. Its integrated circuit design provides signal conditioning and amplification in a single, compact package, simplifying front-end design for biomedical applications.
Built to operate reliably in a -25°C to +60°C temperature range, this sensor is suitable for both indoor and challenging environmental conditions. The SOP-8 footprint allows for high-density PCB layouts, which is critical for wearable and portable medical electronics where space is at a premium.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 10 × 8 × 3 cm |
