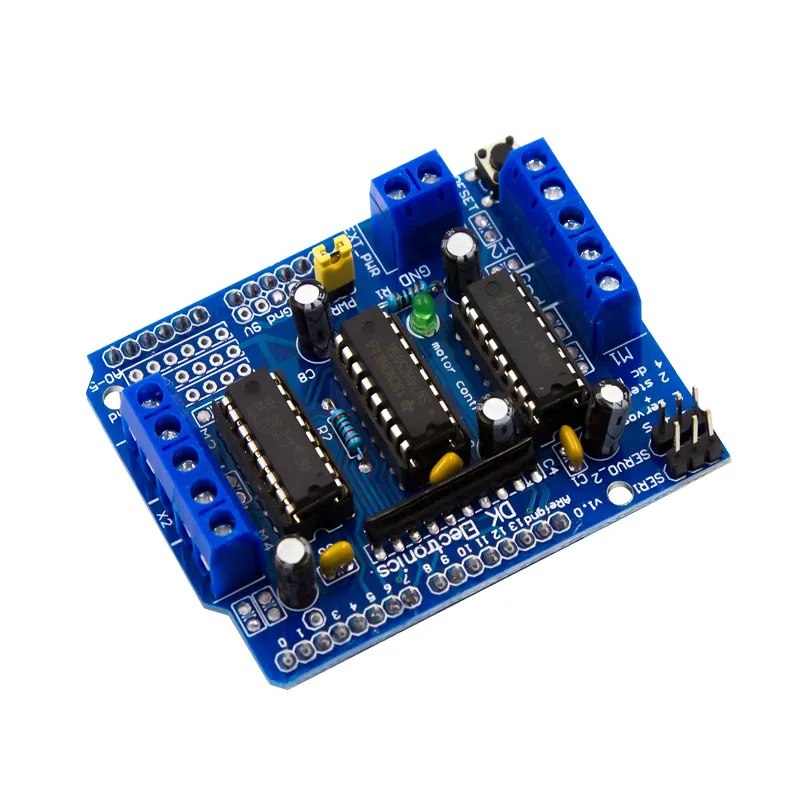

L293D Motor/Servo Driver Shield for Arduino
The L293D Motor/Servo Driver Shield provides comprehensive motor control capabilities for Arduino boards, enabling command of up to four bi-directional DC motors, two stepper motors, and two 5V hobby servos. With its L293D H-bridge chipset, it delivers robust power for robotics and automation projects.
Features
- Integrated L293D H-bridge for controlling up to 4 DC motors or 2 stepper motors.
- Dedicated connections for 2 hobby servos utilizing Arduino’s high-resolution timers.
- Supports motor supply voltages from 4.5VDC to 25VDC with 0.6A continuous current per bridge.
- Features 8-bit speed control for DC motors and versatile stepping modes for steppers.
- Compatible with Arduino UNO, Mega 1280/2560, Diecimila, and Duemilanove boards.
Out of stock
The L293D Motor/Servo Driver Shield for Arduino is a highly versatile expansion board designed for robotics and motion control applications. This shield integrates two L293D motor drivers and a 74HC595 shift register, allowing it to efficiently expand Arduino’s I/O to manage multiple motor types. It provides control for up to four bi-directional DC motors with individual 8-bit speed adjustment, two stepper motors (unipolar or bipolar), and two 5V hobby servos.
Equipped with thermal shutdown protection and internal kickback protection diodes, the L293D chipset ensures reliable operation. Motors can be powered from an external supply ranging from 4.5VDC to 25VDC, delivering up to 0.6A continuous current per bridge. The shield simplifies wiring with large terminal block connectors and includes a jumper for managing separate logic and motor power supplies, safeguarding both the shield and the Arduino board. An easy-to-use Arduino software library is available, providing advanced control features including acceleration and deceleration for stepper motors.
Additional Information
| Weight | 0.035 kg |
|---|---|
| Dimensions | 7 × 5.4 × 1.8 cm |
