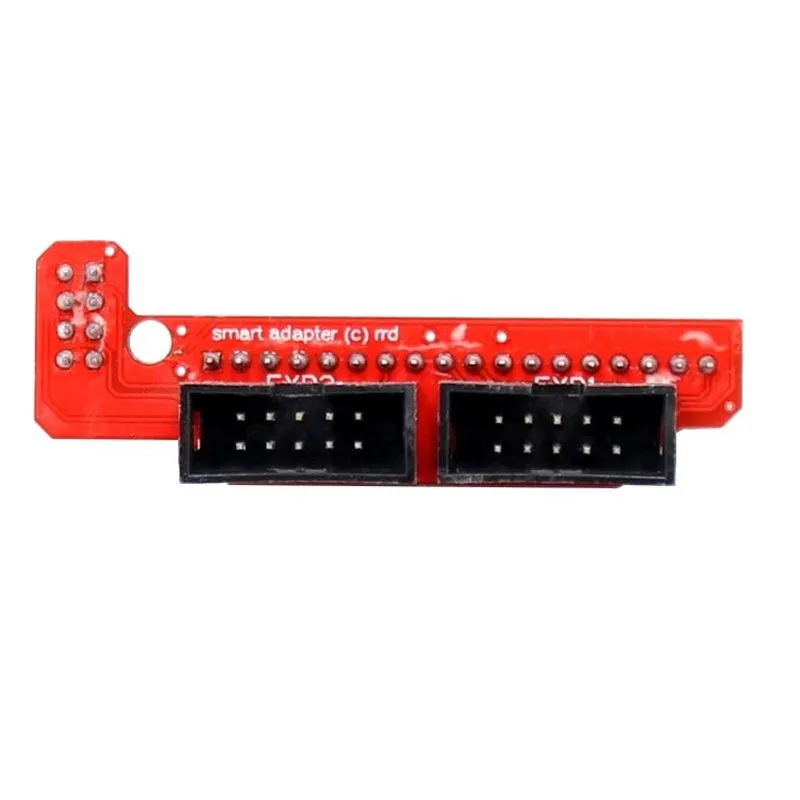

RAMPS 2004 12864 LCD Controller Adapter for 3D Printers

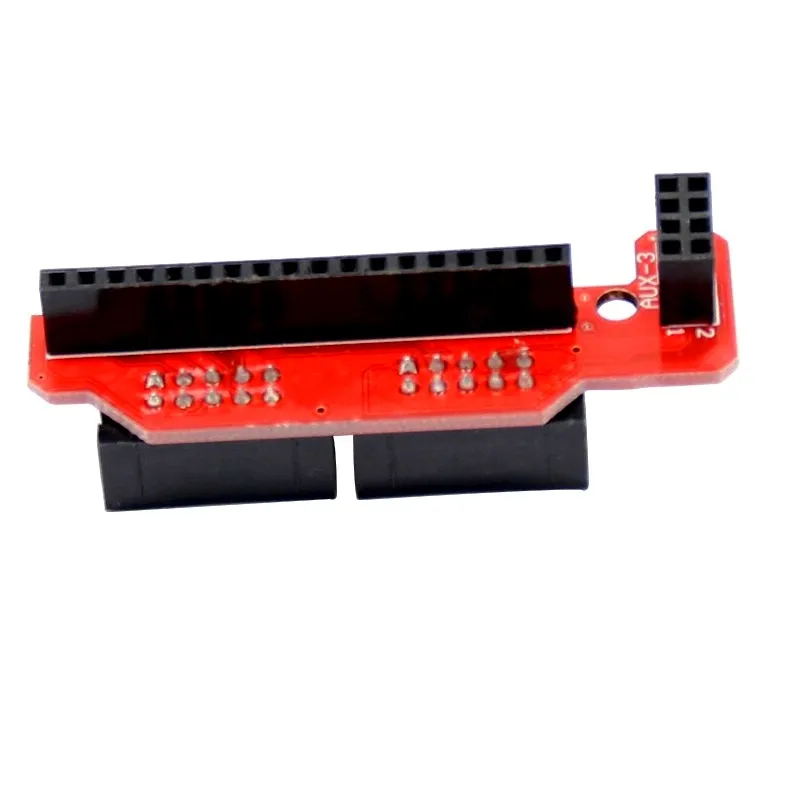

RAMPS 2004 12864 LCD Controller Adapter for 3D Printers - Image 2

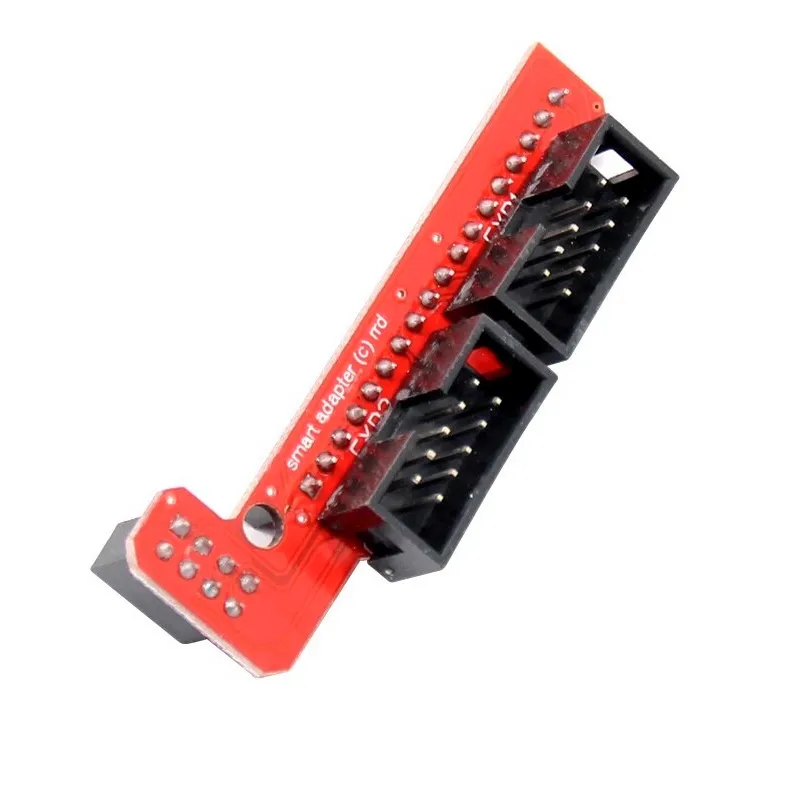

RAMPS 2004 12864 LCD Controller Adapter for 3D Printers - Image 3
SKU: 3DDF-1796
📋 GST Invoice Available

RAMPS 2004 12864 LCD Controller Adapter for 3D Printers

₹53.00 (Inclusive of all taxes)
Out of Stock

This adapter board enables seamless integration of 12864 and 2004 LCD smart controllers with your RAMPS 3D printer mainboard, simplifying display connectivity and control.

Features

  • Ensures full compatibility with RAMPS mainboards for display integration.
  • Supports both 12864 and 2004 LCD smart controllers.
  • Facilitates direct connection without complex wiring.
  • Constructed from durable plastic and metal components for reliability.

Out of stock

Description

The RAMPS LCD Controller Adapter is an essential component for easily connecting popular smart LCD displays to your RAMPS 3D printer control board. Designed for straightforward installation, this adapter eliminates the need for intricate custom wiring, providing a clean and reliable interface between your mainboard and the display.

By ensuring compatibility with both the widely used 12864 and 2004 LCD smart controllers, this adapter broadens your display options and simplifies upgrades or replacements. Its robust construction guarantees stable signal transmission, contributing to consistent performance and user interaction with your 3D printer’s interface.

Key Features

  • **Plug-and-Play Connectivity:** Designed for simple connection to RAMPS boards.
  • **Broad Compatibility:** Fully supports 12864 and 2004 LCD smart controllers.
  • **Stable Signal Transmission:** Ensures reliable communication between mainboard and display.
  • **Compact Design:** Minimally sized to fit within existing printer enclosures.
  • **Durable Construction:** Made from resilient plastic and metal for long-term use.
  • **Facilitates Display Upgrades:** Simplifies replacing or upgrading your 3D printer's display.

Applications

  • Integrating 12864 or 2004 LCD displays with RAMPS-based 3D printers.
  • Upgrading existing 3D printer display setups for enhanced functionality.
  • Custom 3D printer builds requiring robust display connectivity.
  • Replacing damaged or non-functional display adapters in RAMPS systems.

Technical Specifications

Item TypeAdapter
CompatibilityRAMPS Mainboards (e.g., RAMPS 1.4, RAMPS 1.6)
Supported LCD Controllers12864 LCD, 2004 LCD
MaterialPlastic, Metal
Length62 mm
Width21 mm
Weight8 g

Frequently Asked Questions

What specific RAMPS versions is this adapter compatible with?

This adapter is generally compatible with most RAMPS mainboard iterations, including common versions like RAMPS 1.4 and RAMPS 1.6. It provides the standard pinout for connecting popular 12864 and 2004 LCD smart controllers, ensuring broad usability across RAMPS-based 3D printer electronics setups.

Does this adapter require external power for the LCD controller?

No, this adapter does not typically require external power. It draws the necessary power and signal from the RAMPS mainboard's dedicated expansion headers. The design is intended for direct plug-and-play functionality, simplifying installation and reducing wiring complexity for display integration.

Can I use this adapter with a non-RAMPS control board?

This adapter is specifically designed for RAMPS (RepRap Arduino Mega Pololu Shield) control boards due to its connector type and pin configuration. While it might physically fit other boards, electrical compatibility is not guaranteed, and attempting to use it could lead to damage. It's best suited for its intended RAMPS environment.

What are the common issues solved by using this adapter?

This adapter solves issues related to connecting 12864 and 2004 LCD displays to RAMPS boards without complex wiring or custom solutions. It standardizes the connection, preventing incorrect pin assignments, ensuring stable data transmission, and making display upgrades or replacements straightforward for 3D printer users.

Package Includes

  • 1 x Adapter for Ramps 2004 LCD Controller

Additional Information

Weight 0.008 kg
Dimensions 6.2 × 2.1 cm
