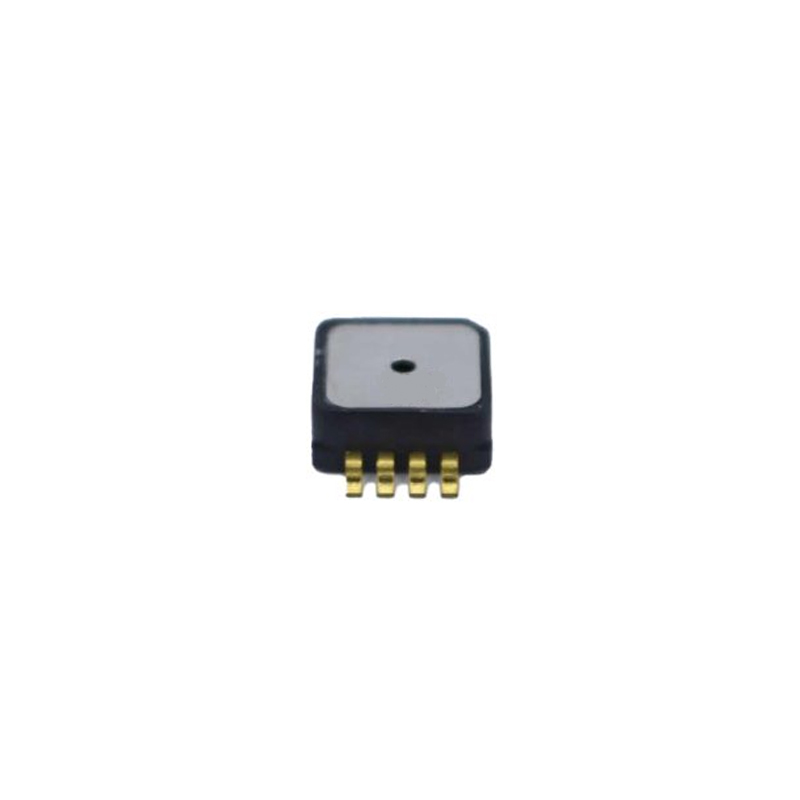

Tiger TKPS1700 Pressure Sensor 0-800 kPa Absolute Pressure - I2C Output
The Tiger TKPS1700 is a high-precision digital absolute pressure sensor with an I2C output interface, designed for easy integration with 3.3V/5V MCU systems like Arduino, Raspberry Pi, and ESP32. It provides accurate pressure measurements from 0 to 800 kPa using a diffused silicon piezoresistive sensing element.
Features
- High-precision diffused silicon piezoresistive pressure sensor with 1% FS accuracy.
- Digital I2C output for direct interfacing with microcontrollers and single-board computers.
- Integrated temperature compensation across a wide -40°C to +85°C operating range.
- Compact 1 cm x 1 cm footprint with a low 4-gram weight for space-constrained designs.
- Robust construction with a 2 MPa maximum pressure rating for reliable operation.
Out of stock
The Tiger TKPS1700 employs a diffused silicon piezoresistive pressure chip, a MEMS-based technology known for its stability and sensitivity. The sensor’s internal signal conditioning circuitry provides amplified, temperature-compensated digital readings via an I2C serial interface, ensuring reliable data acquisition across varying environmental conditions.
Pre-calibrated and ready for use, this sensor simplifies system integration for pressure monitoring applications. Its compact, solid-state design offers excellent durability and a fast 10 ms response time, making it suitable for dynamic pressure measurement scenarios in both consumer and industrial environments.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 1 × 1 cm |
