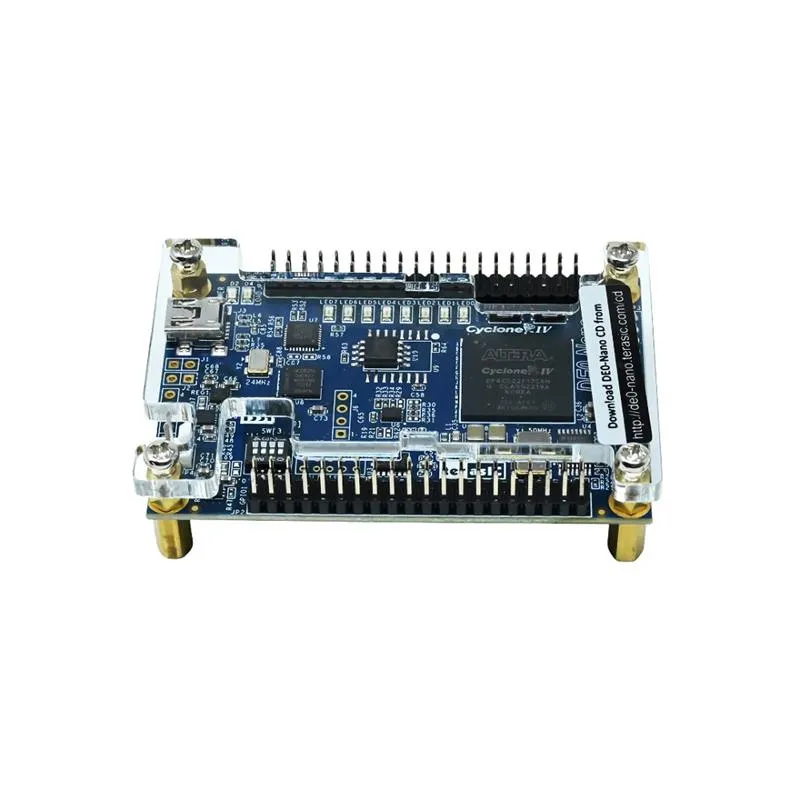

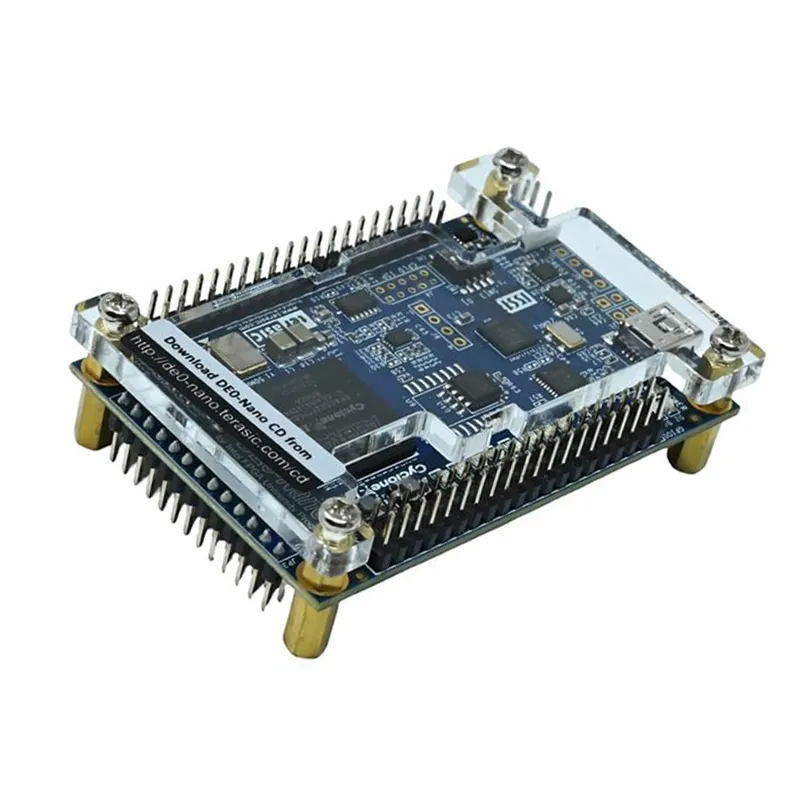

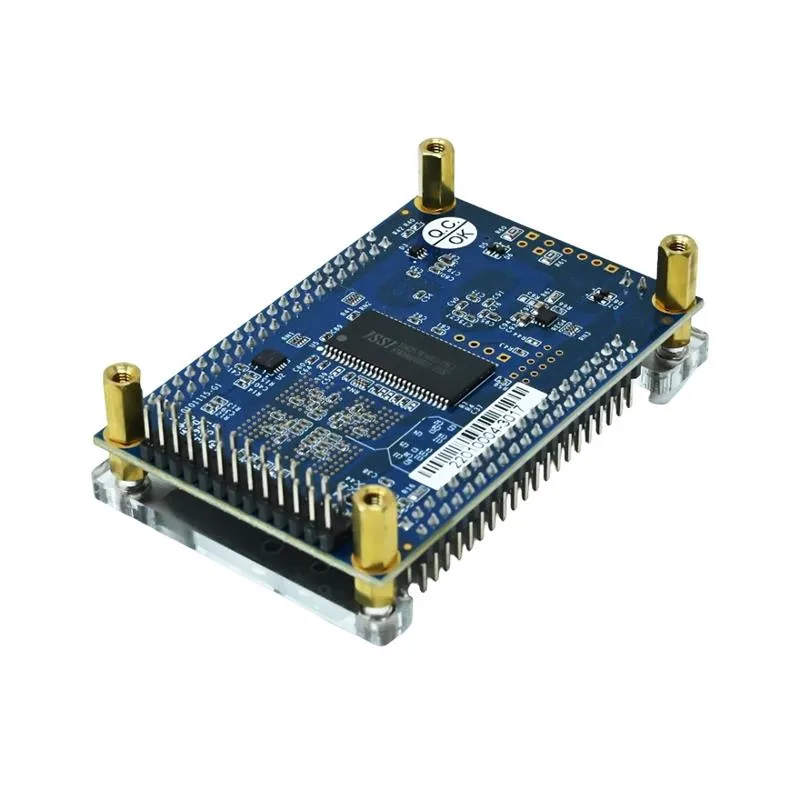

Terasic DE0-Nano Dev Kit, Altera Cyclone IV FPGA, 32MB SDRAM

Description

The Terasic DE0-Nano Development Kit offers a highly compact and versatile FPGA development platform engineered for rapid prototyping of circuit designs, especially suited for robotics and mobile embedded projects. At its core lies the Altera Cyclone IV EP4CE22F17C6N FPGA, providing up to 22,320 logic elements (LEs), enabling users to implement a wide array of complex digital logic circuits and custom hardware accelerators.

This platform significantly extends design capabilities through its two external general-purpose I/O (GPIO) headers, facilitating seamless integration with external peripherals and custom circuits. On-board memory devices, including 32MB SDRAM and 2Kb I2C EEPROM, efficiently handle larger data storage, frame buffering, and persistent configuration needs. Enhanced user interaction is supported by integrated LEDs and push buttons, simplifying debugging and basic control implementations.

Designed for portability, the DE0-Nano is small, lightweight, and reconfigurable without superfluous external hardware. Its flexible power options, including a USB Mini-AB port, a 2-pin external power header, and two DC 5V pins, make it an excellent choice for battery-powered or mobile applications where power efficiency and footprint are critical design considerations.
