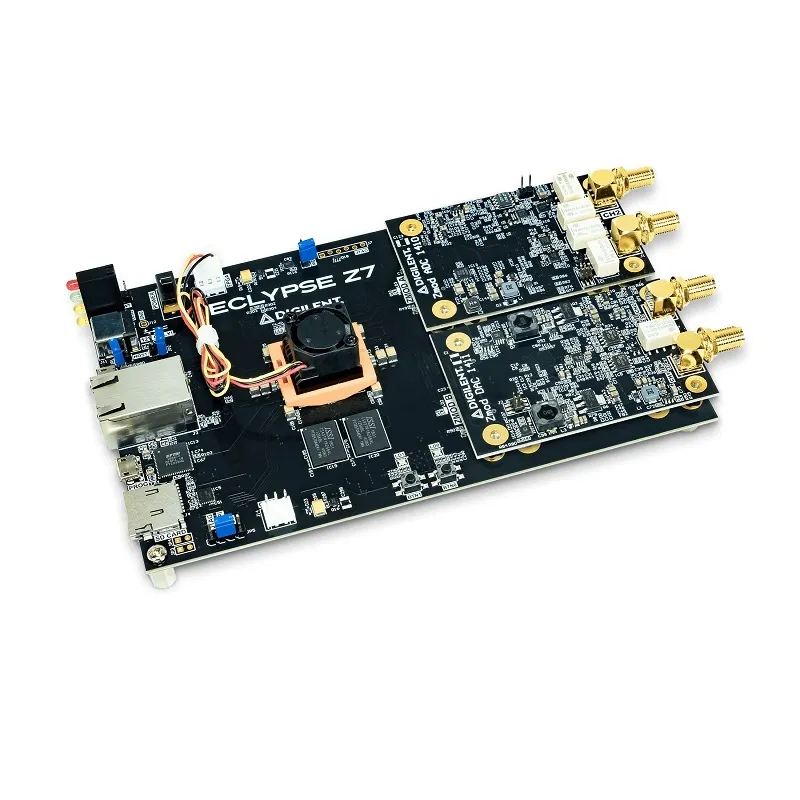

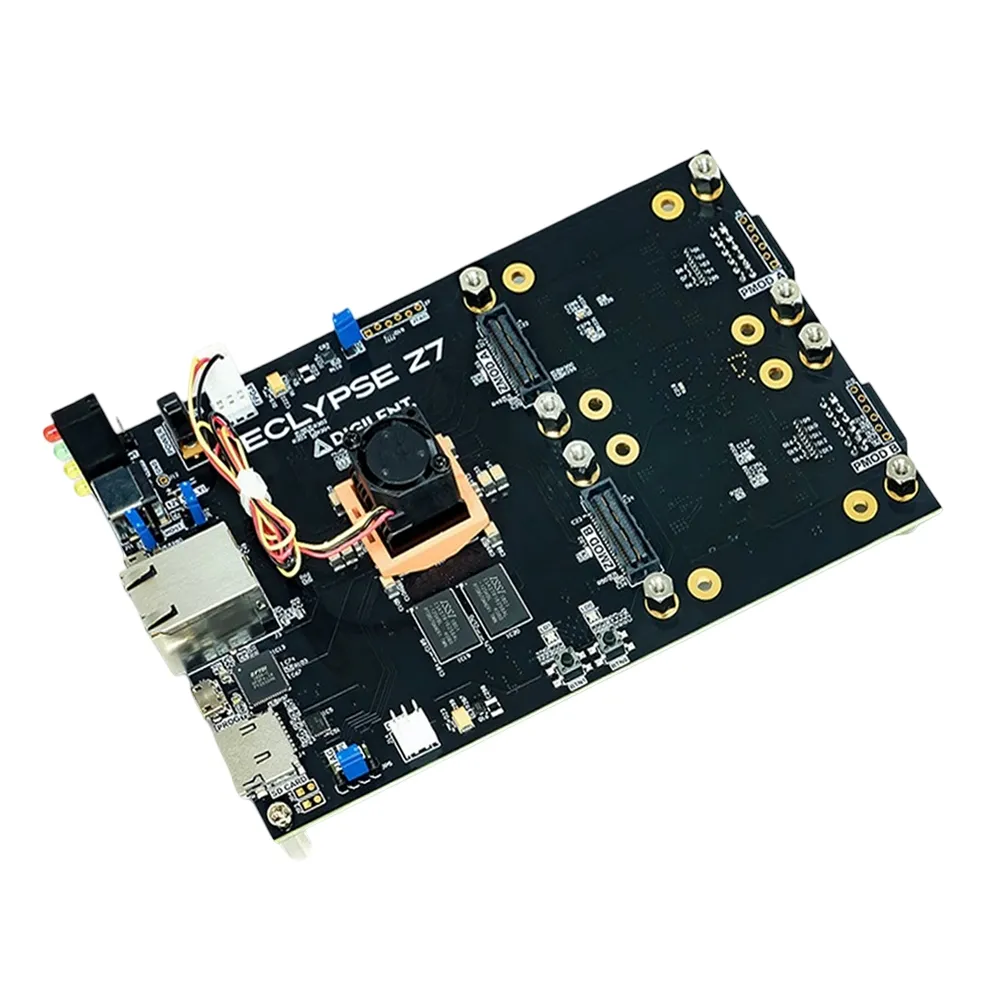

Digilent Eclypse Z7 Zynq-7000 SoC Development Board
The Digilent Eclypse Z7 is an advanced Zynq-7020 SoC development board engineered for rapid prototyping of embedded measurement systems, featuring high-speed Zmod ports for modular expansion. It combines a 667 MHz dual-core Cortex-A9 processor with Artix-7 equivalent programmable logic.
Features
- Features a Xilinx Zynq-7020 SoC with a 667 MHz dual-core Cortex-A9 processor.
- Integrates programmable logic equivalent to an Artix-7 FPGA for hardware acceleration.
- Equipped with high-bandwidth peripherals including 1G Ethernet, USB 2.0, and SDIO.
- Designed with high-speed Zmod ports for robust modular instrumentation and expansion.
- Supports a wide range of embedded applications including edge computing and medical systems.
Out of stock
The Digilent Eclypse Z7 is purpose-built to accelerate the design and development of sophisticated embedded measurement systems. Central to its architecture is the Xilinx Zynq-7020 System-on-Chip, which seamlessly integrates a powerful 667 MHz dual-core ARM Cortex-A9 processor with extensive programmable logic, offering the flexibility and performance of an Artix-7 FPGA. This hybrid approach allows engineers and researchers to leverage both processing power and real-time hardware control, significantly reducing development cycles for innovative high-speed instrumentation, control, and data acquisition systems.
This development board provides robust I/O capabilities and high-speed data transfer, making it ideal for demanding projects in edge computing, medical diagnostics, and communications. Its unique high-speed Zmod ports facilitate modular expansion, enabling rapid integration of specialized measurement and control modules. The Eclypse Z7 ensures engineers can meet project requirements through its adaptable design, comprehensive peripheral support including Gigabit Ethernet, USB 2.0, and various low-bandwidth interfaces (SPI, UART, CAN, I2C), and versatile programming options via JTAG, Quad-SPI flash, or microSD card.
Additional Information
| Weight | 0.725 kg |
|---|---|
| Dimensions | 30 × 19 × 7 cm |
