Red Pitaya STEMlab 125-14 PRO Gen 2 Starter Kit

₹104,899.00 (Inclusive of all taxes)
Out of Stock

The Red Pitaya STEMlab 125-14 PRO Gen 2 Starter Kit provides a fast, flexible, and reliable platform for professionals requiring high-performance test and measurement, data acquisition, and real-time signal processing, featuring 14-bit ADC/DAC at 125 MS/s and DC–60 MHz bandwidth.

Features

  • 14-bit ADC/DAC with 125 MS/s sampling rate for high-fidelity signal acquisition and generation.
  • Powered by Xilinx Zynq 7010 SoC and 512 MB RAM for powerful real-time processing and FPGA reconfigurability.
  • Dual RF input/output channels with DC–60 MHz bandwidth and flexible ±20V input range.
  • Integrated suite of test instruments: oscilloscope, signal generator, spectrum analyzer, and more.
  • USB-C power, 1 Gbit Ethernet, and extensive digital/analog I/O for versatile system integration.

Out of stock

Description

The STEMlab 125-14 PRO Gen 2 Starter Kit is engineered for professionals demanding a high-performance, reconfigurable platform for advanced test and measurement, precision data acquisition, and complex real-time signal processing applications. Centered around the upgraded PRO Gen 2 board, this kit significantly enhances signal integrity with improved analog front- and back-ends, ensuring lower noise and superior signal fidelity. Its high-speed connectivity is delivered in a compact, adaptable format, making it suitable for a wide array of demanding environments.

At its core, the PRO Gen 2 leverages the robust Xilinx Zynq 7010 SoC, complemented by 512 MB of RAM, providing formidable processing power for real-time control and data manipulation. It features two input and two output channels, each supporting 14-bit ADC/DAC resolution at a rapid 125 MS/s sampling rate, alongside a substantial bandwidth of up to 60 MHz. These specifications make it an ideal solution for critical applications across industrial automation, advanced radar systems, RF development, photonics research, and seamless OEM system integration.

Key Features

  • Improved analog front- & back-ends for lower noise and greater signal fidelity
  • 14-bit, 125 MS/s ADC & DAC with wide bandwidth (up to 60 MHz)
  • Xilinx Zynq 7010 SoC + 512 MB RAM for powerful processing and real-time control
  • Multi-channel synchronization & external/internal clock support
  • USB-C connectivity for power and console interface
  • Advanced triggering options via GPIO and extension connectors
  • Robust SMA connectors and high-voltage input tolerance (±20 V HV range)
  • Compact, open-source platform for rapid prototyping, integration, and research

Applications

  • Oscilloscope & Signal Generator
  • Spectrum Analyzer
  • Bode Analyzer
  • Logic Analyzer
  • LCR Meter
  • Vector Network Analyzer (VNA)
  • Software Defined Radio (SDR)
  • Signal Streaming
  • Calibration Tool

Technical Specifications

System MemoryMicro SD up to 32GB
Connectivity
Ethernet1 Gbit
USBUSB 2.0
Wi-FiUsing Wi-Fi dongle (not included)
RF Inputs (2 Channels)
Sample Rate125 MS/s
ADC Resolution14 bit
Input Impedance1M Ω
Full Scale Voltage Range±1V / ±20V
Input CouplingDC
BandwidthDC - 60MHz
RF Outputs (2 Channels)
Sample Rate125 MS/s
DAC Resolution14 bit
Load Impedance50 Ω
Full Scale Voltage Range±1V
Short-Circuit ProtectionYes
Typical Rising/Falling Time2V / 10ns
BandwidthDC - 60MHz
Extension Connector
Digital I/Os16
Analog Inputs4 channels, 0-3.5V, 12 bit
Analog Outputs4 channels, 0-1.8V, 12 bit
Communication InterfacesI2C, SPI, UART
Available Voltages-4V, +3.3V, +5V
Synchronization
Trigger InputThrough extension connector
Daisy Chain ConnectionOver SATA connection
Reference Clock InputN/A
General
Weight0.5kg
Dimensions22 × 15 × 8cm

Frequently Asked Questions

What is the primary SoC used in the Red Pitaya STEMlab 125-14 PRO Gen 2?

The STEMlab 125-14 PRO Gen 2 is powered by the Xilinx Zynq 7010 System-on-Chip, which integrates a dual-core ARM Cortex-A9 processor with a 28nm Artix-7 FPGA fabric. This architecture enables powerful real-time processing alongside reconfigurable hardware for custom logic applications and accelerated signal processing.

What are the key analog performance specifications of this board?

It features two RF input and two RF output channels, both with 14-bit resolution and a 125 MS/s sampling rate. The analog bandwidth extends from DC to 60 MHz, and the RF inputs support a flexible full-scale voltage range of ±1V or ±20V. Output load impedance is 50 Ω.

What development environments and software tools are supported by the STEMlab?

Red Pitaya offers an extensive open-source ecosystem, including various web-based applications for common test and measurement instruments like oscilloscopes and spectrum analyzers. Users can also develop custom applications using C/C++, Python, or integrate with MATLAB/Simulink, leveraging the Zynq's ARM core and FPGA capabilities.

Can the STEMlab be synchronized with external instruments or other STEMlab units?

Yes, the board supports multi-channel synchronization options. It includes a trigger input via its extension connector and offers daisy-chain connection capabilities over SATA for synchronizing multiple STEMlab units. This is critical for complex multi-channel data acquisition setups and precise timing requirements in experimental designs.

Package Includes

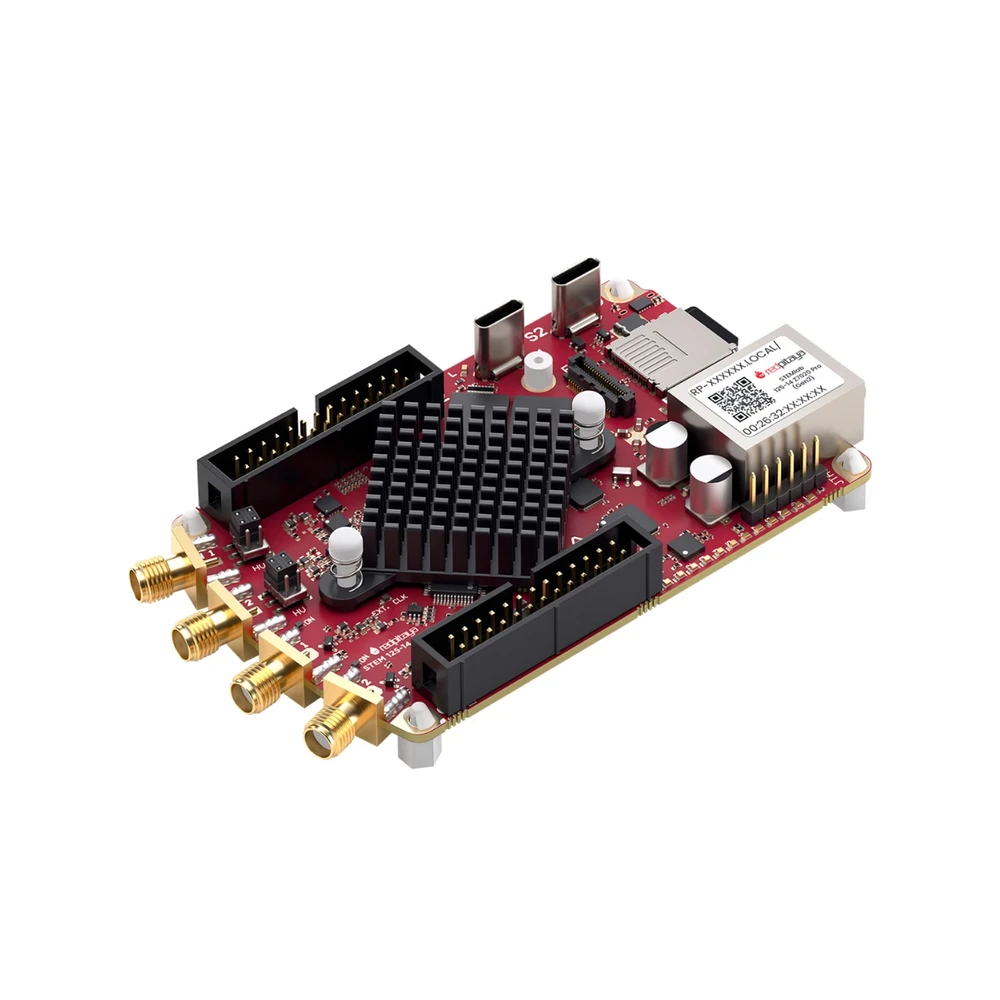

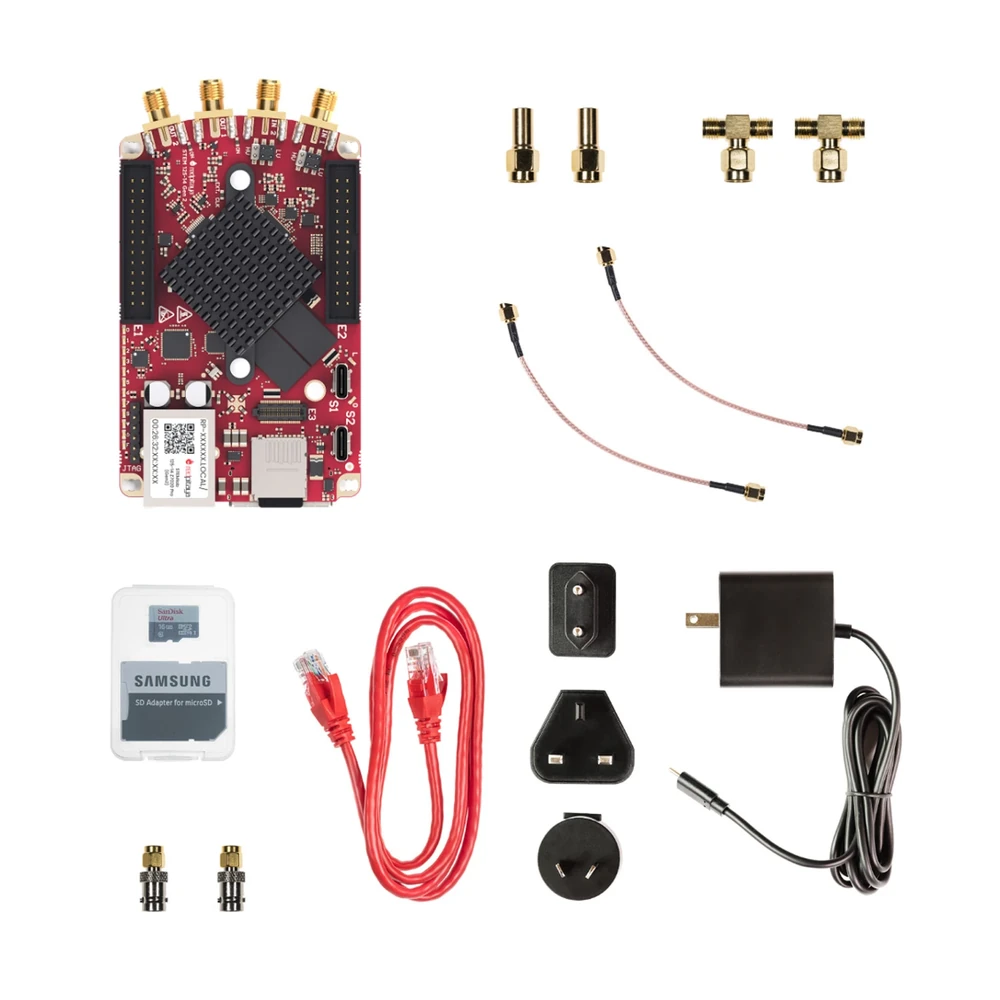

  • 1 x Red Pitaya STEMlab 125-14 PRO Gen 2 board

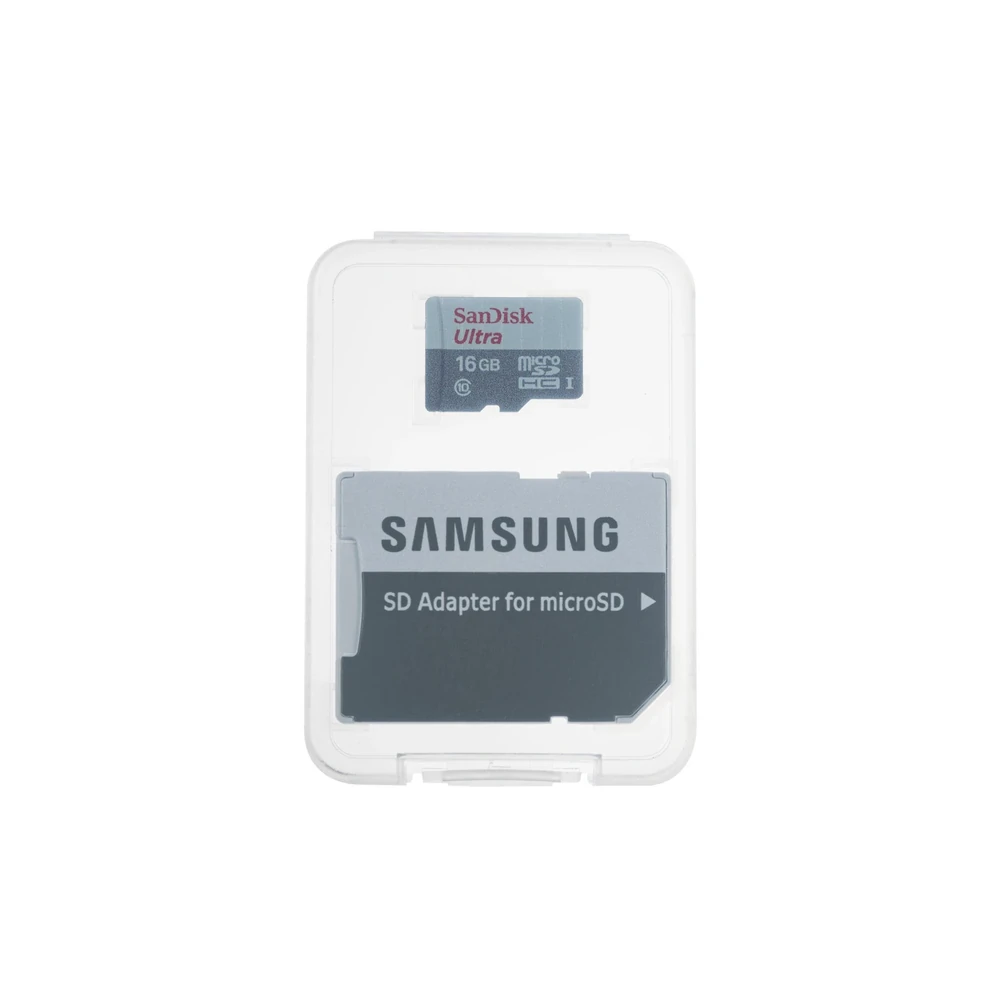

  • 1 x MicroSD card (with OS image pre-installed)

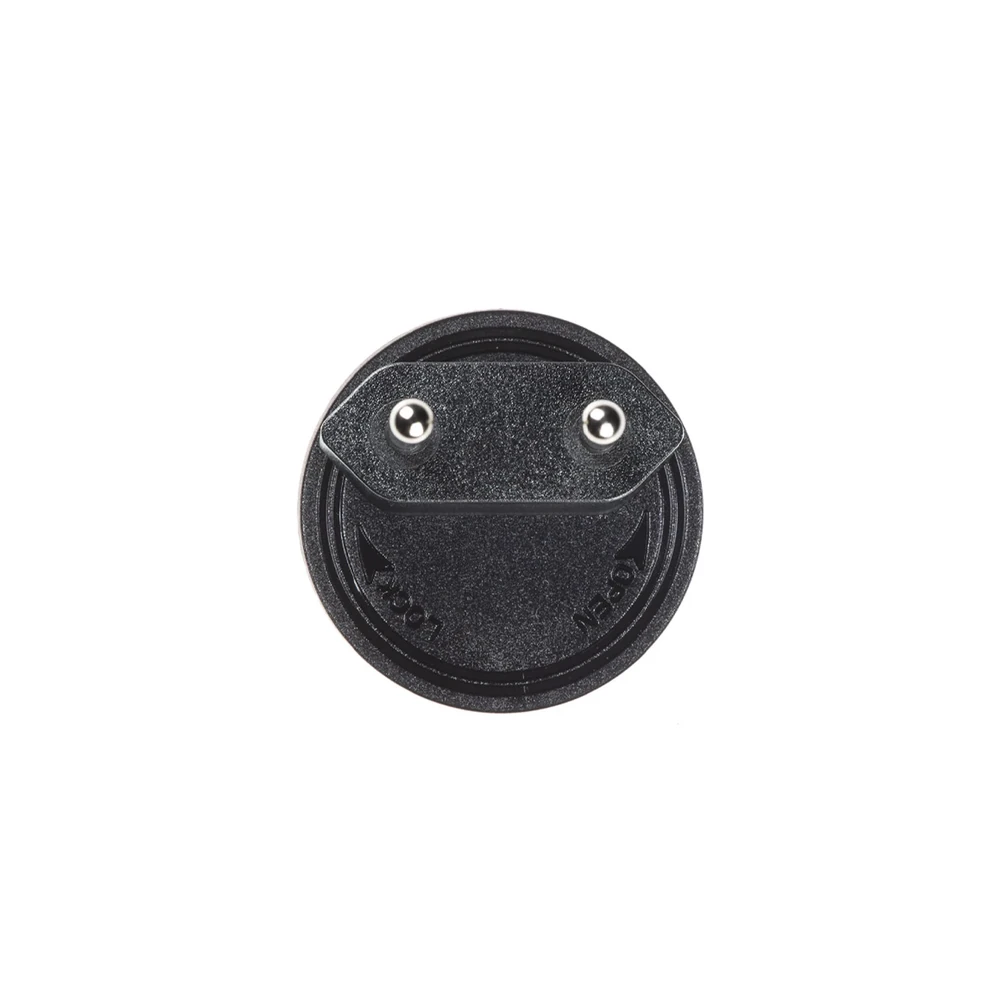

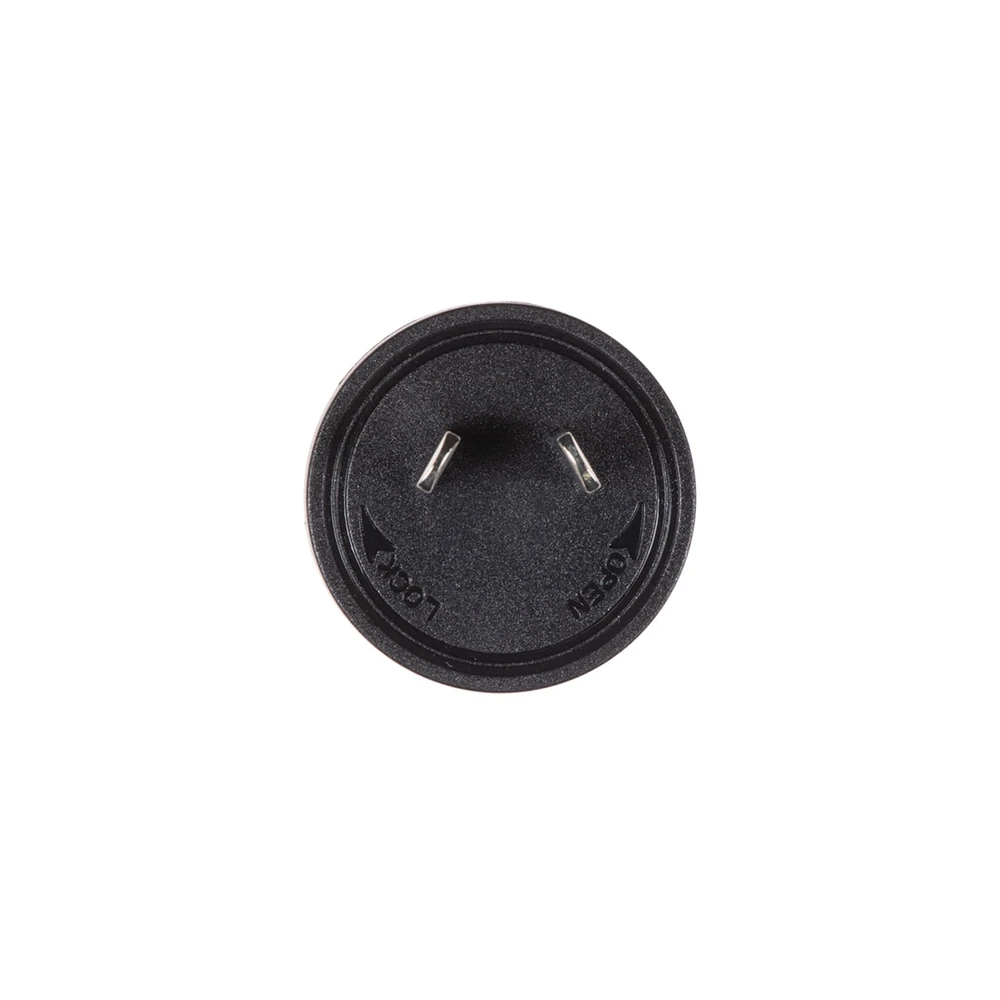

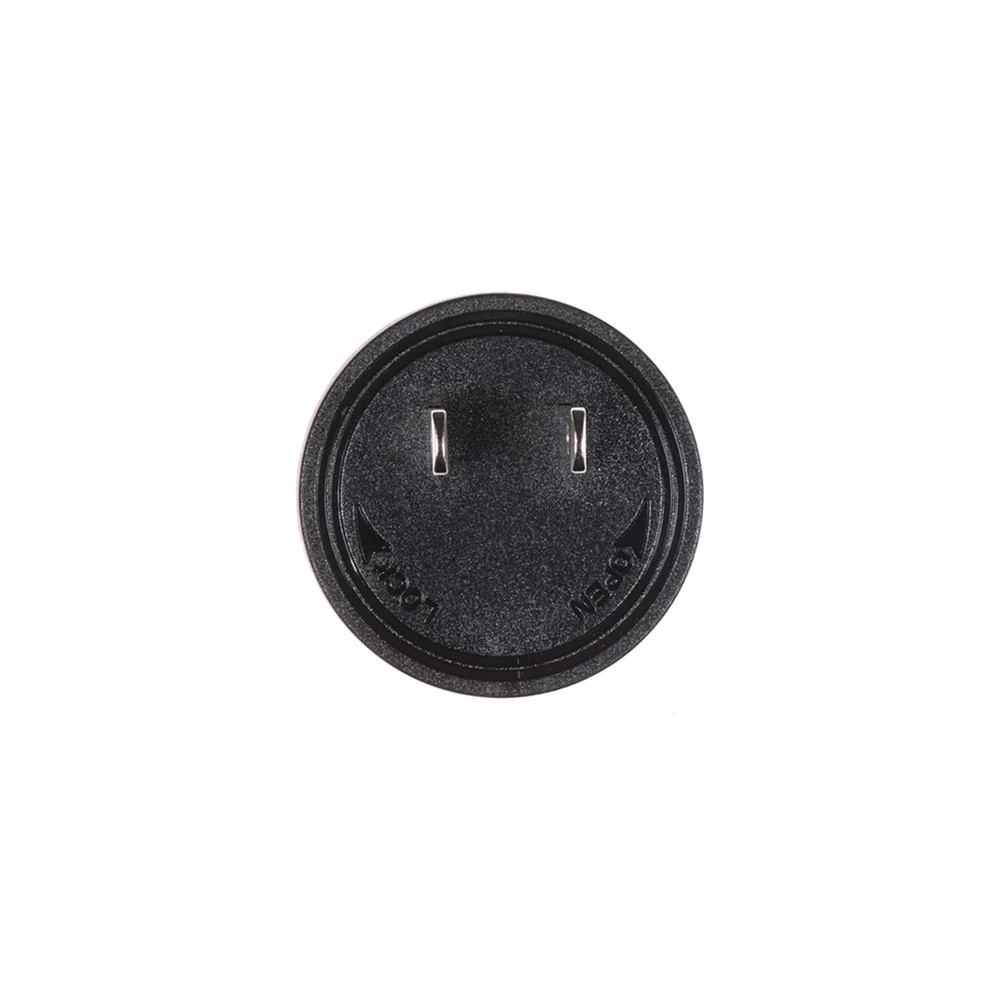

  • 1 x 5V 5A USB type-C power supply

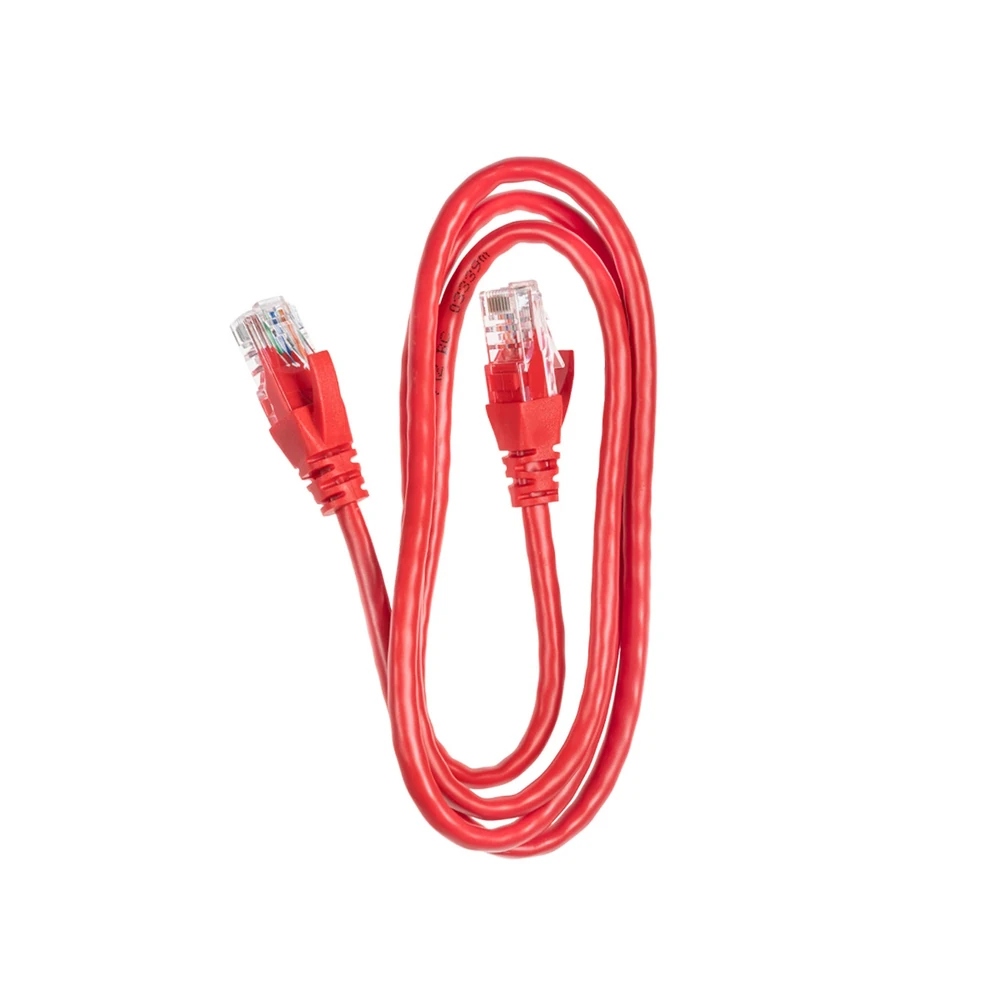

  • 1 x Ethernet cable

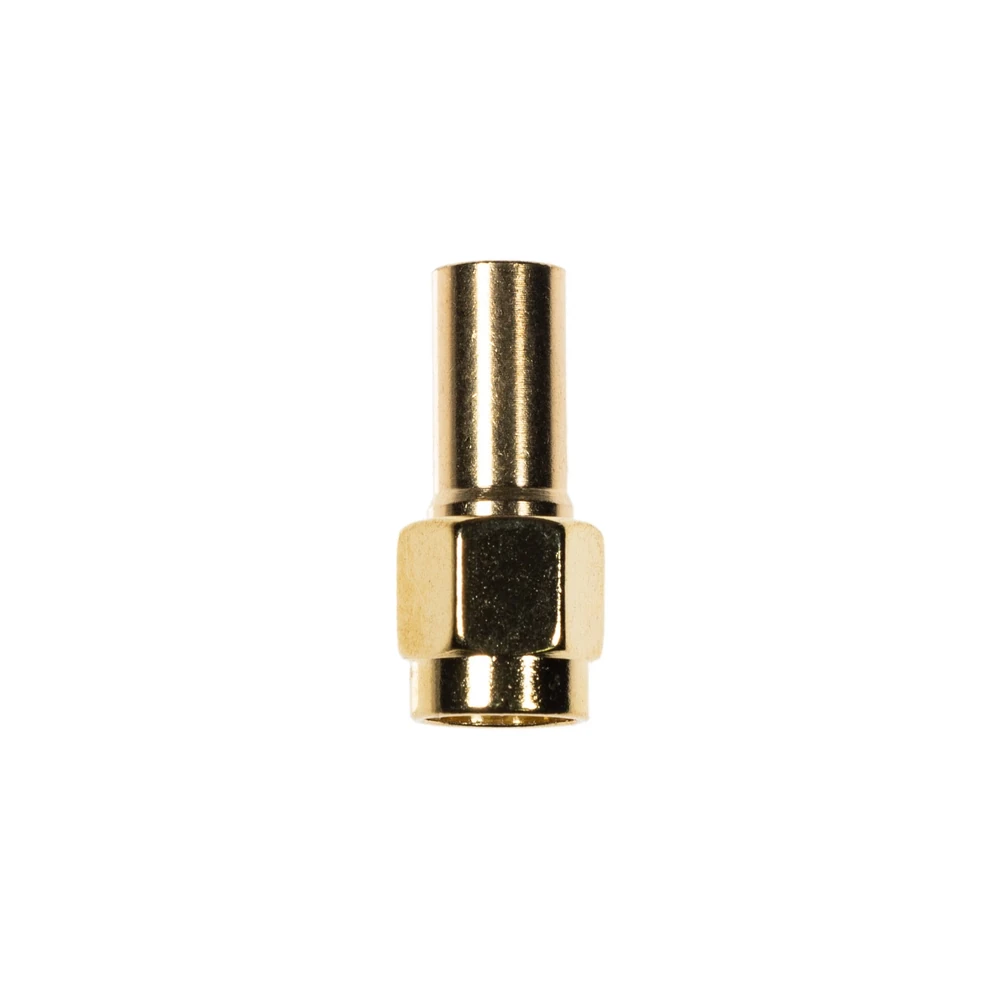

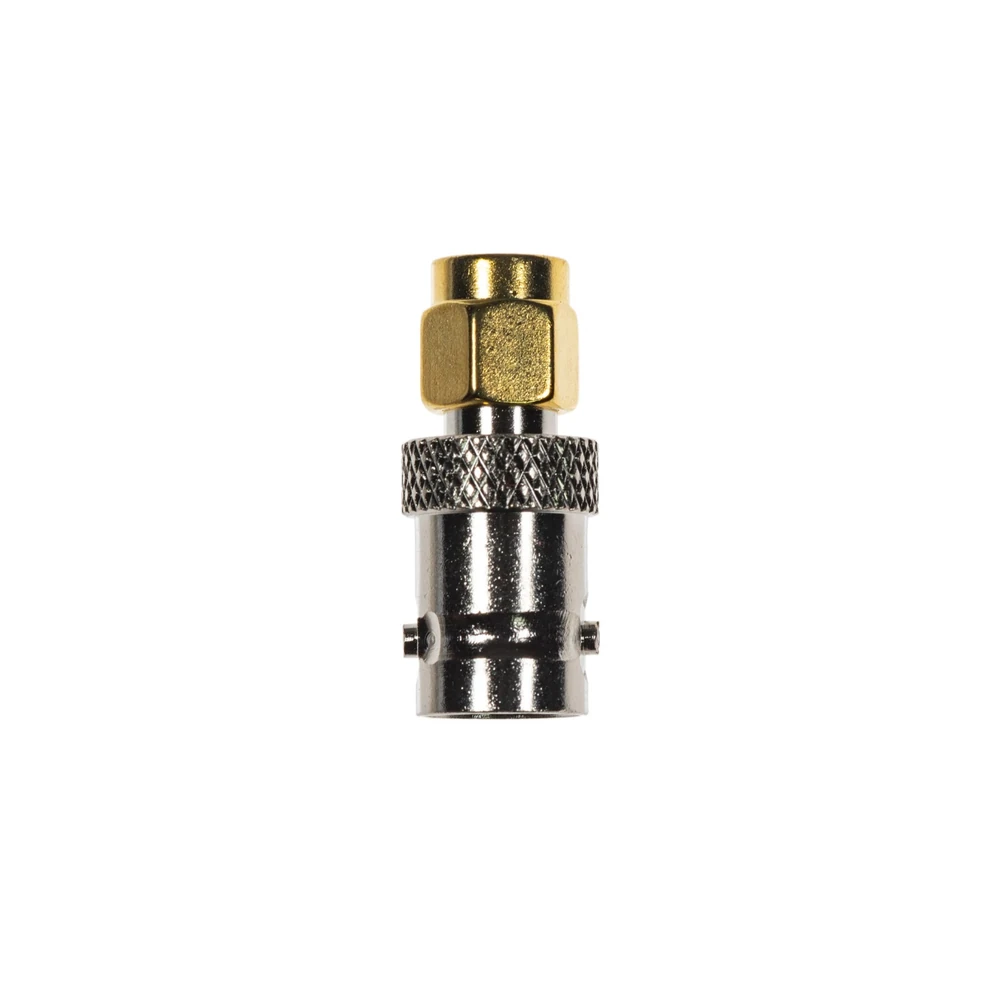

  • 2 x SMA-BNC adapters
  • 2 x 50 ohm termination

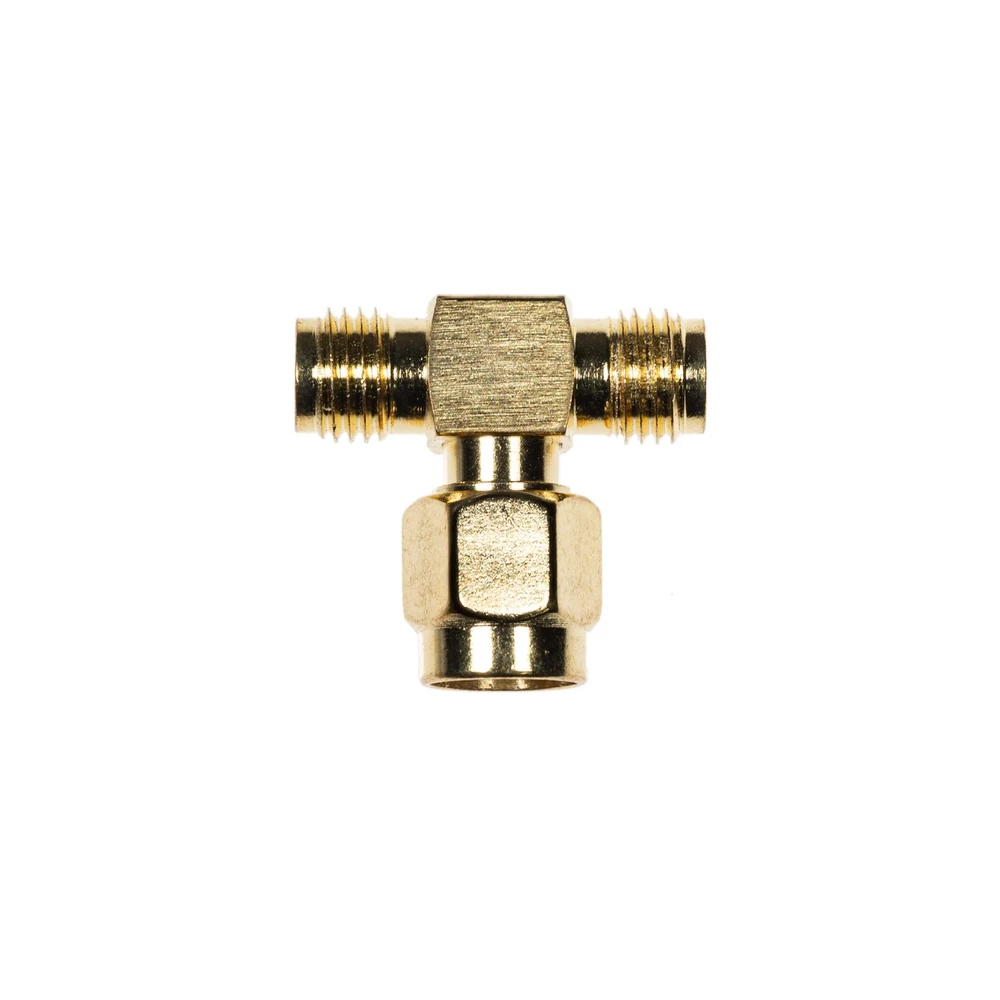

  • 2 x SMA T adapter
  • 2 x SMA Cable

Additional Information

Weight 0.5 kg
Dimensions 22 × 15 × 8 cm
