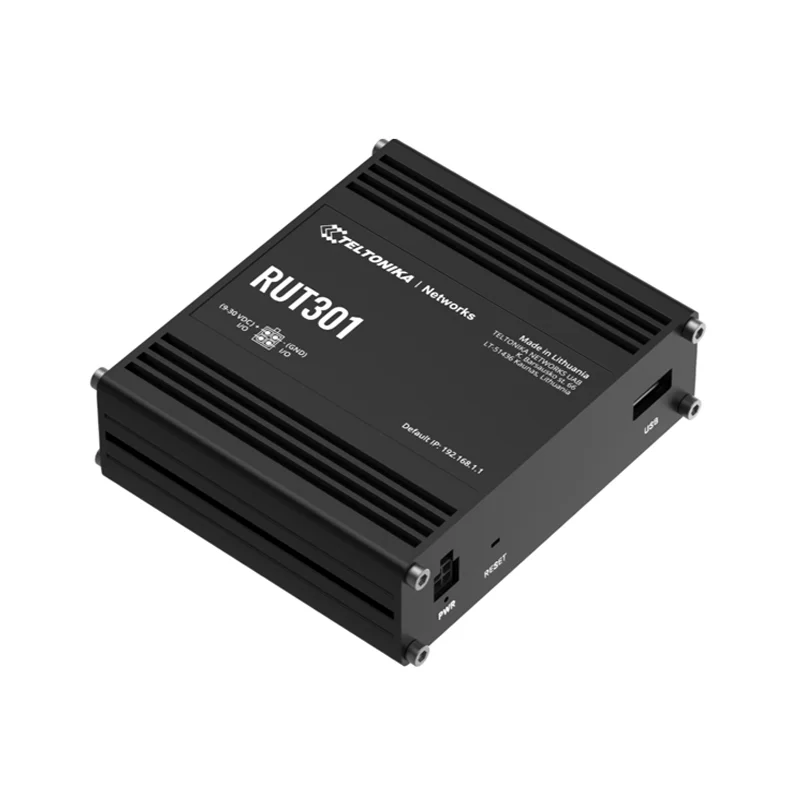

Teltonika RUT301 Industrial Ethernet Router
Teltonika RUT301 Industrial Ethernet Router - Image 2

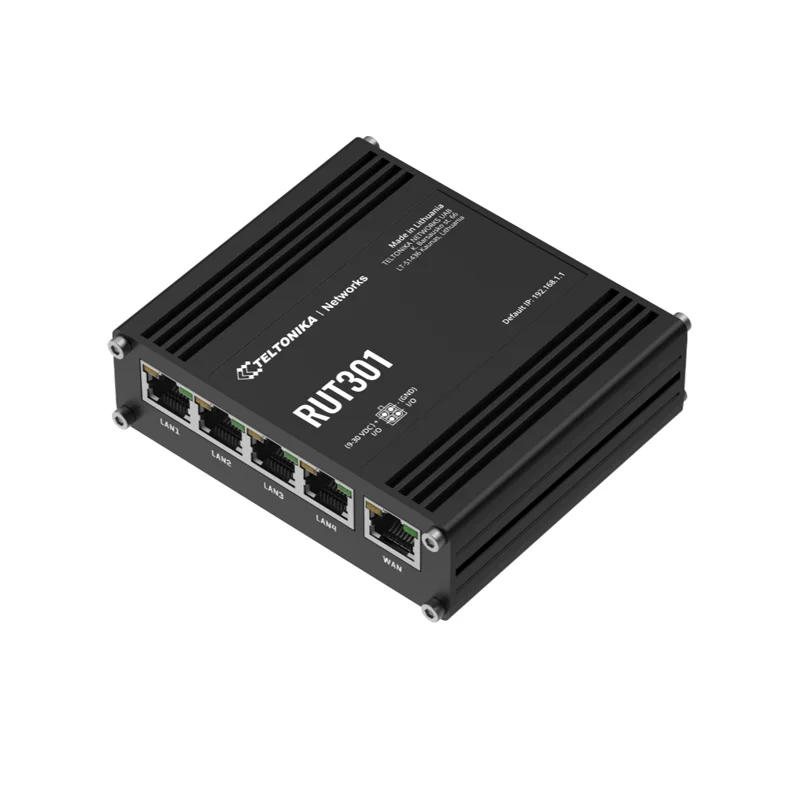

Teltonika RUT301 Industrial Ethernet Router - Image 3
Teltonika RUT301 Industrial Ethernet Router - Image 4
Teltonika RUT301 Industrial Ethernet Router - Image 5
SKU: IOWC-1951
📋 GST Invoice Available

Teltonika RUT301 Industrial Ethernet Router

₹9,169.00 (Inclusive of all taxes)
Out of Stock

The Teltonika RUT301 is an industrial-grade Ethernet router featuring five Fast Ethernet ports, a 580 MHz CPU, and the RutOS (OpenWrt-based) firmware. It provides reliable wired connectivity with support for industrial protocols like Modbus, OPC UA, and MQTT for automation and IoT applications.

Features

  • Five-port Fast Ethernet router (1 WAN + 4 LAN) for robust industrial networking.
  • Powered by a 580 MHz MIPS CPU with 128 MB RAM and 16 MB Flash for stable operation.
  • RutOS firmware (OpenWrt-based) enables extensive customization, VPNs (OpenVPN, IPsec, WireGuard), and remote management via Teltonika RMS.
  • Supports key industrial IoT protocols including Modbus TCP/RTU, OPC UA, MQTT, and DNP3 for seamless integration.
  • Compact, rugged aluminium housing with wide 9-30 VDC input and low power consumption for harsh environments.

Out of stock

Description

The Teltonika RUT301 Industrial Ethernet Router is engineered for mission-critical wired connectivity in automation, smart infrastructure, and industrial IoT deployments. Its durable, compact aluminium chassis houses a capable Mediatek 580 MHz MIPS processor paired with 128 MB of RAM, ensuring stable handling of multiple network protocols and VPN tunnels.

Running the feature-rich RutOS—a hardened OpenWrt distribution—the RUT301 offers advanced firewall security, dual configurable digital I/O for automation triggers, and native support for Modbus, OPC UA, and MQTT. This makes it a versatile gateway for converting serial data to IP networks or bridging SCADA systems to the cloud. With its wide operating voltage range and minimal power draw, it delivers reliable, always-on connectivity for remote and demanding installations.

Key Features

  • Industrial-grade build with aluminium housing and IP30 rating for durability in harsh conditions.

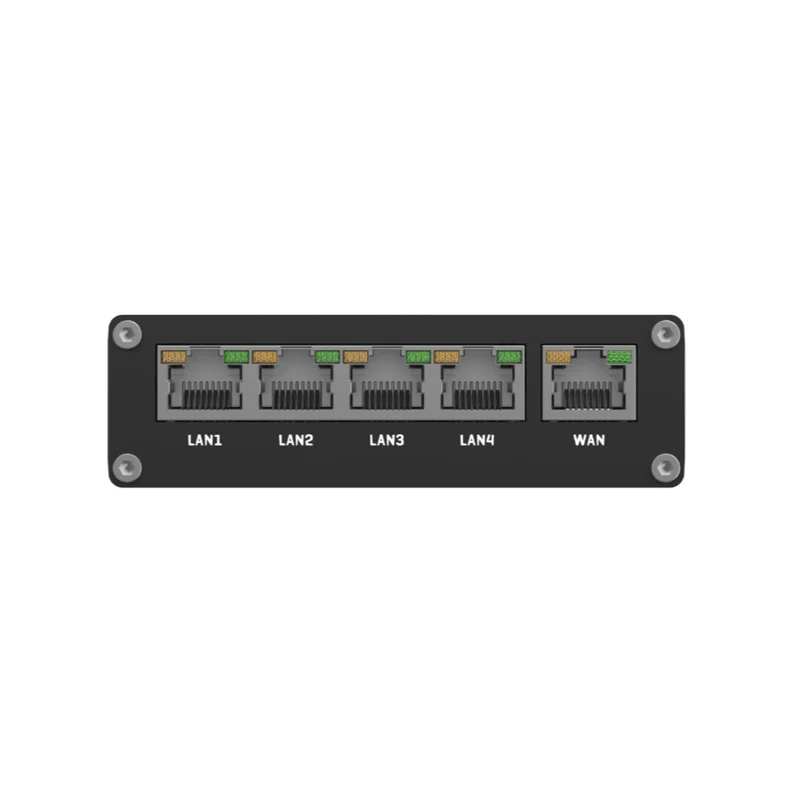

  • Five 10/100 Mbps Ethernet ports (1 WAN, 4 LAN) for flexible network segmentation and connectivity.
  • Comprehensive VPN suite including OpenVPN, IPsec, and WireGuard for secure site-to-site and remote access tunnels.
  • Native integration with industrial automation protocols (Modbus TCP/RTU, OPC UA, MQTT, DNP3) for seamless IIoT integration.
  • Remote Monitoring and Management (RMS) platform for centralized configuration, diagnostics, and firmware updates.
  • Advanced firewall with stateful packet inspection, DDoS protection, and attack prevention mechanisms.
  • Dual programmable digital I/O lines for monitoring dry contacts or controlling external devices based on network events.
  • Low power consumption design (0.8W idle, 3.8W max) with wide 9-30 VDC input for flexible power sourcing.

Applications

  • Industrial automation and SCADA system gateways for Modbus TCP/RTU conversion.
  • Smart city infrastructure for traffic control, lighting, and environmental monitoring networks.
  • Enterprise branch office and remote site secure connectivity with VPN tunneling.
  • IoT and M2M communication hub for aggregating sensor data via MQTT to cloud platforms.
  • Building management systems (BMS) integrating HVAC, access control, and energy meters.

Technical Specifications

Model / NameRUT301
CPUMediatek, 580 MHz, MIPS 24KEc
RAM128 MB DDR2
Flash Storage16 MB Quad-SPI
Ethernet Ports5 × RJ45 (10/100 Mbps), 1 WAN + 4 LAN
Supported ProtocolsTCP/IP Stack, IPv4/IPv6, SNMP, MQTT, Modbus, OPC UA, DNP3, VRRP
VPN SupportOpenVPN, IPsec, WireGuard, GRE, PPTP, L2TP

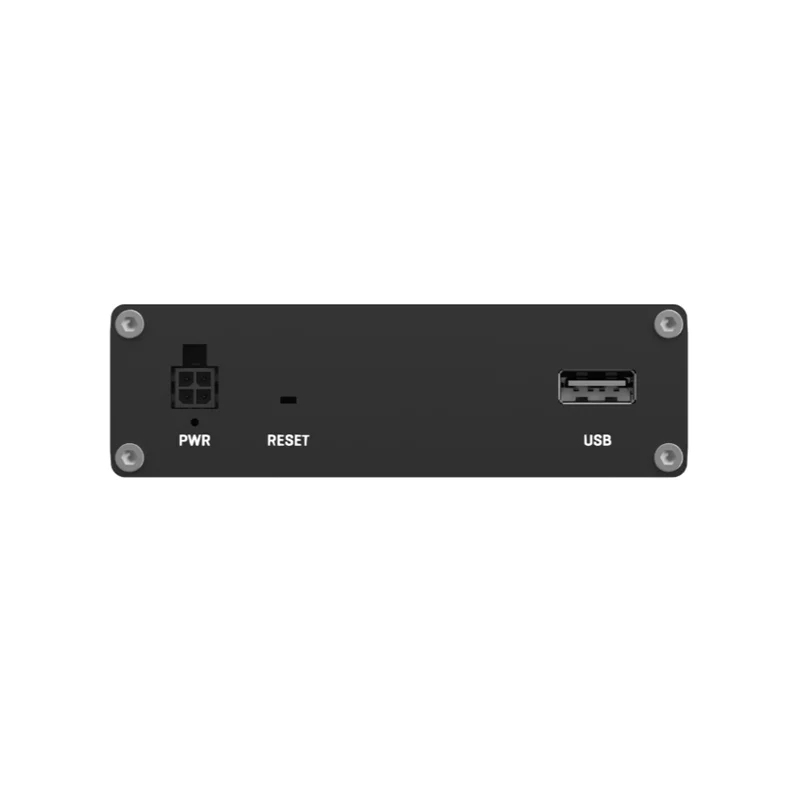

Input Voltage Range9 – 30 VDC
Power ConsumptionIdle: 0.8 W, Maximum: 3.8 W
Operating SystemRutOS (OpenWrt-based)
Digital I/O2 configurable lines (input/output)
Dimensions (L×W)100 mm × 85 mm
Weight233 g

Frequently Asked Questions

What industrial protocols does the Teltonika RUT301 router support?

The RUT301 natively supports Modbus TCP and RTU for SCADA communication, OPC UA for industrial interoperability, MQTT for lightweight IoT messaging, and DNP3 for utility sector telemetry. These are integrated into the RutOS firmware, allowing the router to act as a protocol converter or gateway without additional hardware.

How do I configure VPN tunnels on the RUT301?

VPN configuration is performed via the RutOS web interface. Navigate to the Network > VPN section to set up OpenVPN (client/server), IPsec (site-to-site), or WireGuard tunnels. You will need to generate certificates for OpenVPN/IPsec or keys for WireGuard, then input remote server details and local network routes to establish secure connections.

Can the digital I/O on the RUT301 be used for automation tasks?

Yes, the two configurable digital I/O lines can be set as inputs to monitor dry contact sensors (e.g., door switches) or as outputs to control relays or indicators. You can configure triggers in the RutOS interface based on network events, schedule, or I/O state changes, enabling simple automation logic directly on the router.

What is the power supply requirement for the RUT301 router?

The router accepts a wide-range DC input of 9 to 30 volts, making it compatible with common industrial power sources like 12V or 24V DC supplies. It consumes approximately 0.8 watts at idle and up to 3.8 watts under full load. The included 9-watt power adapter is sufficient for typical operation.

Package Includes

  • 1 x Teltonika RUT301 Industrial Ethernet Router
  • 1 x 9 W Power Supply Unit (PSU)
  • 1 x Ethernet Cable (1.5 m)
  • 1 x Quick Start Guide

Additional Information

Weight 0.233 kg
Dimensions 10 × 8.5 cm

Related Products

Out of Stock

Wittelb WIN-IO-4DDAI-NTCM RS485 Modbus I/O Module

7,211.00
Learn More
Out of Stock

Teltonika TRB501 Industrial 5G Gateway w/ 2.5GbE, Modbus

51,179.00
Learn More
Out of Stock

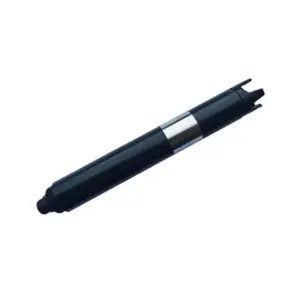

Desun Uniwill DS510 pH Sensor, 0-14pH, RS485 Output, MODBUS

22,259.00
Learn More
Out of Stock

Wittelb WIN-SN-PM2.5/1/10-M-D Particulate Matter Sensor with Display - RS485 Modbus

7,111.00
Learn More
Out of Stock

Arduino Opta RS485 Industrial PLC - AFX00001

18,519.00
Learn More
Out of Stock

Wittelb WIN-GW-4G+RS485 MQTT IoT Gateway

5,444.00
Learn More
Out of Stock

JXBS-3001-YL-RS-JC Stainless Steel Rain Sensor - RS485 Output

8,349.00
Learn More
Out of Stock

Desun Uniwill DS480 Conductivity Sensor, 0-300mS/cm, RS485 Output, IP68 Waterproof

33,019.00
Learn More
Out of Stock

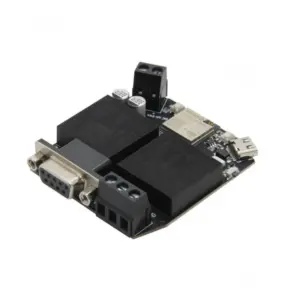

LilyGO T-RSS3 ESP32-S3 Development Board w/ RS232 & RS485 5V Module

3,359.00
Learn More
Out of Stock

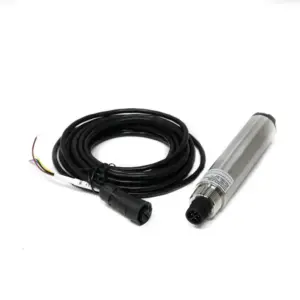

Renke RS-ZD-N01-1S-1000 Turbidity Sensor 0-4000NTU, IP68, RS485 Modbus, 5m Cable

27,359.00
Learn More
Out of Stock

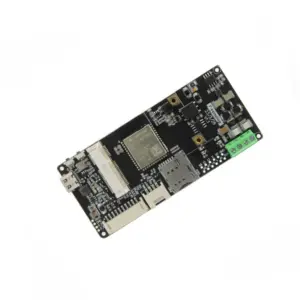

LilyGO T-Vending ESP32-S3 IoT Dev Board w/ WiFi, Bluetooth, RS485 & PCIe

3,149.00
Learn More
Out of Stock

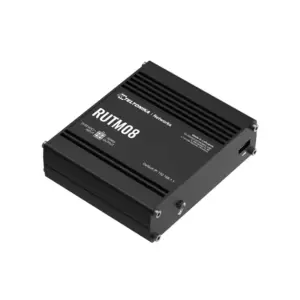

Teltonika RUTM08 Industrial Wired Router, 4-Port Ethernet
