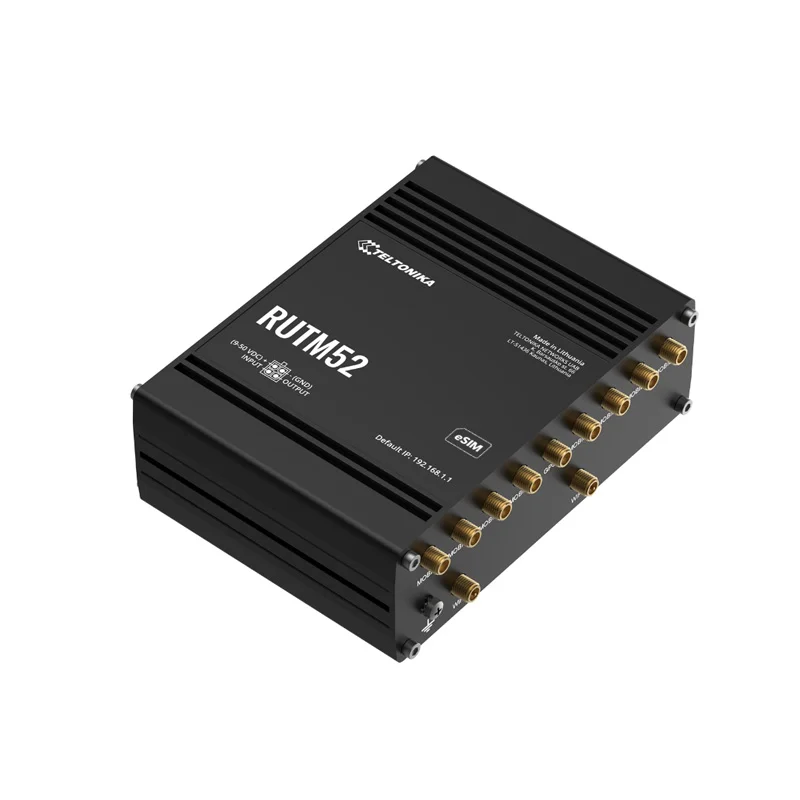

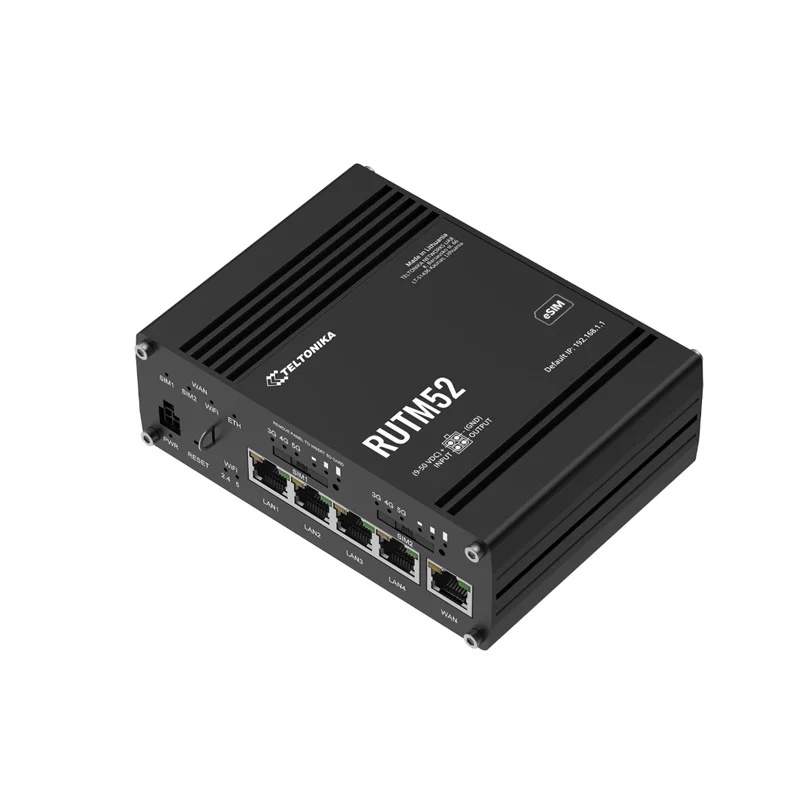

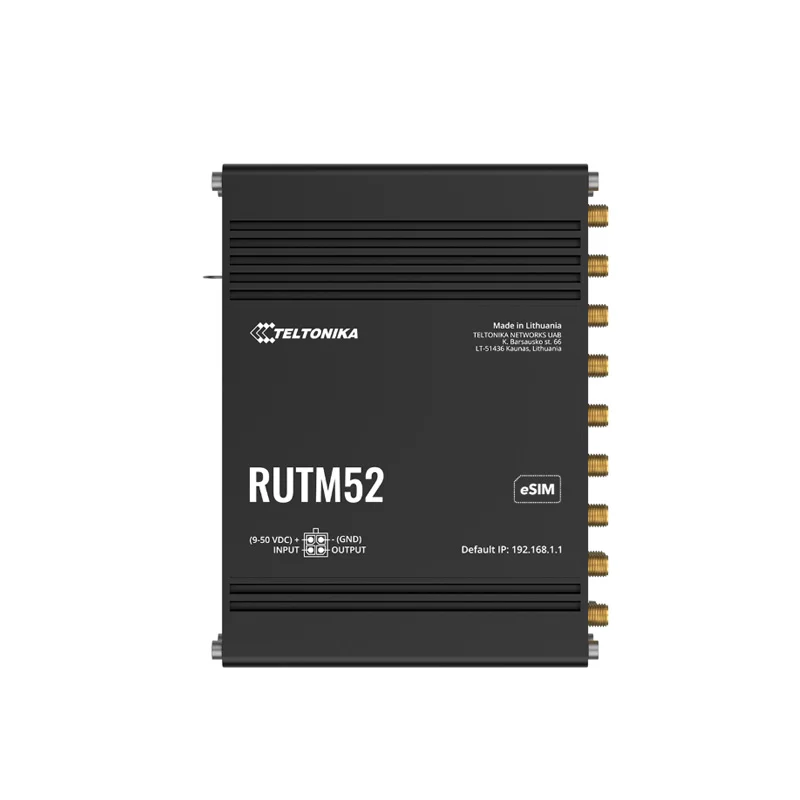

Teltonika RUTM52 Industrial Dual 5G Router w/ Wi-Fi 5 & 5x Gigabit LAN
Teltonika RUTM52 Industrial Dual 5G Router w/ Wi-Fi 5 & 5x Gigabit LAN - Image 2
Teltonika RUTM52 Industrial Dual 5G Router w/ Wi-Fi 5 & 5x Gigabit LAN - Image 3
Teltonika RUTM52 Industrial Dual 5G Router w/ Wi-Fi 5 & 5x Gigabit LAN - Image 4
Teltonika RUTM52 Industrial Dual 5G Router w/ Wi-Fi 5 & 5x Gigabit LAN - Image 5
SKU: IOWC-1935
📋 GST Invoice Available

Teltonika RUTM52 Industrial Dual 5G Router w/ Wi-Fi 5 & 5x Gigabit LAN

₹148,399.00 (Inclusive of all taxes)
Out of Stock

The Teltonika RUTM52 is an industrial-grade dual 5G router designed for mission-critical IoT and automation, featuring dual SIM/eSIM support, 5 Gigabit Ethernet ports, dual-band Wi-Fi 5, and robust RutOS with extensive VPN and industrial protocol support (MODBUS, MQTT, OPC UA).

Features

  • Dual 5G modems with SA/NSA support and 4G LTE Cat 20 fallback ensure ultra-reliable, high-speed cellular connectivity for critical data uplinks.
  • Five Gigabit Ethernet ports and dual-band Wi-Fi 5 (802.11ac Wave 2) with MU-MIMO provide versatile, high-bandwidth wired and wireless network access.
  • Advanced RutOS firmware supports multi-WAN load balancing, OpenVPN/WireGuard/IPsec VPNs, and industrial protocols like MODBUS and MQTT for seamless IIoT integration.
  • Rugged IP30 aluminum housing with a wide 9–50 VDC power input and -40°C to 60°C operating range ensures reliable performance in harsh industrial environments.
  • Comprehensive I/O includes one digital input and one digital output for sensor/actuator control, plus dedicated antenna ports for 8x mobile, 2x Wi-Fi, and 1x GNSS.

Out of stock

Description

The Teltonika RUTM52 is engineered as a cornerstone for industrial networking, combining dual 5G modems with advanced failover capabilities. Its architecture supports both standalone (SA) and non-standalone (NSA) 5G modes, backed by 4G LTE Cat 20 fallback and dual SIM/eSIM slots for uninterrupted cellular data links. This ensures mission-critical applications maintain ultra-fast, reliable connectivity even in fluctuating network conditions.

Powered by a MediaTek dual-core 880 MHz CPU and 256 MB of DDR3 RAM, the router efficiently handles multi-WAN aggregation, load balancing, and complex VPN tunneling (including WireGuard, OpenVPN, and IPsec) without bottlenecking. The five auto-sensing Gigabit Ethernet ports offer flexible LAN/WAN configurations, while the dual-band Wi-Fi 5 radio with MU-MIMO supports concurrent high-density client connections. The integrated RutOS provides a secure, feature-rich platform for firewall policies, VLAN segmentation, and industrial IoT protocol translation, making it ideal for SCADA, telemetry, and remote management systems.

Built for durability, the RUTM52 features an anodized aluminum IP30 enclosure designed for DIN-rail, wall, or surface mounting. Its wide-range 9–50 VDC power input with passive PoE support and low power consumption (under 13W max) allows for deployment in energy-constrained or mobile installations. The inclusion of digital I/O pins further extends its utility for monitoring dry contacts or triggering external alarms, solidifying its role as a versatile, industrial-grade networking hub.

Key Features

  • Dual 5G cellular modems with 4G LTE Cat 20 fallback and independent dual SIM/eSIM slots for maximum network redundancy and uptime.
  • Five-port Gigabit Ethernet switch with auto-MDI/MDIX and VLAN support for flexible wired network segmentation and high-speed data backhaul.
  • Dual-band 802.11ac Wave 2 Wi-Fi with MU-MIMO technology, supporting up to 150 concurrent users and optimized for high-density environments.
  • Advanced RutOS firmware with multi-WAN load balancing, failover, and comprehensive VPN suite (WireGuard, OpenVPN, IPsec, GRE, L2TP).
  • Integrated support for industrial automation protocols including MODBUS TCP/RTU, MQTT, OPC UA, DNP3, and DLMS/COSEM for seamless IIoT integration.
  • Robust security features including stateful firewall, DoS protection, WPA3 for Wi-Fi, certificate-based authentication, and a dedicated TPM 2.0 hardware security module.
  • Wide-range 9–50 VDC power input with passive PoE support and low operational power consumption, suitable for solar or vehicle installations.
  • Rugged IP30-rated aluminum housing and extended operating temperature range (-40°C to 60°C) for reliable performance in harsh industrial settings.

Applications

  • Mission-critical industrial IoT (IIoT) and SCADA systems requiring ultra-reliable, high-bandwidth cellular backhaul.
  • Mobile command centers, emergency response vehicles, and public transport requiring continuous multi-network connectivity.
  • Remote telemetry and monitoring for utilities (water, electricity, gas) with MODBUS or DNP3 protocol integration.
  • Secure site networking for construction, mining, and oil & gas fields, utilizing VPN tunnels and ruggedized design.
  • Smart city infrastructure, including traffic management, public Wi-Fi hotspots, and environmental sensor networks.
  • Failover and load-balanced network solutions for retail, banking, and healthcare where network downtime is unacceptable.

Technical Specifications

ModelRUTM52
Cellular ConnectivityDual 5G (SA/NSA), 4G LTE Cat 20 Fallback, Dual SIM (Nano) + eSIM
Wi-Fi Standard802.11a/b/g/n/ac Wave 2 (Wi-Fi 5), Dual-Band, MU-MIMO

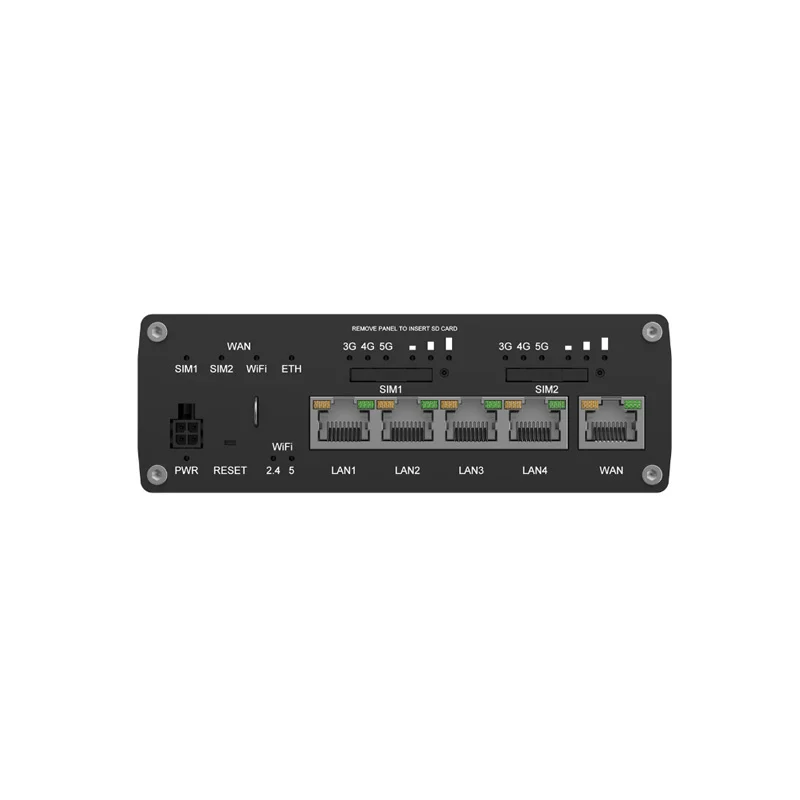

Ethernet Ports5 x RJ45 Gigabit (10/100/1000 Mbps), Auto MDI/MDIX
CPUMediaTek Dual-Core MIPS1004Kc, 880 MHz
RAM256 MB DDR3
Operating SystemTeltonika RutOS
Digital I/O1 x Digital Input, 1 x Digital Output (Open Collector)

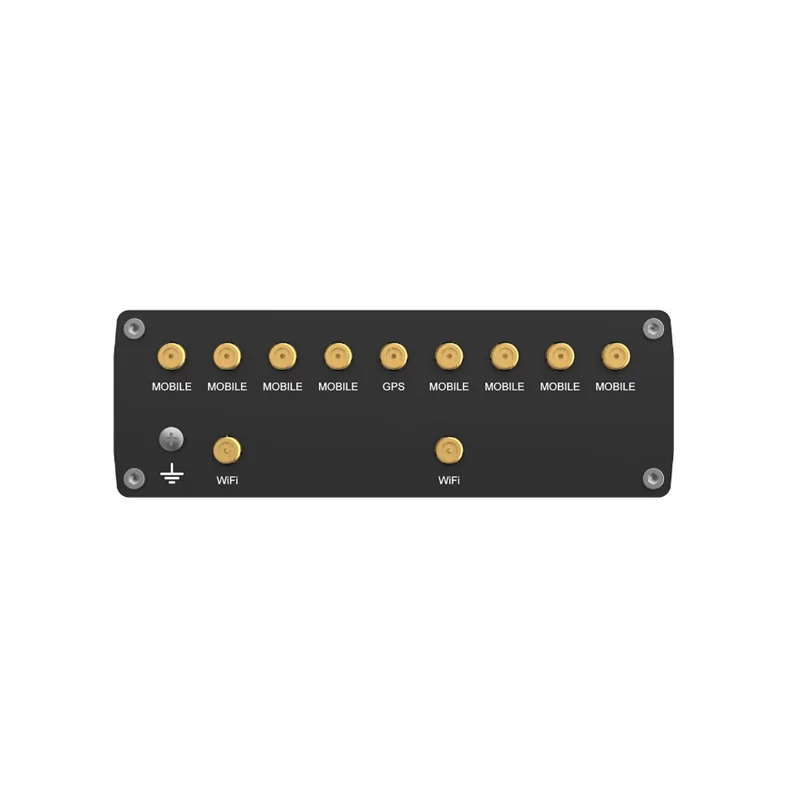

Antenna Connectors8 x SMA (Mobile), 2 x RP-SMA (Wi-Fi), 1 x SMA (GNSS)
Supply Voltage9 – 50 VDC
Power ConsumptionIdle: < 5W, Maximum: < 13W
Operating Temperature-40°C to +60°C
Ingress ProtectionIP30
Housing MaterialAnodized Aluminum
Dimensions (L x W x H)132 mm x 44.2 mm x N/A
Weight560 g

Frequently Asked Questions

What cellular bands and fallback options does the RUTM52 support?

The RUTM52 features dual 5G modems supporting both SA (Standalone) and NSA (Non-Standalone) modes across global sub-6GHz frequency bands. It includes 4G LTE Cat 20 fallback for backward compatibility and enhanced coverage. The dual nano-SIM slots and eSIM support allow for automatic failover between two mobile carriers, ensuring continuous connectivity if one network fails. Always check Teltonika's official datasheet for the specific frequency bands supported in your region.

How do I configure the digital input and output on this router?

The digital input (DI) and open-collector digital output (DO) are configured via the RutOS web interface under the 'I/O' section. The DI can be set to monitor a dry contact or voltage (0-30V) for triggering events like sending SMS alerts or logging data. The DO can be controlled manually or automated via scripts to activate relays, alarms, or LEDs. Wiring typically involves connecting the DI/DO terminals to your external device, with detailed pinout and configuration examples provided in the official Teltonika RUTM52 documentation.

Can I use the RUTM52 as a MODBUS TCP gateway for industrial sensors?

Yes, the RutOS firmware includes built-in support for MODBUS TCP and RTU protocols. You can configure the router as a MODBUS TCP gateway by enabling the MODBUS server/client feature in the web interface. This allows it to poll data from MODBUS RTU sensors connected via its serial port (using an optional adapter) or Ethernet, then translate and forward the data over MQTT, HTTP, or to a central SCADA system. This eliminates the need for a separate protocol converter in industrial IoT deployments.

What is the recommended power supply and how do I enable passive PoE?

The router accepts a wide 9–50 VDC input via its terminal block or 2.1mm DC jack. For passive PoE, you supply 9-50 VDC over the unused wire pairs (pins 4,5+ and 7,8-) of a standard Ethernet cable connected to one of its LAN ports. You must enable the 'Passive PoE Out' setting for the specific port in the RutOS interface. Ensure your powered device (like a camera or sensor) is compatible with the voltage range. The included 8W PSU is sufficient for typical operation, but a higher-wattage supply may be needed if powering external devices via PoE.

How do I set up a WireGuard VPN tunnel on the RUTM52?

To configure a WireGuard VPN, log into the RutOS web interface and navigate to the 'VPN' > 'WireGuard' section. Create a new tunnel, generate a private/public key pair, and define the tunnel's IP address. Add peers by entering their public keys and allowed IPs. For road warrior setups, use the WireGuard app on your client device. Ensure proper firewall rules are set to allow traffic over the WireGuard interface. This provides a fast, modern, and secure encrypted tunnel for remote access to your industrial network or for connecting multiple RUTM52 sites.

Package Includes

  • 1 x Teltonika RUTM52 Dual 5G Industrial Router
  • 1 x 8W Power Supply Unit (PSU)
  • 8 x 5G Mobile Antennas (SMA Male, Magnetic Mount)
  • 2 x Wi-Fi Antennas (RP-SMA Male, Magnetic Mount, 1.5m Cable)
  • 1 x GNSS Antenna (SMA Male, Adhesive Mount, 3m Cable)
  • 1 x Ethernet Cable (1.5m)
  • 1 x SIM Adapter Kit (Micro/Nano to 3-in-1)
  • 1 x Quick Start Guide (QSG)
  • Packaging Box

Additional Information

Weight 0.56 kg
Dimensions 13.2 × 4.42 cm
