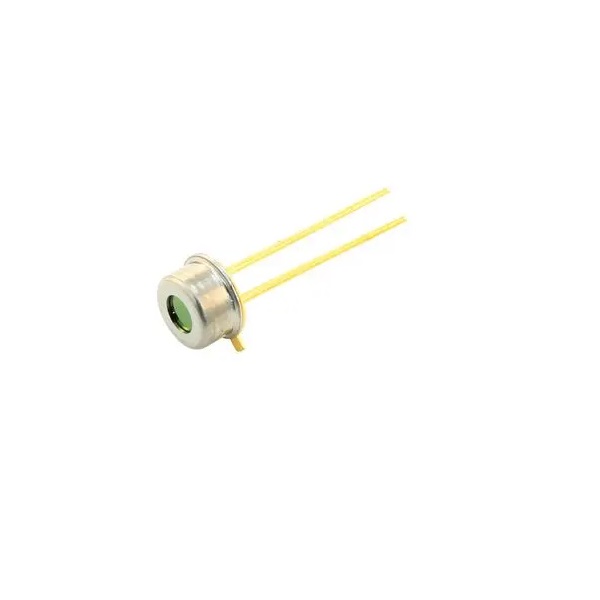

TE Connectivity Thermopile Sensor, Infrared, TO-18, CO2 Gas Detection
This TE Connectivity infrared thermopile sensor is a high-sensitivity detector in a compact TO-18 package, optimized for CO2 gas detection with a 4.26 μm narrow band pass filter. It provides a direct voltage output proportional to incident IR radiation, suitable for integration into NDIR gas sensing systems and contactless temperature measurement applications.
Features
- Optimized for CO2 detection with a 4.26 μm narrow band pass filter.
- Very high signal output for improved measurement sensitivity.
- Includes an accurate internal reference sensor for stable baseline readings.
- Compact and robust TO-18 metal can package.
- Fast response time of 22 ± 5 ms for dynamic sensing.
Out of stock
This thermopile sensor from TE Connectivity operates on the principle of converting infrared radiation into a measurable electrical voltage. It is specifically filtered for a 4.26 μm wavelength, aligning with the primary absorption band of carbon dioxide (CO2), making it an ideal detector for Non-Dispersive Infrared (NDIR) gas analyzers. The integrated reference sensor compensates for ambient temperature variations, ensuring measurement accuracy.
The sensor features a fast rise time and a high signal-to-noise ratio, enabling precise detection in applications ranging from indoor air quality monitoring to industrial process control. Its TO-18 package offers a durable, industry-standard form factor for reliable integration into optical assemblies and sensing modules.
Additional Information
| Weight | 0.001 kg |
|---|---|
| Dimensions | 1.6 × 0.7 cm |
