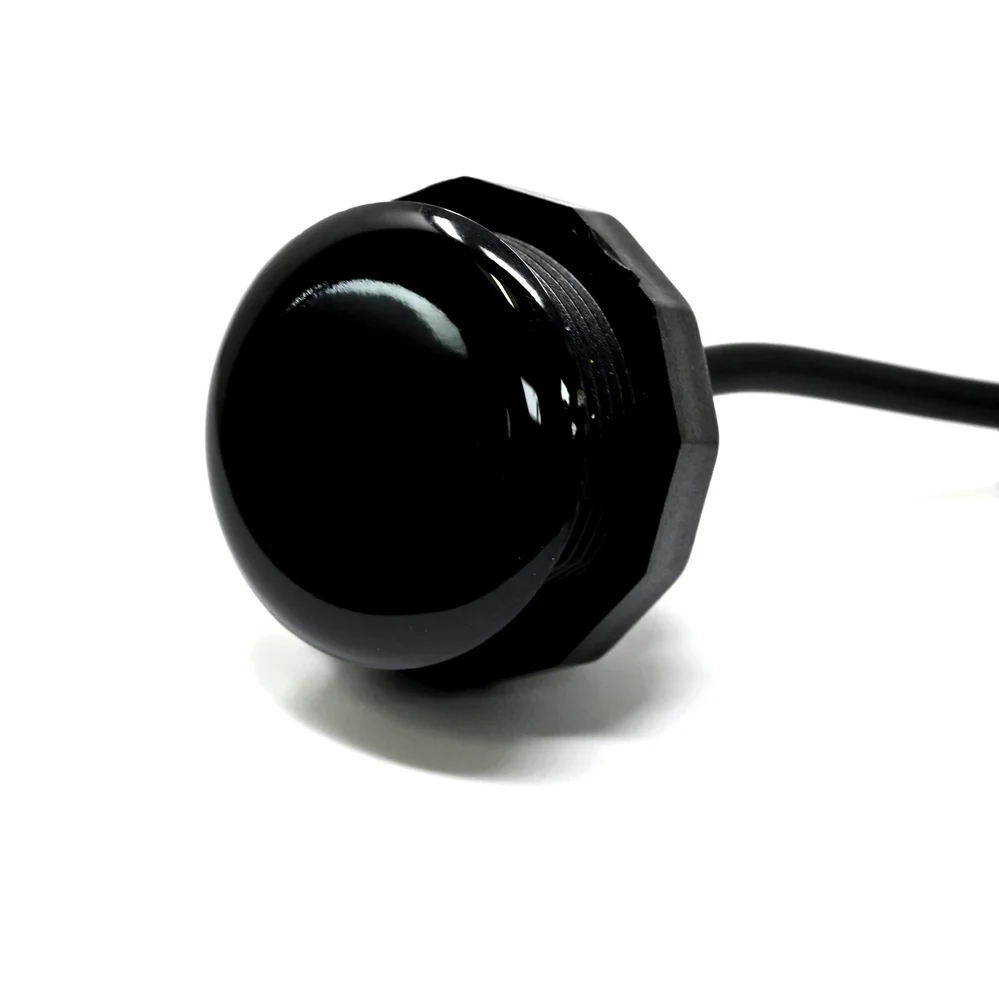

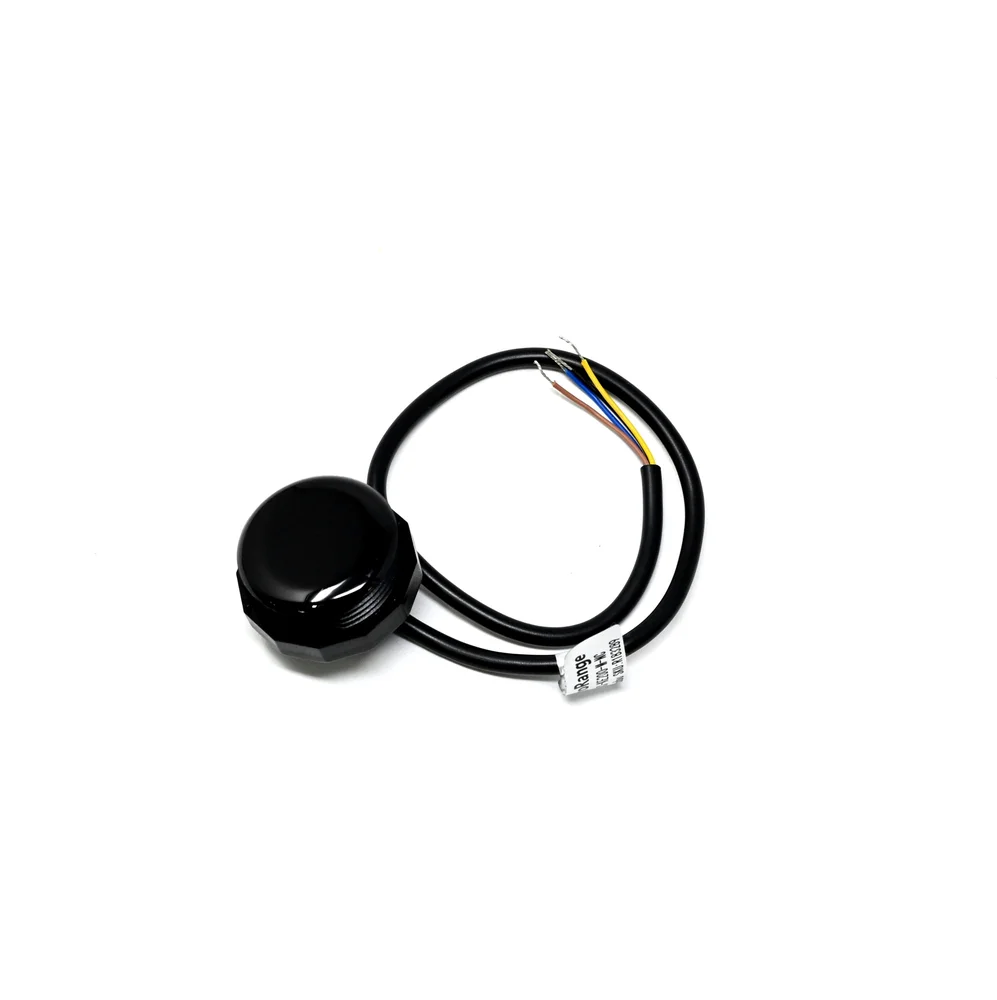

Pro-Range XKC-KE200-M-NC-DC 5-24V Infrared Sensor - IP67 Waterproof
The Pro-Range XKC-KE200-M-NC-DC is a 5-24V DC infrared proximity sensor module featuring non-contact detection, an IP67 waterproof rating, and configurable relay/NPN output for integration with PLCs, industrial controllers, and 5V/3.3V microcontroller systems like Arduino and Raspberry Pi.
Features
- Infrared non-contact detection up to 150 cm range, even under sunlight interference.
- Wide 5-24V DC operating voltage range with low power consumption.
- IP67-rated waterproof and dustproof housing for reliable indoor/outdoor use.
- Configurable output: Relay, NPN, or high/low-level signal (5-24V compatible).
- Fast response time for real-time object presence or motion control applications.
Out of stock
The XKC-KE200-M-NC-DC is an intelligent infrared induction switch that integrates reception, signal processing, and control logic into a single, ruggedized module. It operates on a modulated infrared beam principle, detecting object presence without physical contact and is engineered with anti-sunlight interference circuitry to maintain a consistent 150 cm sensing distance in bright outdoor conditions.
Housed in an IP67-rated enclosure, the sensor is protected against dust ingress and temporary immersion, making it suitable for harsh industrial and outdoor environments. Its wide 5-24V DC input range and configurable output options (relay contact, NPN open-collector, or direct logic level) provide flexible integration into existing 24V PLC systems, 12V automotive setups, or 5V microcontroller projects.
Additional Information
| Weight | 0.025 kg |
|---|---|
| Dimensions | 14 × 10 × 3 cm |
