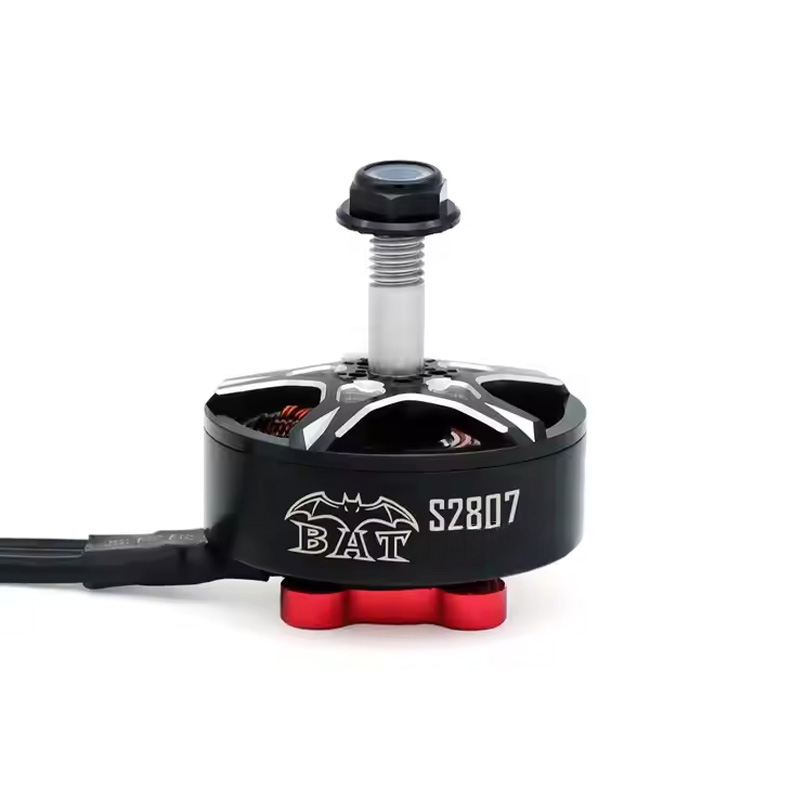

Surpass Hobby Bat S2807 14 Pole FPV Motor 1300 KV

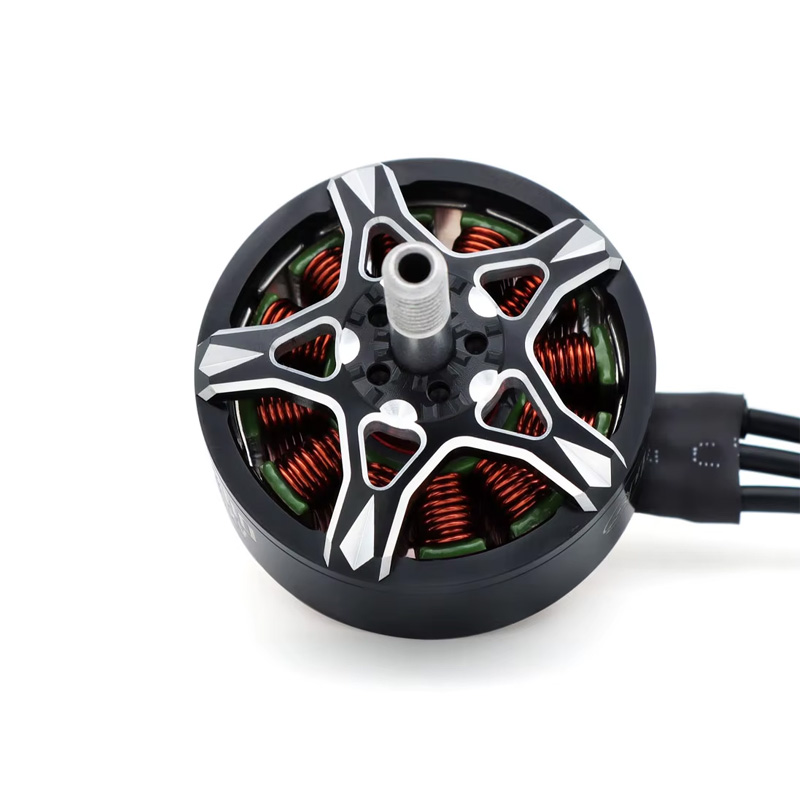

Surpass Hobby Bat S2807 14 Pole FPV Motor 1300 KV - Image 2

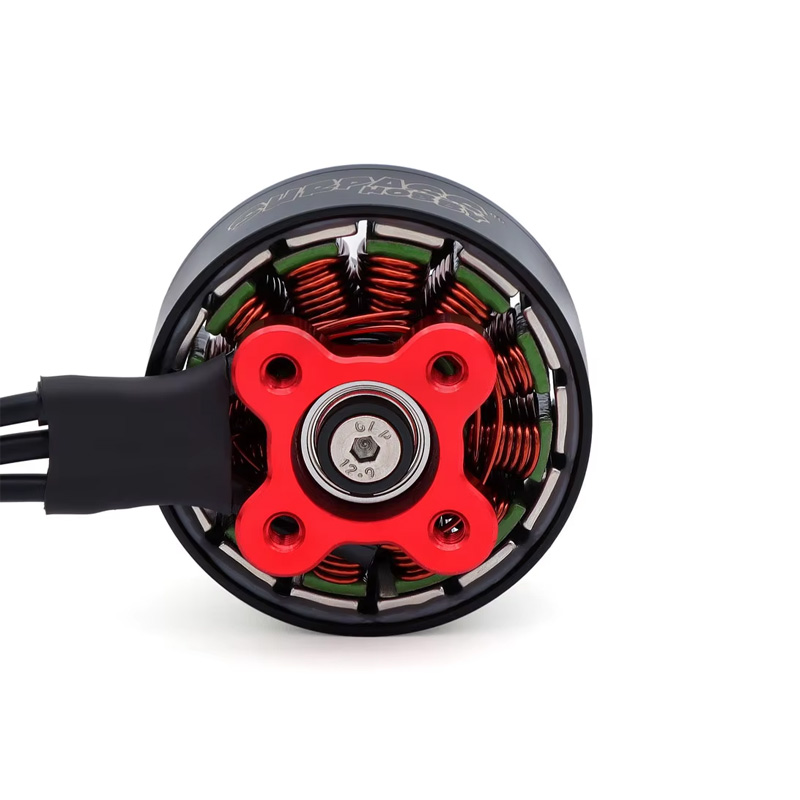

Surpass Hobby Bat S2807 14 Pole FPV Motor 1300 KV - Image 3
SKU: DRFC-2858
📋 GST Invoice Available

Surpass Hobby Bat S2807 14 Pole FPV Motor 1300 KV

₹1,309.00 (Inclusive of all taxes)
Out of Stock

The Surpass Hobby Bat S2807 is a 1300KV 14-pole brushless motor engineered for long-range and endurance FPV drone builds, offering a balanced combination of torque and efficiency for stable 4S LiPo flight performance.

Features

  • 1300KV rating optimized for efficient 4S long-range flight
  • 14-pole stator design for smooth, cogging-free operation
  • M5 threaded shaft for secure propeller mounting
  • High-quality metal construction for durability and heat dissipation
  • 18 AWG silicone wires ensure reliable, high-current connections

Out of stock

Description

The Bat S2807 motor from Surpass Hobby is engineered for pilots seeking extended flight times and stable control in long-range and cinematic FPV applications. Its 1300KV rating provides an optimal balance between rotational speed and torque, making it highly efficient on 4S LiPo battery systems.

Built around a robust 14-pole stator, this motor delivers exceptionally smooth rotation with minimal cogging, translating to precise throttle control and reduced vibration. The all-metal housing and internal components are designed for effective thermal management, ensuring consistent performance during prolonged flights.

Key Features

  • Optimized KV for Endurance: The 1300KV rating is specifically tuned for efficient 4S operation, maximizing flight time without sacrificing thrust.
  • High-Pole Count Stator: 14-pole design enhances magnetic efficiency, resulting in smoother operation, better low-end torque, and reduced electrical noise.
  • Robust Mechanical Design: Features an M5 threaded shaft and precision-balanced bell for reliable, vibration-free operation with large propellers.
  • Premium Construction: Utilizes high-grade metals and bearings for a long service life under demanding flight conditions.
  • High-Current Wiring: Equipped with flexible 18 AWG silicone wires to handle the continuous current demands of long-range flight profiles.

Applications

  • Long-range 7-inch FPV drones requiring efficient, high-torque motors.
  • Heavy-lift cinematic platforms and mapping drones operating on 4S power.
  • Endurance-focused FPV builds where smooth throttle response and flight time are prioritized over peak racing thrust.

Technical Specifications

ModelBat S2807
Motor TypeOutrunner Brushless
KV Rating1300 KV
Pole Count14
Recommended Voltage4S LiPo (14.8V)
Shaft DiameterM5 Threaded
Wire Gauge18 AWG
ConstructionMetal

Frequently Asked Questions

What is the recommended propeller size for the Bat S2807 1300KV motor?

For optimal performance on 4S batteries, this motor is well-suited for larger propellers typically used on 7-inch frames, such as 7x4 or 7x5. The high torque and 1300KV rating provide efficient thrust for long-range flight. Always consult motor thrust tables for specific prop and battery combinations.

Is this motor compatible with 6S LiPo batteries?

No, the Bat S2807 1300KV motor is rated for 4S operation (approximately 14.8V). Applying 6S voltage (22.2V) would significantly exceed its design limits, leading to excessive current draw, overheating, and potential failure of the motor or ESC. Always adhere to the specified voltage range.

What type of Electronic Speed Controller (ESC) is required?

You will need a BLHeli_S or BLHeli_32 ESC rated for at least 35-45A continuous current per motor when using this motor with large propellers on 4S. Ensure the ESC firmware supports the high pole count (14 poles) for smooth operation. A 4-in-1 ESC or individual ESCs are both suitable.

Package Includes

  • 1 x Surpass Hobby Bat S2807 1300KV Motor

Additional Information

Weight 0.1 kg
Dimensions 6 × 6 × 6 cm
