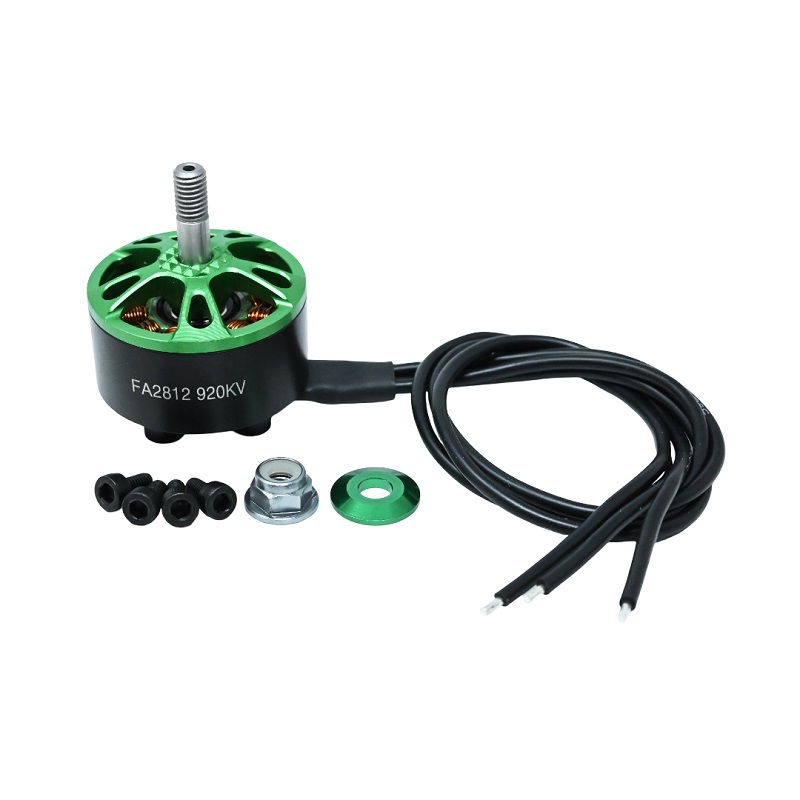

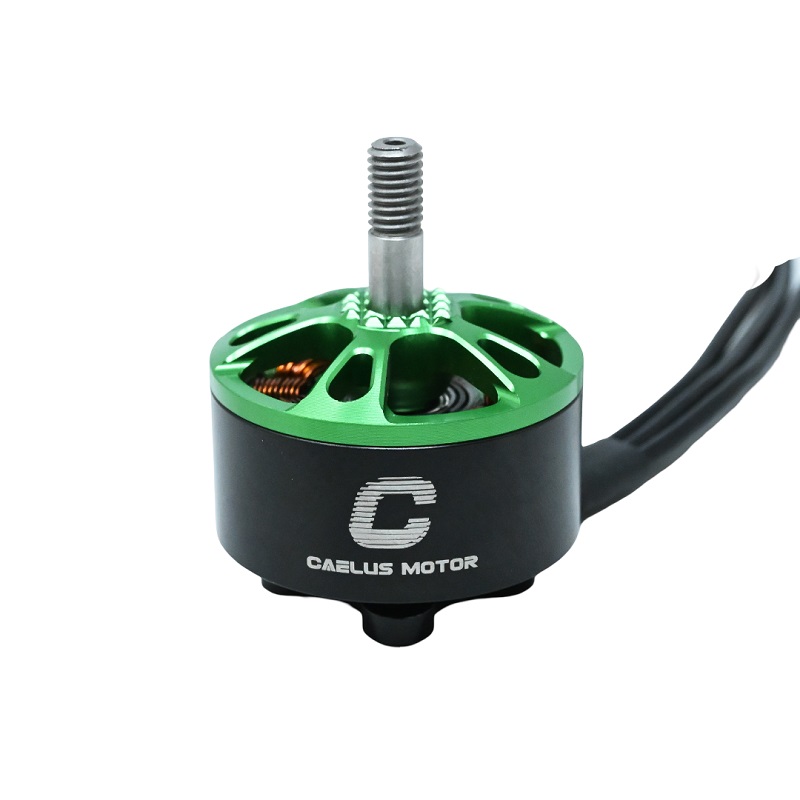

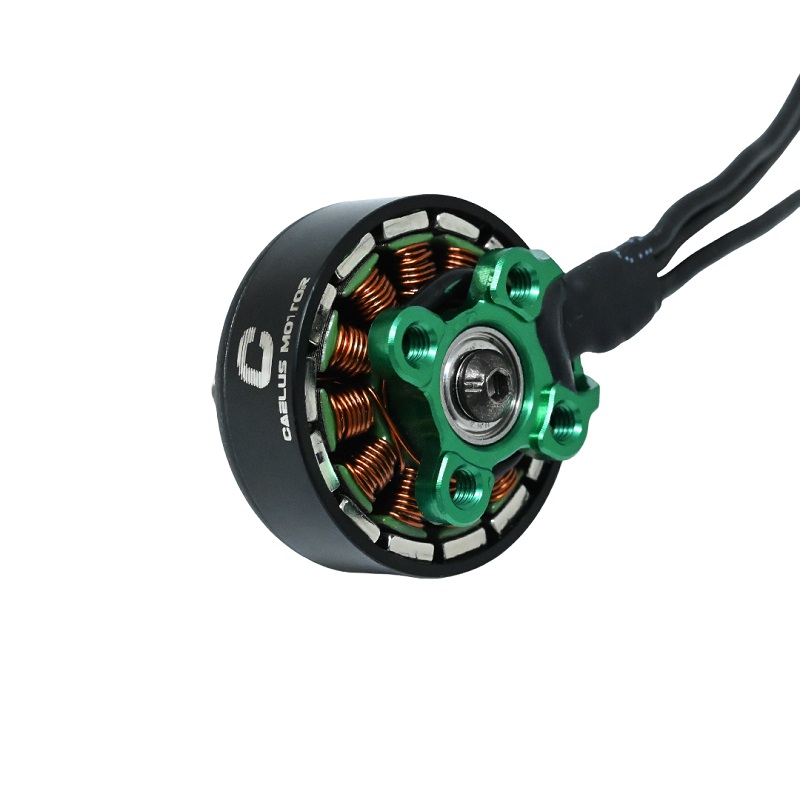

CAELUS FA2812 920KV Brushless Motor
The CAELUS FA2812 920KV brushless motor is engineered for high-thrust, long-range, and endurance drone applications. Optimized for 6S LiPo systems, it delivers smooth, efficient power for builds utilizing 7 to 9-inch propellers.
Features
- 920KV rating optimized for 6S LiPo voltage and large 7-9 inch propellers.
- High-efficiency 12N14P stator design producing up to 2.93 kg of thrust.
- Robust construction with a CNC-machined aluminum bell and precision-balanced rotor.
- Equipped with high-quality bearings and 18AWG, 250mm silicone cables for reliable performance.
- Designed for long-range FPV, aerial photography, and heavy-lift multirotor platforms.
Out of stock
The CAELUS FA2812 920KV brushless motor is a high-performance powerplant designed for demanding aerial applications. Its 12N14P stator configuration and optimized magnetic circuit deliver exceptional torque and efficiency, translating to extended flight times and stable throttle response across the entire power band. The motor is engineered to handle the high current demands of 6S LiPo batteries while spinning large-diameter propellers.
Durability is ensured through a CNC-machined aluminum bell housing, which provides precise rotor balance and effective heat dissipation. The integration of premium Japanese bearings minimizes mechanical losses and vibration, contributing to smooth operation and a long service life. With its 5mm shaft and 19mm PCD M3 mounting pattern, the FA2812 is compatible with a wide range of heavy-duty frames and propulsion setups.
Additional Information
| Weight | 0.076 kg |
|---|
