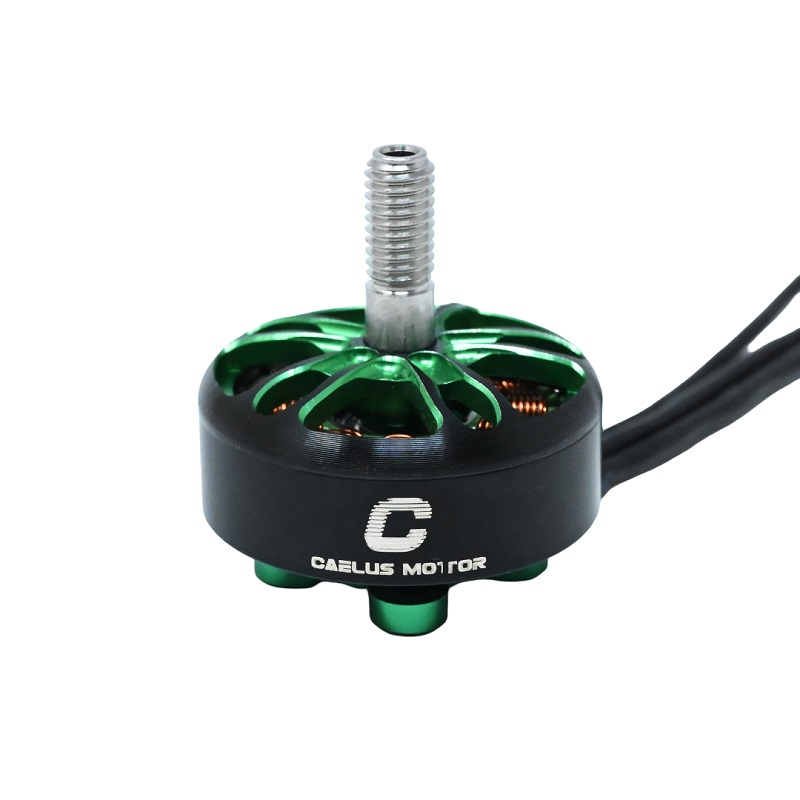

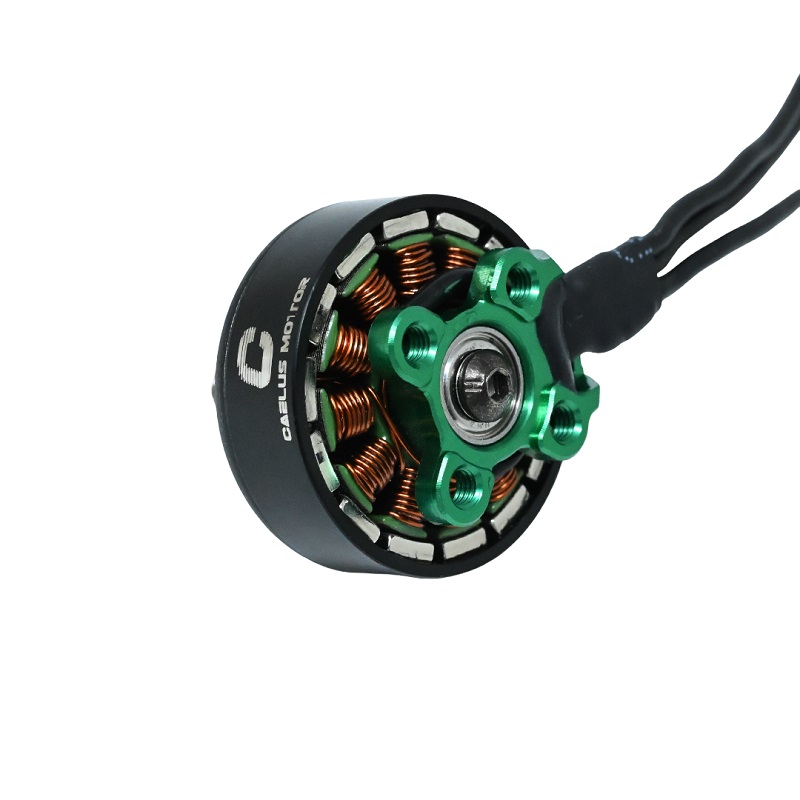

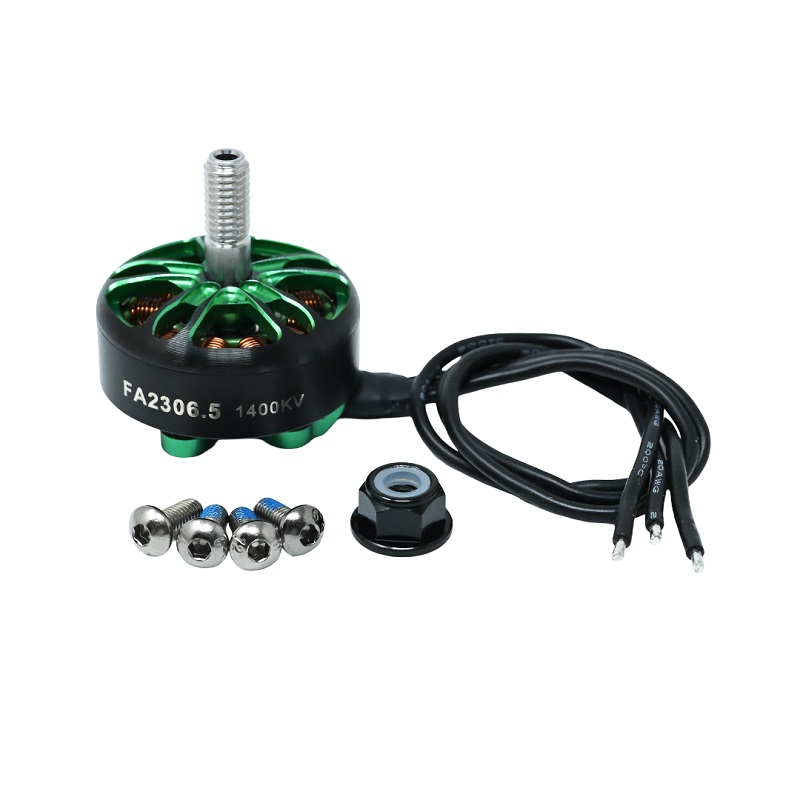

CAELUS FA2306.5 1400KV Brushless Motor
The CAELUS FA2306.5 1400KV brushless motor is engineered for 5–7 inch long-range and endurance FPV drones, offering a high-efficiency 12N14P configuration and compatibility with 2–6S LiPo batteries for smooth, powerful flight performance.
Features
- 1400KV rating optimized for 5–7 inch propellers on 4S–6S LiPo setups.
- 23mm stator diameter with a 6.5mm height for high torque and efficient power delivery.
- Constructed with a durable 7075-T6 aluminum bell and high-quality 684 NSK bearings.
- Delivers up to 1741g of maximum thrust and handles a peak power of 843W.
- Features a 5mm shaft diameter and a standard 16x16mm (M3x4) mounting pattern.
Out of stock
The CAELUS FA2306.5 1400KV brushless motor utilizes a 12N14P magnetic configuration paired with a 23mm stator to provide exceptional torque and smooth throttle response, essential for the dynamic power demands of long-range and cinematic FPV flight. Its design prioritizes thermal management and mechanical integrity, ensuring consistent performance during extended flight sessions.
Built with a lightweight 7075-T6 aluminum bell and supported by precision 684 NSK bearings, the motor achieves a robust weight-to-power ratio while minimizing mechanical noise and vibration. This construction makes it a reliable propulsion choice for pilots requiring dependable acceleration and thrust stability across a wide voltage range from 2S to 6S.
Additional Information
| Weight | 0.065 kg |
|---|---|
| Dimensions | 6 × 5 × 4 cm |
