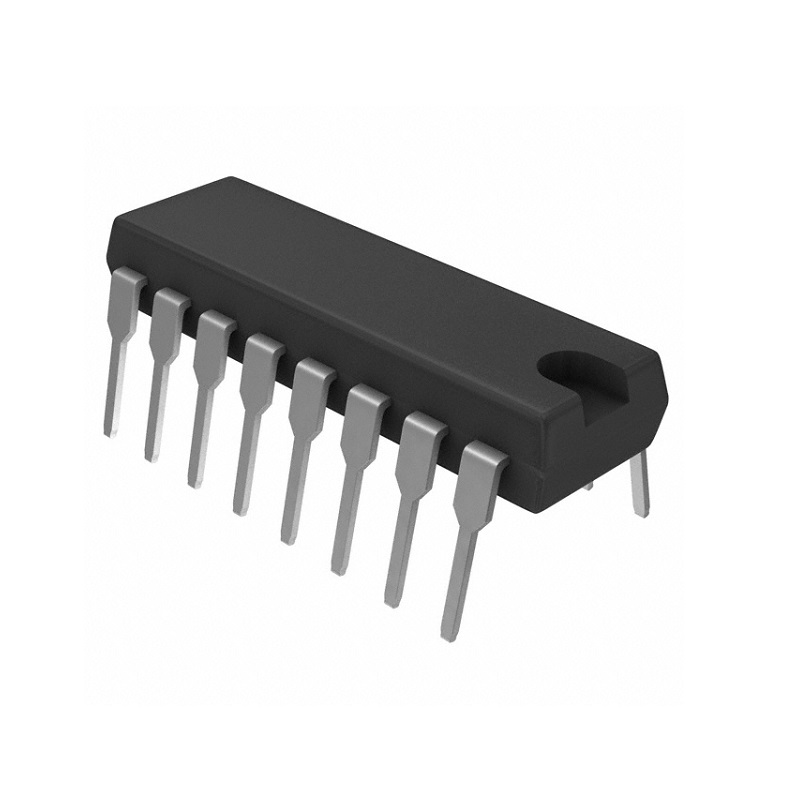

Sungine GC7780AD DIP-16 Human Body Sensing Sensor ROHS
The Sungine GC7780AD is a DIP-16 packaged human body sensing sensor module designed for biopotential signal acquisition, compatible with 3-12V DC systems for integration into medical, wearable, and security applications.
Features
- DIP-16 through-hole package for easy PCB integration and prototyping.
- Wide operating voltage range from 3V to 12V DC for flexible system design.
- High-sensitivity front-end for detecting subtle physiological signals.
- Extended operating temperature range from -65°C to 150°C for robust performance.
- ROHS compliant construction for environmentally conscious electronics.
Out of stock
The GC7780AD sensor module is engineered for human body sensing applications, functioning as a front-end signal conditioner for biopotential measurements such as ECG or EMG. Its integrated circuit design amplifies and filters low-amplitude bio-signals, making them suitable for digital processing by microcontrollers or data acquisition systems.
Housed in a standard DIP-16 package, it offers straightforward integration onto breadboards or PCBs. The wide 3-12V supply range ensures compatibility with various logic levels and battery-powered devices, while its broad operating temperature specification supports use in demanding environments.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 10 × 8 × 3 cm |
