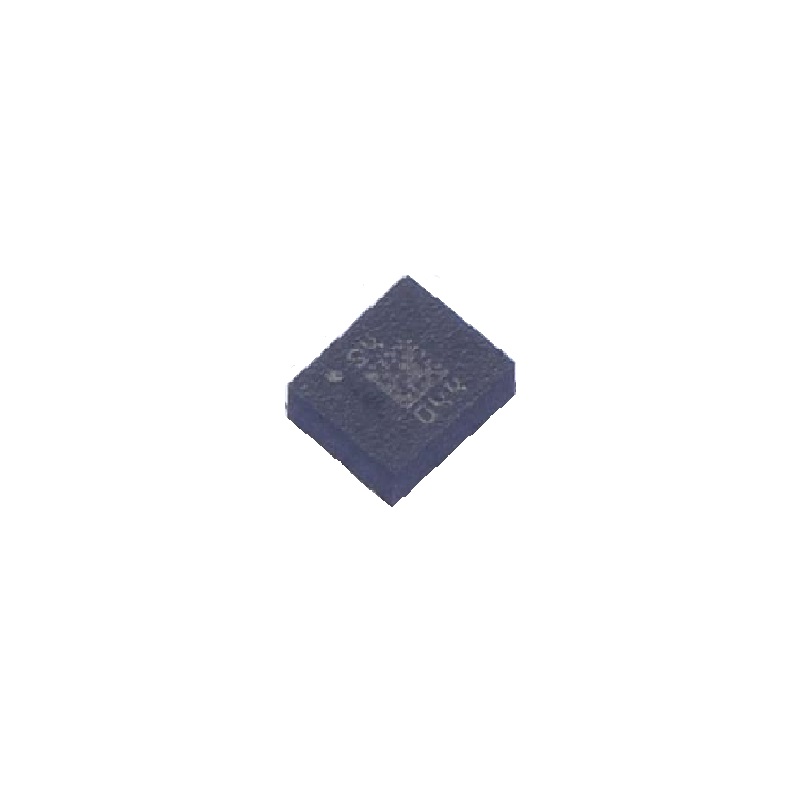

STMicroelectronics LSM6DSOWTR LGA-14 6-Axis IMU Motion Sensor
The STMicroelectronics LSM6DSOWTR is a high-performance 6-axis inertial measurement unit (IMU) integrating a 3D digital accelerometer and a 3D digital gyroscope in a compact LGA-14 package. It features ultra-low power consumption, a 9 kB smart FIFO, and supports I2C, SPI, and MIPI I3CSM interfaces for seamless integration with microcontrollers, IoT platforms, and mobile devices.
Features
- 6-Axis MEMS IMU: Combines a 3-axis accelerometer (±2/±4/±8/±16 g) and a 3-axis gyroscope (±125/±250/±500/±1000/±2000 dps).
- Ultra-Low Power Operation: Consumes as low as 0.55 mA in high-performance mode with advanced ‘always-on’ power-saving features.
- 9 kB Smart FIFO Buffer: Enables efficient data batching and reduces host processor load for optimized system power.
- Advanced Motion Processing: Integrated pedometer, step counter, tilt detection, free-fall, wake-up, and 6D/4D orientation recognition.
- Multi-Interface Support: Communicates via I2C, SPI, or MIPI I3CSM for flexible system integration.
Out of stock
The LSM6DSOWTR is a system-in-package (SiP) MEMS sensor designed for precise motion tracking and context awareness. Its digital architecture provides stable, calibrated output across a wide operating temperature range from -40°C to +85°C, making it suitable for demanding environments. The integrated temperature sensor allows for thermal compensation of motion data, ensuring accuracy.
This IMU is engineered for IoT, wearable, and mobile applications where power efficiency and reliable motion detection are critical. The robust LGA-14 package offers a compact footprint (2.5 x 3.0 mm) while the embedded intelligent functions offload complex motion algorithm processing from the main application processor.
Additional Information
| Weight | 0.035 kg |
|---|---|
| Dimensions | 2 × 1.7 × 0.2 cm |
