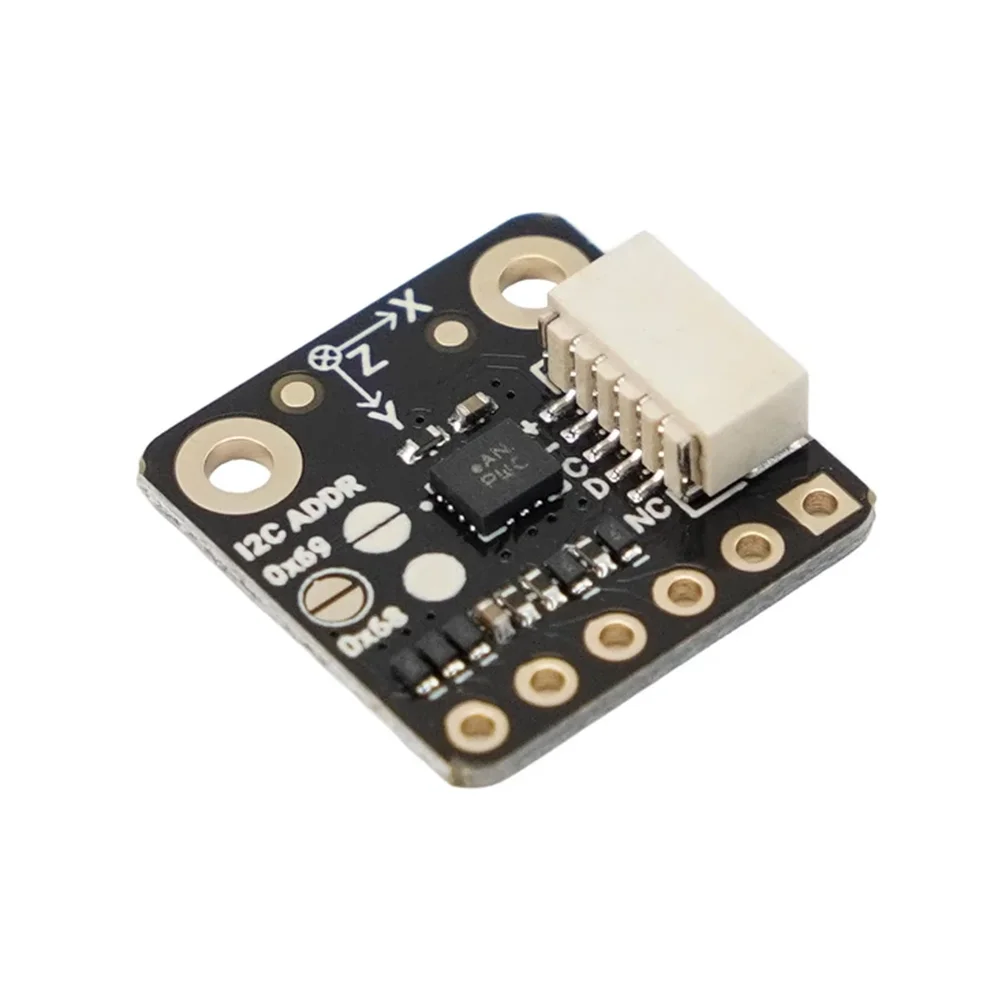

DFRobot Fermion BMI323 6DOF IMU Sensor (I2C, Breakout)
The DFRobot Fermion BMI323 is a compact 6-axis IMU breakout module featuring the Bosch BMI323 chip, integrating a 3-axis accelerometer and 3-axis gyroscope. Operating at 3.3V, it communicates via I2C and is designed for seamless integration with microcontrollers like Arduino, ESP32, and Raspberry Pi for high-precision motion sensing.
Features
- Bosch BMI323 6-axis IMU with 3-axis accelerometer (±2g to ±16g) and 3-axis gyroscope (±125 to ±2000°/s).
- High-speed I2C interface with configurable output data rates up to 6400Hz and a 2048-byte FIFO buffer.
- Hardware-based motion detection for step counting, tap, tilt, and free-fall events.
- Low-power operation (720μA active, 356μA low-power) ideal for battery-powered wearables and IoT devices.

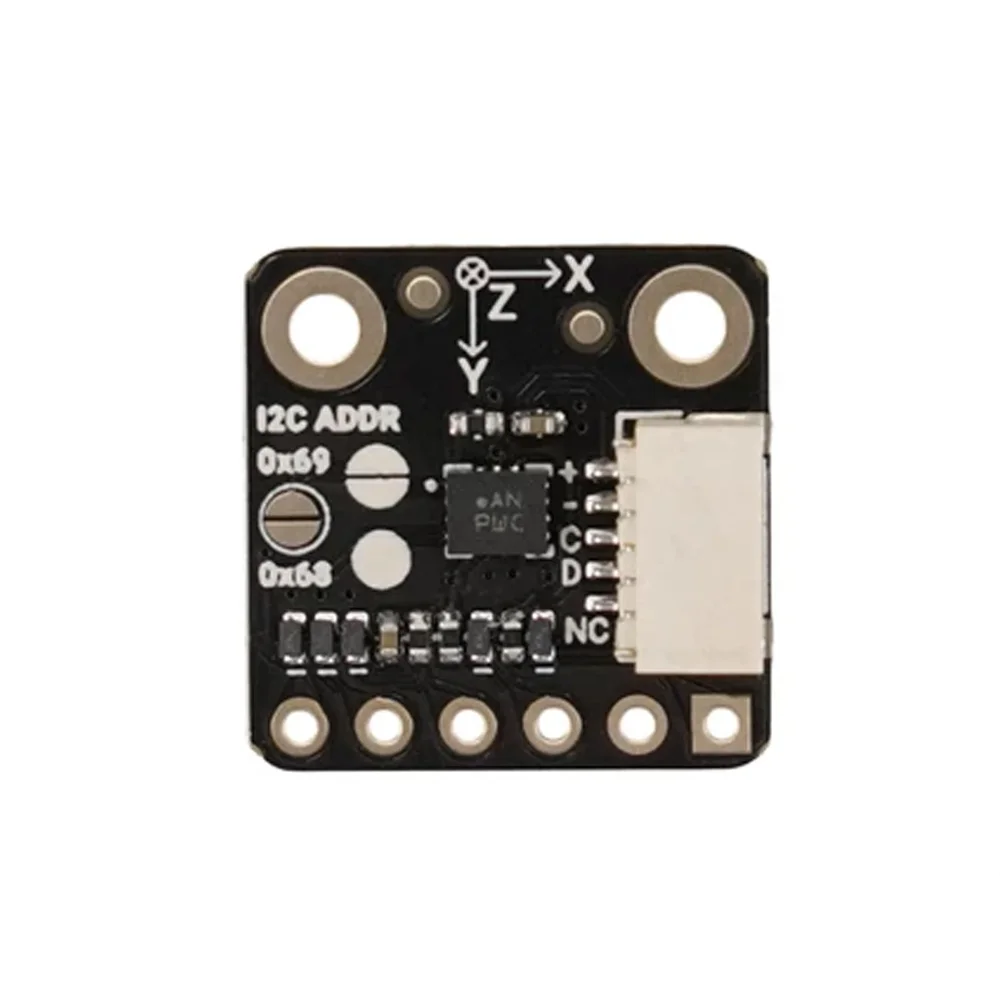

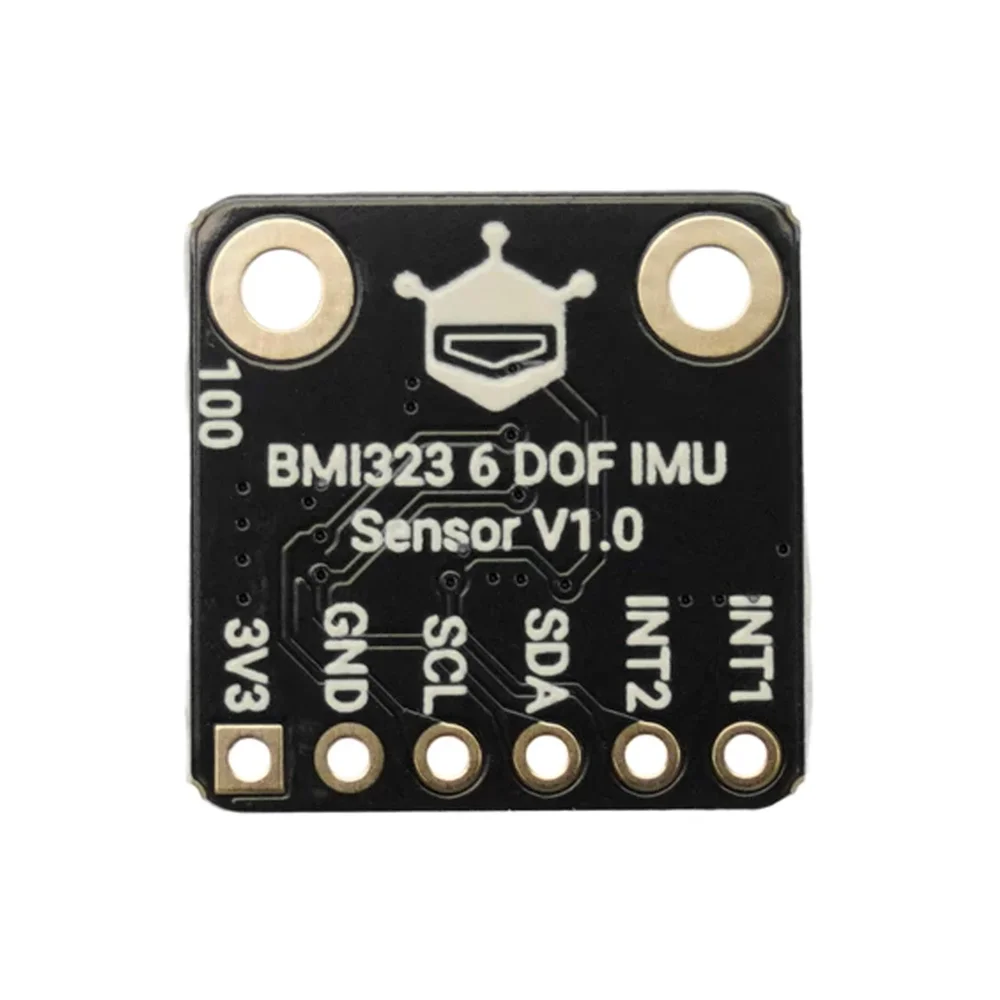

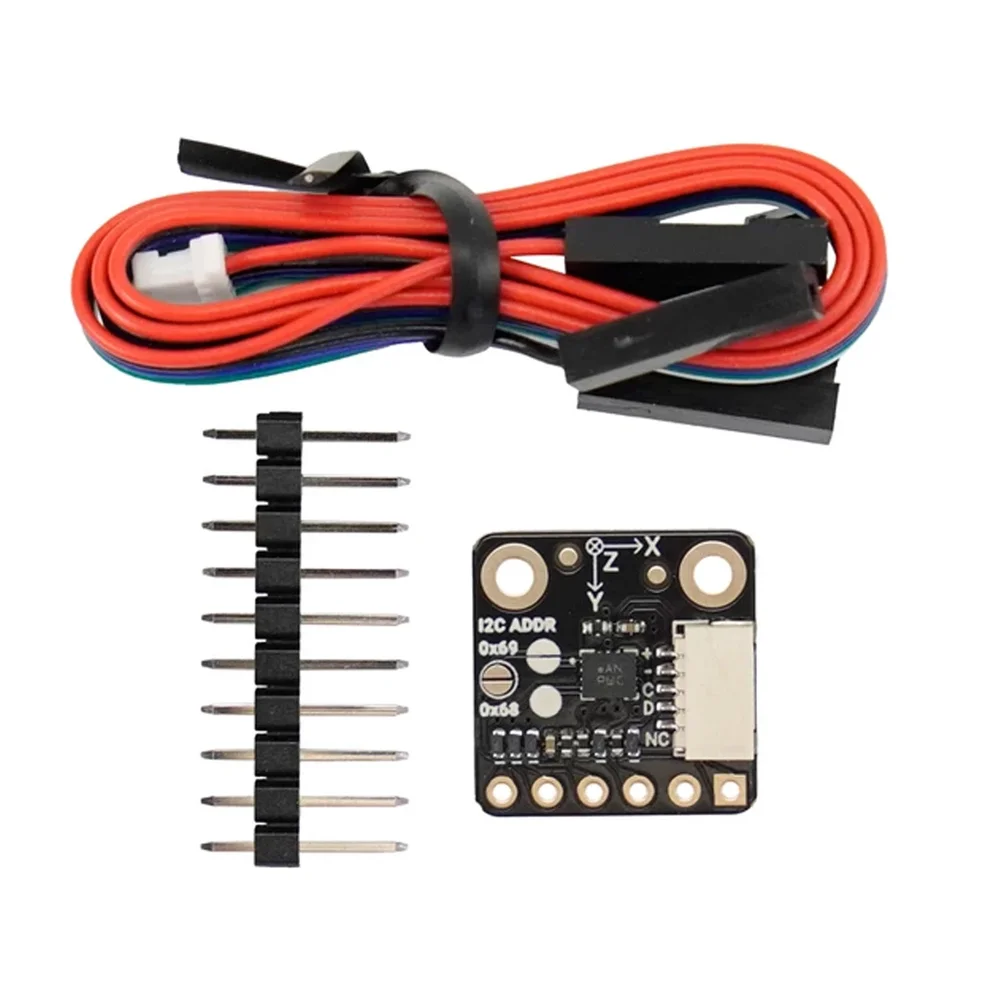

- Compact 16x16mm PCB with SH1.0-5P connector and standard 2.54mm pin header holes for flexible mounting.
Out of stock
The DFRobot Fermion BMI323 leverages the Bosch BMI323 MEMS inertial measurement unit to deliver precise acceleration and angular velocity data. Its digital I2C interface simplifies wiring and allows for real-time data acquisition with programmable output data rates and measurement ranges, enabling fine-tuned performance for specific application needs. The integrated 2048-byte FIFO buffer ensures reliable data capture during high-speed motion or MCU communication latencies.
Engineered for embedded systems, this sensor module includes dedicated hardware for motion detection, offloading tasks like step counting and gesture recognition from the main processor to conserve power. Its 3.3V operating voltage and multiple low-power modes make it suitable for portable and energy-conscious designs in robotics, drones, and wearable technology, providing robust performance within a minimal 16x16mm footprint.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 1.6 × 1.6 cm |
