STMicroelectronics LSM6DSO32 6-Axis IMU Sensor, ±2/±4/±8/±16/±32 g Accelerometer + ±2000 dps Gyroscope, 9KB FIFO, SPI/I²C/I3C, LGA-14
The STMicroelectronics LSM6DSO32 is a high-performance 6-axis inertial measurement unit (IMU) integrating a 3-axis accelerometer and a 3-axis gyroscope. It features ultra-low power consumption, a 9KB FIFO buffer, and supports SPI, I²C, and I3C interfaces for seamless integration with microcontrollers like STM32, ESP32, and Raspberry Pi.
Features
- High-performance 6-axis IMU with accelerometer (±2/±4/±8/±16/±32 g) and gyroscope (±125 to ±2000 dps).
- Ultra-low typical operating current of 0.55 mA for power-sensitive wearable and IoT applications.
- Embedded 9KB FIFO buffer for advanced data batching and host processor load reduction.
- Multi-protocol interface support including SPI, I²C, and MIPI I3C for flexible system integration.

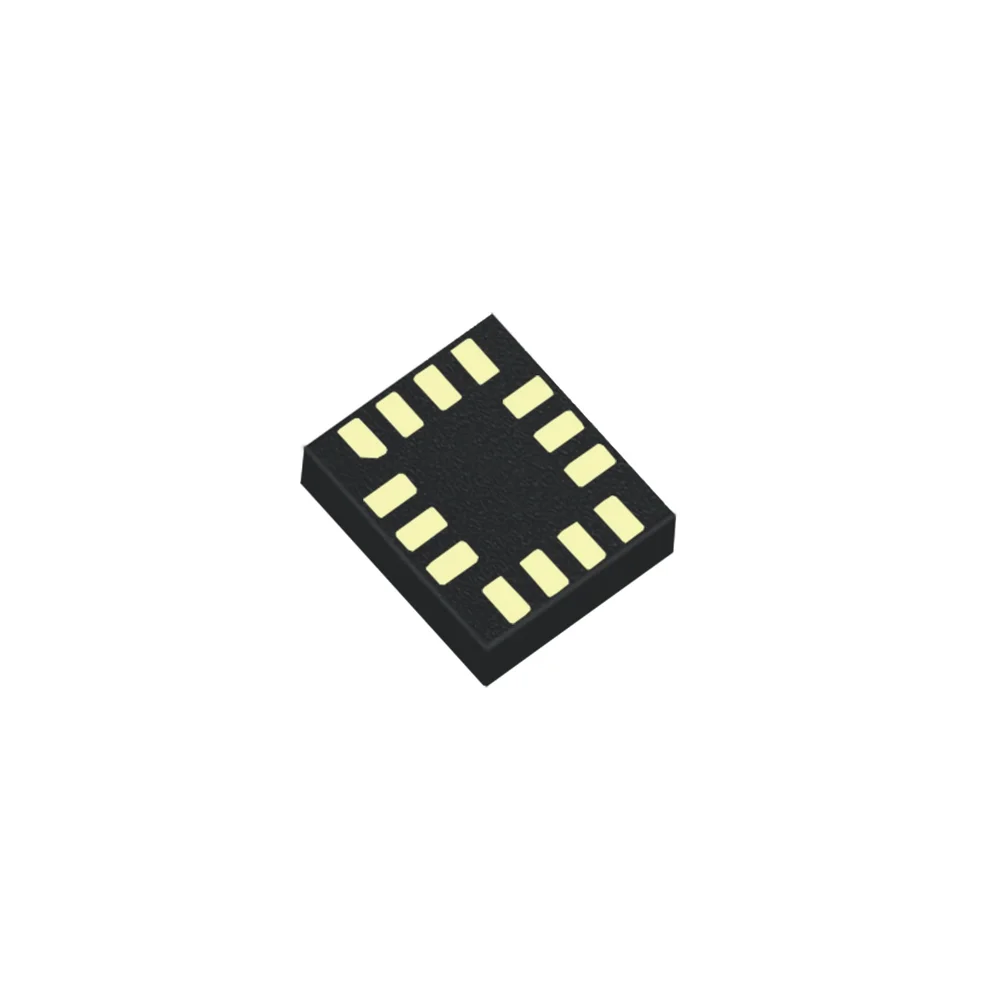

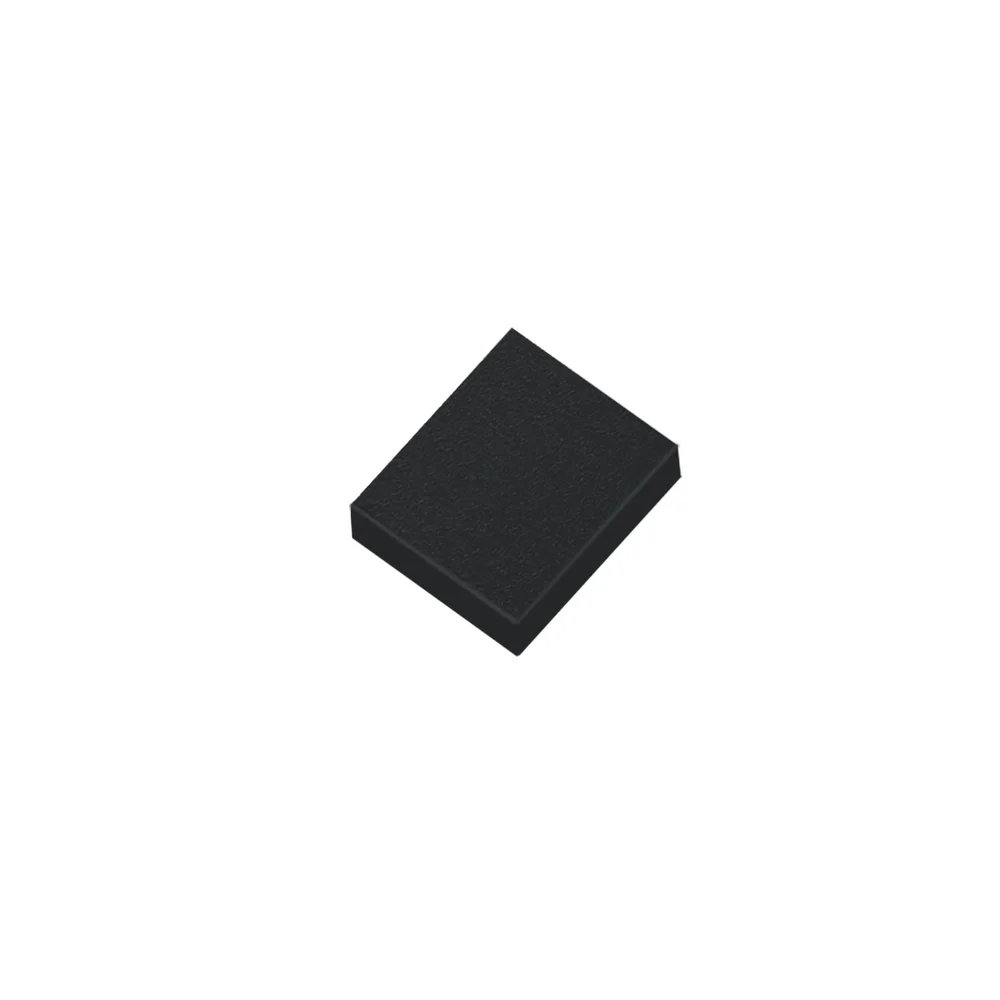

- Compact LGA-14 package (2.5 × 3 × 0.83 mm) suitable for space-constrained PCB designs.
Out of stock
The LSM6DSO32 from STMicroelectronics is a MEMS-based inertial sensor module engineered for precision motion tracking and orientation detection. Its robust architecture provides stable performance across a wide dynamic range, making it suitable for applications experiencing high vibration or rapid movement. The sensor outputs 16-bit data for both acceleration and angular rate, ensuring high-resolution measurement.
Integrated features such as an embedded pedometer, wake-up, and motion detection functions enhance system-level intelligence while minimizing power consumption. The device operates from a 1.71V to 3.6V supply, making it compatible with both 3.3V and lower-voltage logic systems. Its industrial-grade construction ensures reliable operation in demanding environments for robotics, drones, and advanced human-machine interfaces.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 0.3 × 0.25 × 0.083 cm |
