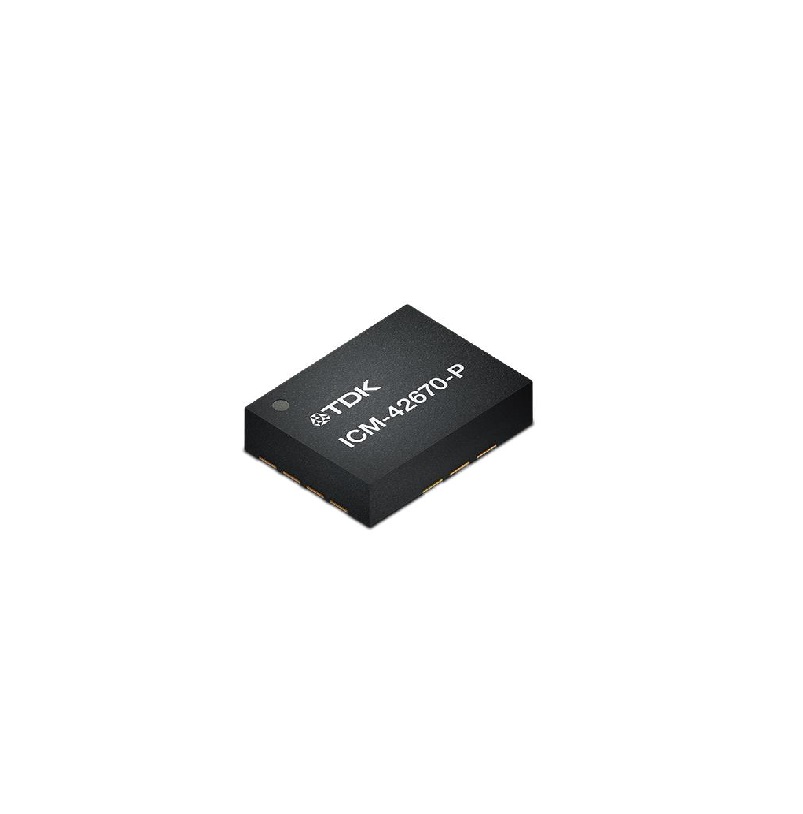

TDK TDK InvenSense ICM-42670-P LGA-14 6-Axis MEMS Accelerometer Gyro Module
TDK TDK InvenSense ICM-42670-P LGA-14 6-Axis MEMS Accelerometer Gyro Module - Image 2
SKU: SENS-1156
📋 GST Invoice Available

TDK TDK InvenSense ICM-42670-P LGA-14 6-Axis MEMS Accelerometer Gyro Module

₹141.00 (Inclusive of all taxes)
Out of Stock

The TDK TDK InvenSense ICM-42670-P is a high-performance 6-axis MEMS IMU integrating a 3-axis accelerometer and 3-axis gyroscope in a compact LGA-14 package. It operates from 1.8V to 3.6V with low power consumption, making it ideal for battery-powered wearable devices, drones, robotics, and IoT systems. Communication is facilitated via I2C or SPI digital interfaces.

Features

  • 6-axis MEMS sensor combining 3-axis accelerometer and 3-axis gyroscope
  • Ultra-compact LGA-14 package measuring just 2.5mm x 3mm
  • Wide operating voltage range from 1.8V to 3.6V with low power consumption
  • Digital I2C and SPI communication interfaces for easy microcontroller integration
  • Industrial temperature range from -40°C to +85°C

Out of stock

Description

The ICM-42670-P utilizes advanced MEMS fabrication to deliver high-precision motion sensing with low noise, enabling stable orientation and motion tracking. Its integrated design reduces board space and simplifies system architecture for complex motion processing applications.

Engineered for demanding environments, the sensor operates reliably across an extended temperature range from -40°C to +85°C. The ROHS-compliant construction ensures environmental safety and compatibility with modern electronic manufacturing standards.

Key Features

  • High-performance 6-axis inertial measurement unit (IMU)
  • Compact LGA-14 surface-mount package (2.5mm x 3mm footprint)
  • Low-power operation optimized for portable and battery-powered devices
  • Wide supply voltage range compatible with 1.8V and 3.3V logic systems
  • Selectable I2C (up to 1.7MHz) and SPI (up to 24MHz) digital interfaces
  • Robust performance across an industrial operating temperature range
  • ROHS compliant, lead-free, and green manufacturing
  • High-value build for precision motion tracking in space-constrained designs

Applications

  • Wearable fitness trackers and smartwatches for activity and gesture recognition
  • Drone and UAV flight controllers for stabilization and navigation
  • Robotic platforms for balance, orientation, and inertial measurement
  • IoT devices requiring motion sensing and context awareness
  • Augmented/Virtual Reality (AR/VR) systems for head and controller tracking

Technical Specifications

Manufacturer Part NumberICM-42670-P
BrandTDK TDK InvenSense
Sensor Type6-axis IMU (3-axis Accelerometer + 3-axis Gyroscope)
Package TypeLGA-14
Package Dimensions2.5mm x 3mm
Operating Voltage1.8V to 3.6V DC
Communication InterfaceI2C, SPI
Operating Temperature-40°C to +85°C
ComplianceROHS
Item TypeAccelerometer, Gyroscope

Frequently Asked Questions

What is the operating voltage range for the ICM-42670-P?

The ICM-42670-P operates from a wide supply voltage range of 1.8V to 3.6V DC. This makes it directly compatible with both 1.8V and 3.3V logic systems commonly found in modern microcontrollers, FPGAs, and system-on-chips (SoCs), simplifying power supply design.

How do I communicate with this IMU sensor?

Communication is handled via standard digital interfaces. The sensor supports both I2C (with a clock frequency up to 1.7MHz) and SPI (up to 24MHz). You can select the desired interface through pin configuration, allowing flexible integration with platforms like Arduino, Raspberry Pi, ESP32, and STM32.

What are the typical applications for this 6-axis sensor?

Its combination of high precision, low power, and small size makes it ideal for advanced motion tracking. Key applications include stabilization and navigation in drones/UAVs, activity and gesture recognition in wearable devices, inertial measurement for robotics, and orientation tracking in AR/VR systems and gaming controllers.

Is the ICM-42670-P suitable for industrial environments?

Yes, the sensor is designed for robust performance. It operates across an industrial temperature range from -40°C to +85°C, ensuring reliability in challenging conditions. Its MEMS structure is engineered for stability, and the LGA package provides a reliable mechanical connection for surface-mount assembly.

Package Includes

  • 1 x ICM-42670-P TDK TDK InvenSense 6-Axis Accelerometer Gyro Module

Additional Information

Weight 0.035 kg
Dimensions 17 × 20 × 2 cm

Related Products

Out of Stock

SOI JX-F37P-C1-M3 CSP Image Sensor ROHS

146.00
Learn More
Out of Stock

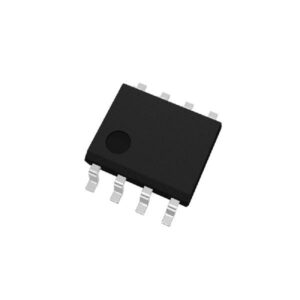

Hangzhou SDIC Microelectronics SD4101R-1 SOP-8 Human Body Sensing Sensor

48.00
Learn More
Out of Stock

EG Micro EG4005C CPC-8 Human Body Sensing Sensor ROHS

15.00
Learn More
Out of Stock

Sharp Microelectronics GP2Y1023AU0F Infrared Sensor Module - Proximity & Object Detection

789.00
Learn More
Out of Stock

Sharp Microelectronics GP2Y0E03 IR Distance Sensor Module - I2C Output

749.00
Learn More
Out of Stock

Sharp Microelectronics GP2Y0A41SK0F Analog Output Distance Measurement Sensor

899.00
Learn More
Out of Stock

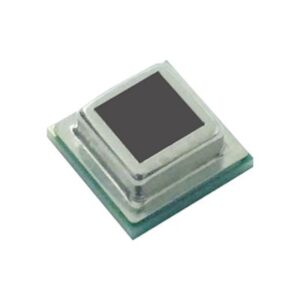

Senba S18-L262B-2 SMD-6P Human Body Sensing Sensor ROHS

98.00
Learn More
Out of Stock

Multicomp Pro HCZ Series Humidity Sensor, 20% to 90% RH, ±5% Accuracy, Through Hole Enclosed

149.00
Learn More
Out of Stock

OmniVision OV02735-H66H-1C CMOS Image Sensor Module - CSP Package

319.00
Learn More
Out of Stock

SOI JX-K06A-C1-M2 CSP Image Sensor ROHS

134.00
Learn More
Out of Stock

Guoxin Jiapin Semiconductor LJ3405 Human Body Sensing Sensor - SOP-8 Package

12.00
Learn More
Out of Stock

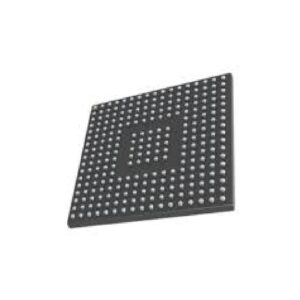

OmniVision OV07955-N53V-PE CMOS Image Sensor Module
