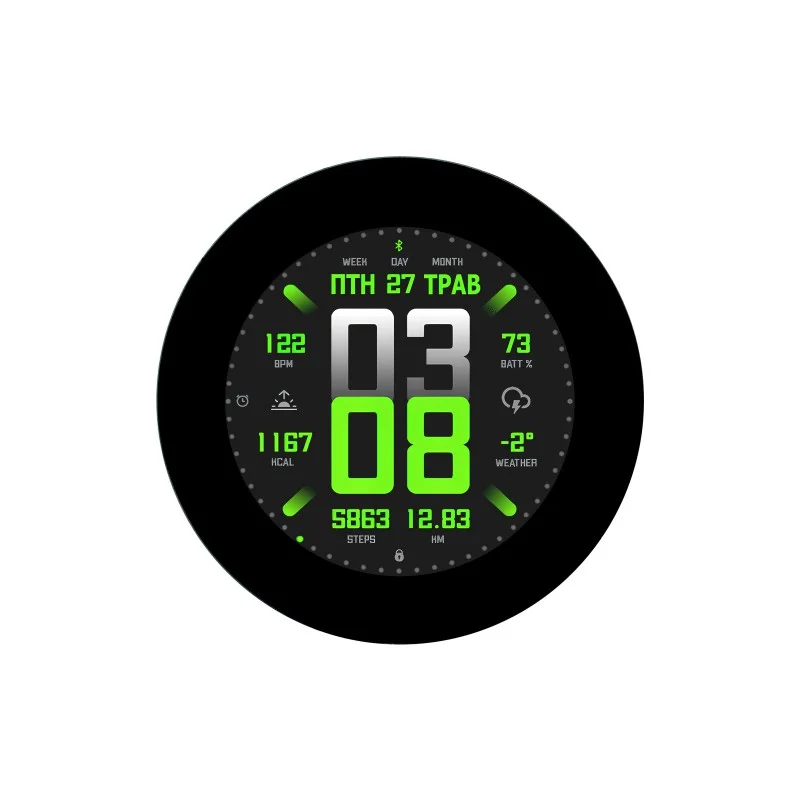

Waveshare RP2350B 2.1-Inch IPS Capacitive Touch Round Display Dev Board

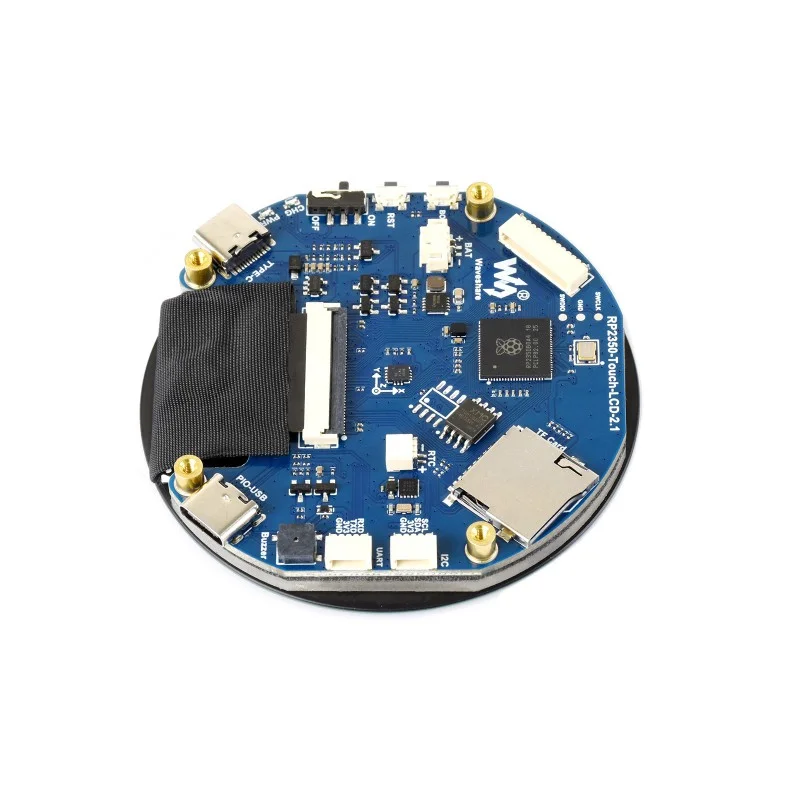

Waveshare RP2350B 2.1-Inch IPS Capacitive Touch Round Display Dev Board - Image 2
SKU: IOWC-0970
📋 GST Invoice Available

Waveshare RP2350B 2.1-Inch IPS Capacitive Touch Round Display Dev Board

₹3,339.00 (Inclusive of all taxes)
Out of Stock

The Waveshare RP2350 development board integrates a Raspberry Pi RP2350B dual-core microcontroller with a 2.1-inch 480×480 round IPS capacitive touch display, 6-axis IMU, RTC, and USB Type-C for drag-and-drop programming, ideal for wearables and embedded IoT dashboards.

Features

  • RP2350B dual-core microcontroller (ARM Cortex-M33/Hazard3 RISC-V) running at 150 MHz for flexible, high-performance embedded processing.
  • 2.1-inch round IPS capacitive touch display with 480×480 resolution provides a vibrant, interactive user interface for compact designs.
  • Integrated 6-axis IMU (accelerometer + gyroscope) and RTC chip enable motion sensing and precise timekeeping for standalone applications.
  • USB Type-C with PIO-USB and drag-and-drop programming simplifies firmware updates without external programmers.
  • 16MB onboard Flash, TF card slot, and PSRAM expansion pads offer ample storage and memory for data logging and complex graphics.

Out of stock

Description

This Waveshare development board centers on the Raspberry Pi RP2350B, a unique dual-core, dual-architecture microcontroller capable of running ARM Cortex-M33 or Hazard3 RISC-V cores at up to 150 MHz. It drives a high-quality 2.1-inch round IPS display via an SPI+RGB interface, paired with a capacitive touch panel for intuitive control. The board is engineered for low-power operation, supporting sleep modes to extend battery life in portable and wearable applications.

Beyond the display, the board incorporates a suite of onboard sensors and interfaces critical for embedded systems. The 6-axis IMU provides motion data, while the dedicated RTC maintains accurate timekeeping. A full complement of GPIOs, including SPI, I²C, UART, ADC, and PWM, allows for extensive peripheral expansion. The compact 75x75mm form factor, combined with the integrated flat touch panel, makes it ready for direct integration into final product enclosures for smart watches, industrial dashboards, and automation controllers.

Key Features

  • Dual-core RP2350B microcontroller with ARM Cortex-M33 and Hazard3 RISC-V support for architectural flexibility.
  • High-resolution 2.1-inch round IPS display with capacitive multi-touch for sleek, modern user interfaces.
  • Onboard motion sensing via a 6-axis IMU (3-axis accelerometer + 3-axis gyroscope).
  • Precise timekeeping with the integrated PCF85063 Real-Time Clock (RTC) chip.
  • Expandable storage via a microSD (TF) card slot and 16MB of onboard Flash memory.
  • User-friendly USB Type-C interface supporting PIO-USB and drag-and-drop programming for easy code deployment.
  • Rich I/O including multiple SPI, I²C, UART channels, ADC inputs, and PWM outputs for sensor and actuator connectivity.
  • Compact and robust design with all components on a single board, suitable for space-constrained end products.

Applications

  • Smart wearable devices and fitness trackers with interactive displays.
  • Industrial control panels and human-machine interface (HMI) dashboards.
  • Portable instrumentation and data loggers with sensor visualization.
  • Home automation controllers and smart appliance interfaces.
  • Prototyping compact IoT devices requiring a graphical user interface and motion sensing.

Technical Specifications

Microcontroller/SoCRaspberry Pi RP2350B Dual-Core (ARM Cortex-M33 / Hazard3 RISC-V)
Display Type2.1-inch Round IPS Capacitive Touch
Display Resolution480 × 480 pixels
Onboard Sensors6-axis IMU (Accelerometer + Gyroscope), RTC
Storage16MB Flash, TF Card Slot, PSRAM Expansion Pads
Programming InterfaceUSB Type-C (PIO-USB, Drag-and-Drop)
Key InterfacesSPI, I²C, UART, ADC, PWM, GPIO
Operating VoltageTypically 3.3V via USB
Dimensions75 mm × 75 mm
Weight43 g

Frequently Asked Questions

How do I program the Waveshare RP2350 development board?

The board is programmed via its USB Type-C port using drag-and-drop firmware updates. Connect it to your computer, and it will appear as a mass storage device. Compile your code into a UF2 file using the Pico SDK, Arduino IDE with Raspberry Pi Pico cores, or MicroPython, then simply drag and drop the file onto the board's drive to flash it. The onboard bootloader and PIO-USB support facilitate this seamless process without an external programmer.

What are the power requirements and sleep current for battery operation?

The board operates at 3.3V, typically supplied via the USB Type-C port. For battery-powered applications, you can connect a 3.3V regulated supply to the appropriate pins. The RP2350B microcontroller supports multiple low-power sleep modes, which can significantly reduce the operating current to microamp levels, extending battery life in portable and wearable projects. Exact sleep currents depend on which peripherals (display, IMU, RTC) remain active.

How do I interface with the capacitive touch screen and onboard IMU sensor?

The capacitive touch panel uses an I²C interface. You can read touch coordinates and gestures via the dedicated touch controller IC using standard I²C libraries. The 6-axis IMU (accelerometer and gyroscope) also communicates over I²C. Example code provided by Waveshare demonstrates how to initialize both sensors and read raw data or fused motion values for your application, compatible with C/C++ (Pico SDK) and MicroPython environments.

Package Includes

  • 1 x Waveshare RP2350 2.1-inch IPS Capacitive Touch Round Display Development Board
  • 1 x SH1.0 12PIN cable (~100mm)
  • 2 x SH1.0 4PIN cable (~100mm)

Additional Information

Weight 0.043 kg
Dimensions 7.5 × 7.5 cm
