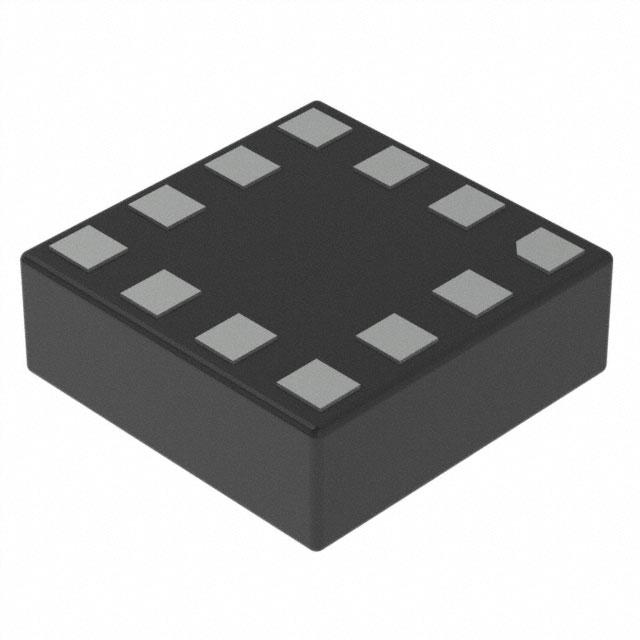

STMicroelectronics LIS2DH12TR LGA-12 3-Axis Accelerometer Sensor ROHS
The STMicroelectronics LIS2DH12TR is an ultra-low-power, high-performance 3-axis MEMS accelerometer in an LGA-12 package, compatible with 1.8V to 3.6V logic systems including Arduino, Raspberry Pi, ESP32, and STM32. It provides selectable full-scale ranges from ±2g to ±16g with integrated motion detection, free-fall sensing, and orientation recognition.
Features
- Ultra-low power consumption down to 2 μA for battery-sensitive designs.
- Selectable full-scale ranges: ±2g, ±4g, ±8g, and ±16g.
- Integrated 6D/4D orientation detection and programmable motion/free-fall interrupt generators.
- Wide supply voltage range from 1.71V to 3.6V with independent I/O supply (1.8V).
- Embedded 32-level FIFO buffer and temperature sensor for advanced data handling.
Out of stock
The LIS2DH12TR is a MEMS-based linear accelerometer engineered for precision motion sensing in power-constrained applications. Its robust architecture includes a high-resolution output data register and advanced digital features like sleep-to-wake and return-to-sleep functions, enabling intelligent power management without external intervention.
Communication is facilitated via selectable I2C or SPI digital interfaces, providing flexibility for integration into diverse microcontroller and processor ecosystems. The device’s embedded FIFO allows for efficient data buffering, reducing host processor load and enabling more complex motion algorithm processing directly on-sensor.
Additional Information
| Weight | 0.035 kg |
|---|---|
| Dimensions | 1.2 × 0.9 cm |
