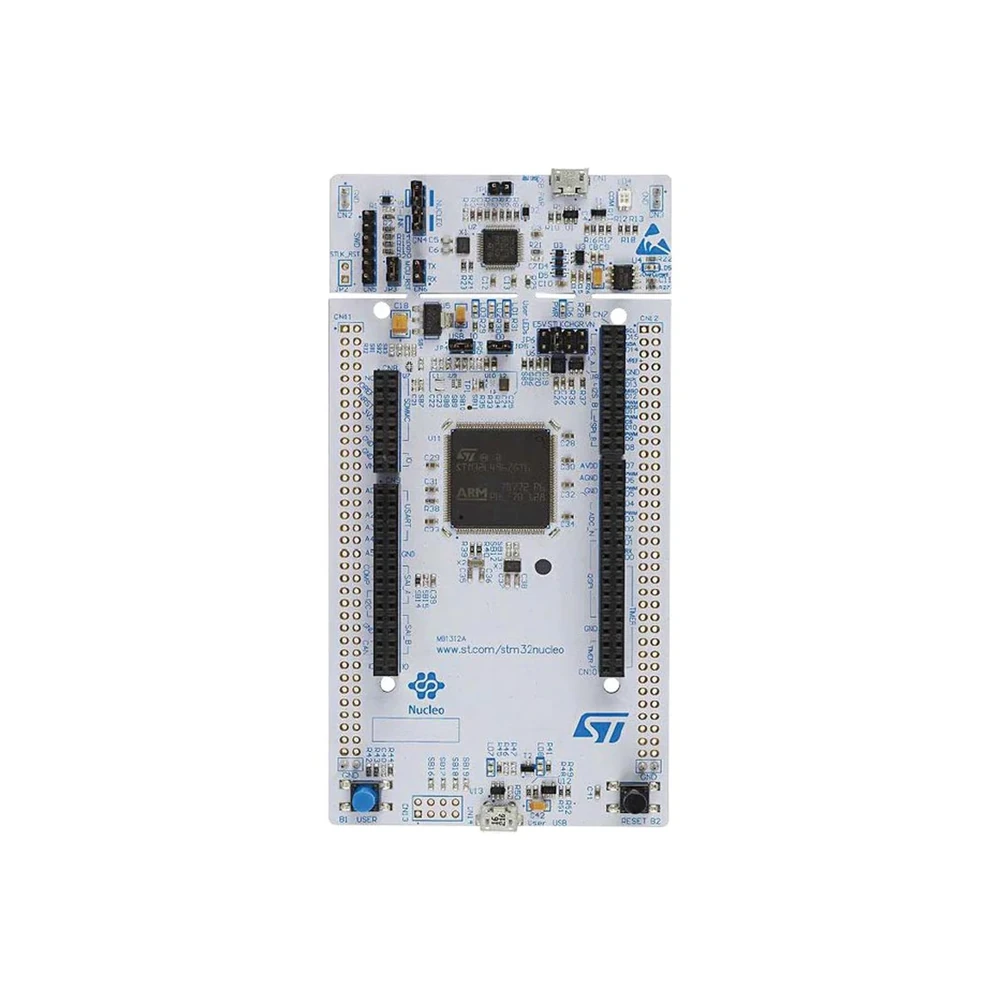

NUCLEO-L496ZG-P STM32L4 Ultra-Low-Power Dev Board
The NUCLEO-L496ZG-P Development Board features an STM32L496ZG microcontroller with an ARM Cortex-M4 core, offering ultra-low-power operation and high performance. It integrates an ST-LINK debugger and supports Arduino Uno V3 and ST morpho expansion, making it ideal for rapid prototyping of IoT and advanced embedded systems.
Features
- High-performance ARM Cortex-M4 MCU with FPU up to 80 MHz.
- Generous memory: 1 MB Flash and 320 KB SRAM for complex applications.
- Ultra-low-power operation (1.71V–3.6V) for energy-efficient designs.
- Up to 136 high-speed 5V tolerant GPIOs for extensive peripheral connectivity.
- Integrated ST-LINK/V2-1 programmer/debugger for streamlined development.
Out of stock
The STMicroelectronics NUCLEO-L496ZG-P Development Board serves as a high-performance, ultra-low-power platform centered around the STM32L496ZG microcontroller, which incorporates an ARM Cortex-M4 core with a Floating Point Unit (FPU) operating at up to 80 MHz. This board is engineered for efficient rapid prototyping and sophisticated embedded application development, featuring an integrated ST-LINK debugger/programmer that eliminates the necessity for external debugging hardware.
Designed for maximum flexibility, the NUCLEO-L496ZG-P supports both Arduino Uno V3 and ST morpho expansion connectors, enabling straightforward integration of peripherals and extensive hardware expansion. It boasts rich communication interfaces, exceptional low-power capabilities, essential onboard LEDs and push buttons, and comprehensive support via the STM32Cube software ecosystem. This makes it a versatile choice for applications ranging from IoT gateways, industrial automation, and wearable devices to general-purpose advanced embedded system development.
Additional Information
| Weight | 0.093 kg |
|---|---|
| Dimensions | 18 × 10 × 4 cm |
