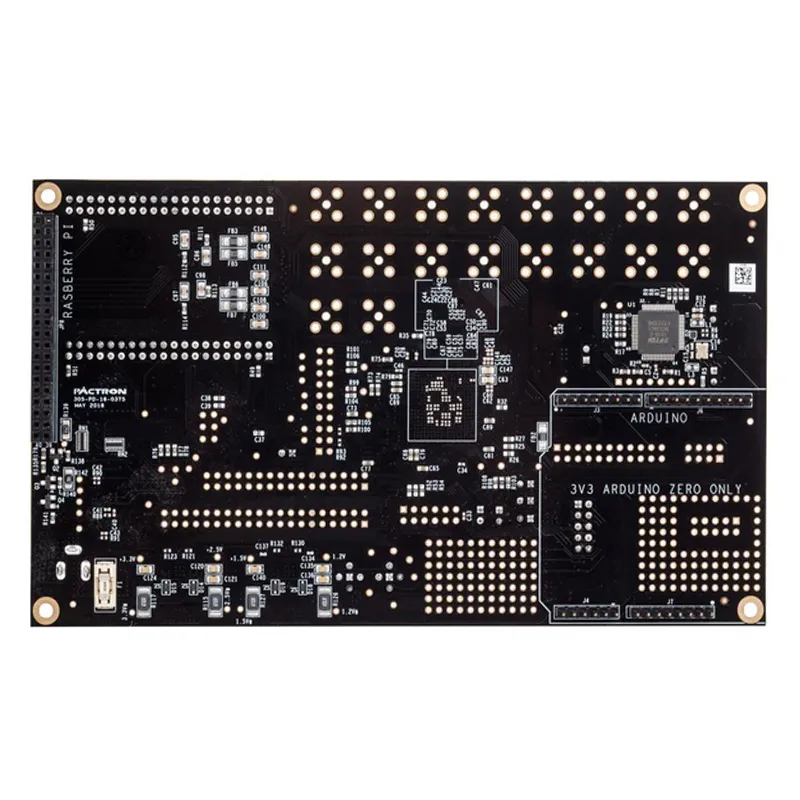

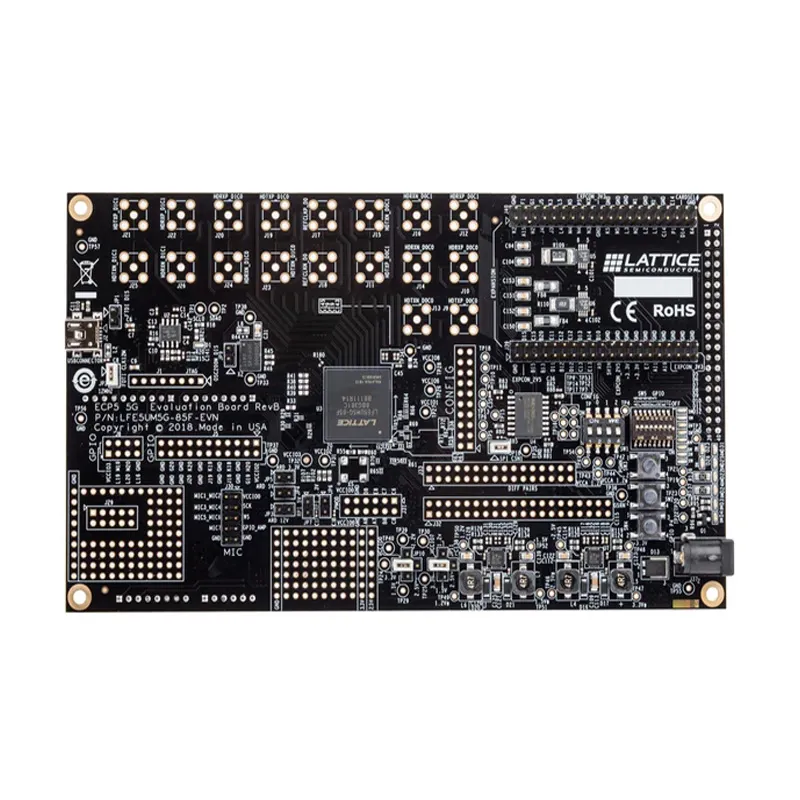

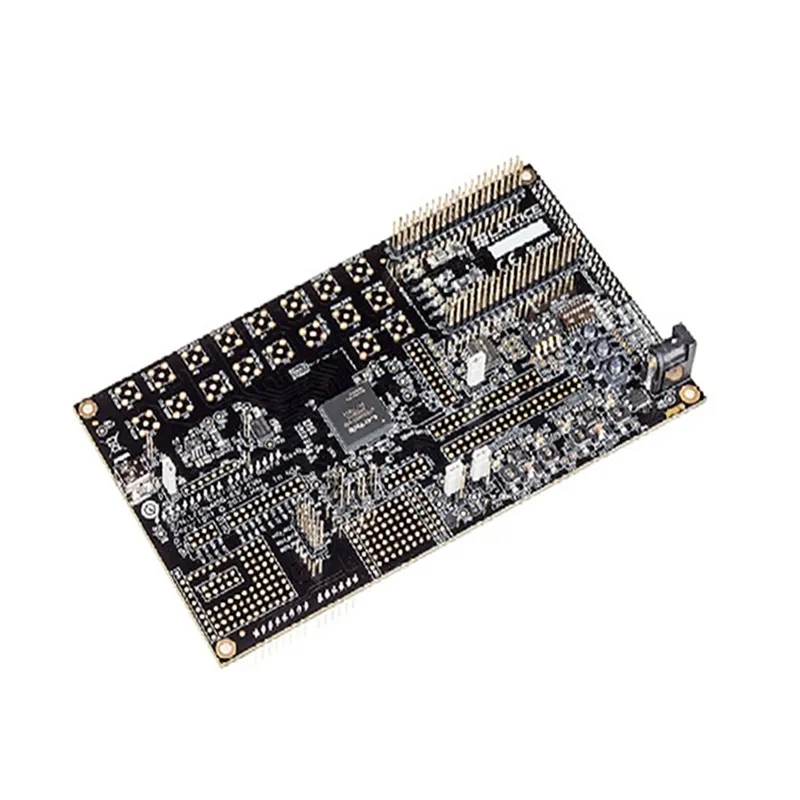

Lattice ECP5-5G LFE5UM5G-85F FPGA Evaluation Board
The Lattice ECP5-5G Evaluation Board (LFE5UM5G-85F-EVN) provides a robust platform for investigating and prototyping designs with the ECP5-5G Field Programmable Gate Array. It features essential peripherals like 128 Mbit SPI Flash, USB-B for programming, and various I/O for rapid development.
Features
- Features the high-performance ECP5-5G FPGA (LFE5UM5G-85F-8BG381) for advanced logic designs.
- Integrated USB-B connection simplifies device programming and I2C utility, supporting improved I3C.
- Includes 128 Mbit SPI Flash with Quad read support for flexible boot and data storage.
- On-board user interfaces such as 8 DIP switches, 3 push buttons, and 8 LEDs for demonstration and interaction.
- Provides multiple reference clock sources to facilitate diverse application development.
Out of stock
The Lattice ECP5-5G LFE5UM5G-85F-EVN Evaluation Board is engineered to empower designers and engineers in exploring the full capabilities of the ECP5-5G Field Programmable Gate Array. This board serves as an ideal environment for rapid prototyping, enabling efficient design investigation and verification of complex embedded systems. Its comprehensive feature set allows for thorough experimentation with logic implementations, high-speed interfaces, and custom digital circuits.
Equipped with a robust ECP5-5G FPGA, this evaluation board facilitates the development of demanding applications across various industries, including industrial control, telecommunications, and high-performance computing. The inclusion of essential peripherals like a 128 Mbit SPI Boot Flash and multiple reference clock sources ensures developers have the necessary tools for complex system integration. Its user-friendly programming interface and on-board debug resources streamline the development workflow from initial concept to final validation.
Additional Information
| Weight | 0.775 kg |
|---|---|
| Dimensions | 20 × 40 × 11 cm |
