Reyax RYS3520_LITE GNSS Antenna Module Lite Evaluation Board DIP Version

Description

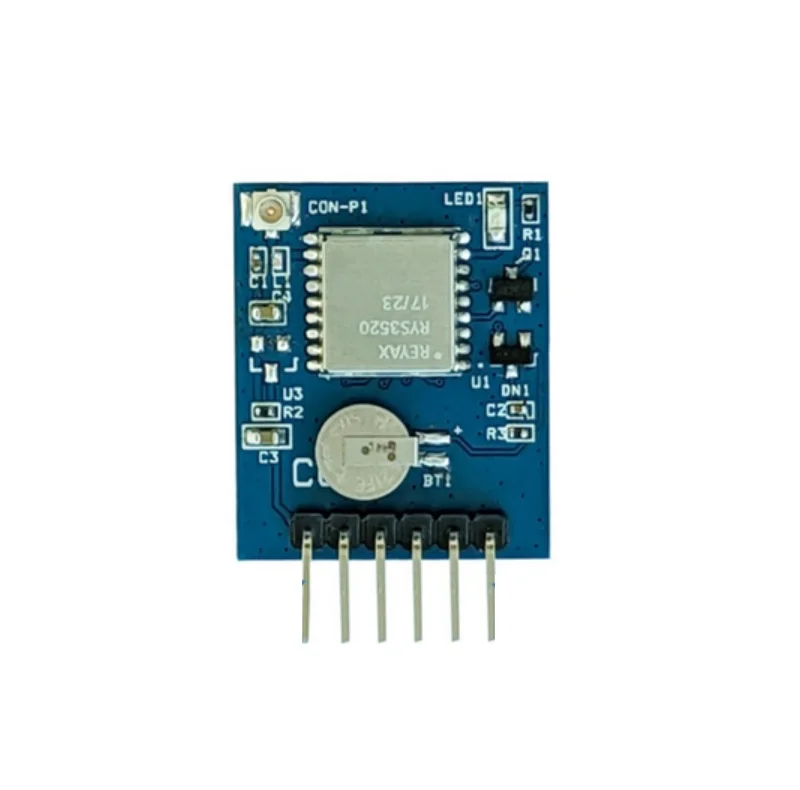

The Reyax RYS3520_LITE evaluation board is a streamlined platform for developers to integrate GNSS positioning capabilities into their projects. It combines the RYS3520 GNSS module with a built-in antenna and a 3.3V logic-level UART interface, providing an out-of-the-box solution for receiving satellite data.

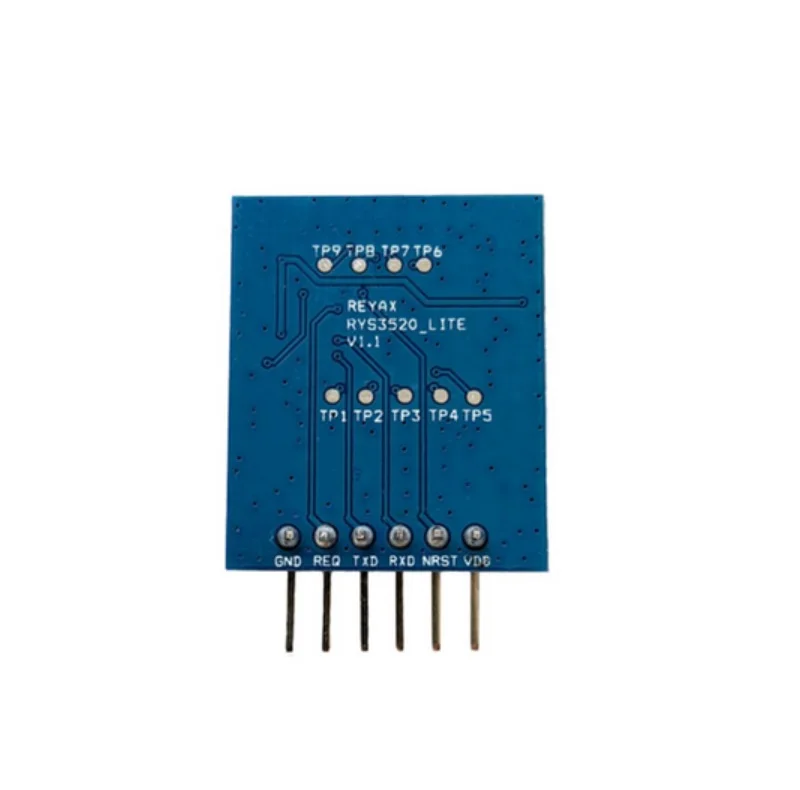

This DIP-format board is engineered for straightforward prototyping, allowing direct insertion into standard breadboards or through-hole PCBs. It outputs standard NMEA sentences over its serial port, which can be easily parsed by most embedded systems to obtain latitude, longitude, time, and satellite fix status, enabling rapid development of asset trackers, navigation systems, and data loggers.
