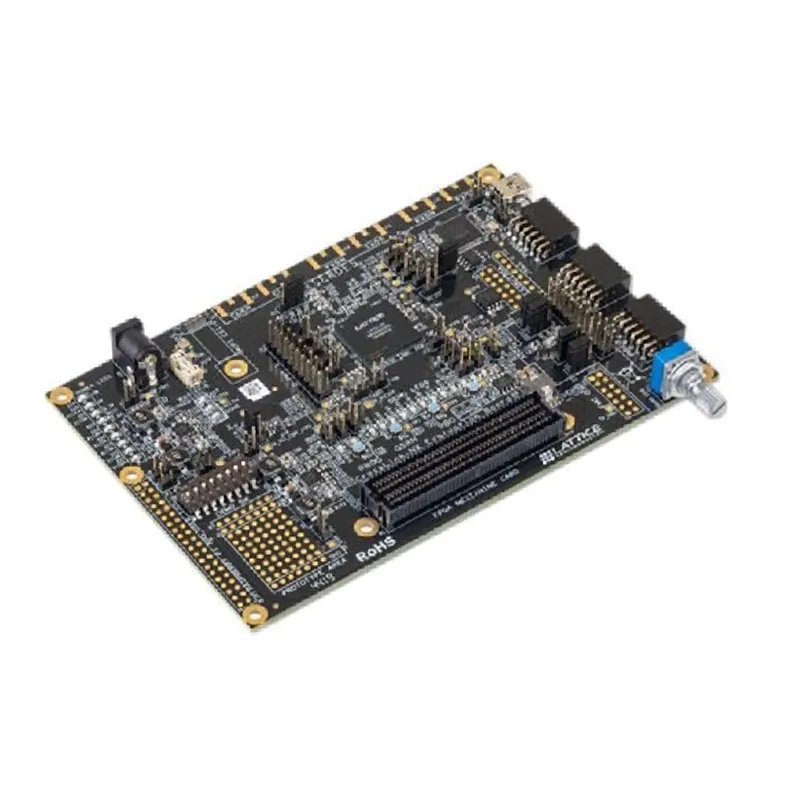

Lattice CrossLink-NX LIFCL-40-EVN FPGA Evaluation Board

The board features the Lattice CrossLink-NX LIFCL-40-9BG400C FPGA. This device is part of Lattice's high-performance FPGA family, offering a balance of low power consumption and high processing capabilities, suitable for applications requiring fast I/O and efficient logic implementation in embedded systems.

The LIFCL-40-EVN board is fully supported by the Lattice Radiant™ software. This comprehensive FPGA design environment provides all necessary tools for design entry, synthesis, place-and-route, timing analysis, and bitstream generation, enabling efficient development and debugging of your FPGA projects.

The board includes a 128Mbit SPI Flash memory. This flash is crucial for storing the FPGA configuration bitstream and additional user data. Its quad read support enables faster boot times and efficient access for data-intensive applications, enhancing the board's versatility.

Yes, the CrossLink-NX FPGA family, including the LIFCL-40, is optimized for video bridging, interface conversion, and processing applications. Its high-speed I/O and dedicated logic resources make it well-suited for tasks like sensor aggregation, display interfacing, and real-time image manipulation in embedded vision systems.

The LIFCL-40-EVN board is powered via an included external power adapter. FPGA programming and I2C utility access are managed through a standard USB-B connection. This dual functionality simplifies setup, allowing for easy configuration and debugging from a host PC without requiring additional dedicated programming hardware.
