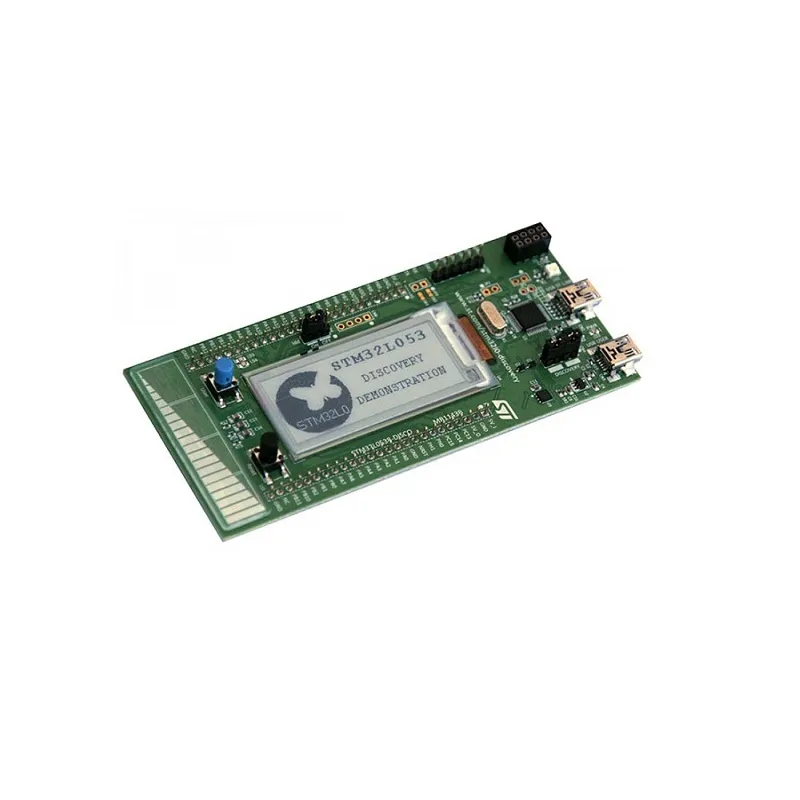

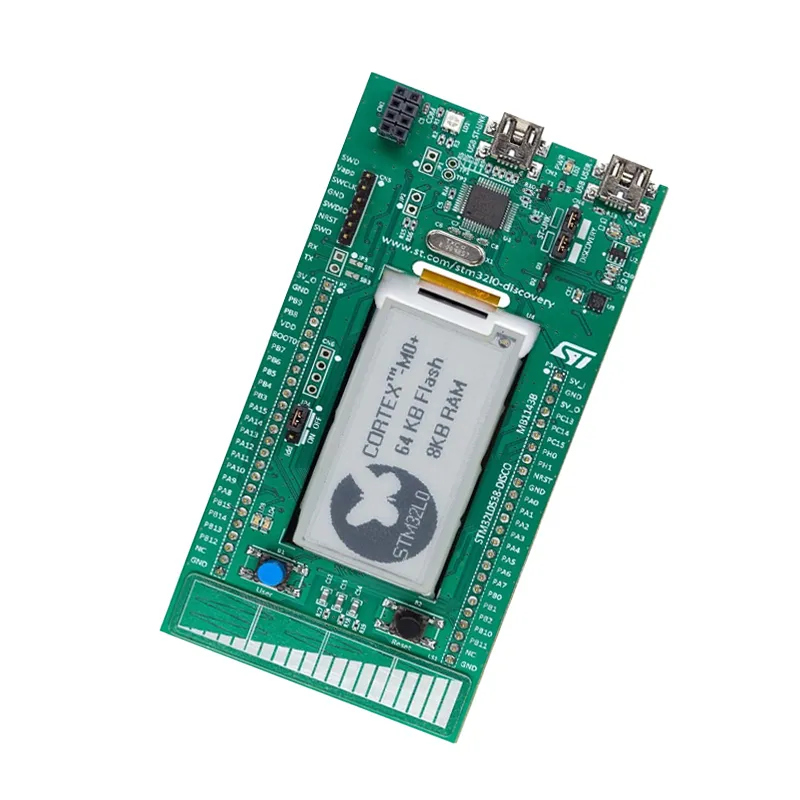

STM32L0538-DISCO Dev Board w/ STM32L053C8T6 MCU
The STM32L0538-DISCO development board facilitates rapid prototyping with the ultra-low-power STM32L053C8T6 ARM Cortex-M0+ microcontroller, offering integrated debugging, touch sensing, and current measurement capabilities for efficient embedded application development.
Features
- Powered by an ultra-low-power STM32L053C8T6 ARM Cortex-M0+ MCU with 8KB RAM.
- Integrated ST-LINK/V2-1 debugger for streamlined programming and debugging.
- Features linear touch sensor, touch keys, and dedicated IDD current measurement circuit.
- Includes a 2.04″ E-paper display and NFC connector for diverse HMI and connectivity.
- Offers extension headers for easy access to LQFP48 I/Os for rapid prototyping.
Out of stock
The STM32L0538-DISCO discovery kit provides a cost-effective and user-friendly platform for evaluating and developing with STMicroelectronics’ STM32L0 series microcontrollers. Central to the board is the STM32L053C8T6, an ARM Cortex-M0+ MCU designed for ultra-low-power applications, making it ideal for battery-operated devices and energy-efficient designs. This kit integrates essential peripherals to accelerate development, including an ST-LINK/V2-1 embedded debug tool for efficient code flashing and debugging.
Beyond its core processing capabilities, the board offers a rich set of user interaction and sensing features. Developers can leverage a linear touch sensor or four touch keys for intuitive HMI, alongside an IDD current measurement circuit crucial for optimizing power consumption in sensitive applications. Display output is handled by a 2.04″ E-paper display, known for its low power consumption and persistent imagery, complemented by an NFC connector for integration with PLUG-CR95HFB boards, enabling short-range wireless communication.
Further enhancing its utility, the STM32L0538-DISCO includes LEDs, pushbuttons, and a USB mini-B connector for power and data. Extension headers expose the LQFP48 I/Os, providing direct access for connecting to prototyping boards and external modules. Comprehensive free software, including a wide array of examples within the STM32CubeL0 package, simplifies the development process and allows engineers to quickly explore the MCU’s capabilities.
Additional Information
| Weight | 0.027 kg |
|---|---|
| Dimensions | 19 × 14 × 4 cm |
