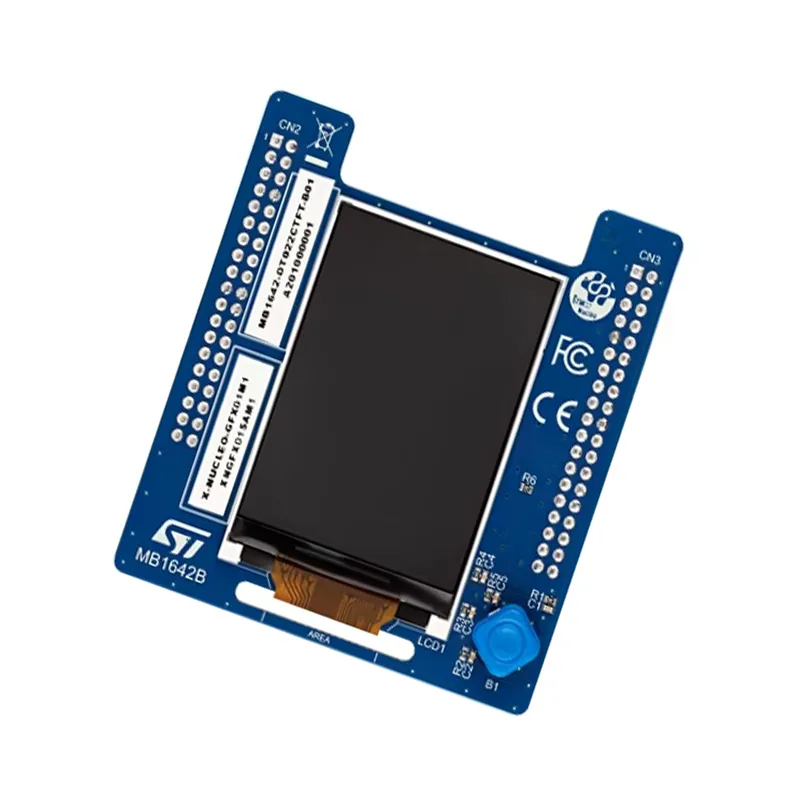

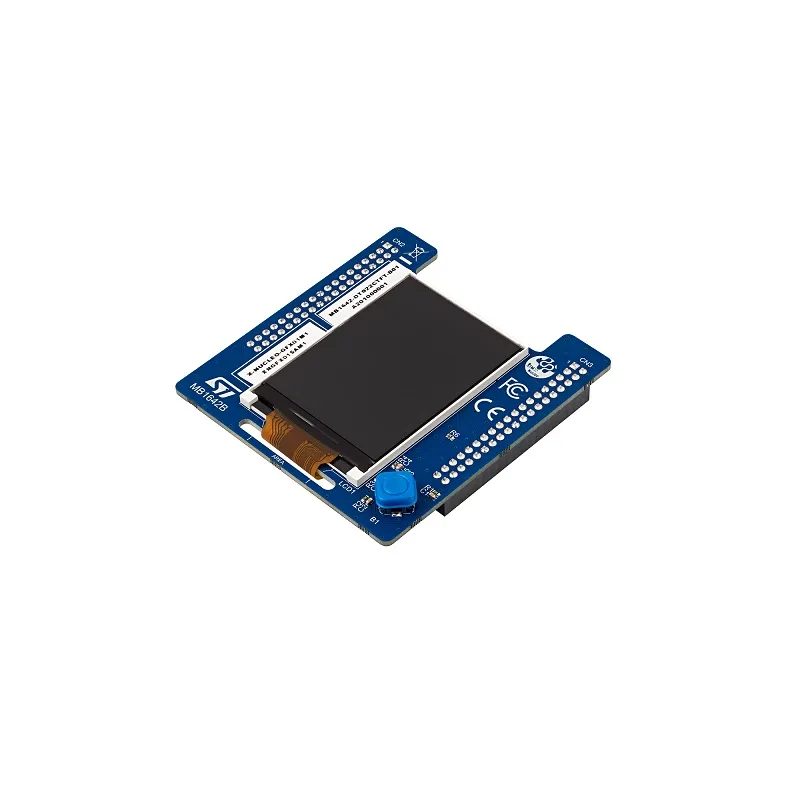

STM32 X-NUCLEO-GFX01M2 SPI Display Expansion Board
The STMicroelectronics X-NUCLEO-GFX01M2 is an expansion board designed to add comprehensive graphical user interface (GUI) capabilities to STM32 Nucleo-64 development boards. It integrates a 2.2″ SPI QVGA TFT display and 64-Mbit SPI NOR Flash memory, making it ideal for visual prototyping and HMI applications.
Features
- Adds graphic user interface (GUI) capability to STM32 Nucleo-64 boards.
- Features a crisp 2.2″ SPI QVGA TFT display for clear visual output.
- Includes 64-Mbit SPI NOR Flash memory for storing graphic images, texts, and textures.
- Equipped with an integrated joystick for intuitive menu navigation and user interaction.
- Compatible with selected STM32 Nucleo-64 boards utilizing the ST morpho connector.
Out of stock
The X-NUCLEO-GFX01M2 expansion board from STMicroelectronics significantly enhances the prototyping capabilities of STM32 Nucleo-64 development boards by providing robust graphic user interface functionality. This board simplifies the development of interactive applications by offloading complex display management tasks and offering dedicated resources for visual elements.
At its core, the board features a vibrant 2.2″ SPI QVGA TFT display, delivering ample resolution for various GUI designs. Complementing the display is a 64-Mbit SPI NOR Flash memory, providing ample storage for fonts, bitmaps, animations, and other graphical assets. Furthermore, an integrated joystick enables straightforward menu navigation and user input, making the X-NUCLEO-GFX01M2 an excellent choice for creating intuitive embedded HMI solutions and interactive projects.
Additional Information
| Weight | 0.07 kg |
|---|---|
| Dimensions | 12 × 10 × 6 cm |
