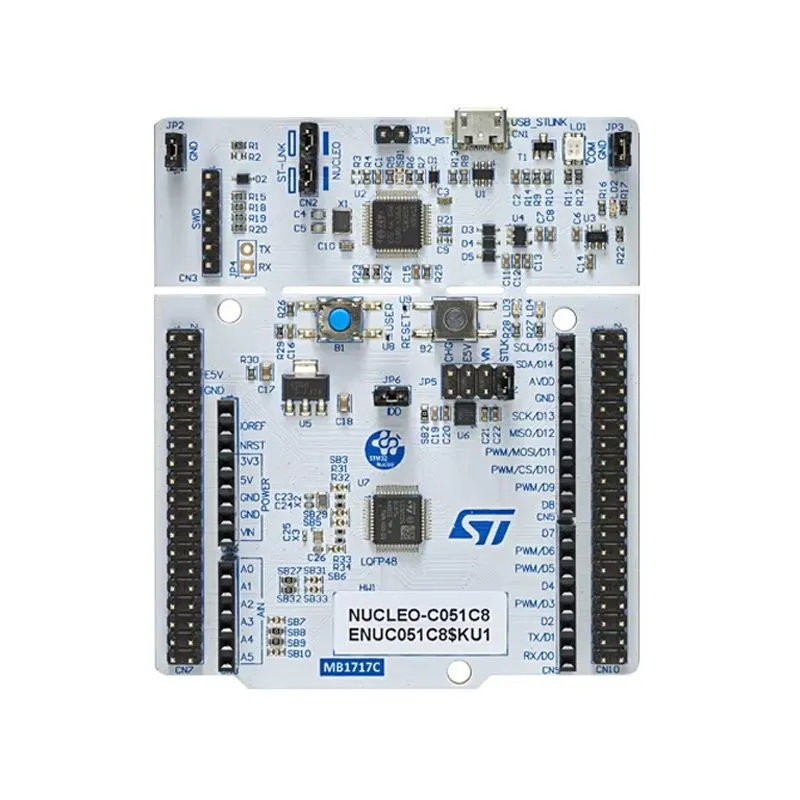

STMicroelectronics NUCLEO-C051C8 STM32 Nucleo-64 Dev Board

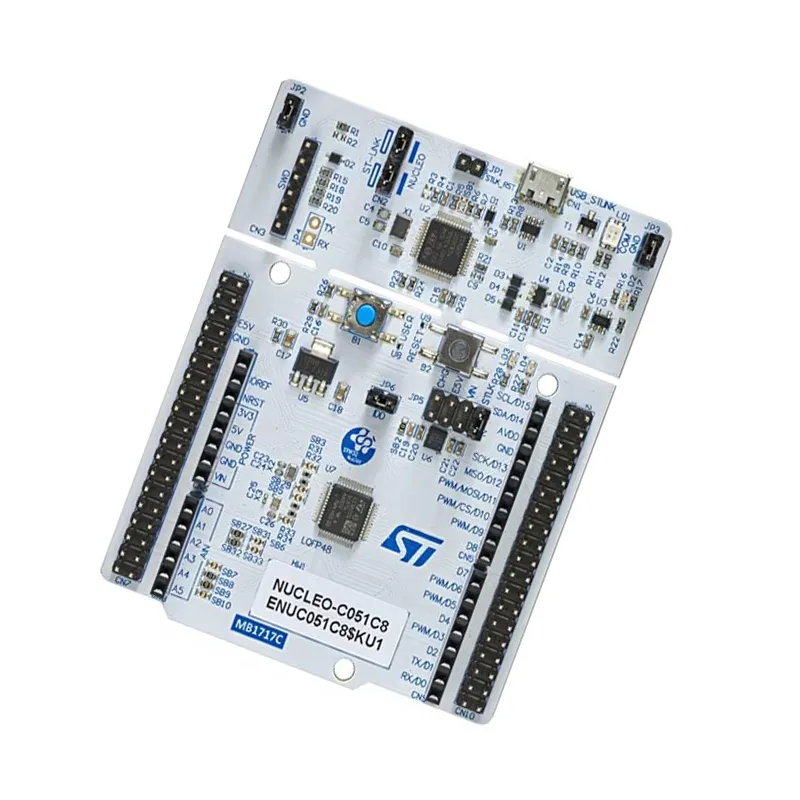

STMicroelectronics NUCLEO-C051C8 STM32 Nucleo-64 Dev Board - Image 2

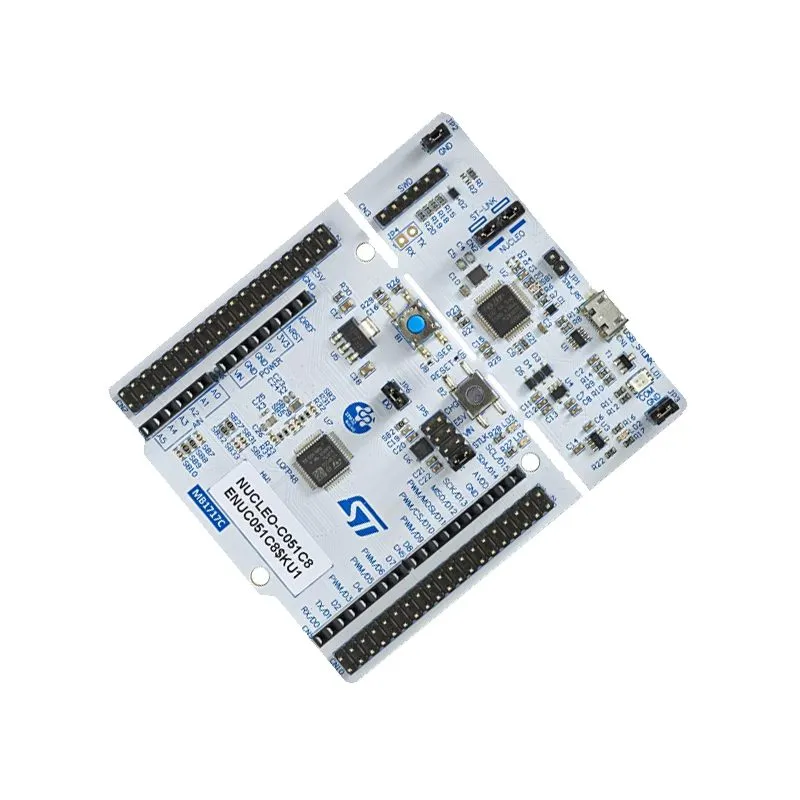

STMicroelectronics NUCLEO-C051C8 STM32 Nucleo-64 Dev Board - Image 3
SKU: SBCD-0393
📋 GST Invoice Available

STMicroelectronics NUCLEO-C051C8 STM32 Nucleo-64 Dev Board

₹3,109.00 (Inclusive of all taxes)
Out of Stock

The STMicroelectronics NUCLEO-C051C8 Nucleo-64 development board features an STM32C051C8 MCU with an ARM Cortex-M0+ core and 64KB Flash, offering an accessible platform for embedded prototyping and evaluation.

It integrates an ST-LINK debugger/programmer and supports Arduino Uno V3 and ST morpho connectivity for extensive hardware expansion.

Features

  • Features STM32C051C8 MCU with ARM Cortex-M0+ core and 64KB Flash.
  • Integrated ST-LINK/V2-1 debugger/programmer eliminates need for external tools.
  • Offers Arduino Uno V3 and ST morpho header compatibility for shield and peripheral expansion.
  • Flexible power supply via USB or external source, supporting optional SMPS.
  • Supported by STM32Cube ecosystem and popular IDEs for streamlined development.

Out of stock

Description

The STMicroelectronics NUCLEO-C051C8 Nucleo-64 development board provides a versatile and cost-effective platform for developers to explore the capabilities of the STM32C051C8 microcontroller. This board, centered around the energy-efficient ARM Cortex-M0+ core, offers 64KB of Flash memory and 8KB of RAM, making it suitable for a wide range of embedded control and IoT applications. Its design prioritizes ease of use and expandability, supporting rapid prototyping with a focus on power efficiency, especially with the optional internal or external SMPS.

Equipped with on-board ST-LINK/V2-1 debugger/programmer, the NUCLEO-C051C8 simplifies the development workflow by removing the necessity for an external debugging probe. Connectivity is robust, featuring Arduino Uno V3 headers for direct shield integration and ST morpho headers that expose all STM32 microcontroller I/O pins, allowing for maximum flexibility in custom circuit design. The board is fully supported by the comprehensive STM32Cube software ecosystem, including STM32CubeIDE and various firmware libraries, ensuring a smooth transition from concept to functional prototype.

Key Features

  • STM32C051C8 Microcontroller: ARM Cortex-M0+ core, 64KB Flash, 8KB RAM.
  • Integrated ST-LINK/V2-1 Debugger/Programmer: On-board functionality via USB, no external probe required.
  • Arduino Uno V3 Connectivity: Standard headers for compatibility with a vast ecosystem of shields.
  • ST morpho Headers: Comprehensive access to all STM32 I/O pins for advanced prototyping.
  • Flexible Power Options: USB VBUS or external source (3.3V, 5V, 7-12V), with optional SMPS support.
  • User Interface Elements: Includes a user LED, user button, and reset button.
  • Crystal Oscillator: 32.768 kHz LSE crystal for RTC accuracy.
  • Extensive Software Support: Compatible with STM32CubeIDE, IAR Embedded Workbench, MDK-ARM, and STM32Cube firmware packages.

Applications

  • Rapid Prototyping for Embedded Systems
  • IoT Edge Node Development
  • Sensor Data Acquisition and Processing
  • Education and Learning Platforms for Microcontrollers
  • Low-Power Control Applications

Technical Specifications

MCUSTM32C051C8 (ARM Cortex-M0+)
Flash Memory64 KB
RAM8 KB
Core Architecture32-bit ARM Cortex-M0+
USB InterfaceUSB Micro-B (for ST-LINK)
ExpansionArduino Uno V3, ST morpho headers
Debugger/ProgrammerOn-board ST-LINK/V2-1
Power SupplyUSB VBUS or external source
Length7.8 cm
Width6.6 cm
Weight0.034 kg

Frequently Asked Questions

What is the primary microcontroller on the NUCLEO-C051C8 board?

The NUCLEO-C051C8 board features an STMicroelectronics STM32C051C8 microcontroller. This MCU is based on the 32-bit ARM Cortex-M0+ core, providing an efficient and low-power processing solution. It comes with 64KB of Flash memory and 8KB of SRAM for application code and data storage, suitable for a wide array of embedded projects.

How can I program and debug the STM32C051C8 on this board?

The board integrates an on-board ST-LINK/V2-1 debugger/programmer. This eliminates the need for an external debugging probe. You can connect the board to your PC via a USB Micro-B cable for both programming and debugging, utilizing standard IDEs such as STM32CubeIDE, Keil MDK-ARM, or IAR Embedded Workbench.

What expansion options are available for the NUCLEO-C051C8?

The NUCLEO-C051C8 board offers excellent expansion capabilities. It includes Arduino Uno V3 compatible headers, allowing developers to connect a vast range of existing Arduino shields. Additionally, it features ST morpho headers, which provide full access to all the STM32 microcontroller's I/O pins for custom hardware integration and advanced prototyping.

What software development environments are supported for the NUCLEO-C051C8?

The NUCLEO-C051C8 is well-supported by the comprehensive STM32Cube ecosystem. This includes the free STM32CubeIDE for integrated development, configuration, and debugging. It also supports commercial IDEs like IAR Embedded Workbench and Keil MDK-ARM. The board is compatible with the STM32Cube firmware packages, offering extensive libraries and examples.

What are the power supply options for the NUCLEO-C051C8 board?

The NUCLEO-C051C8 offers flexible power supply options. It can be powered directly via the USB VBUS from your computer, making development convenient. Alternatively, it supports external power sources, typically ranging from 3.3V, 5V, or 7-12V. An optional internal or external SMPS is also supported to reduce power consumption in Run mode.

Package Includes

  • 1 x STMicroelectronics NUCLEO-C051C8 ARM STM32 Nucleo-64 Development Board

Additional Information

Weight 0.034 kg
Dimensions 7.8 × 6.6 cm
