Makerbase MKS TFT70 V1.1 Full Color 7-inch TFT Screen
Makerbase MKS TFT70 V1.1 Full Color 7-inch TFT Screen - Image 2
Makerbase MKS TFT70 V1.1 Full Color 7-inch TFT Screen - Image 3
Makerbase MKS TFT70 V1.1 Full Color 7-inch TFT Screen - Image 4
SKU: 3DDF-1793
📋 GST Invoice Available

Makerbase MKS TFT70 V1.1 Full Color 7-inch TFT Screen

₹8,156.00 (Inclusive of all taxes)
Out of Stock

The Makerbase MKS TFT70 V1.1 is a vibrant 7-inch full-color TFT touchscreen, ideal for upgrading or building DIY 3D printers. Featuring a 32-bit ARM chip and Wi-Fi support, it offers an intuitive interface and enhanced control for various 3D printer mainboards.

Features

  • Vibrant 7-inch full-color TFT touchscreen display
  • Integrated 32-bit ARM high-speed chip for responsive control
  • Supports Wi-Fi connectivity for app/web remote control
  • Easy firmware upgrades via SD card for convenience
  • Customizable interface with multi-language support

Out of stock

Description

The Makerbase MKS TFT70 V1.1 Full Color TFT Screen offers a significant upgrade or robust solution for DIY 3D printer builds. Its 7-inch vibrant display provides a clear, intuitive interface, simplifying operation and enhancing user interaction with your 3D printing projects. This screen is designed for ease of use, allowing for quick firmware updates via SD card and online language switching across 7 options.

Equipped with a powerful 32-bit high-speed ARM chip, the MKS TFT70 ensures smooth and responsive performance. It supports advanced functionalities such as G-code model preview during printing and Wi-Fi connectivity, enabling remote control via mobile apps (Android/iOS) or web interfaces. This versatility makes it an excellent choice for makers seeking enhanced control and convenience for their 3D printers.

Key Features

  • Support online switching in 7 languages for global usability

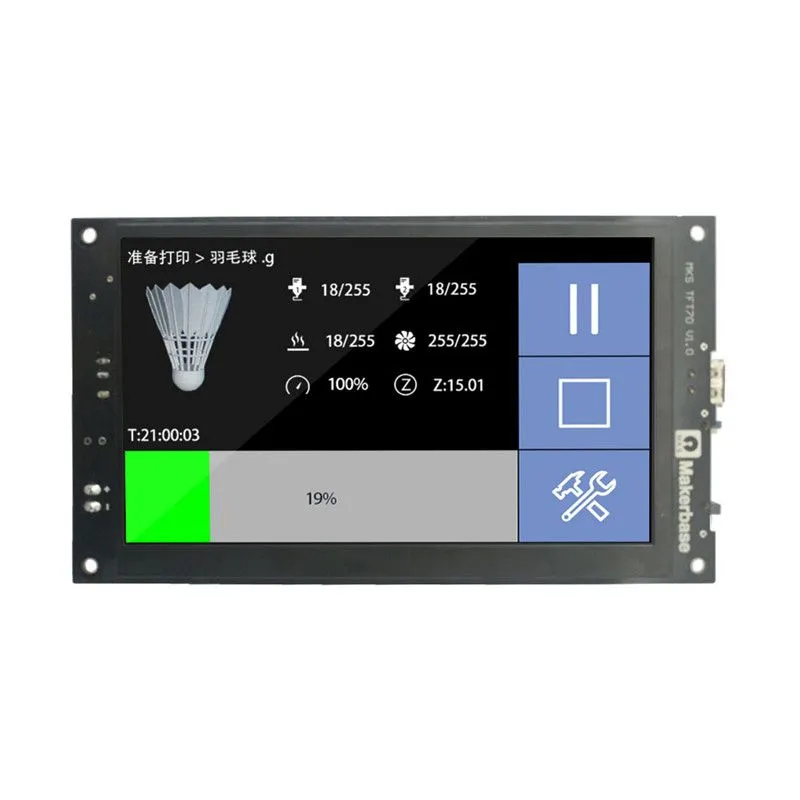

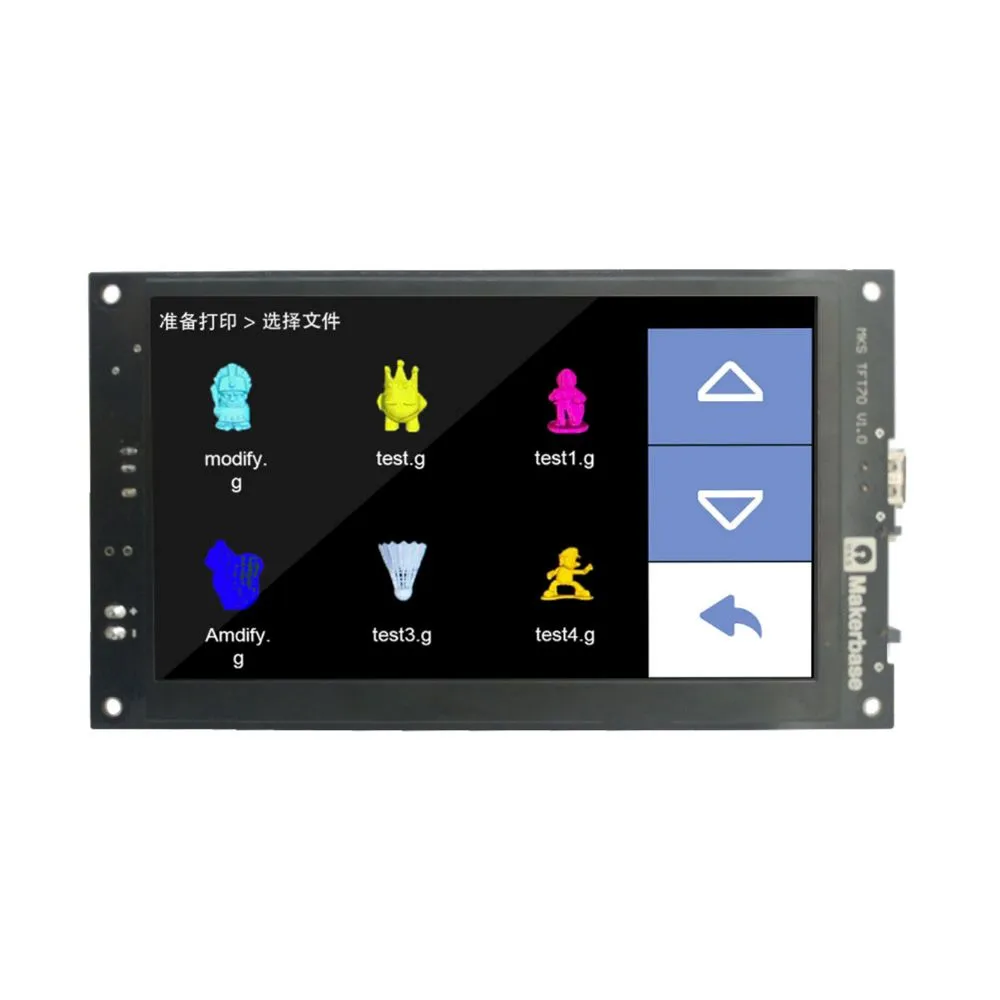

  • Preview G-code model display, showing model pictures during print

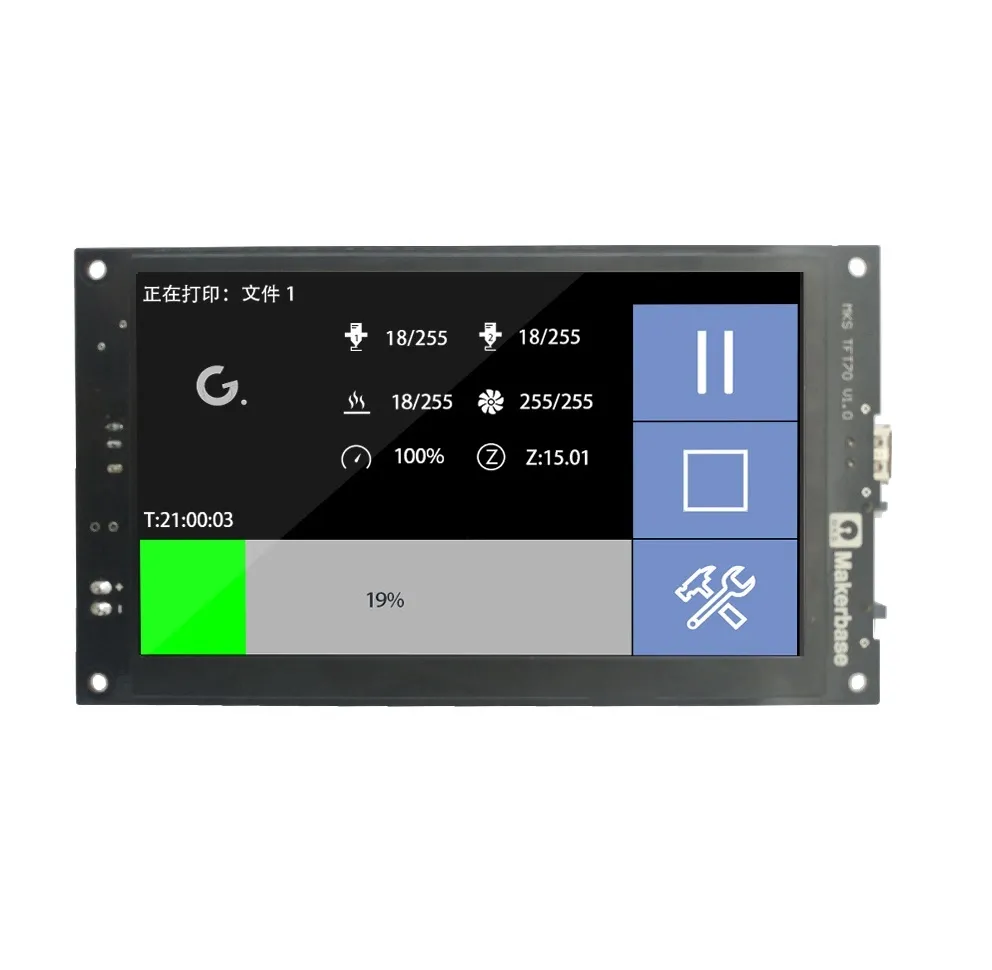

  • 7.0-inch TFT touch screen with simple operation interface and high sensitivity
  • WIFI function for mobile phone APP control (Android, IOS) or computer web control
  • Firmware upgrade and configuration via SD card for simple and convenient operation
  • Customizable boot logo, buttons, and other interface elements (up to 13 instructions)
  • Supports advanced features: breakpoint resume, power save, broken material detection, and auto-shutdown
  • Compatible with popular firmware like Marlin and SmoothieWare

Applications

  • Main display replacement for existing 3D printers
  • Primary control interface for DIY 3D printer builds
  • Upgrade for enhanced user experience and advanced control features

Technical Specifications

Item TypeController with Display
CompatibilityGeneral Purpose
Input Voltage12-24VDC
Display Size7 inch
Overall Size196.7 x 111 mm
Mounting Hole Diameter185.7 x 100 mm

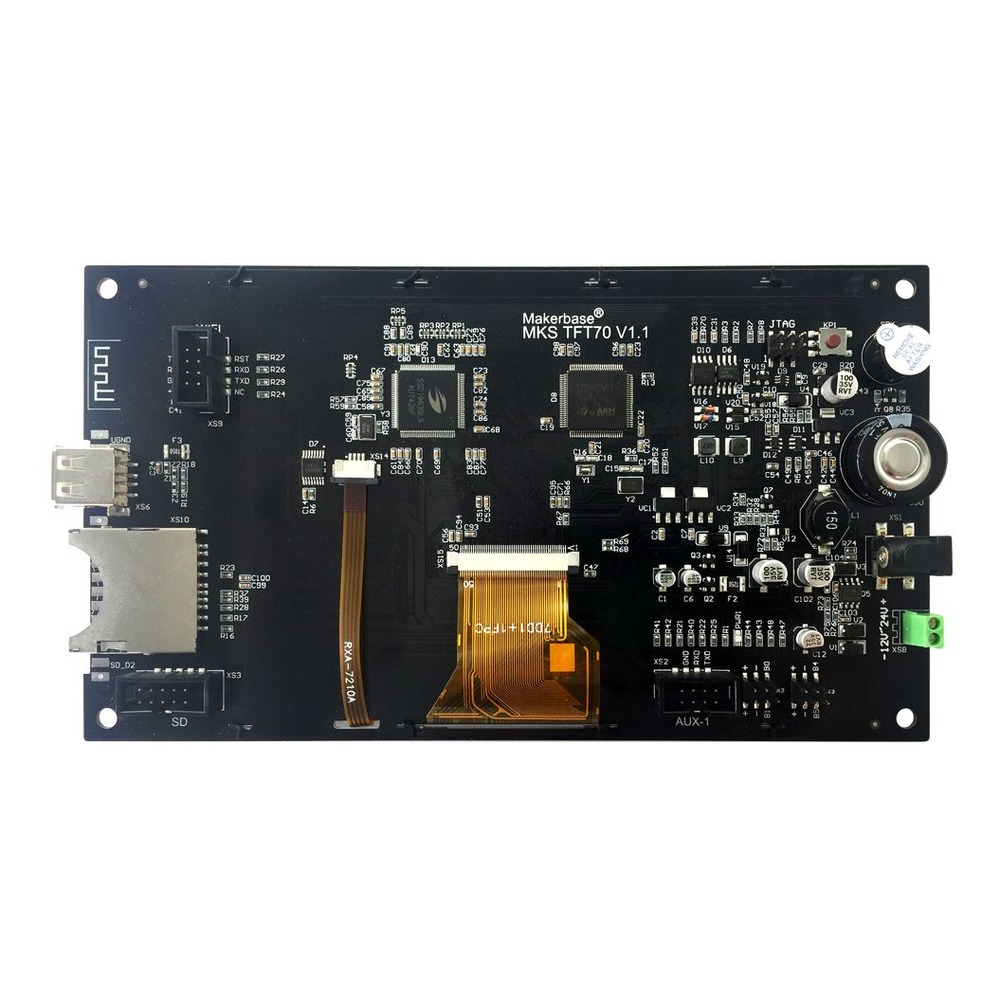

Processor32-bit STM32 processor
Update MethodSD file update
Storage CapacitySD card, U disk
Supported File FormatsGcode

Frequently Asked Questions

What power supply is required for the MKS TFT70 V1.1?

The MKS TFT70 V1.1 requires an external DC power supply ranging from 12V to 24V. This unit does not include the power supply, so users must arrange it separately to ensure proper operation and connectivity with their 3D printer setup.

Which firmware versions are compatible with this screen?

The MKS TFT70 V1.1 is broadly compatible with popular 3D printer firmware, including Marlin and SmoothieWare. This ensures seamless integration with a wide range of mainboards, offering flexible upgrade options for many existing 3D printers.

Does the MKS TFT70 V1.1 support remote control capabilities?

Yes, the screen features integrated Wi-Fi functionality, enabling remote control via a dedicated mobile app (available for Android and iOS) or through a computer web interface. This allows for convenient monitoring and control of your 3D printer from a distance.

Can the user interface of the TFT70 V1.1 be customized?

Absolutely. The MKS TFT70 V1.1 allows for extensive customization. Users can design their own boot logos, buttons, and other interface elements. It also supports online switching between 7 different languages, enhancing user experience and personalization.

Package Includes

  • 1 x Makerbase MKS 7 Inch MKS TFT70 V1.1 Full Color TFT Screen
  • 1 x 8-Pin Connecting Cable (50 cm)

Additional Information

Weight 0.4 kg
Dimensions 18 × 6 × 3 cm
