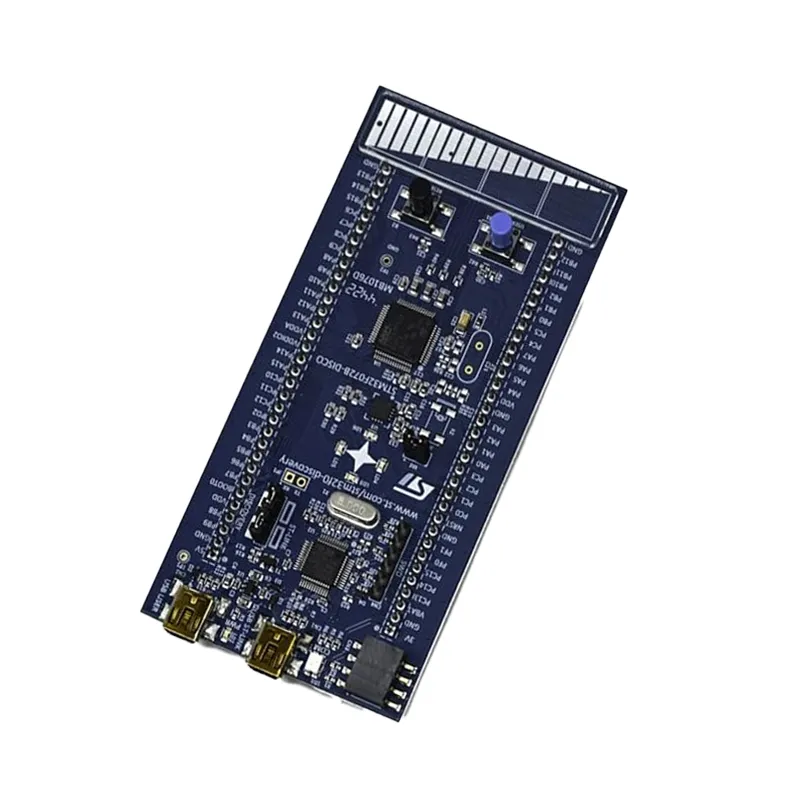

STM32F072B-DISCO Discovery Kit with STM32F072RB MCU

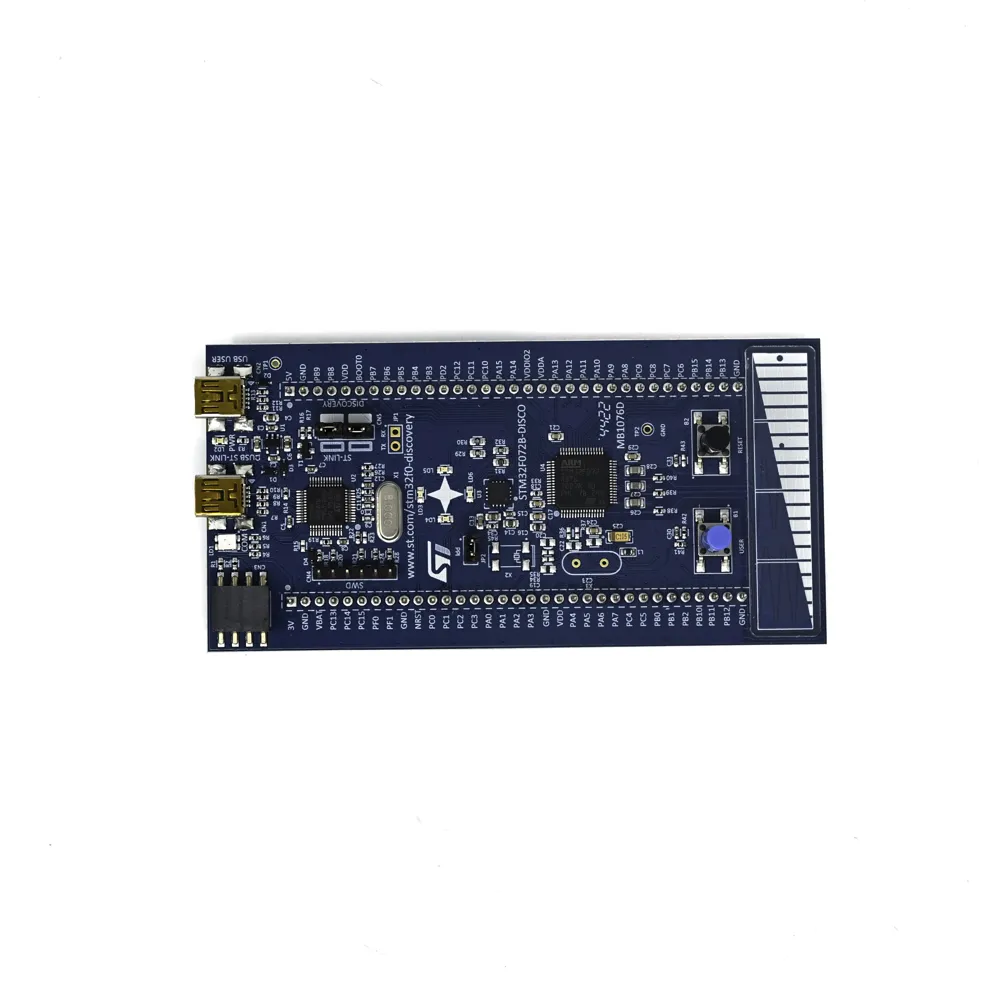

STM32F072B-DISCO Discovery Kit with STM32F072RB MCU - Image 2

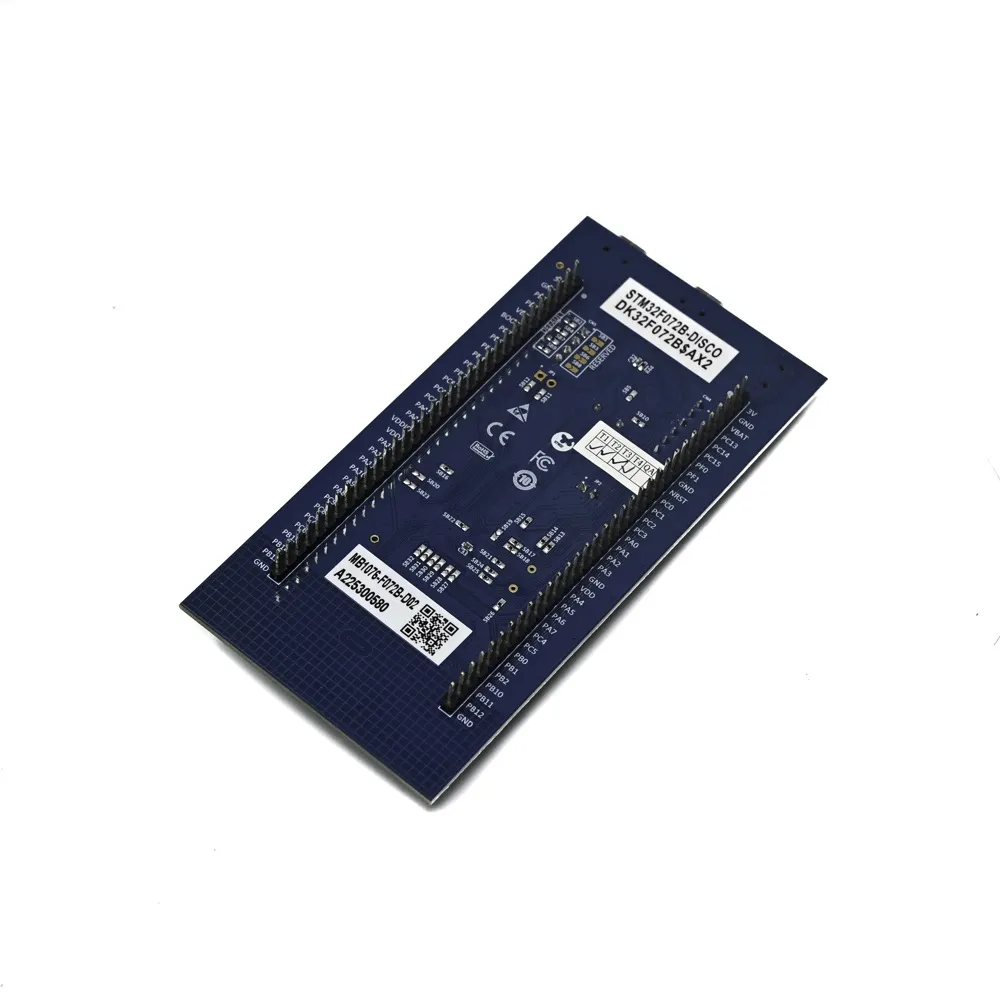

STM32F072B-DISCO Discovery Kit with STM32F072RB MCU - Image 3
SKU: SBCD-0420
📋 GST Invoice Available

STM32F072B-DISCO Discovery Kit with STM32F072RB MCU

₹2,649.00 (Inclusive of all taxes)
Out of Stock

The STM32F072B-DISCO Discovery Kit offers a comprehensive platform for exploring the STM32F072RB microcontroller, featuring an integrated ST-LINK/V2 debugger and an ST MEMS gyroscope for rapid embedded development.

Features

  • Features the STM32F072RB microcontroller with an ARM Cortex-M0 core.
  • Integrated ST-LINK/V2 for convenient programming and debugging functionality.
  • On-board L3GD20 ST MEMS 3-axis digital output gyroscope for motion sensing.
  • Provides flexible power supply options via USB or external 5V source.
  • Includes extension headers for access to LQFP64 I/Os for expanded prototyping.

Out of stock

Description

The STM32F072 Discovery kit provides an excellent entry point for developing applications with the STM32F072 series, offering the full set of features available within the STM32F0 family. Designed for both beginners and experienced users, this kit facilitates quick and easy development, allowing you to focus on your application logic rather than complex setup.

Based on the powerful STM32F072RBT6 microcontroller, the board integrates essential peripherals including an ST-LINK/V2 embedded debug tool interface, an ST MEMS gyroscope, multiple user LEDs, push-buttons, and a linear touch sensor or four touch keys for HMI development. Connectivity is provided via a USB mini-B connector, making it a versatile platform for a wide range of embedded projects, from sensor integration to interactive control systems.

Key Features

  • Extension header for LQFP64 I/Os for quick connection to a prototyping board and easy probing.
  • On-board ST-LINK/V2 with switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging).
  • Integrated L3GD20 ST MEMS 3-axis digital output gyroscope for motion sensing applications.
  • User LEDs (LD3, LD4, LD5, LD6) and two push-buttons (user and reset) for interactive application development.
  • Linear touch sensor or four touch keys for Human-Machine Interface (HMI) integration.
  • Flexible power supply via USB bus or an external 5V source (3V and 5V operation).
  • Compact design optimized for embedded development, educational purposes, and quick prototyping.

Applications

  • Rapid prototyping and proof-of-concept development for embedded systems.
  • Educational projects and learning platforms for microcontroller programming.
  • IoT device development requiring sensor integration and low-power operation.
  • Human-Machine Interface (HMI) applications utilizing touch sensing.
  • Motor control and robotics requiring precise motion sensing capabilities.

Technical Specifications

Item TypeDevelopment Kit
Based OnSTM32F072RBT6 MCU (ARM Cortex-M0)
Flash Memory128KB
RAM16 KB of SRAM
System RequirementsWindows PC (XP, 7, 8)
Operating Voltage3V and 5V
Power Supply VoltageThrough USB bus or an external 5V supply
GyroscopeL3GD20 ST MEMS motion sensor 3-axis digital output gyroscope
LEDsLD1 (red/green for USB), LD2 (red for 3.3V power on), Four user LEDs (orange, green, red, blue)
ButtonsTwo push-buttons (user and reset)

Frequently Asked Questions

What development environments are compatible with the STM32F072B-DISCO?

The STM32F072B-DISCO is compatible with various IDEs, including STM32CubeIDE, Keil MDK-ARM, IAR Embedded Workbench for ARM, and GCC-based toolchains. These environments support flashing, debugging, and C/C++ development for the STM32F072RB MCU, leveraging the on-board ST-LINK/V2 debugger.

What is the primary microcontroller on the STM32F072B-DISCO board?

The board features the STM32F072RBT6 microcontroller, which is based on the ARM Cortex-M0 core. This MCU offers 128KB of Flash memory and 16KB of SRAM, providing sufficient resources for a wide range of embedded applications and real-time processing tasks.

How is the STM32F072B-DISCO board typically powered?

The STM32F072B-DISCO can be powered conveniently through its USB mini-B connector, which also facilitates communication with the host PC for debugging. Alternatively, an external 5V supply voltage can be used. The board supports both 3V and 5V operating voltages for its various components.

Does this development kit include an on-board debugger?

Yes, the STM32F072B-DISCO integrates an ST-LINK/V2 debugger/programmer directly on the board. This allows for seamless debugging and flashing of the STM32F072RB microcontroller without the need for an external debug probe. It also features a switch to use the ST-LINK/V2 as a standalone unit.

What kind of sensor is integrated on the Discovery kit?

The kit incorporates an L3GD20 ST MEMS motion sensor, which is a 3-axis digital output gyroscope. This sensor provides precise angular rate measurements, making the board suitable for applications requiring orientation sensing, motion detection, and other inertial measurement functionalities in embedded systems.

Package Includes

  • 1 x STMicroelectronics STM32F072B-DISCO Development Kit

Additional Information

Weight 0.08 kg
Dimensions 18 × 10 × 5 cm
