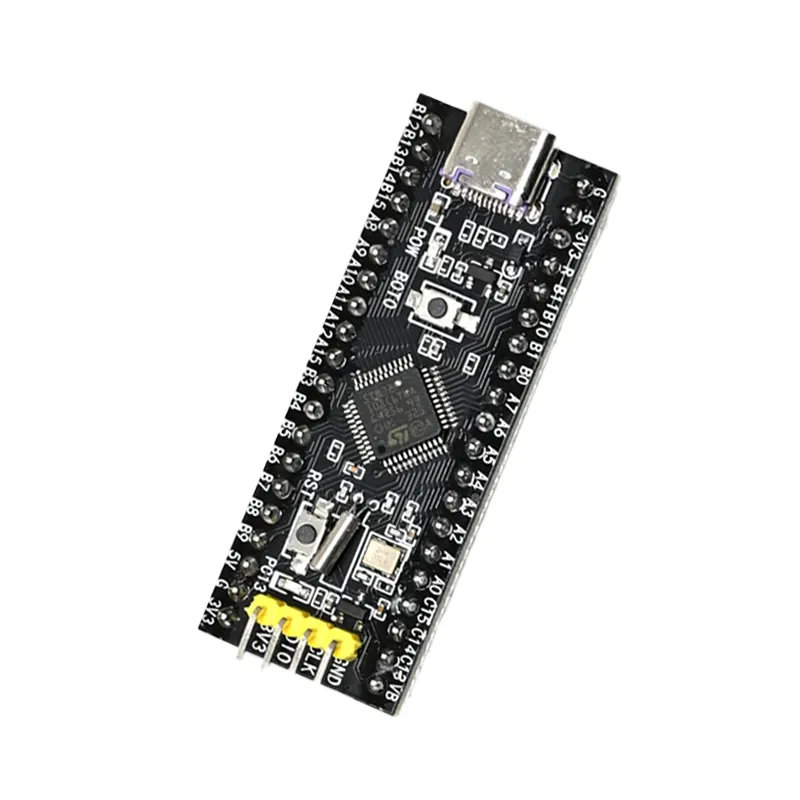

STM32F103C6T6 Core Board with Soldering

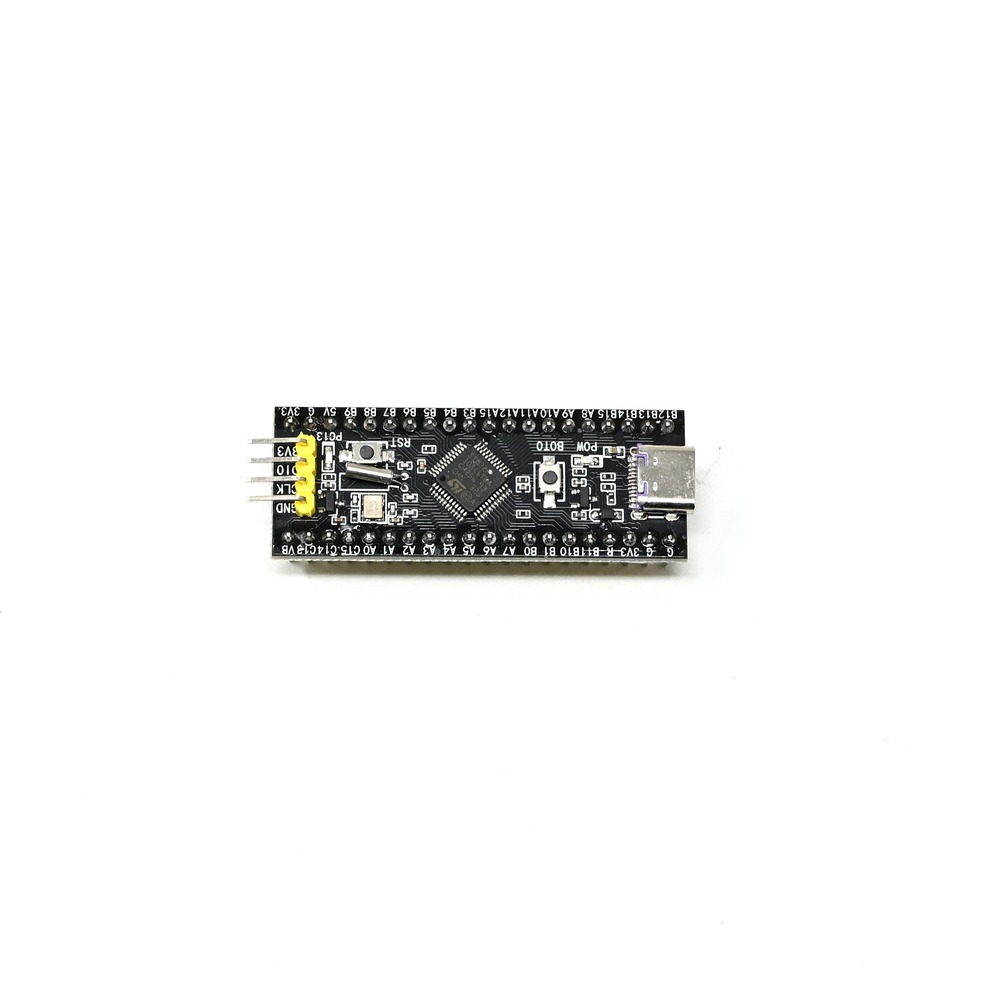

STM32F103C6T6 Core Board with Soldering - Image 2

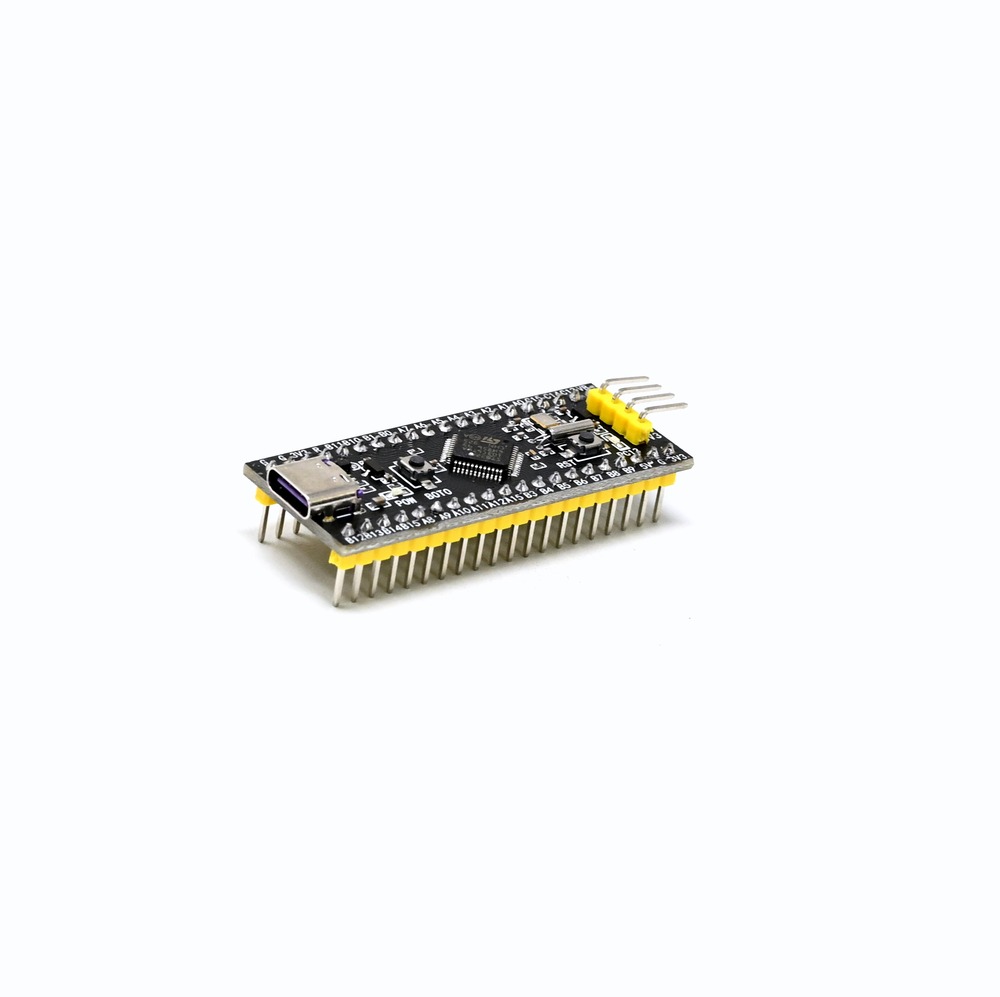

STM32F103C6T6 Core Board with Soldering - Image 3
SKU: SBCD-0395
📋 GST Invoice Available

STM32F103C6T6 Core Board with Soldering

₹229.00 (Inclusive of all taxes)
Out of Stock

This compact development board features the STM32F103C6T6 ARM Cortex-M3 32-bit microcontroller, operating at 72MHz with 32KB Flash and 20KB SRAM. It offers versatile communication via USB, I2C, USART, SPI, and CAN, powered conveniently through Mini USB.

Features

  • ARM Cortex-M3 core STM32F103C6T6 microcontroller for efficient embedded processing.
  • Operates at 72MHz with 32KB Flash and 20KB SRAM for robust application development.
  • Integrated USB, I2C, USART, SPI, and CAN interfaces for broad peripheral connectivity.
  • Flexible 2.0V to 3.6V power supply, with convenient Mini USB power input.

Out of stock

Description

The STM32F103C6T6 Core Board serves as an accessible development platform, built around the STM32F103C6T6 microcontroller, which integrates a powerful ARM Cortex-M3 32-bit core. This board is engineered to provide an affordable and flexible environment, ideal for both learning and practical development of embedded systems.

Operating at a brisk 72MHz, the board delivers ample processing power for a wide array of applications. It boasts extensive connectivity options, including USB, I2C, USART, SPI, and CAN interfaces, enabling seamless integration with various peripherals. With 32KB of Flash memory for program storage and 20KB of SRAM for data, it offers sufficient resources for many typical embedded projects.

Requiring a low voltage supply of 2.0V to 3.6V, this core board is particularly well-suited for beginners and hobbyists eager to delve into microcontroller programming, system design, and real-time application development.

Key Features

  • Microcontroller: STM32F103C6T6 with ARM Cortex-M3 32-bit core.
  • Operating Frequency: 72MHz clock speed.
  • Memory: 32KB Flash Memory for program storage and 20KB SRAM for data storage.
  • Power Supply: Operates on 2.0V to 3.6V.
  • Onboard USB Interface: Provides power supply and USB communication.
  • Crystal Oscillator: 4-16 MHz for main clock, with a 32kHz oscillator for RTC (Real-Time Clock).
  • Reset Function: Power-On Reset (POR) and Power Down Reset (PDR).
  • Flexible GPIO: Multiple general-purpose I/O pins for interfacing with external devices.
  • Low Power Consumption: Suitable for battery-operated applications.

Applications

  • Low-power embedded projects
  • IoT prototyping and proof-of-concept designs
  • Educational robotics and automation
  • Sensor data logging and acquisition
  • Control systems for small devices

Technical Specifications

MicrocontrollerSTM32F103C6T6 (ARM Cortex-M3 32-bit core)
Clock Speed72 MHz
Flash Memory32KB
SRAM20KB

Frequently Asked Questions

What core architecture does the STM32F103C6T6 use?

It integrates an ARM Cortex-M3 32-bit core, providing efficient processing for embedded applications. This architecture is known for its balance of performance and power efficiency, making it suitable for a wide range of real-time control and data processing tasks in compact systems.

What are the key memory specifications of this board?

The board features 32KB of Flash memory for program storage and 20KB of SRAM for data storage. This configuration allows for moderate complexity firmware, enabling developers to implement various functions and manage temporary data effectively within embedded projects.

What communication interfaces are available on the STM32F103C6T6 Core Board?

This core board supports a comprehensive set of communication protocols including USB for host interaction, two I2C, three USART, two SPI, and CAN interfaces. These diverse options facilitate connectivity with a wide array of sensors, actuators, and other peripheral devices for robust system integration.

What development environment is commonly used for the STM32F103 series?

Developers typically use STM32CubeIDE, an integrated development environment from STMicroelectronics, which provides comprehensive tools for code generation, compilation, and debugging. Other options include Keil MDK-ARM or IAR Embedded Workbench, offering robust support for Cortex-M processors.

Package Includes

  • 1 x STM32F103C6T6 Core Board with Soldering

Additional Information

Weight 0.01 kg
Dimensions 11 × 7 × 2 cm
