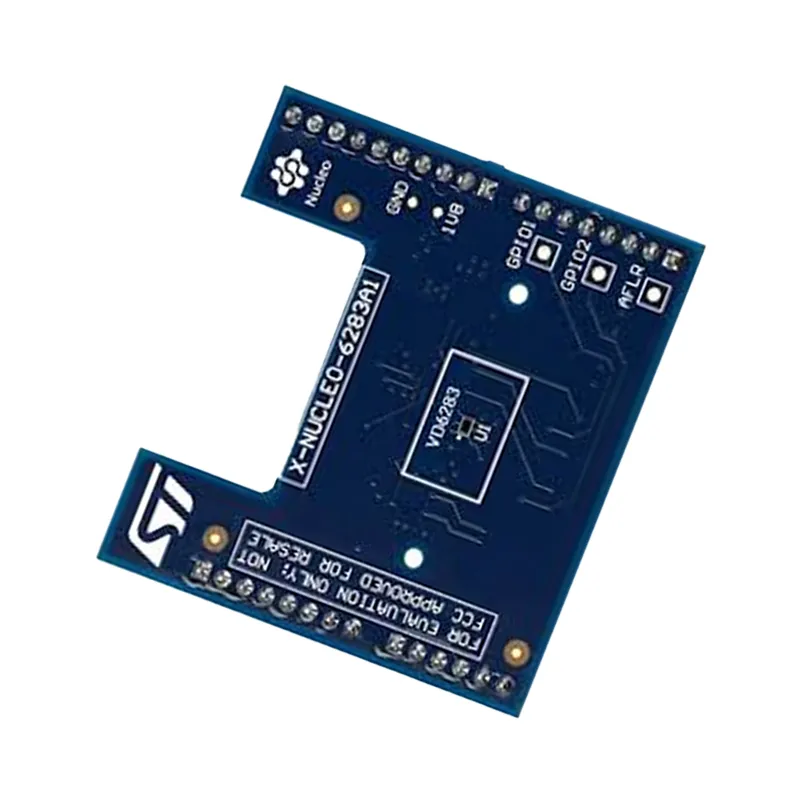

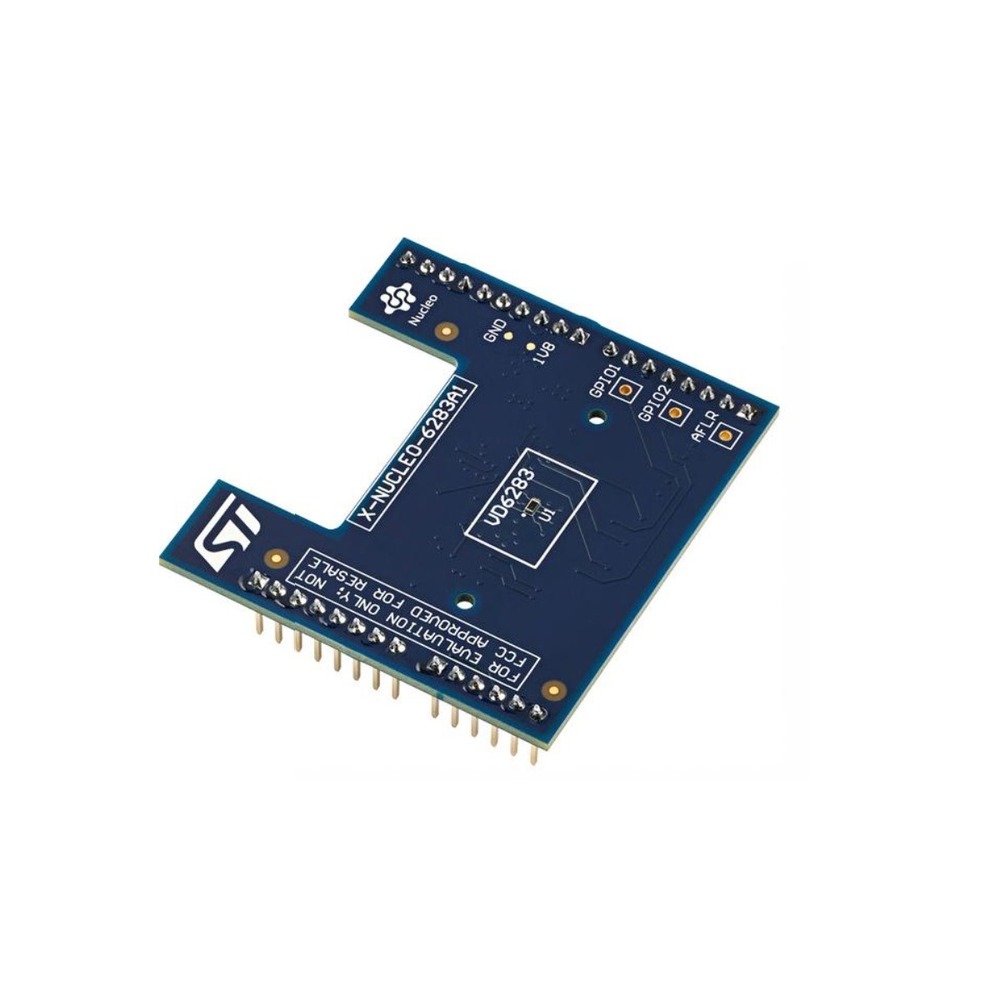

ST VD6283 Color Sensor Expansion Board for STM32 Nucleo
The X-NUCLEO-6283A1 is an expansion board for STM32 Nucleo development boards, enabling comprehensive evaluation and application development using the VD6283 6-channel ambient light sensor with advanced light flicker frequency extraction capabilities.
Features
- Integrates the VD6283 6-channel ambient light sensor for precise color and illuminance.
- Features advanced light flicker frequency extraction from 100 Hz to 2 kHz.
- Directly compatible with STMicroelectronics STM32 Nucleo-64 board family.
- Equipped with the industry-standard Arduino UNO R3 connector layout.
- Provides comprehensive software support including code examples and a graphical user interface.
Out of stock
The X-NUCLEO-6283A1 expansion board serves as a complete evaluation platform for the STMicroelectronics VD6283, a compact 6-channel ambient light sensor. This board facilitates the learning, evaluation, and development of applications requiring accurate color sensing and advanced light flicker detection. The VD6283 measures light swiftly and precisely across six channels—Red, Green, Blue, IR, Clear, and Visible—each with its own dedicated ADC and readout circuitry.
Utilizing hybrid color filters with precise spectral responses, the VD6283 accurately computes correlated color temperature (CCT) and Lux information, making it ideal for display brightness management or dynamic scene light correction. Additionally, the sensor excels at extracting light flickering frequencies ranging from 100 Hz to 2 kHz, including LED square signals, critical for various lighting and display applications. The X-NUCLEO-6283A1 is engineered for seamless integration with STM32 Nucleo-64 boards and is fully compatible with the widely adopted Arduino UNO R3 connector layout, ensuring broad usability and prototyping flexibility.
Additional Information
| Weight | 0.6 kg |
|---|---|
| Dimensions | 20 × 10 × 6 cm |
