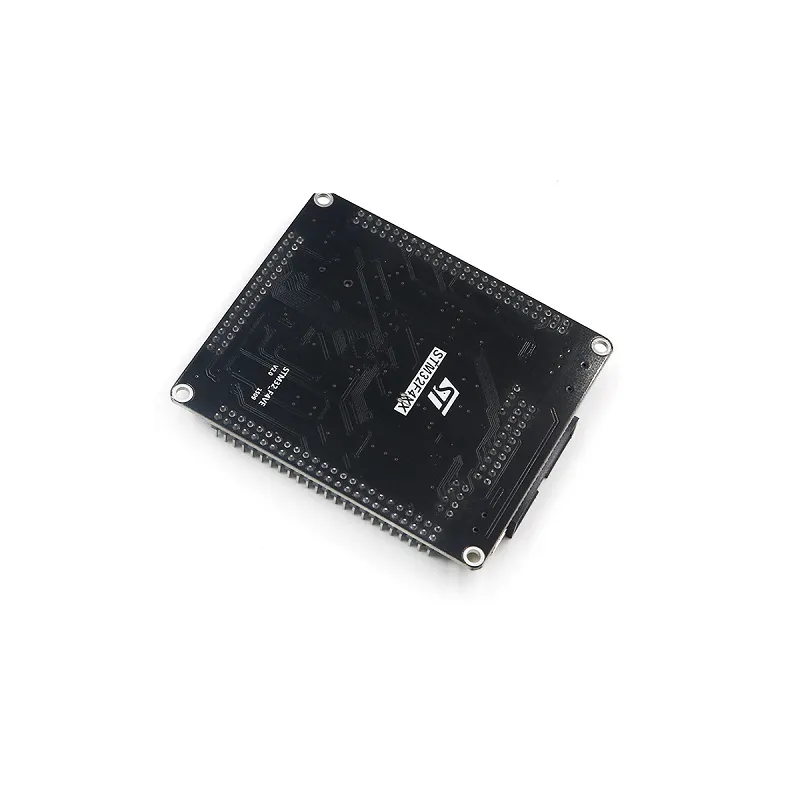

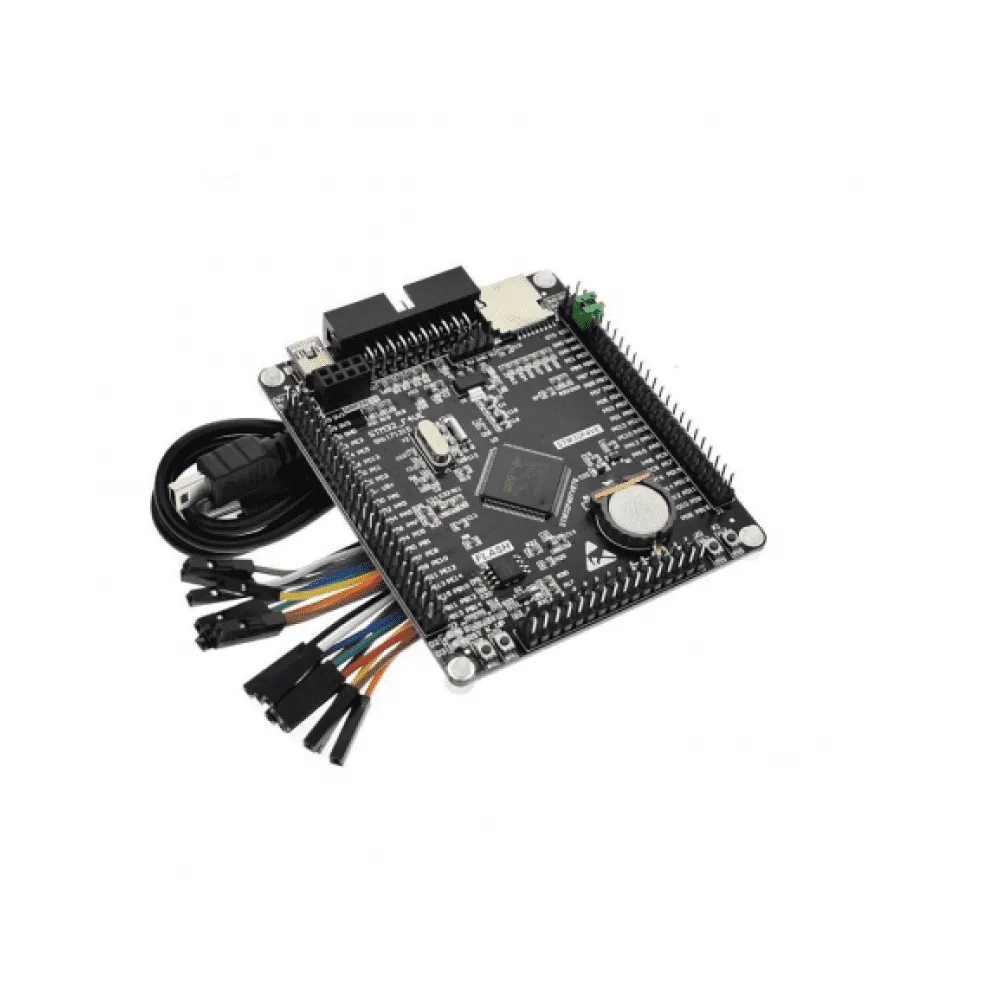

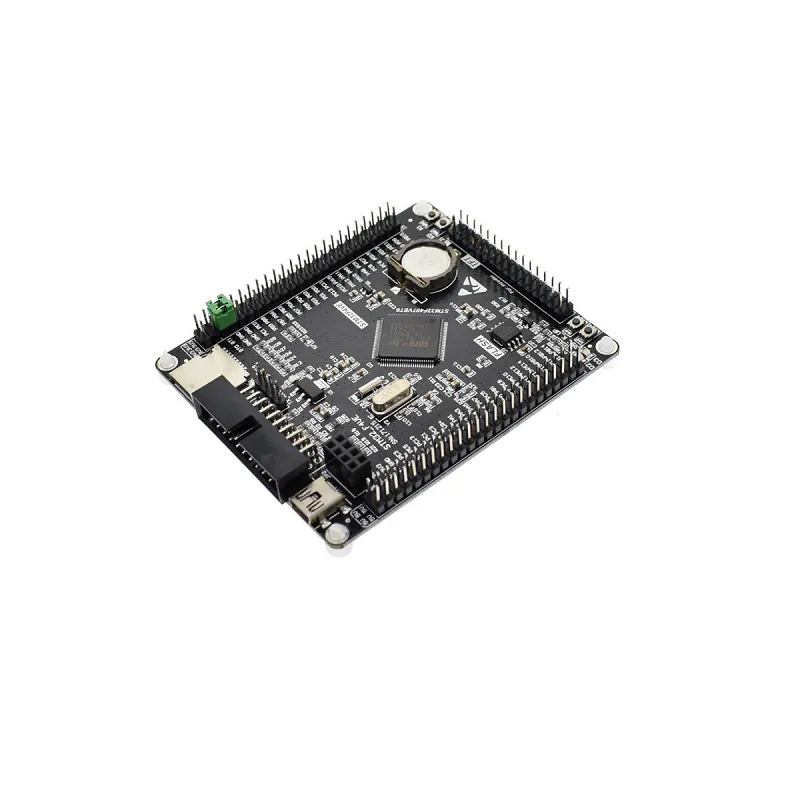

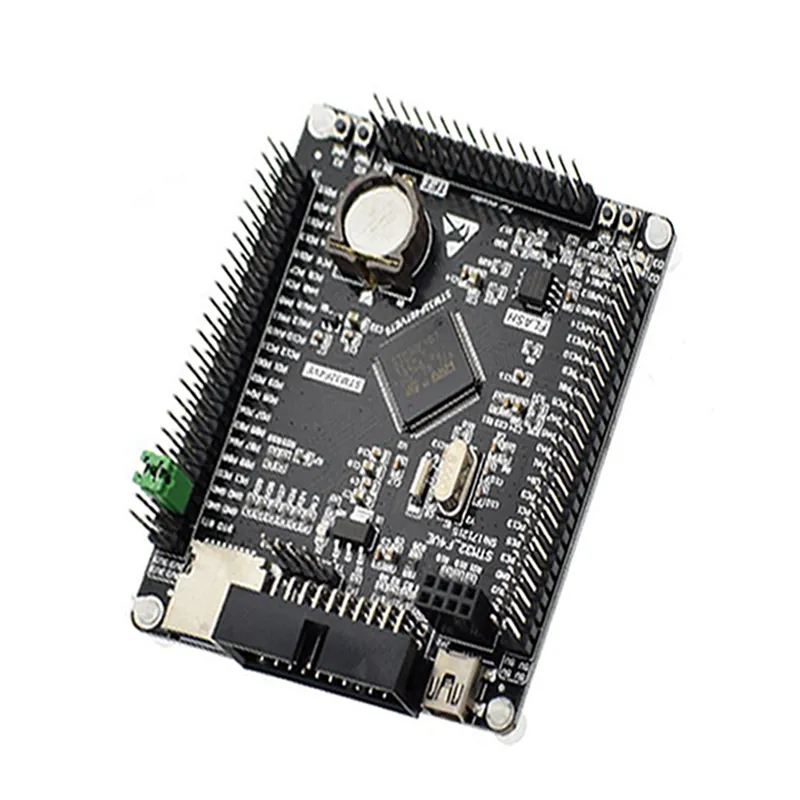

STM32F407VET6 Development Board - Cortex-M4 FPU DSP
The STM32F407VET6 development board features an ARM Cortex-M4 CPU with integrated DSP and FPU, operating at up to 168 MHz. This board provides extensive I/O and communication interfaces, making it ideal for high-performance embedded applications requiring real-time processing and complex peripheral control.
Features
- High-performance ARM 32-bit Cortex-M4 CPU with FPU and DSP instructions.
- Up to 168 MHz core frequency for demanding real-time applications.
- Integrates 1 MB Flash memory and 192 KB SRAM with 4 KB backup SRAM.
- Features rich peripheral set including ADCs, DACs, timers, and extensive I/O.
- SWD debug mode support for efficient program development and debugging.
Out of stock
The STM32F405xx and STM32F407xx microcontroller family, specifically the STM32F407VET6, is engineered around a high-performance ARM Cortex-M4 32-bit RISC core. This core operates at speeds up to 168 MHz and includes a Floating-Point Unit (FPU) for single-precision data processing, enhancing its capability for complex mathematical operations. Additionally, it features a comprehensive set of DSP instructions and a Memory Protection Unit (MPU) to bolster application security and reliability.
This family integrates substantial high-speed embedded memories, including up to 1 Mbyte of Flash memory and up to 192 Kbytes of SRAM, alongside 4 Kbytes of backup SRAM. The robust connectivity is managed by an extensive range of enhanced I/Os and peripherals, all interconnected via two APB buses, three AHB buses, and a 32-bit multi-AHB bus matrix, ensuring efficient data flow and system integration.
The STM32F407VET6 further offers a versatile peripheral suite, including three 12-bit ADCs, two 12-bit DACs, a low-power RTC, and 17 timers—among which are two PWM timers for motor control and two 32-bit general-purpose timers. It also features a true random number generator (RNG) and supports a wide array of standard and advanced communication interfaces, catering to diverse embedded system requirements.
Additional Information
| Weight | 0.073 kg |
|---|---|
| Dimensions | 7.3 × 8.5 × 2 cm |
