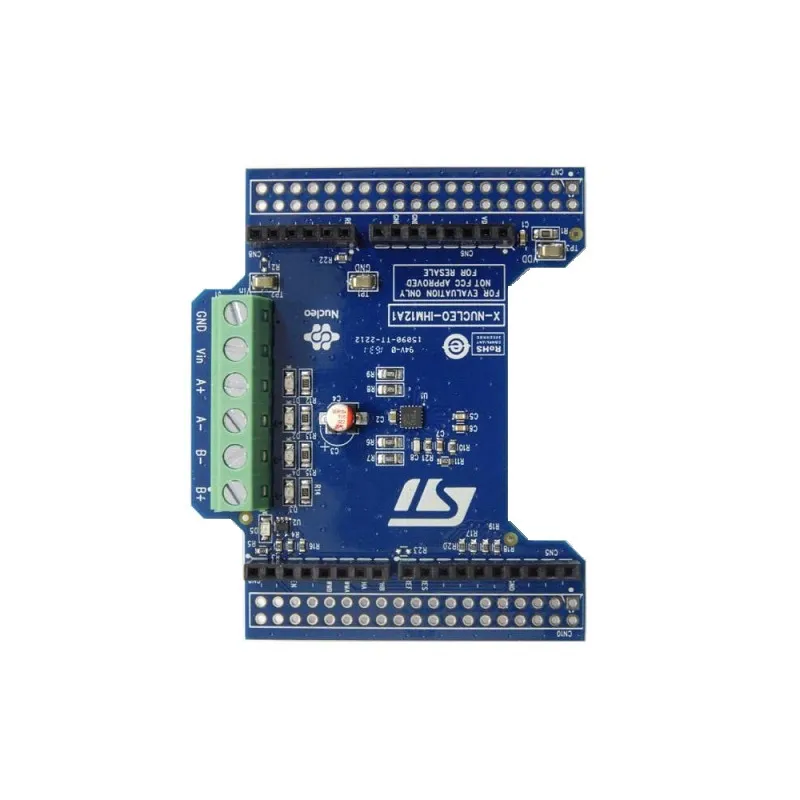

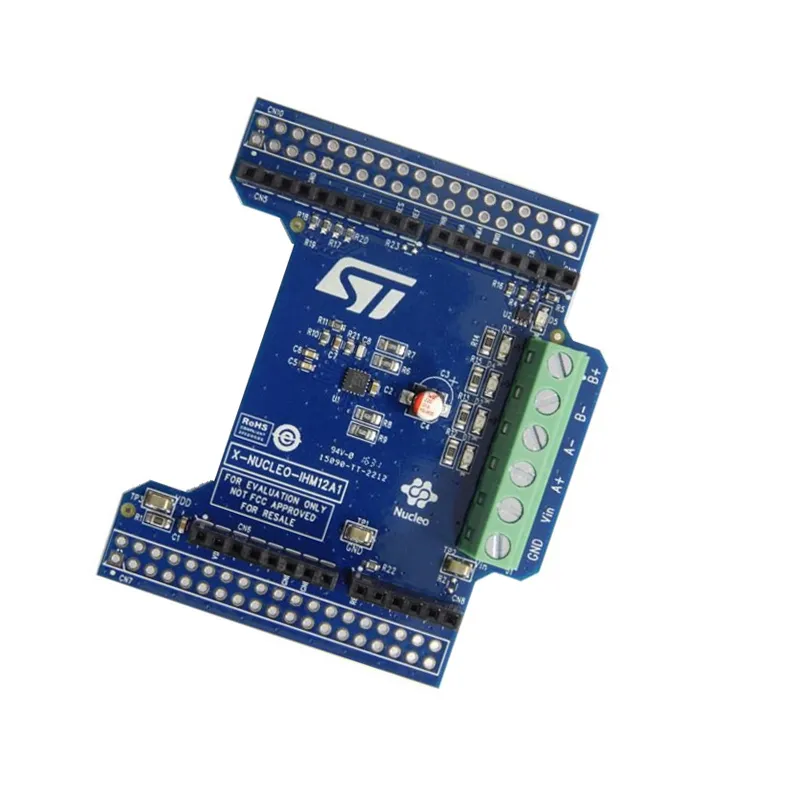

STMicroelectronics STSPIN240 Dual DC Motor Driver Expansion Board
This STMicroelectronics X-NUCLEO-IHM12A1 expansion board integrates the STSPIN240 dual brush DC motor driver, designed for seamless compatibility with STM32 Nucleo development boards. It provides a robust, low-voltage solution for driving two brush DC motors in portable applications.
Features
- Integrates the STSPIN240 dual brush DC motor driver IC.
- Designed for direct compatibility with STM32 Nucleo development boards.
- Supports a wide low voltage input range from 1.8V to 10V.
- Delivers up to 1.3Arms continuous current per motor channel.
- Features comprehensive overcurrent and short-circuit protection for reliability.
Out of stock
The X-NUCLEO-IHM12A1 is a dedicated expansion board for STM32 Nucleo development platforms, featuring the STSPIN240 dual brush DC motor driver. This board is engineered to facilitate rapid prototyping and deployment of portable motor-driving solutions, offering a cost-effective and straightforward interface for controlling two brush DC motors. Its design prioritizes ease of use and integration within the STM32 ecosystem, making it suitable for various embedded control projects.
This expansion board leverages the capabilities of the STSPIN240, providing robust motor control with a wide input voltage range and current delivery. It includes essential protection features to ensure reliable operation in demanding environments. Developers can quickly integrate this board into their STM32 Nucleo projects to manage motor-driven actuators in applications requiring precise, low-voltage control.
Additional Information
| Weight | 0.06 kg |
|---|---|
| Dimensions | 15 × 12 × 4 cm |
