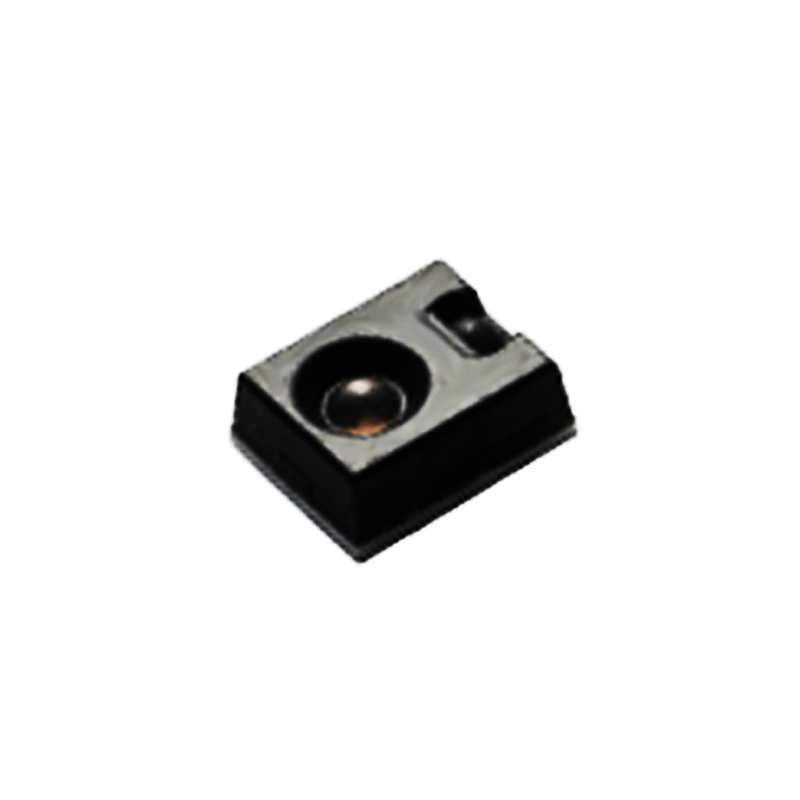

Sharp Microelectronics GP2AP030A00F Proximity & Ambient Light Sensor Module - 0.02–10,000 lx, I²C, 100mm Range
The Sharp Microelectronics GP2AP030A00F is a compact, integrated digital sensor module combining proximity detection and ambient light sensing (ALS) with an I²C interface, compatible with 3.3V and 5V microcontroller systems like Arduino, Raspberry Pi, and ESP32. It provides 16-bit digital output for precise light measurement from 0.02 to 10,000 lux and proximity sensing up to 100mm.
Features
- Integrated proximity and ambient light sensor (ALS) in a single compact module.
- 16-bit digital I²C output for high-resolution light measurement (0.02–10,000 lx).
- Proximity detection range up to 100mm for object presence sensing.
- Wide operating voltage range from 2.2V to 5.5V for flexible system integration.
- Low power consumption: 170–250 μA (proximity mode), 100–150 μA (ALS mode).
Out of stock
The Sharp Microelectronics GP2AP030A00F utilizes a photodiode array and integrated signal processing to deliver precise ambient light level and proximity data. Its digital I²C interface simplifies integration with microcontrollers, providing calibrated 16-bit output for accurate lux calculation and reliable object detection without external analog conditioning.
Designed for extended operation in consumer electronics and IoT devices, the sensor operates across a -35°C to +85°C temperature range. The compact form factor and low current draw make it ideal for battery-powered applications where space and power efficiency are critical.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 0.4 × 0.3 cm |
