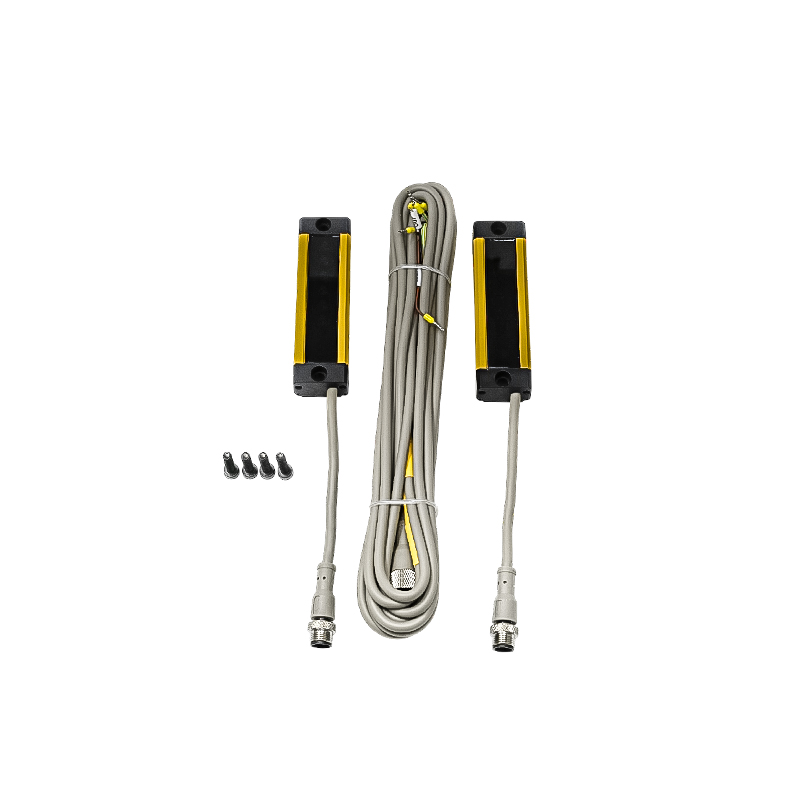

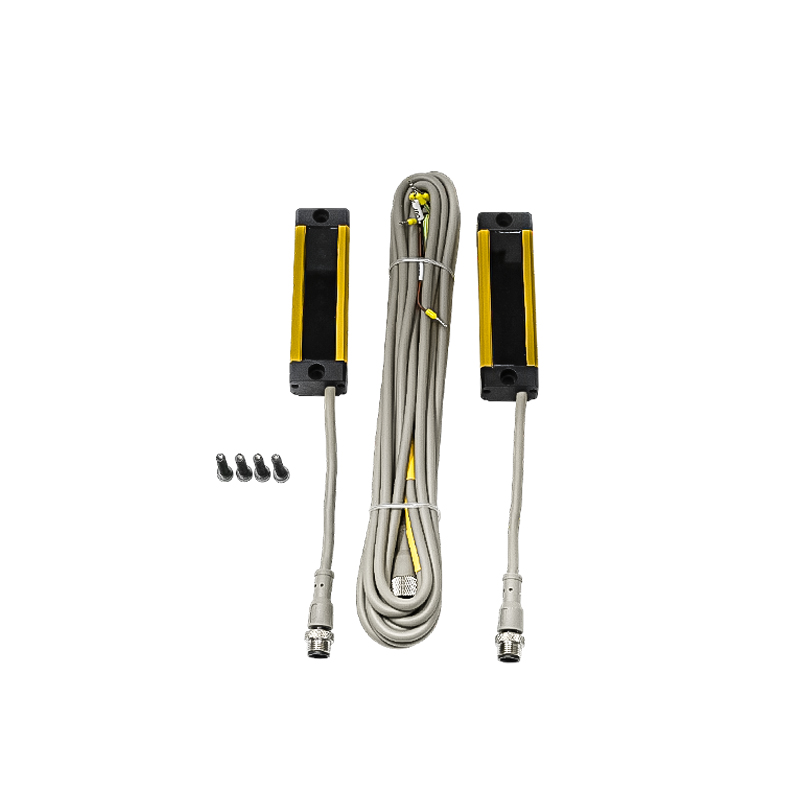

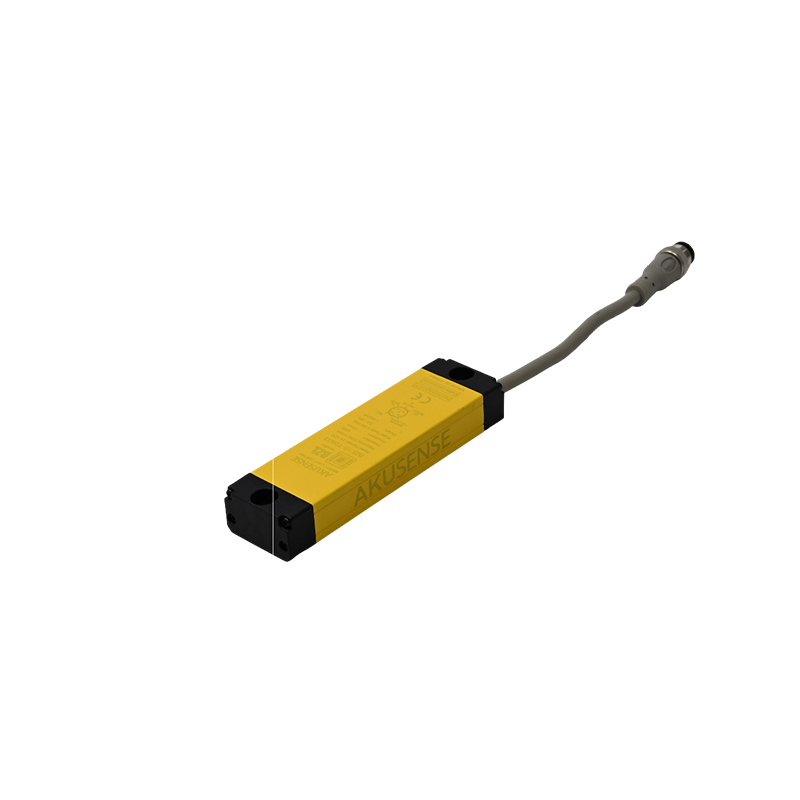

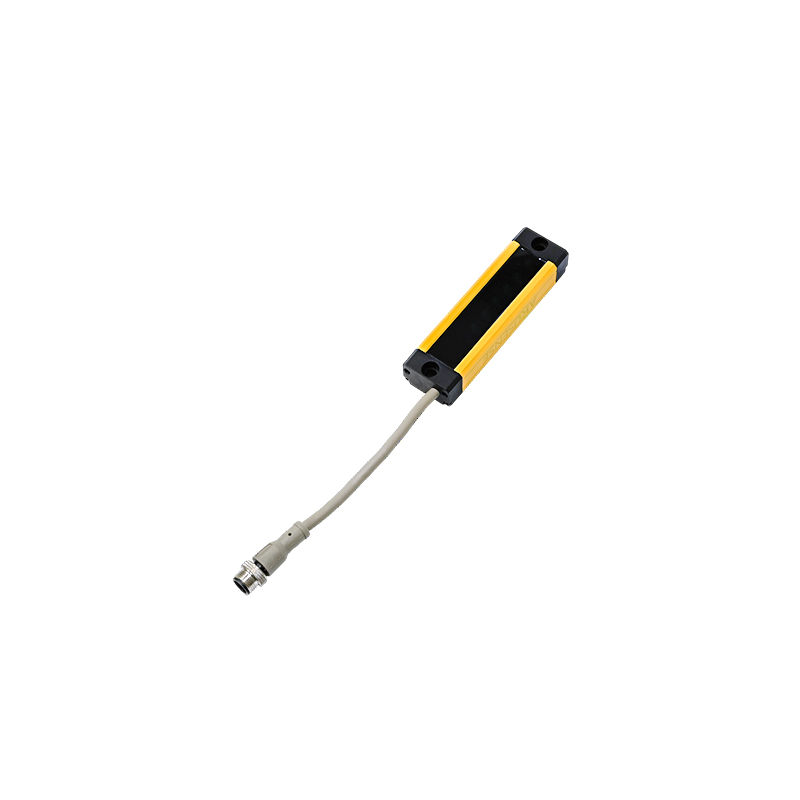

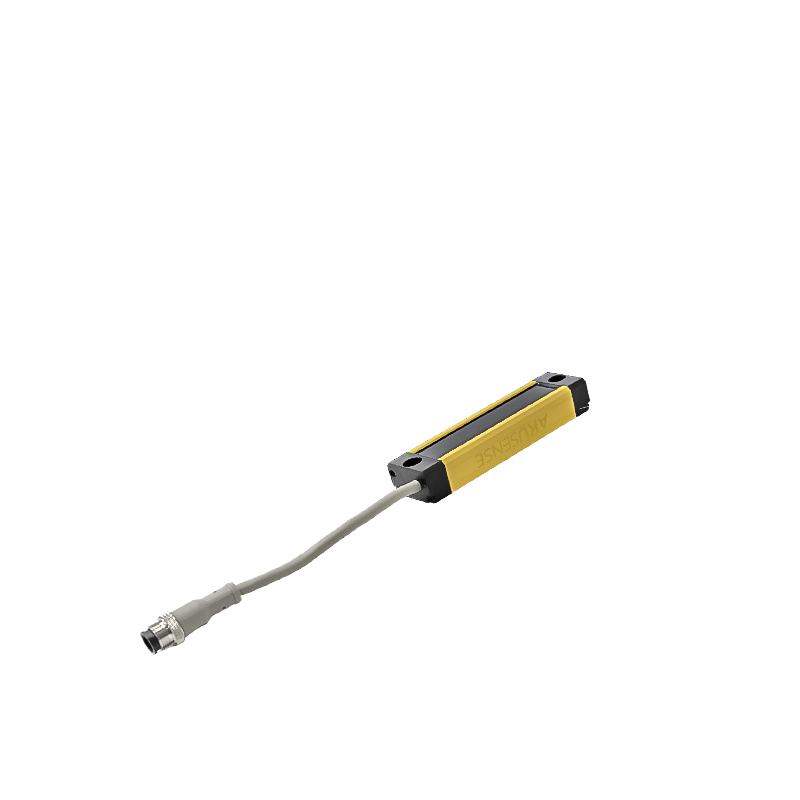

AkuSense BZL10-T0603NC Top-Emitting Light Curtain Proximity Sensor, Range 0.3-3M, NPN Output
The AkuSense BZL10-T0603NC is a top-emitting infrared light curtain proximity sensor with a 0.3–3 meter adjustable detection range and NPN output, designed for integration into industrial safety systems, machine guarding, and automation control panels.
Features
- Top-emitting infrared light curtain with 10 mm beam pitch and 110 mm protection height.
- Adjustable detection range from 0.3 meters to 3.0 meters for flexible application setup.
- NPN open-collector output compatible with PLCs, relays, and industrial control systems.
- Slim 17 mm profile with plastic mounting holes for easy, space-saving installation.
- Operates on a 12–24 VDC supply voltage for industrial power compatibility.
Out of stock
The AkuSense BZL10-T0603NC utilizes a multi-beam infrared light curtain principle, where an array of synchronized IR beams creates a protected detection zone. An object or person interrupting any beam triggers the NPN output signal. This design provides area coverage rather than a single-point detection, enhancing safety and object presence monitoring.
Built for industrial environments, the sensor features a durable plastic housing and is engineered for reliable operation in automation settings. Its adjustable sensing range allows for precise calibration to match specific application requirements, from close-range part detection to larger area access control.
Additional Information
| Weight | 0.596 kg |
|---|---|
| Dimensions | 39 × 16 cm |
