Bosch BMI260 6-Axis IMU | ±16g Accel + ±2000 dps Gyro | Low Power | I²C/SPI | LGA-14

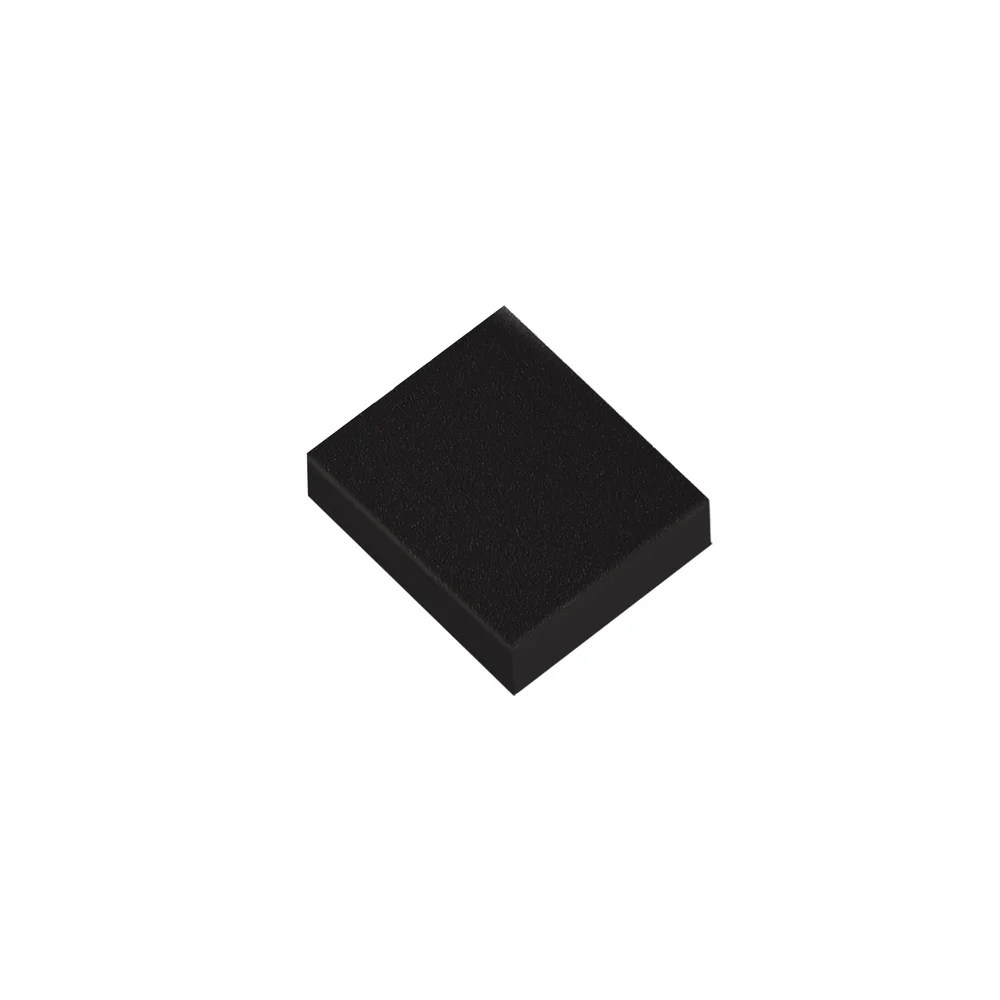

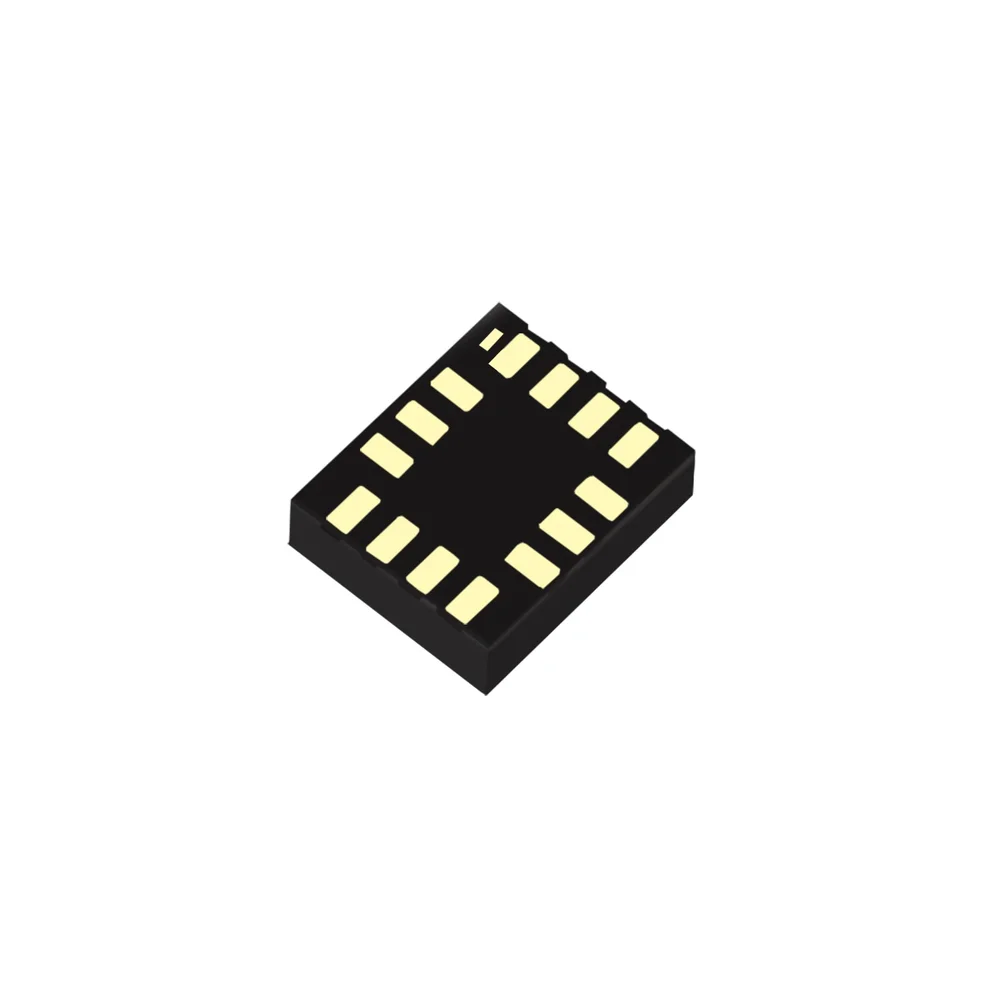

The Bosch BMI260 is a 6-axis inertial measurement unit (IMU) integrating a 16-bit triaxial accelerometer (±2g to ±16g) and gyroscope (±125 to ±2000 dps) in a compact LGA-14 package. It features ultra-low power consumption, dual SPI and I²C interfaces, and is designed for precise motion tracking in AR/VR, drones, wearables, and robotics.
Features
- 16-bit triaxial accelerometer with programmable range from ±2g to ±16g.
- 16-bit triaxial gyroscope with programmable range from ±125 to ±2000 degrees per second.
- Ultra-low power design with configurable power modes for battery-operated applications.
- Dual SPI and I²C digital interfaces for flexible system integration.
- Integrated self-calibration (CRT), motion interrupts, and step detection algorithms.
Out of stock
The Bosch BMI260 is a high-performance, low-noise 6-axis inertial measurement unit designed for advanced motion sensing applications. It combines a precise MEMS accelerometer and gyroscope, offering excellent stability across temperature variations and mechanical stress due to its built-in calibration routines (CRT). The sensor provides high-resolution data with low noise density, enabling accurate orientation tracking, gesture recognition, and motion-triggered functionality.
Its flexible digital interfaces, including dual SPI for high-speed data streaming and I²C for simpler connections, make it compatible with a wide range of microcontrollers and processors like STM32, ESP32, and Raspberry Pi. The BMI260 is pin-to-pin compatible with the BMI160, offering an upgrade path with enhanced performance and lower power consumption, ideal for next-generation portable electronics and industrial motion control systems.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 2 × 2 × 2 cm |
